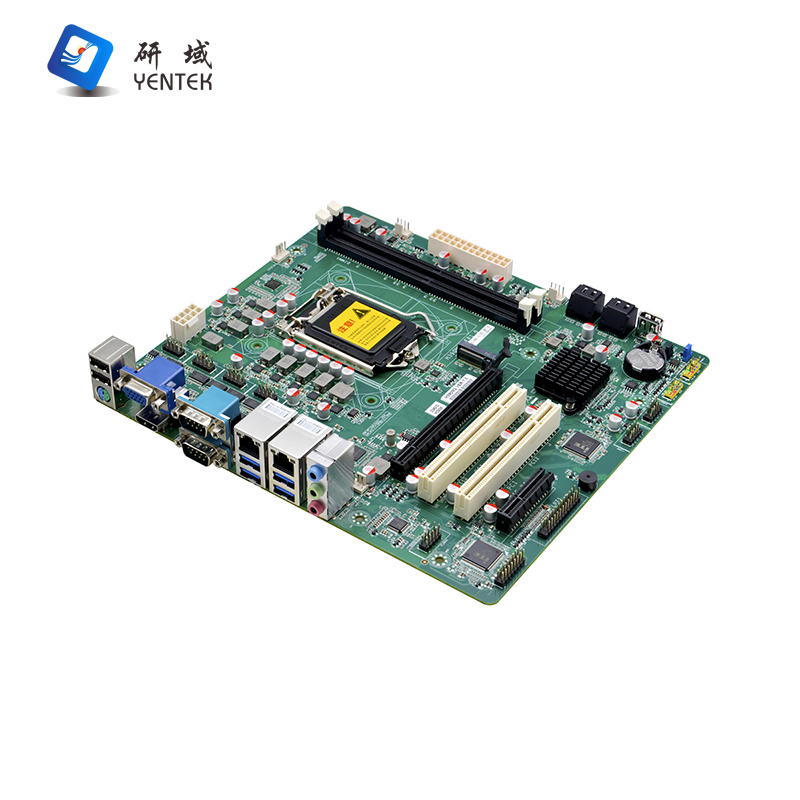

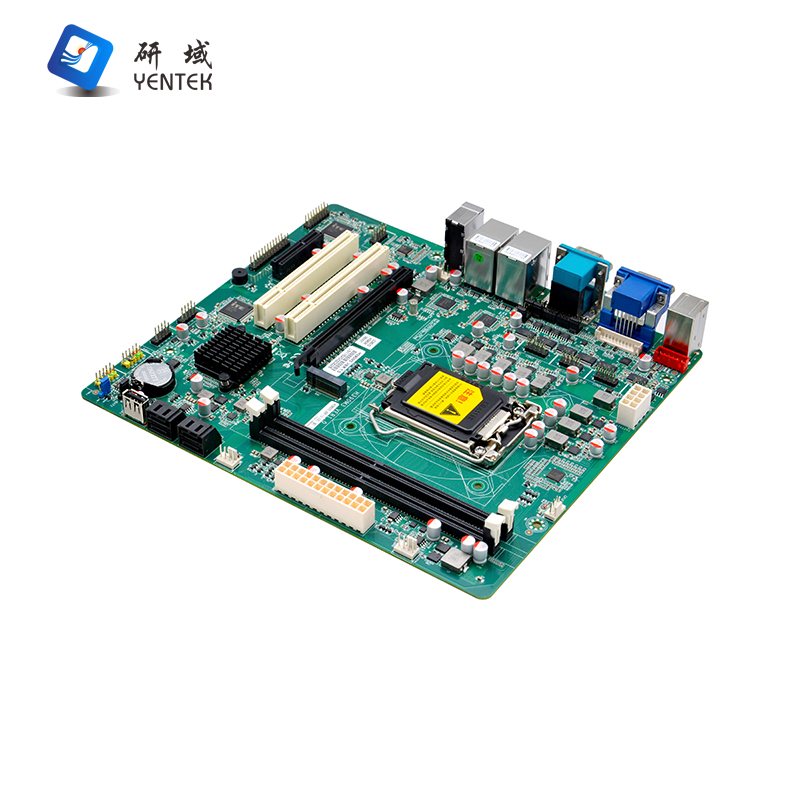

H390M3

Processor

Support 8th/9th   Celeron/Pentium/Core I3/I5/I7/I9 processors with LGA1151 architecture.

Chipset

Intel Z390 high-speed chipset

Memory

2*DDR4 DIMM memory slots, support dual-channel   2133/2400/2666MHz memory, maximum support 64GB

Display

Integrated   Intel® HD Graphics controller, 1*VGA port and 1*HDMI1.4 port.

Support   separate display, dual display mode, expansion mode

Network

2*   Intel I210AT Gigabit LAN card, support for Wake-on-LAN and PXE function.

Storage

4* SATA3.0 hard drive interface, SATA   transmission speed up to 6Gbps, support RAID 0,1,5,10

1* M.2 slot, support for M.2 2280 PCIE   x4/SATA adaptive standard SSD

Audio

Onboard ALC897 7.1+2 hi-fi audio controller, support Mic,   Line out, Line-in

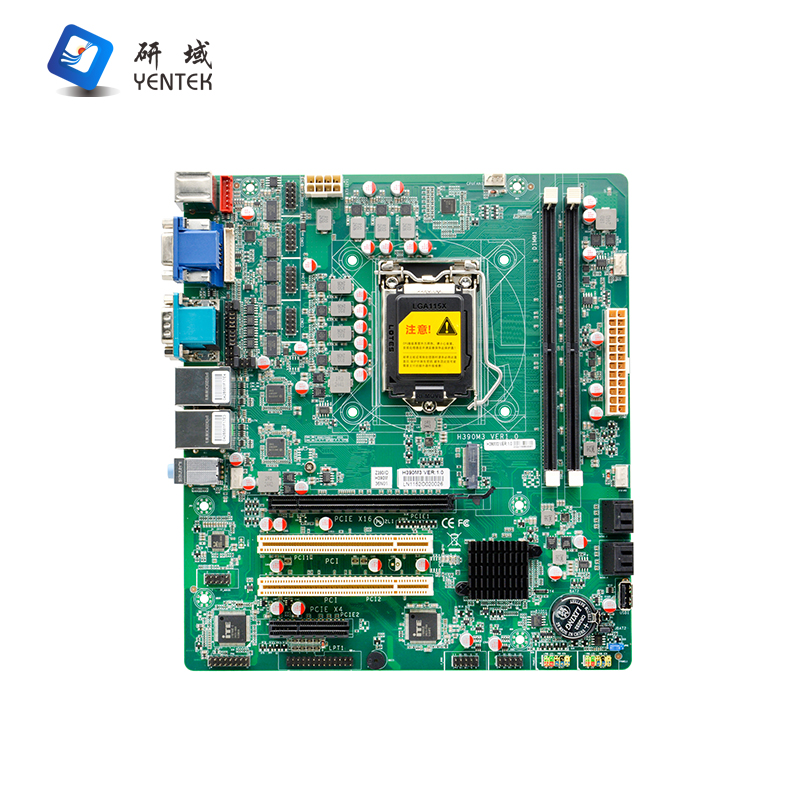

Expansion   Slots

1* PCIE x16 slot

1* PCIE x4 slot

2* PCI slot

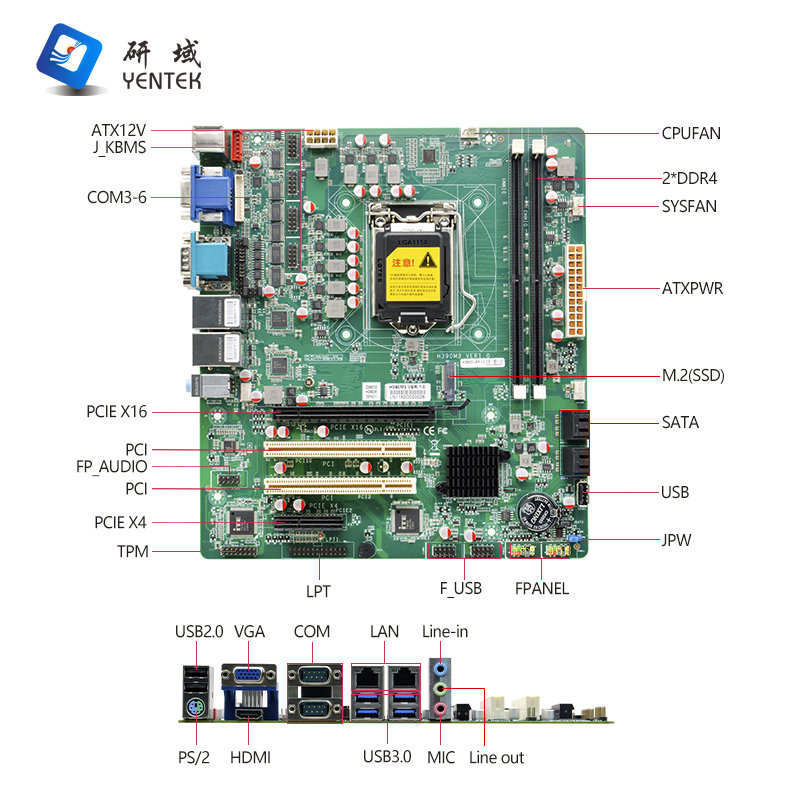

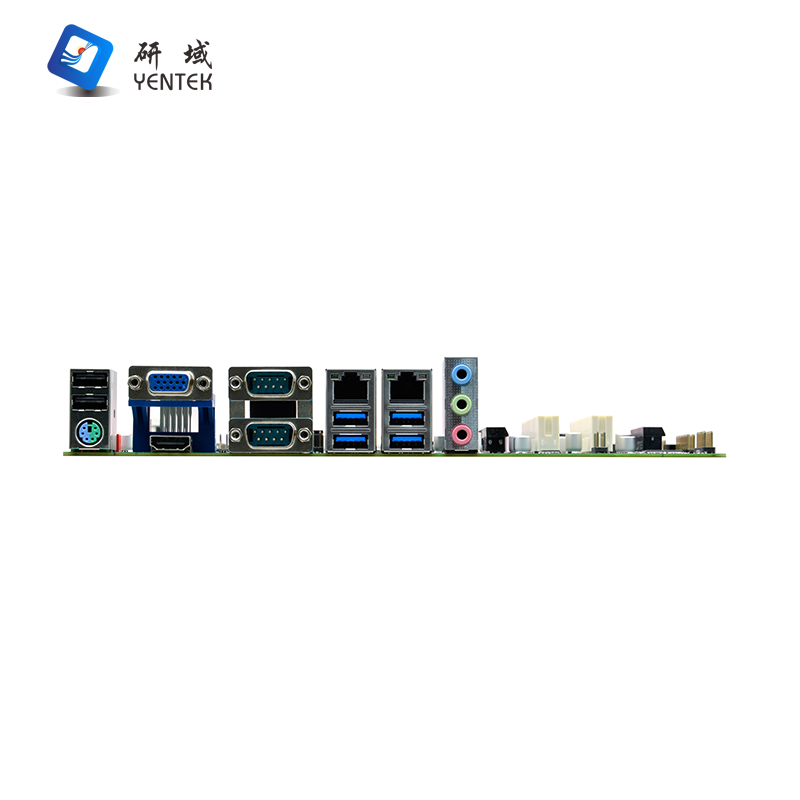

Backplane   I/O Ports

1* PS/2 keyboard and mouse interface

1* VGA display interface

1* HDMI display interface

2* RS232 serial port (COM1/2 support 5V/12V   powered function, COM1/2 support RS485/422 function)

2* RJ45 Gigabit network interface

2* USB 2.0 interface

4* USB 3.0 interface, support for single-port   2A current

1* Line out interface (green), 1* Mic interface   (red), 1* Line-in interface (blue)

Built-in   I/O Ports

1* PS / 2 keyboard and mouse interface 1 *   6pin pin and UK1 with the same signal

1* JVGA connector 1*12pin, same signal as   DB15

4* RS232 serial port 2*5pin

1* Front Audio Interface 2*5pin

4* USB 2.0 interface 2*5Pin

1* USB2.0 interface USB TYPE-A

1* TPM connector 2*8pin row pin

2* Front Panel Function Button and Indicator   Interface 2*5pin

1*LPT 2*13 pin pin header

1* 24pin ATX power input connector

1*8pin ATX power input connector

Fan   Ports

1*4pin CPU smart fan connector, 3*4pin system   smart fan connector

BIOS

64Mb Flash ROM

Operating   System

Windows   7 / 10 / 11 / Linux

Watchdog

Support   hardware reset function (256 levels, 0~255 seconds)

Power   Supply Type

ATX   Power Input

Operating   Temperature

0℃～60℃

Storage   Temperature

-20℃～70℃

Working   Humidity

5%-95%   relative humidity, non-condensing

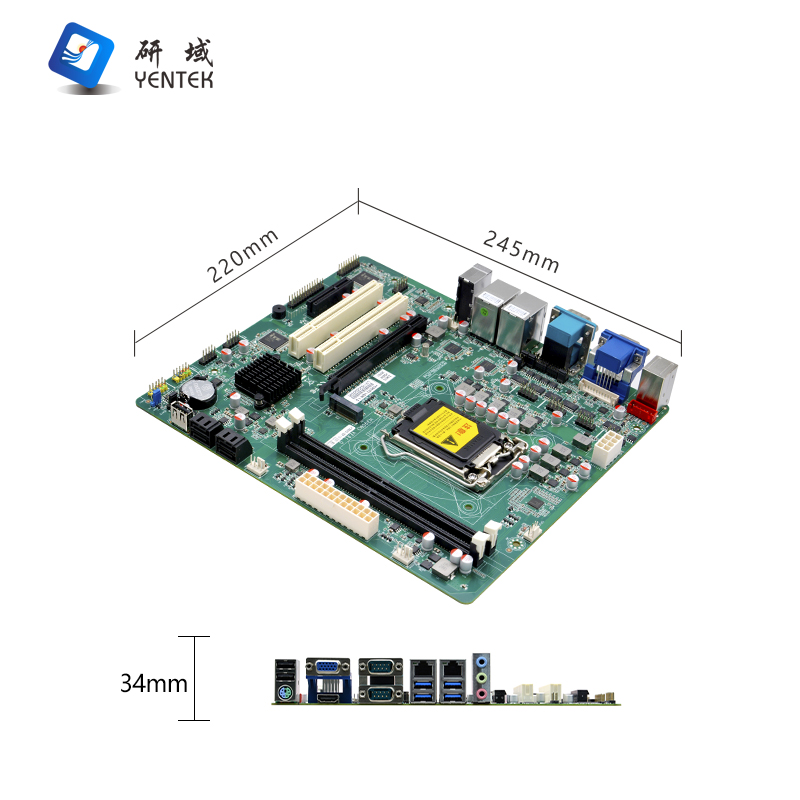

Dimension

245mm   x 220mm(mATX)
