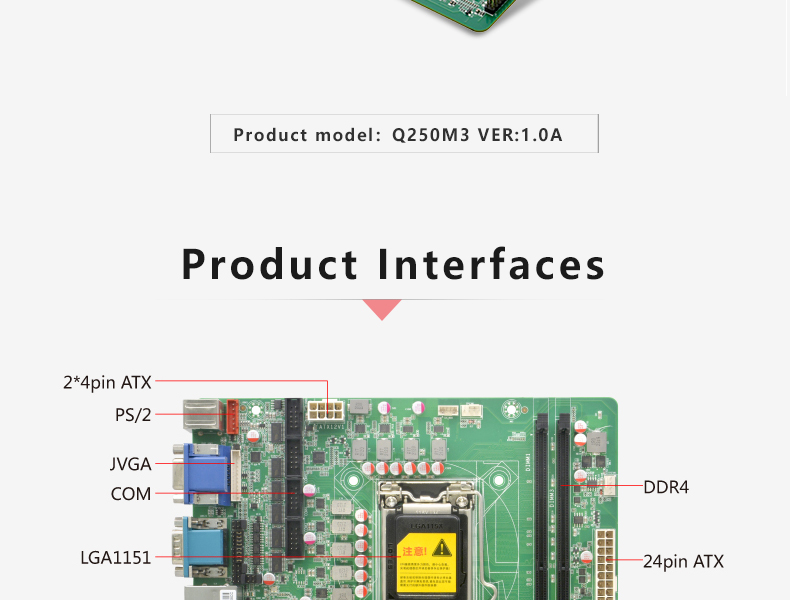

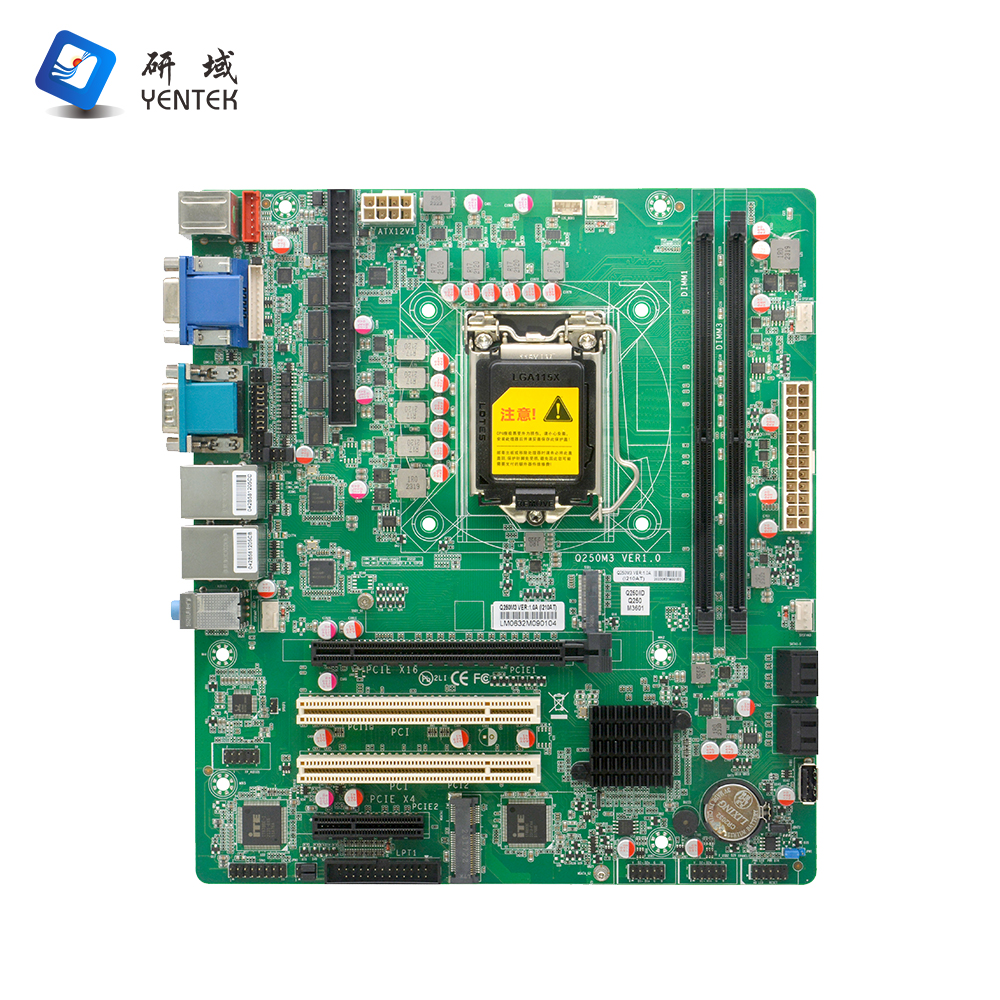

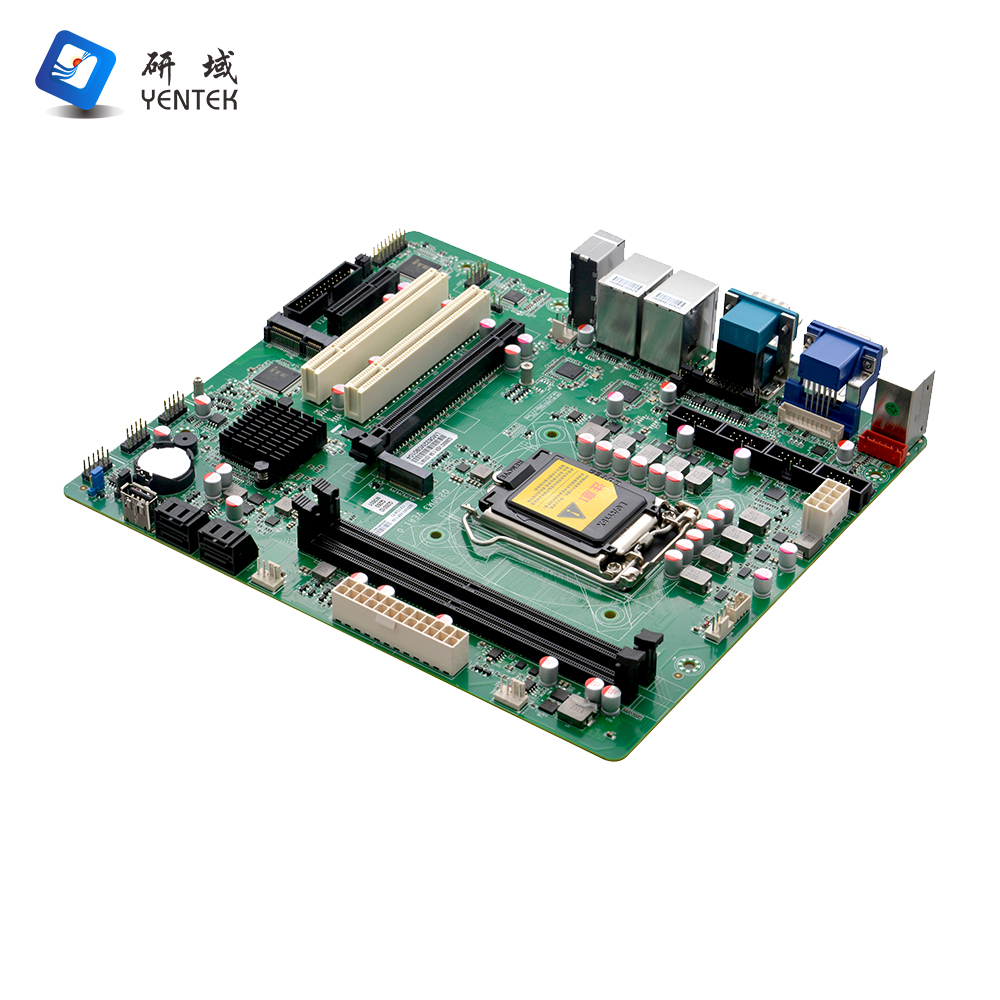

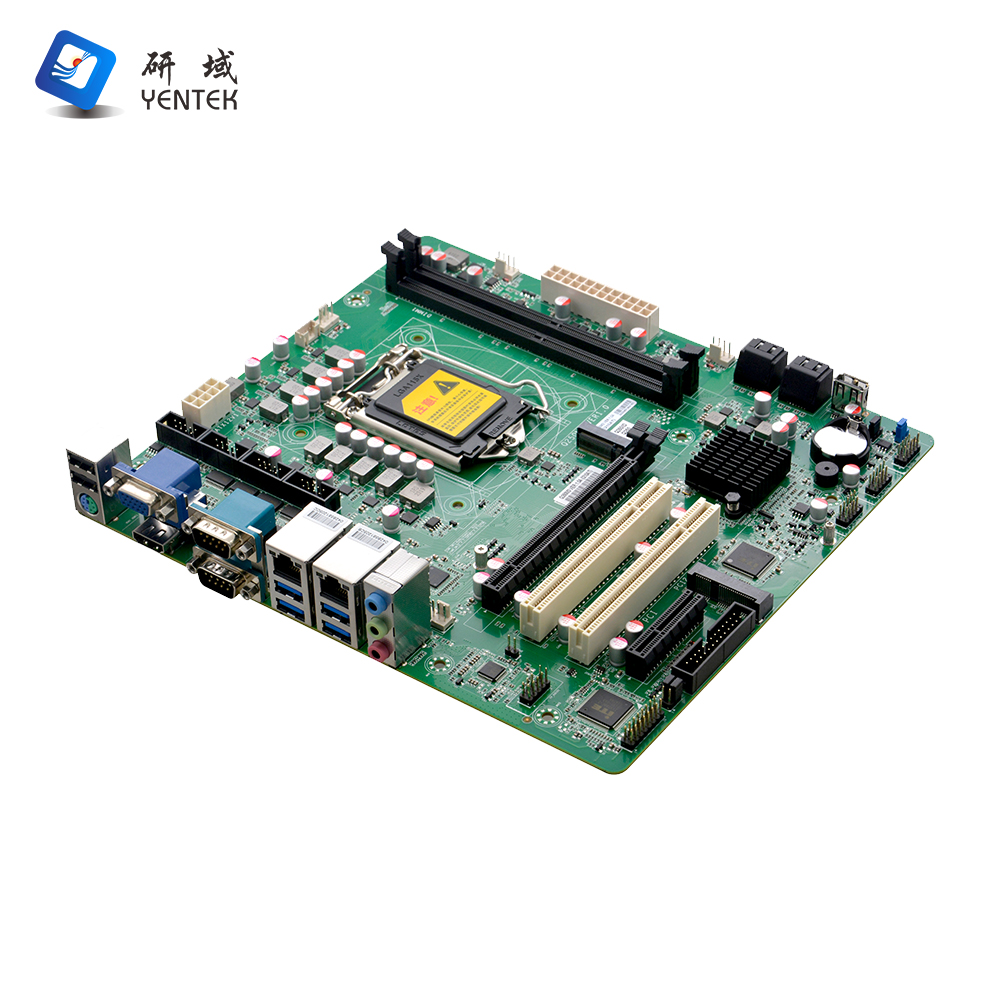

| Product model | Q250M3 VER:1.0A(I210AT) |
| Processor | 6th/7th/8th/9th Celeron/Pentium/Core™ i3/i5/i7 processors supporting the LGA1151 architecture, Note: Support 6/7/8/9 generation 95W CPU |

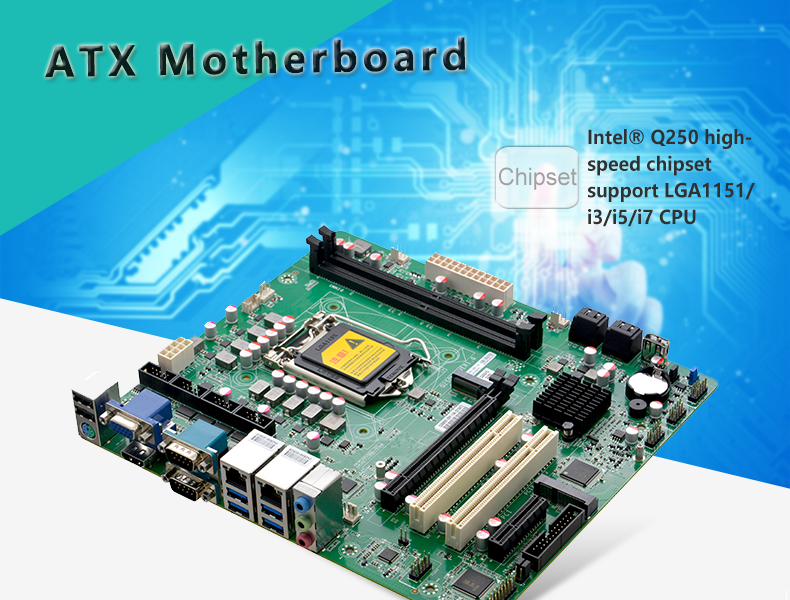

| Chipset | IIntel Q250 high-speed chipset |
| Memory | 2 * DDR4 DIMM slots for dual-channel 2133 MHZ memory, 2400 MHZ memory, and 2666 MHZ memory, with a maximum capacity of 64GB |
| Display | 1*VGA and 1*HD OUTPUT1.4 |
| Supports single display, dual display mode, extended mode | |
| Network | 2* Intel I210AT Gigabit network adapter, supporting network wake up and PXE functions |
| Store | 4* SATA3.0 hard disk interface,SATA transmission speed up to 6Gbps |
| 1* MSATA interface, support Intel protocol SSD, transmission rate up to 6Gbps | |
| 1* M.2 slot, supporting the M.2 2280 PCIE x4/SATA adaptive standard SSD | |
| Tone frequency | 1* M.2 slot, supporting the M.2 2280 PCIE x4/SATA adaptive standard SSD |

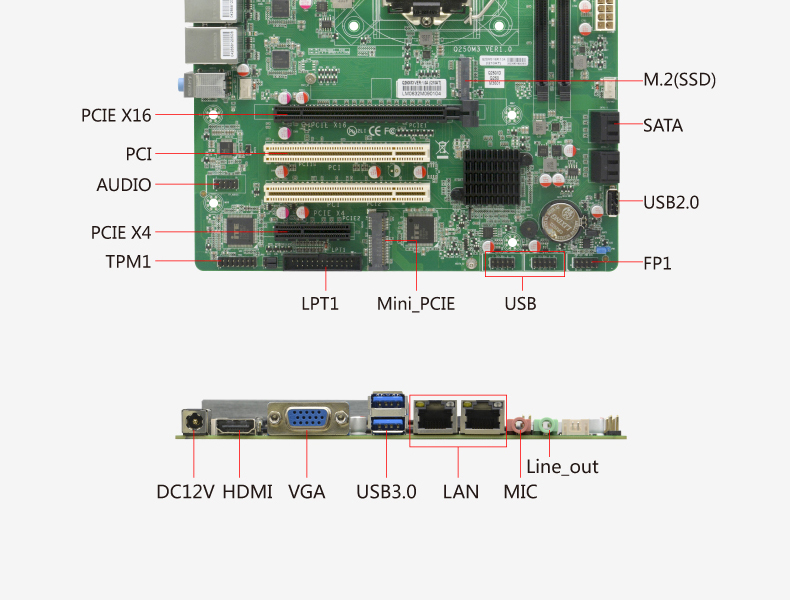

| Expansion | 1 x PCIE x16 slot |
| 1 x PCIE x4 slot | |
| 2* PCI slot | |

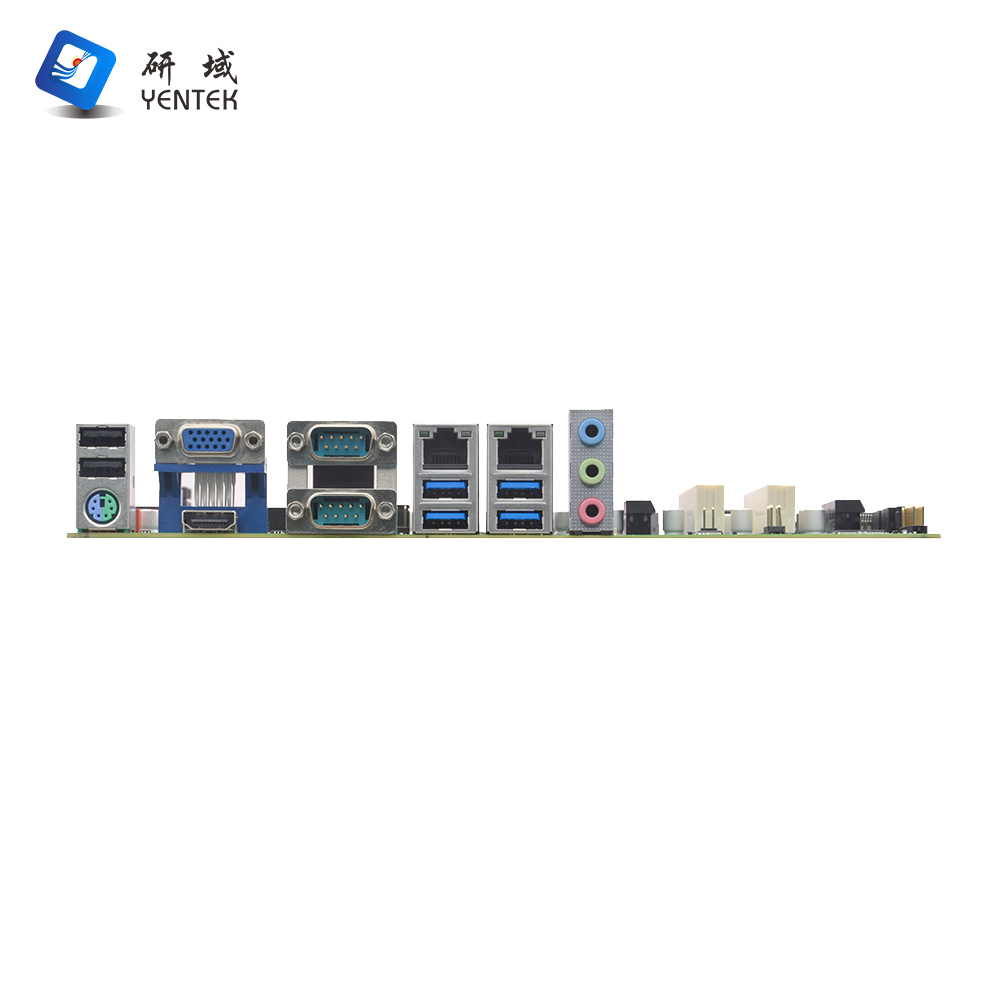

| I/O ports on the backplane | 1* PS/2 keyboard and mouse interface |
| 1 x VGA display port | |
| 1* HD OUTPUT display interface | |
| 2* RS232 serial port (COM1/2 supports 5V/12V live function,COM1/2 supports RS485/422 function) | |
| 2* USB 2.0 port | |
| 4* USB 3.0 interface | |
| 2* RJ45 Gigabit network interface | |
| 1* Line out interface (green), 1* MIC interface (red), 1* Line-IN interface (blue) | |
| Built-in I/O interface | 4* RS232 serial port, 2*5pin row pins |
| 1* JVGA port 1*12pin pin row, same signal as DB15 | |
| 1* front audio interface 2*5pin row pins | |
| 1* PS/2 keyboard and mouse interface 1*6pin row pin and UK1 signal | |
4* USB 2.0 port 2*5Pin row pins | |
| 1*USB2.0 port USB TYPE-A | |
| 1* Front panel function buttons and indicator ports 2*5pin row pins | |
| 1*LPT 2*13 pin row | |
| 1* 24pin ATX power input connector | |
| 1* 8pin ATX power input connector | |
| Fan interface | 1*4pin CPU intelligent fan interface, 3* 4pin system intelligent fan interface |
| GPIO | Supports four input/output GPIO functions |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 7/10/Linux |
| Power supply type | ATX power input |
| Operating temperature | 0℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

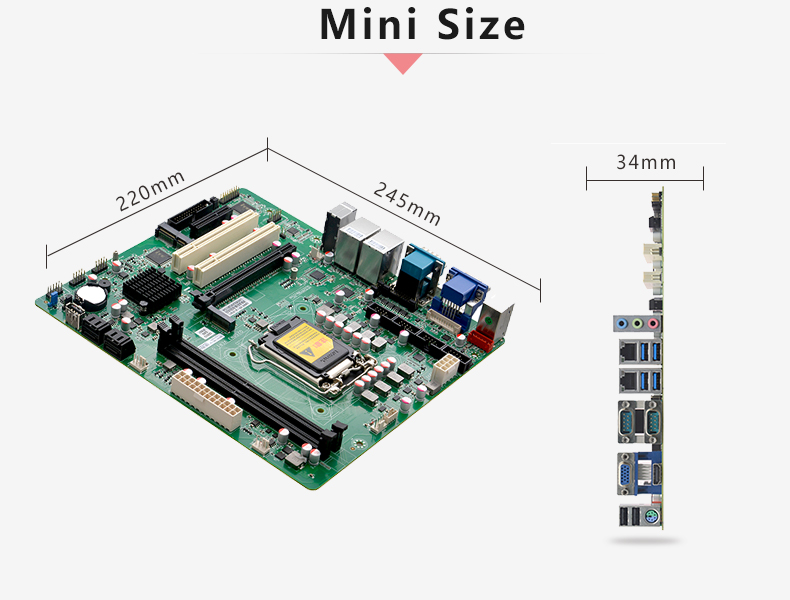

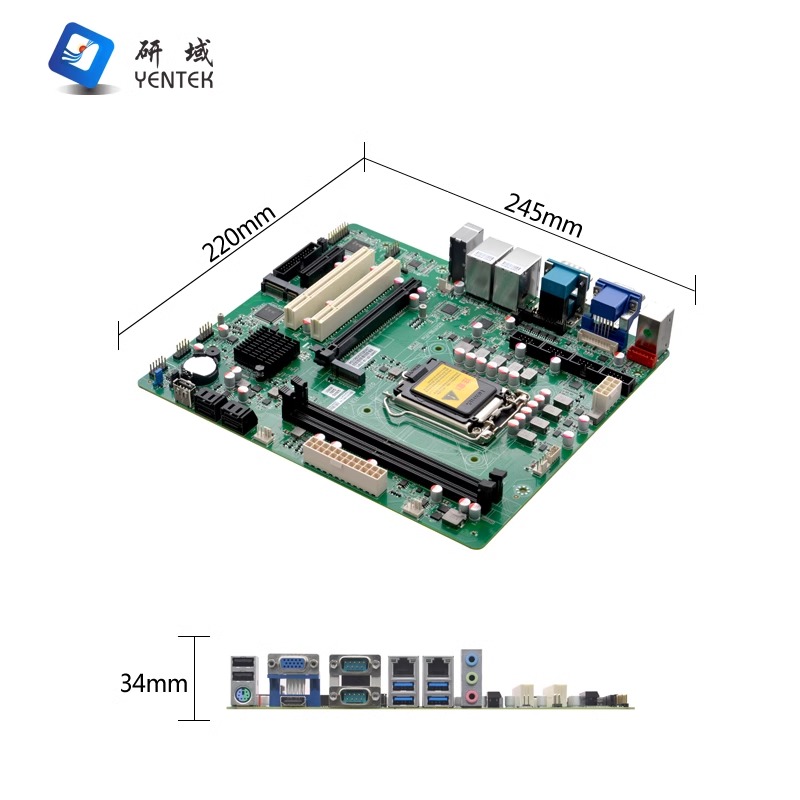

| Dimension | 245mm * 220mm（ATX） |
| NO. | Model | Processor | Chipset | Memory | VGA | HD OUTPUT | LAN | USB | COM | RS485/RS422 | Power |
| 1 | Q250M3 VER:1.0 | LGA1151 | Q250 | 2*DDR4 | 1 | 1 | 2*I211AT | 11 | 6 | 2 | ATX |
| 2 | Q250M3 VER:1.0(I210AT) | LGA1151 | Q250 | 2*DDR4 | 1 | 1 | 2*I210AT | 11 | 6 | 2 | ATX |
