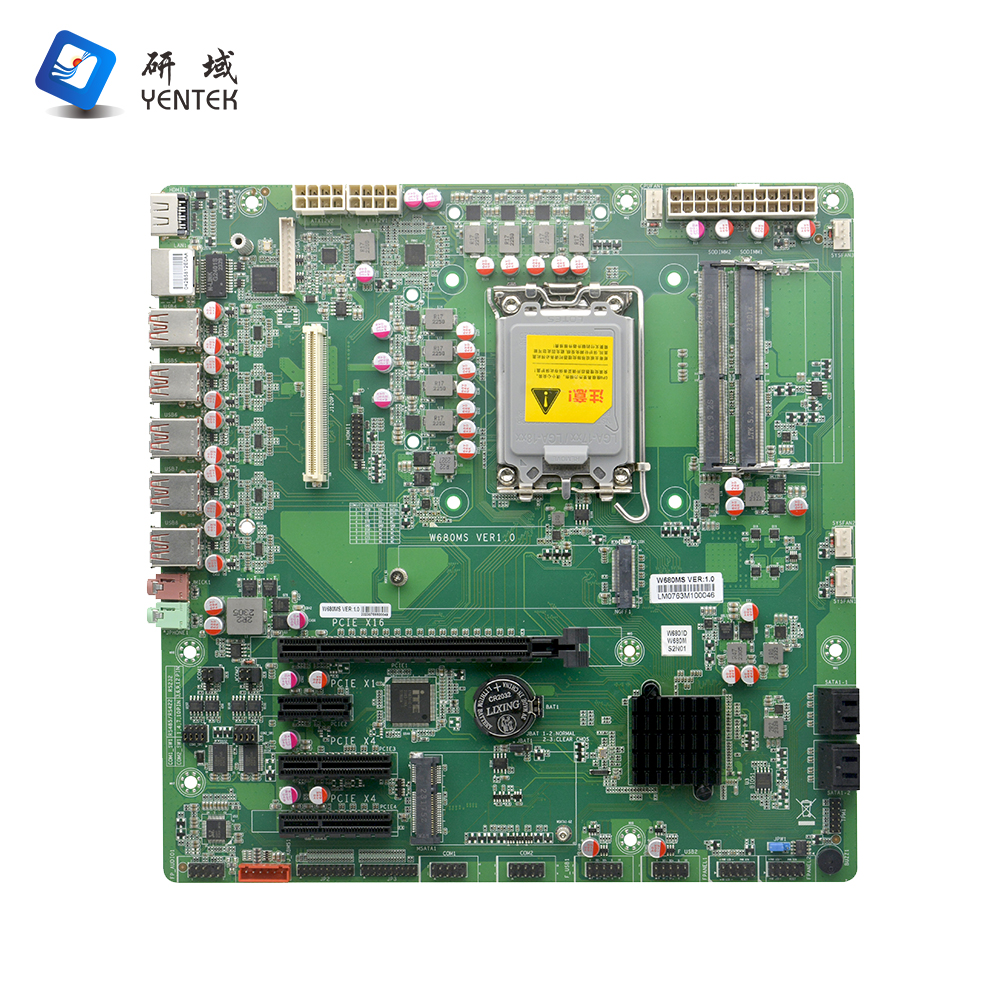

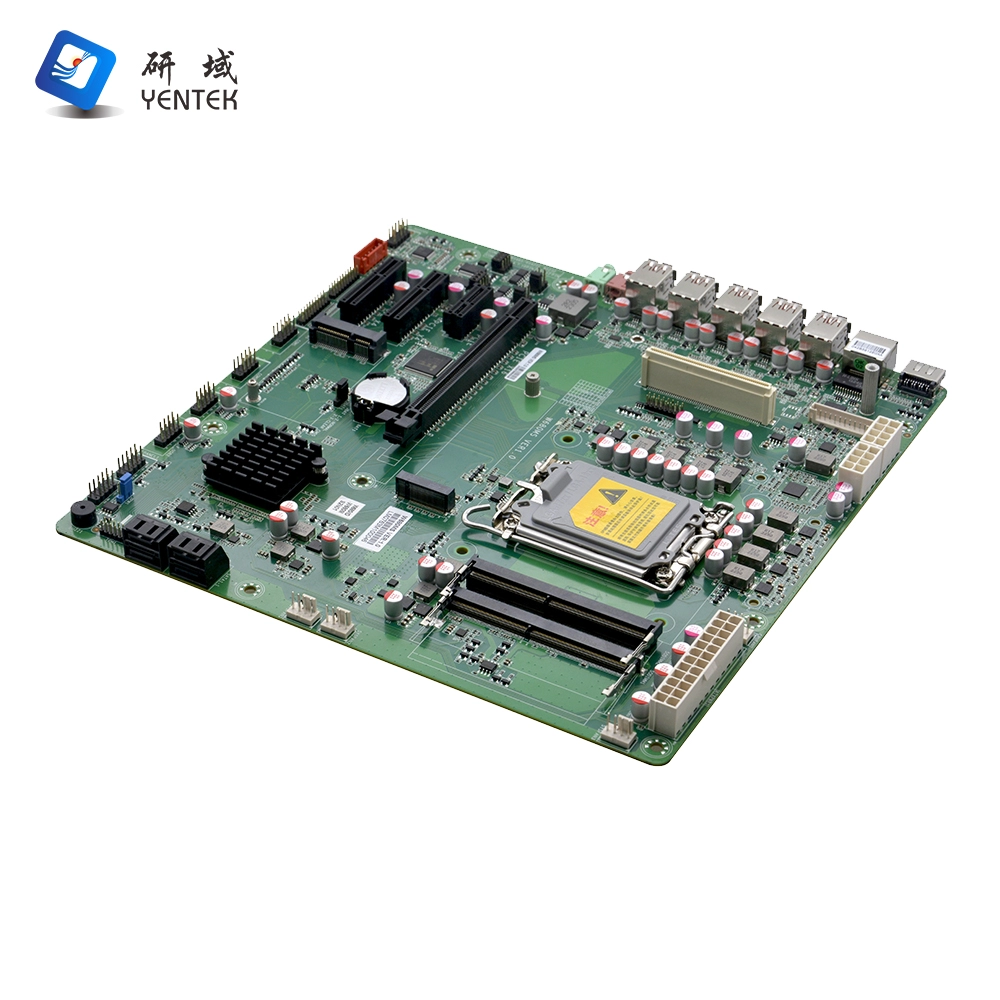

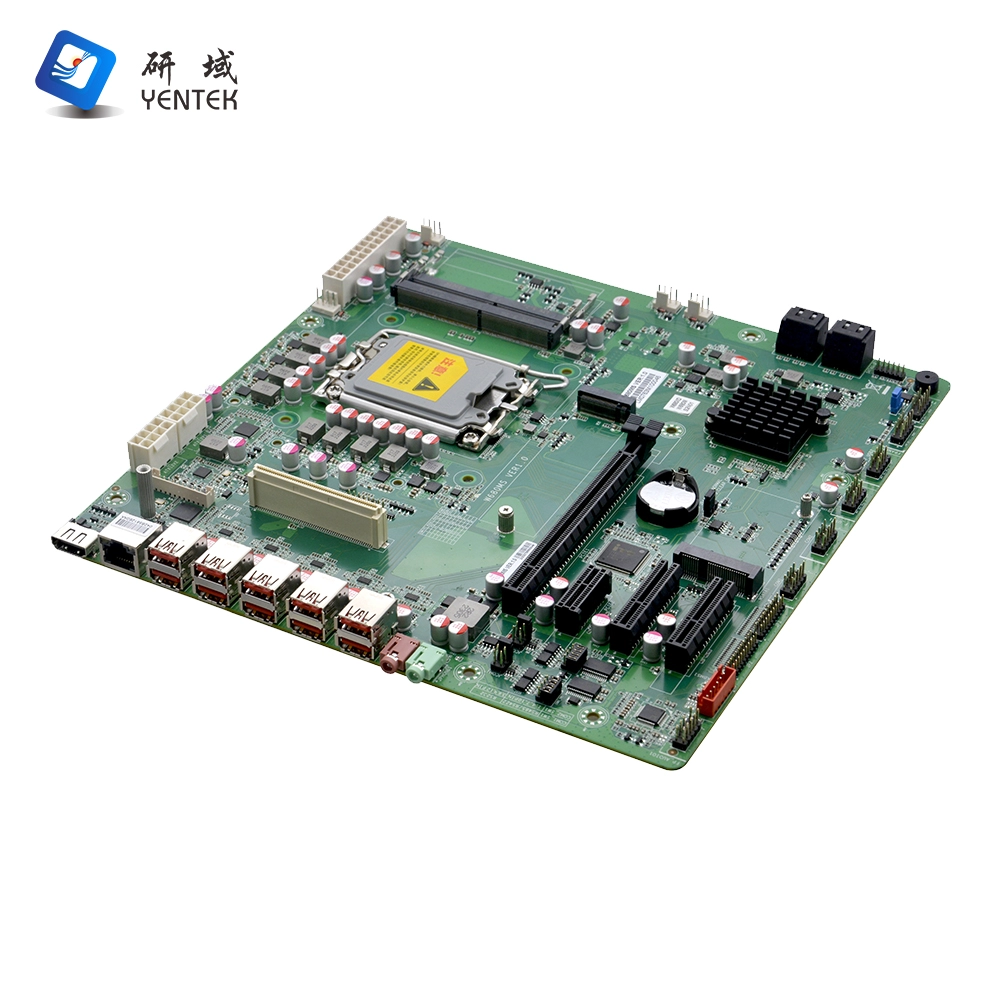

| Product model | W680MS VER:1.0 |

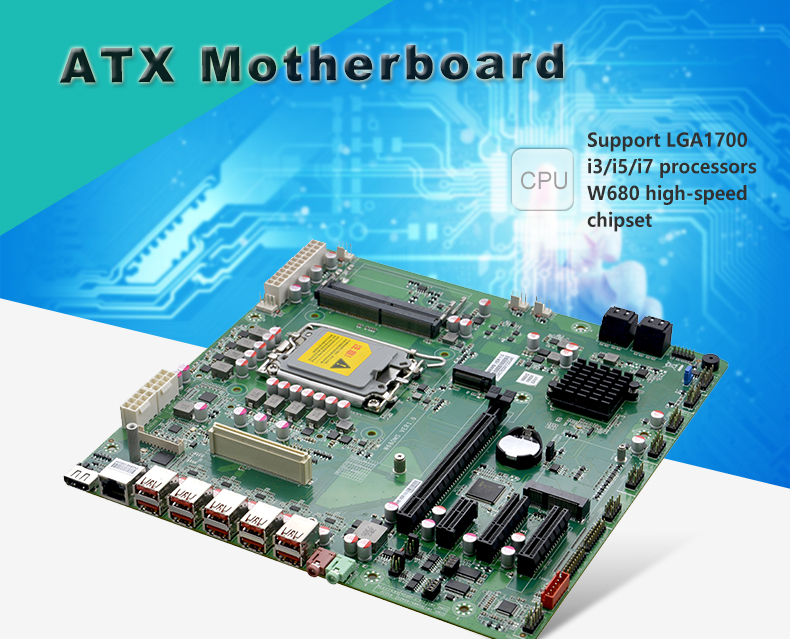

| Processor | Supports LGA1700 12th/13th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors, Note: Supports 125W cpus |
| Chipset | Using Intel® W680 chipset, |
| Memory | 2* DDR4 SODIMM slots, supporting a dual-channel memory of up to 3200MHz, 128GB, and ECC memory |
| Display | Integrated Intel®HD Graphics core graphics card supports DirectX12.1,OpenGL4.5, and supports 4K display |
| 1 x VGA port, the maximum resolution is 1920X1200@60Hz | |
| 2* HDM1.4 interface, support the highest resolution of 4096x2160@24Hz | |
| Network | 1* I210AT Gigabit network adapter chip, supports network wake up /PXE function |
| Store | 4* SATA3.0 hard disk port, transmission speed up to 6Gbps, support RAID 0,1,5,10 |
| 1* MSATA slot, supporting Intel SSDS | |
| 1 x M.2 slot, supporting the M.2 Key M 2280 NVME PCIE X4 standard SSD | |
| Tone frequency | Onboard ALC897 7.1+2 channel hi-fi audio controller with MIC/Line-out support |
| Expansion | 1 x PCIE3.0 x16 slot |
| 1 x PCIE3.0 x1 slot | |
| 2* PCIE3.0 x4 slots | |

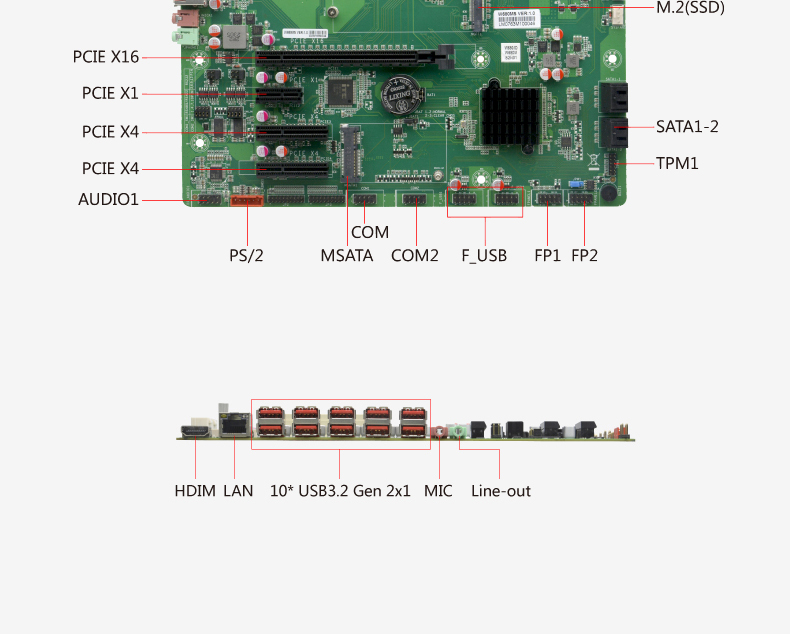

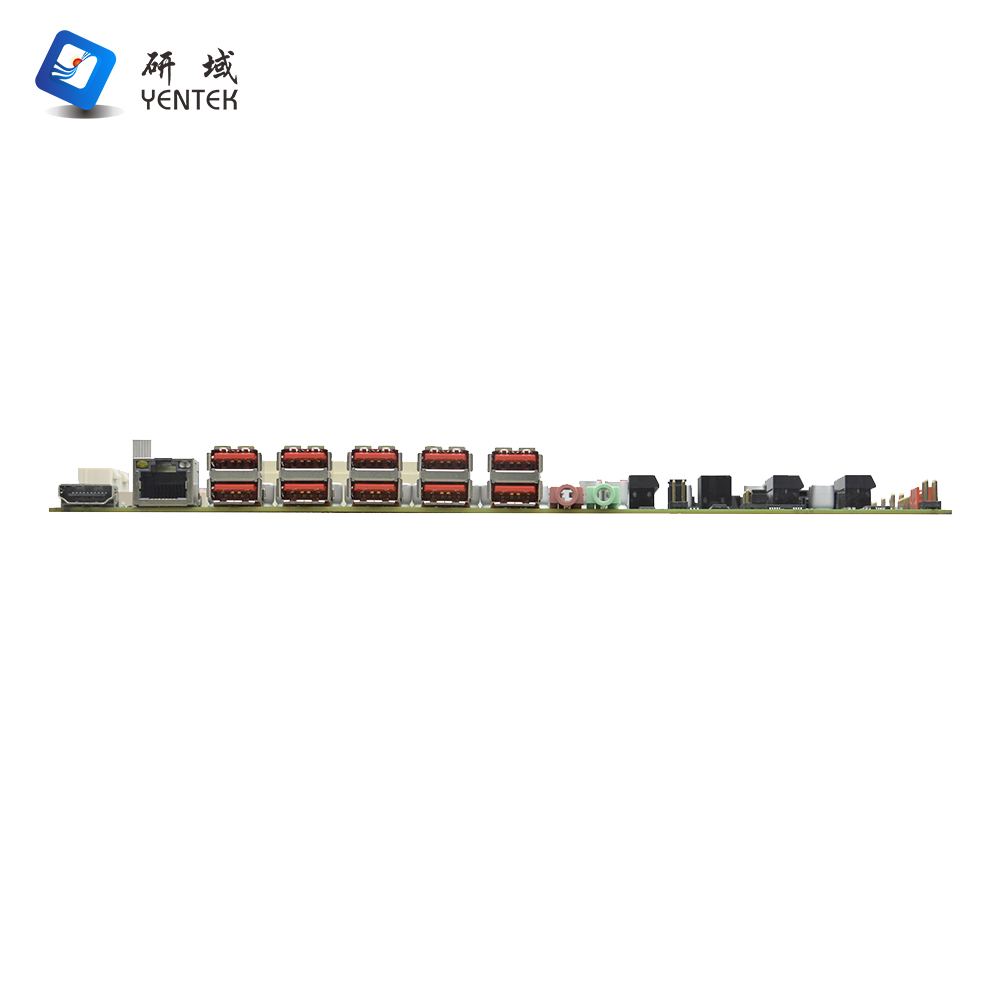

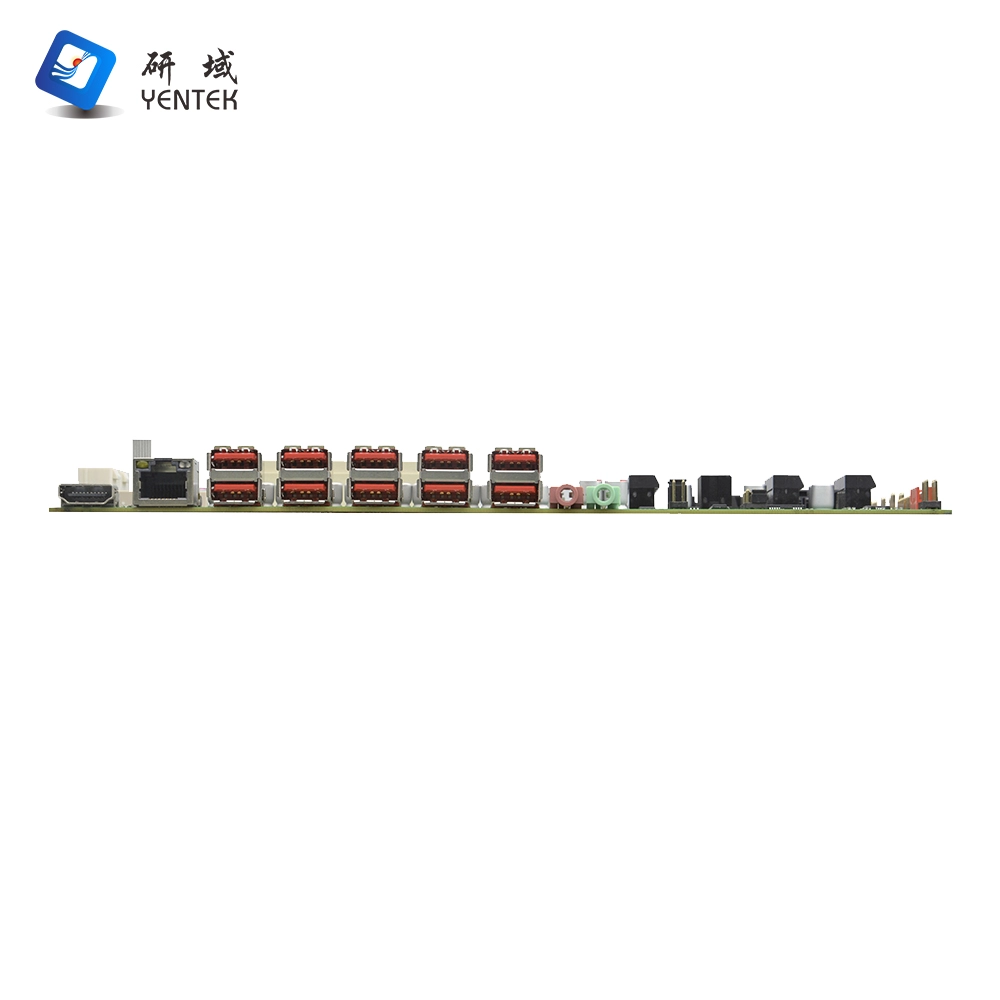

| I/O ports on the backplane | 1* HD OUTPUT1.4 port |
| 1* RJ45 Gigabit network port | |
| 10* USB3.2 Gen 2x1 interface (10Gbps) | |
| 1* Line-out(green),1*MICK(red) | |

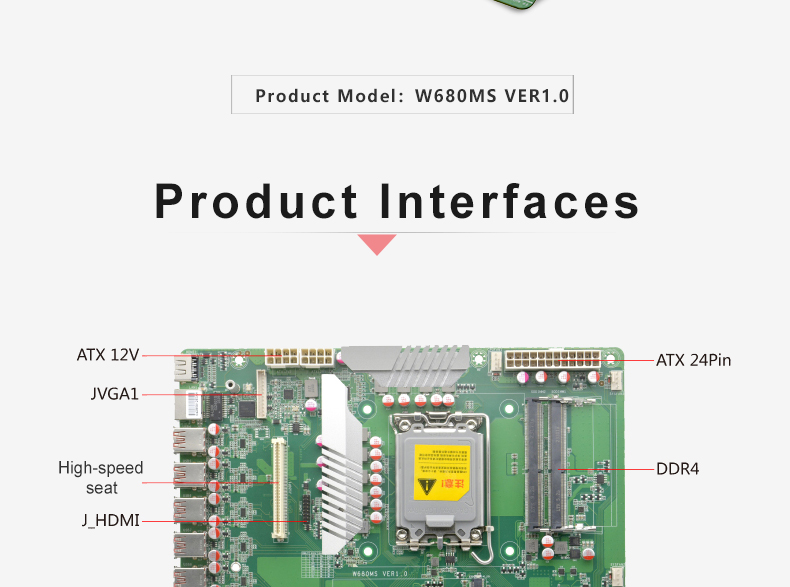

| Built-in I/O interface | 1* JVGA interface 1*12pin, |
| 1* JHD OUTPUT port 2*8pin | |
| 4* USB2.0 interface 2*5pin, | |
| 2* RS232 serial port, supporting RS485/422 | |
1* Front panel audio port 2*5pin | |
| 2* Front panel function buttons and indicator ports 2*5pin | |
| 1* 24pin ATX power socket 2* 8pin ATX power socket | |
| 1* PS/2 keyboard and mouse interface 1*6pin | |
| 1* TPM port 2*6pin | |
| 1* JHD OUTPUT port 2*8pin | |
| 1* 120pin high-speed seat, including 6 PCIE,1 VGA,VCC and other signals, for the expansion of 1 VGA port,6 POE ports (W680MS-POE board) | |
| 2* row pin, 2*10pin, for expansion 16 in 16 out GPIO(MS-GPIO small board) | |
| Fan interface | 1*4pin CPU fan interface; 3*4pin system fan port |
| GPIO | Supports four input/output GPIO functions |
| BIOS | 128Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10/11/Linux |
| Power supply type | Powered by ATX 24Pin and 8pin power supplies |
| Operating temperature | 0℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

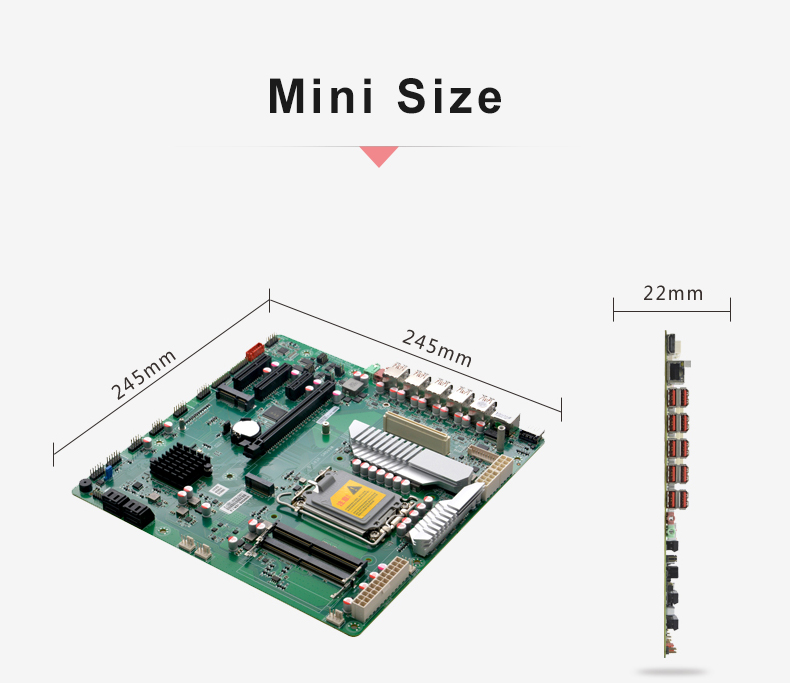

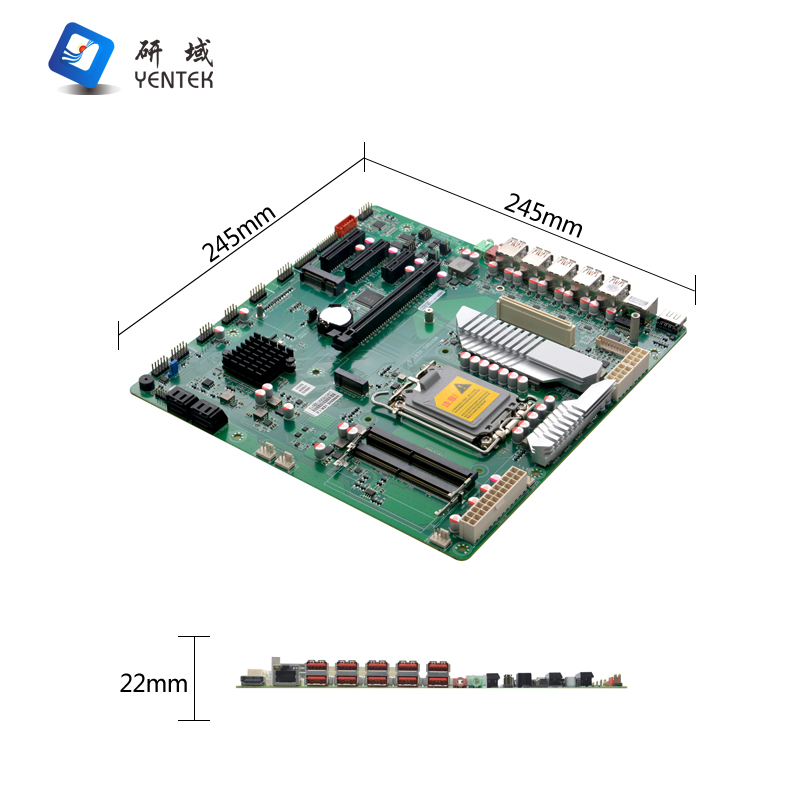

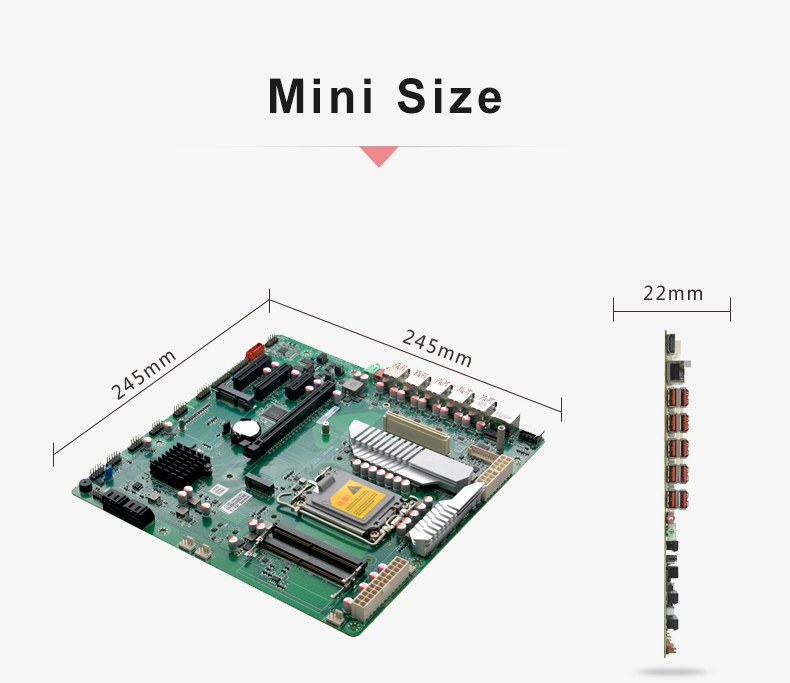

| Dimension | 245mm * 245mm |
| NO. | Model | Processor | Frequency | Southbridge | Memory | VGA | HD OUTPUT | DP | LAN | USB | COM | RS485/RS422 | Power |
| 1 | W680MS VER:1.0 | LGA1700 | / | W680 | 2*SODDR4 | 1 | 2 | / | 1*I210AT | 12 | 1 | COM1 | ATX |
