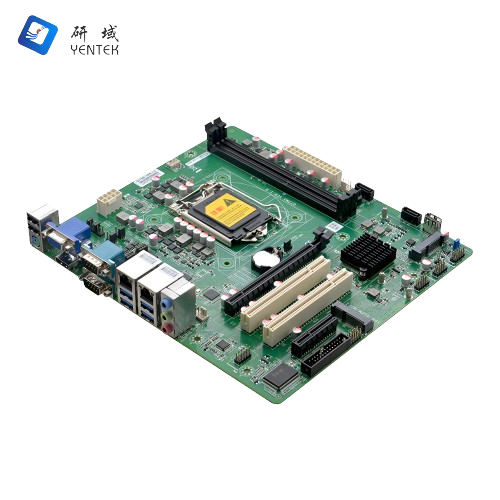

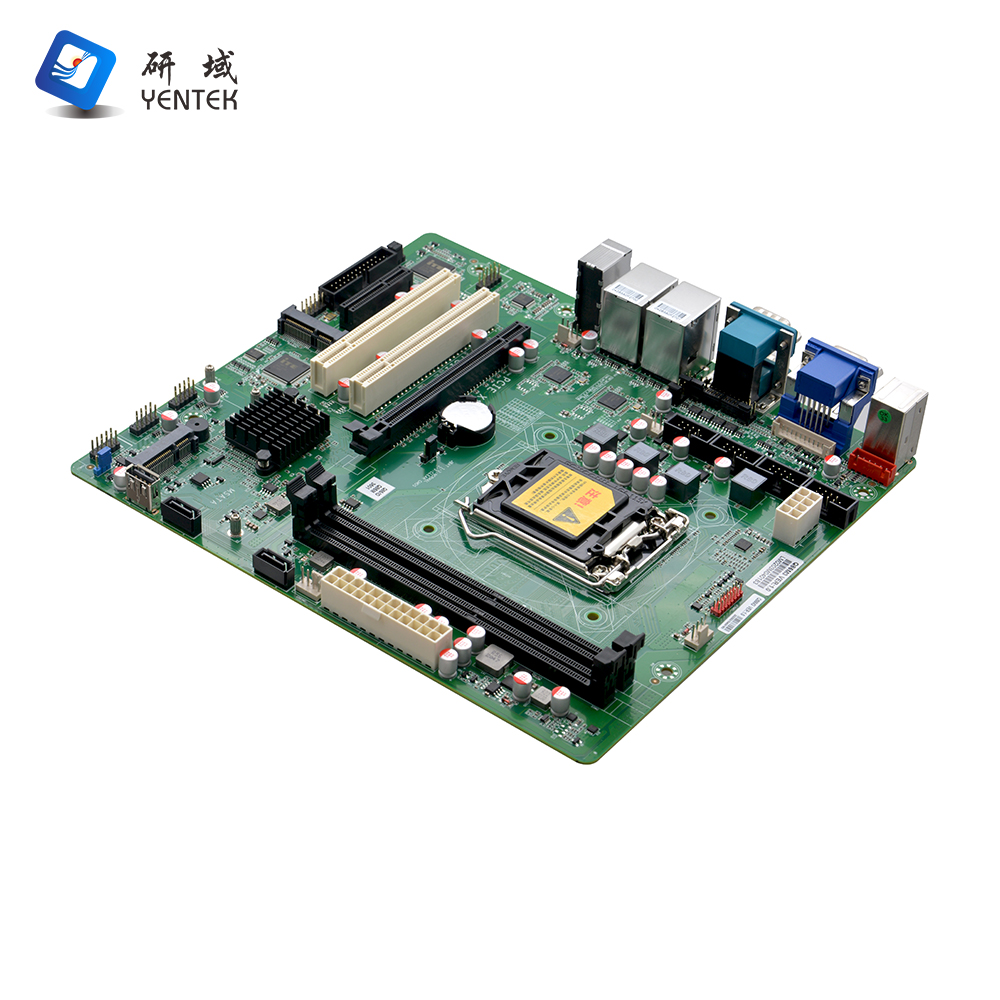

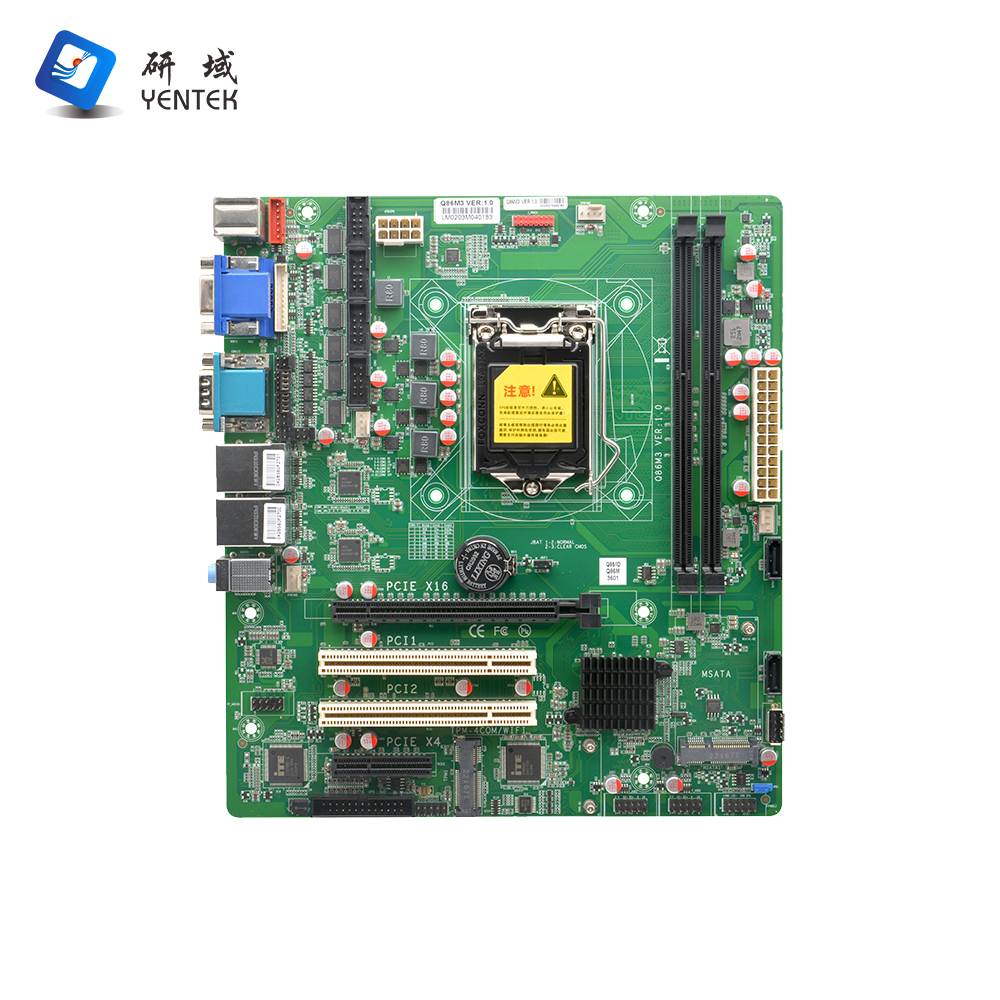

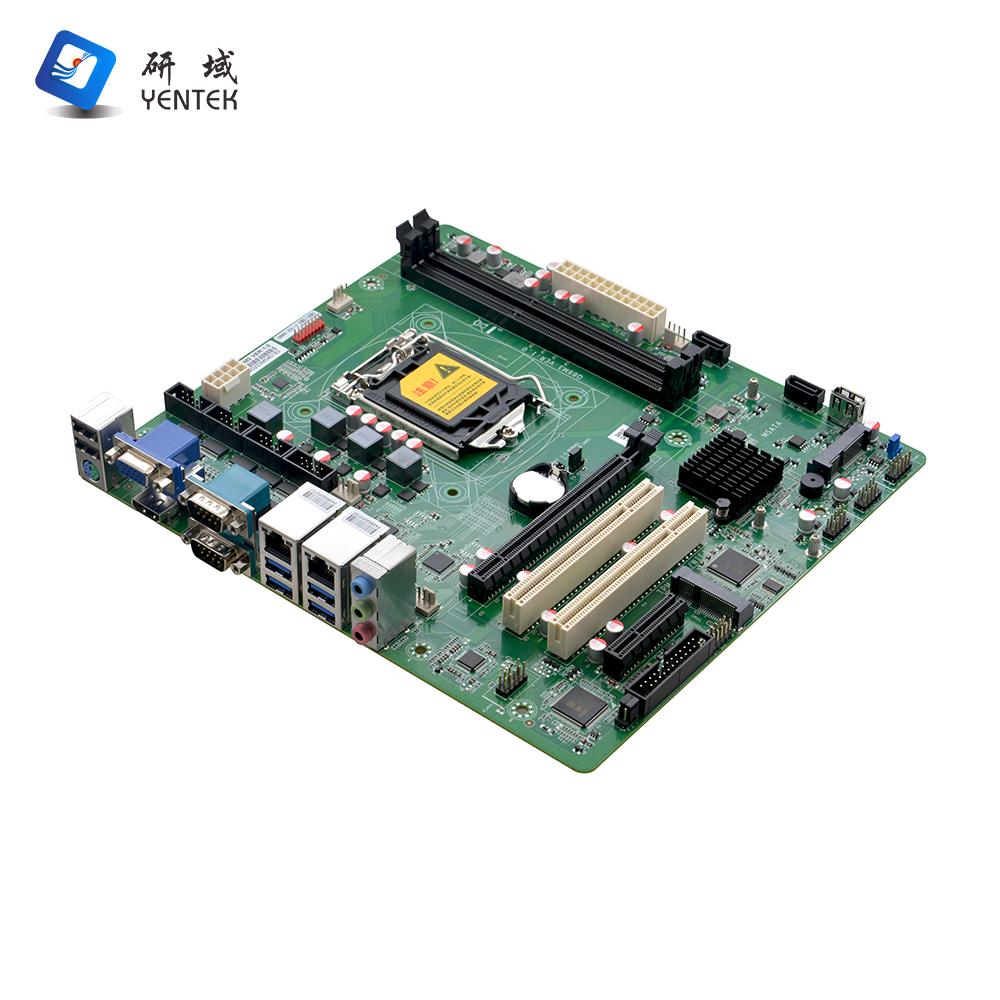

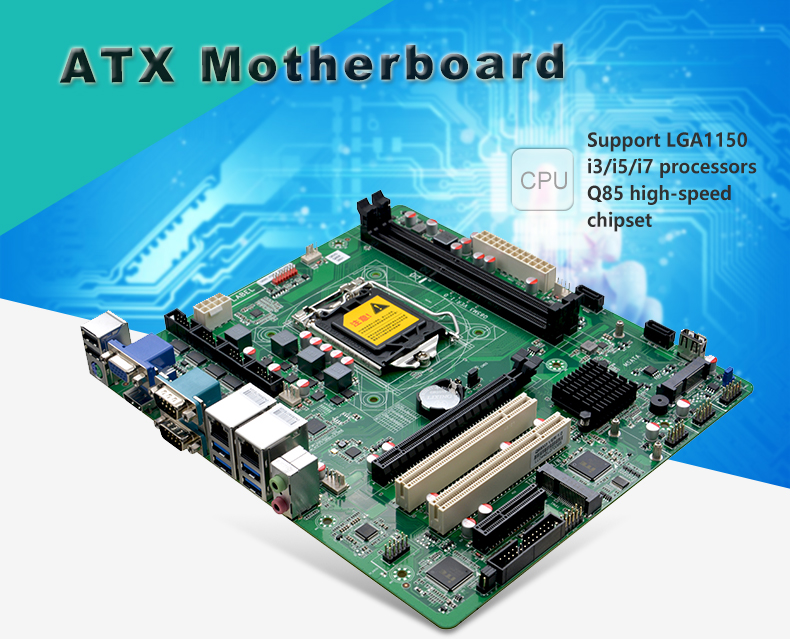

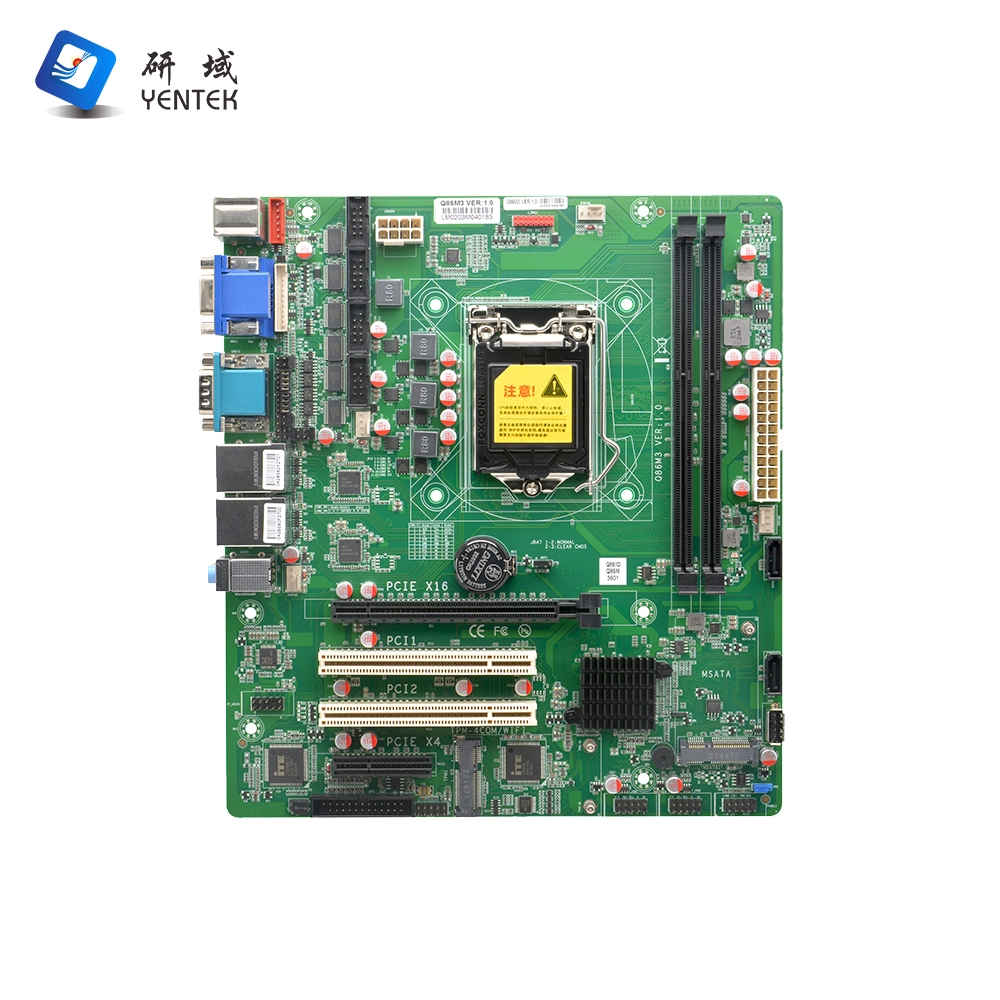

| Product model | Q85M3 VER:1.0 |
| Processor | Support LGA1150 4th Intel Celeron/Pentium/Core i3/i5/i7 processors with LGA1150 architecture |
| Chipset | Intel Q85 high-speed chipset |
| Memory | 2 x DDR3 DIMM slots, supporting a dual-channel memory of 1600mhz, 1333mhz, or 1066MHz, with a maximum of 16GB |
| Display | Integrated Intel® HD Graphics controller, 1*VGA port and 2*HDMI1.4 ports |
| Supports individual display, dual display mode, extended mode | |
| Network | 2* Intel I210AT Gigabit LAN card, support Wake-on-LAN and PXE function |
| Store | 2* SATA 3.0 hard drive interface, SATA interface transfer speed up to 6Gbps |
| 1* MSATA SSD interface, transfer speed up to 6Gbps | |
| Audio frequency | Integrated ALC888S 7.1+2-channel hi-fi audio controller, support Mic, Line out, Line-in |

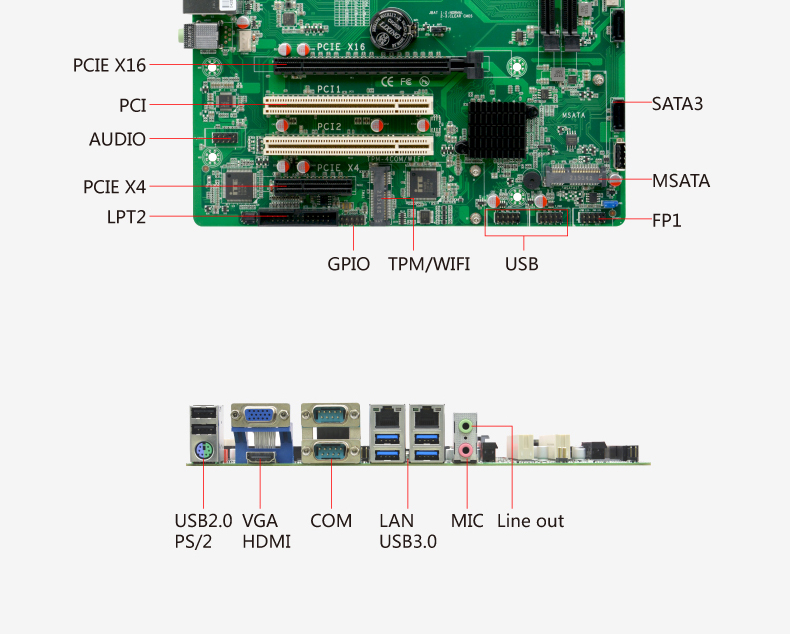

| Expansion | 1 x PCIE2.0 x16 |
| 1 x PCIE2.0 x4 | |
| 2* PCI | |
| 1* Mini-PCIE slot, WiFI (Optional TPM-4COM to expand 4 serial ports, need to match corresponding BIOS) | |

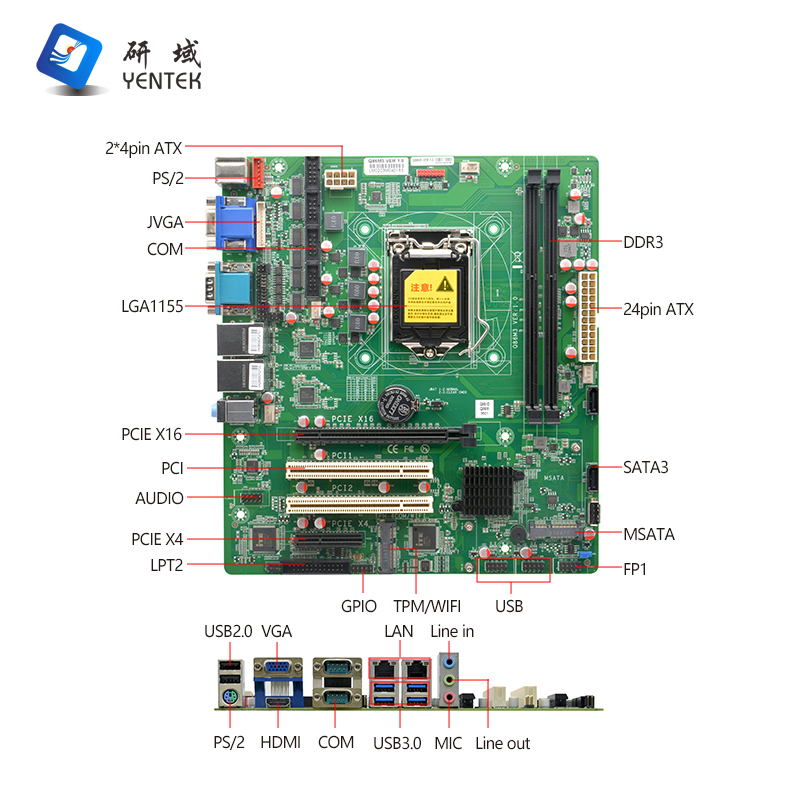

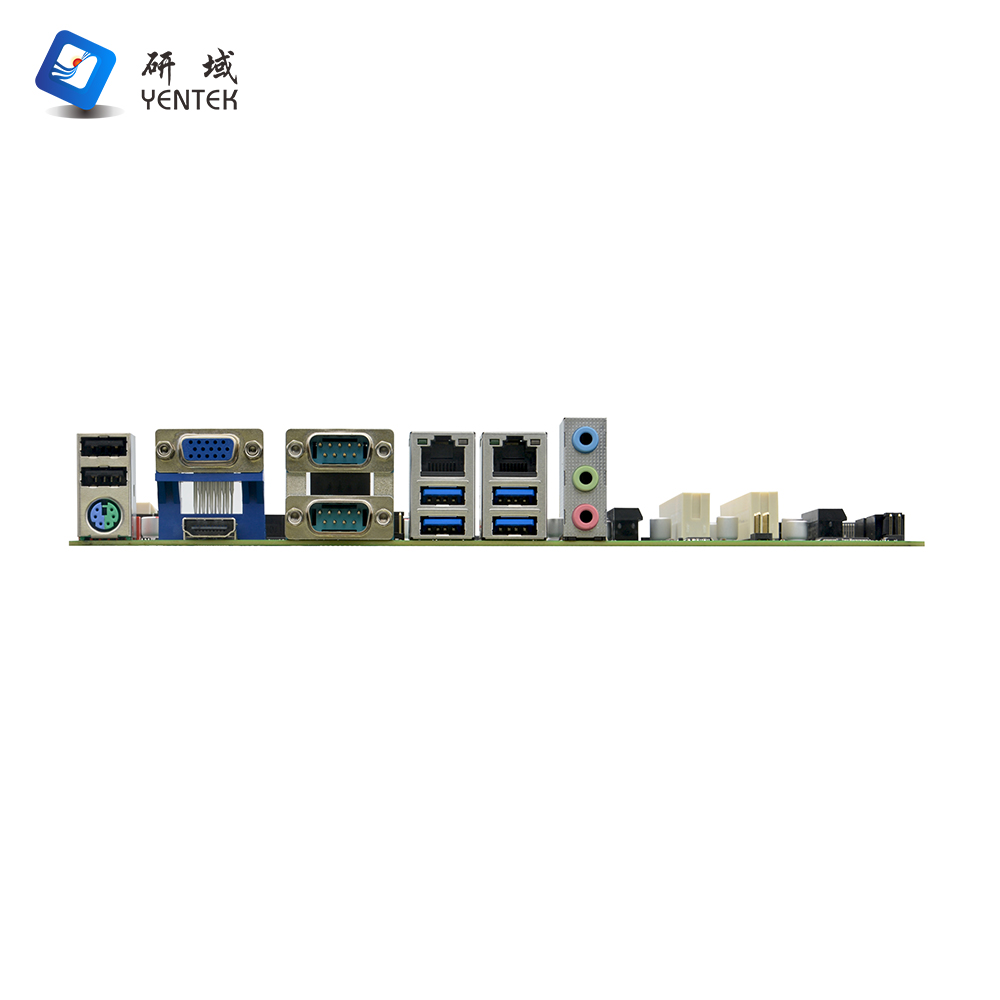

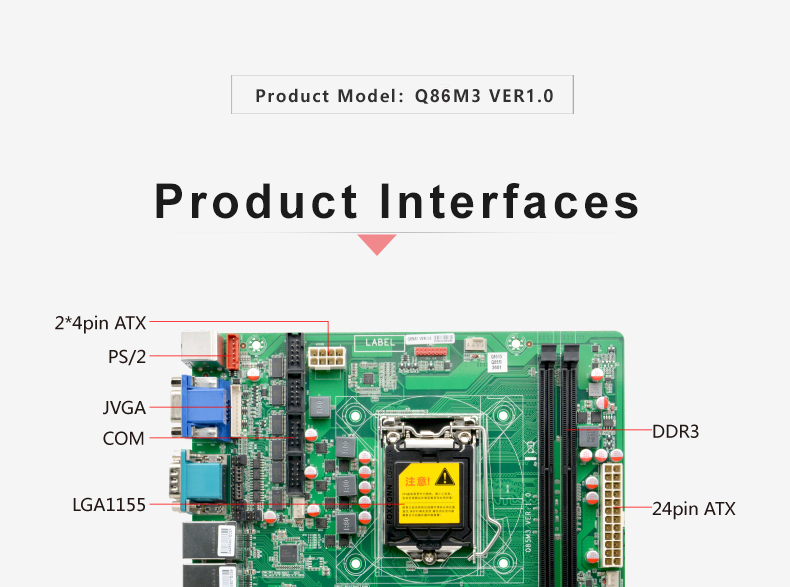

| I/O ports on the backplane | 1* PS/2 keyboard and mouse interface |
| 1 x VGA display port | |
| 1* HDMI display interface | |
| 2* RS232 serial port, support the 9th pin charged function, support RS485/422 function | |
| 2* USB 2.0 port | |
| 4* USB 3.0 interface | |
| 2* RJ45 Gigabit network interface | |
| 1* Line out interface (green), 1* MIC interface (red), 1* Line-IN interface (blue) | |
| Built-in I/O interface | 4* RS232 serial port, 2*5pin |
| 1* JVGA connector 1*12pin pin, same signal as external VGA | |
| 1* JHDMI connector red 2*8pin | |
| 1* PS / 2 keyboard and mouse interface 1 * 6pin red pin | |
1* LPT print port 2*13pin | |
| 1* Front Audio Interface 2*5pin | |
| 4* USB 2.0 interface 2*5Pin | |
| 1* USB2.0 interface USB TYPE A | |
| 1* Front Panel Function Button and Indicator Interface 2*5pin | |
| 1* 24pin ATX power input connector | |
| 1* 8pin ATX power input connector | |
| Fan interface | 2*4pin CPU smart fan connector, 2*4pin system smart fan connector |
| GPIO | Supports four input/output GPIO functions |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 7/10/Linux |
| Power supply type | 24Pin ATX power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-90% relative humidity, no condensation |

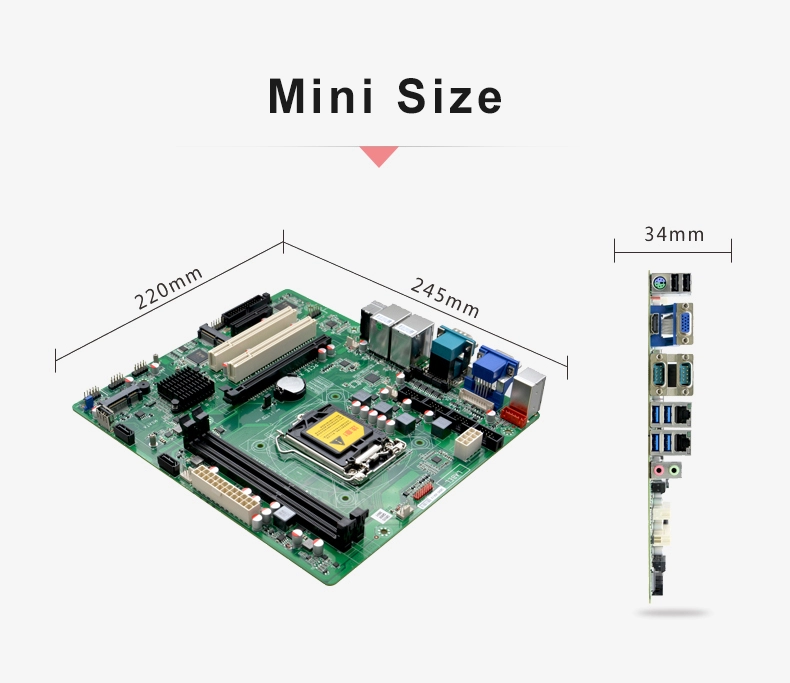

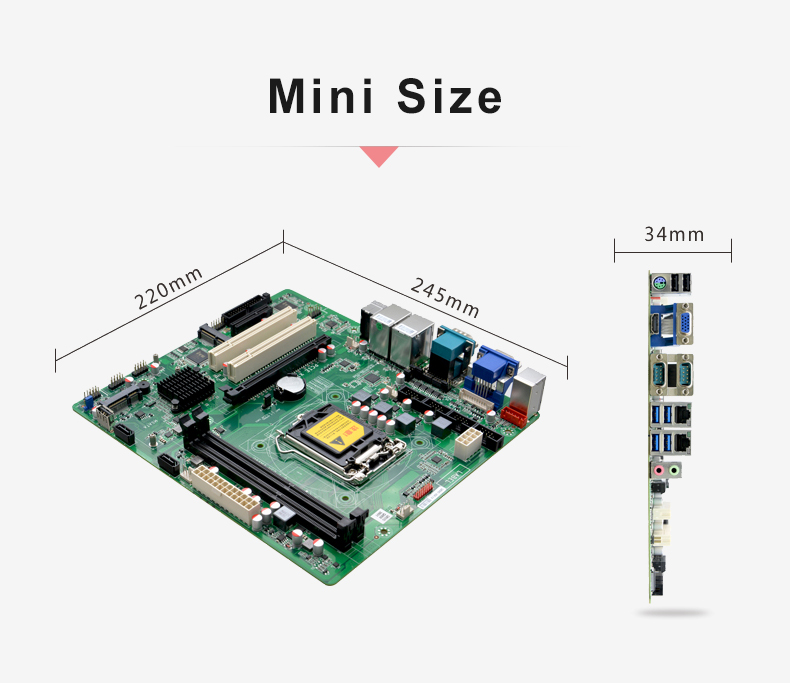

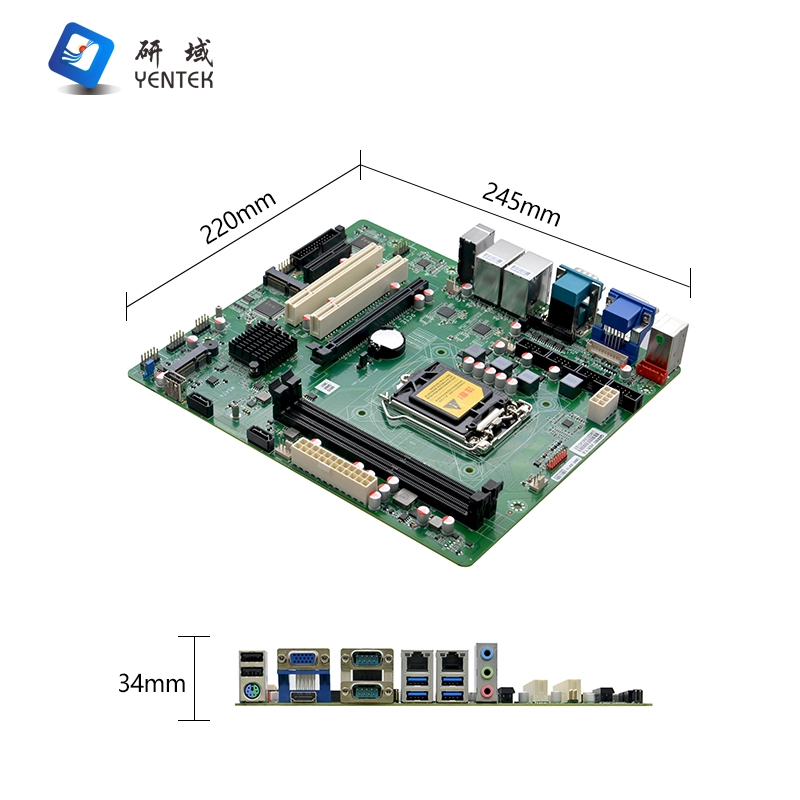

| Dimension | 245mm * 220mm（ATX） |
| NO. | Model | Processor | Chipset | Memory | VGA | HDMI | LAN | USB | COM | RS485/RS422 | Power |
| 1 | Q86M3 VER:1.0 | LGA1150 | Q85 | 2*DDR3 | 1 | 2 | 2*I210V | 11 | 6 | COM1/COM2 | ATX |
