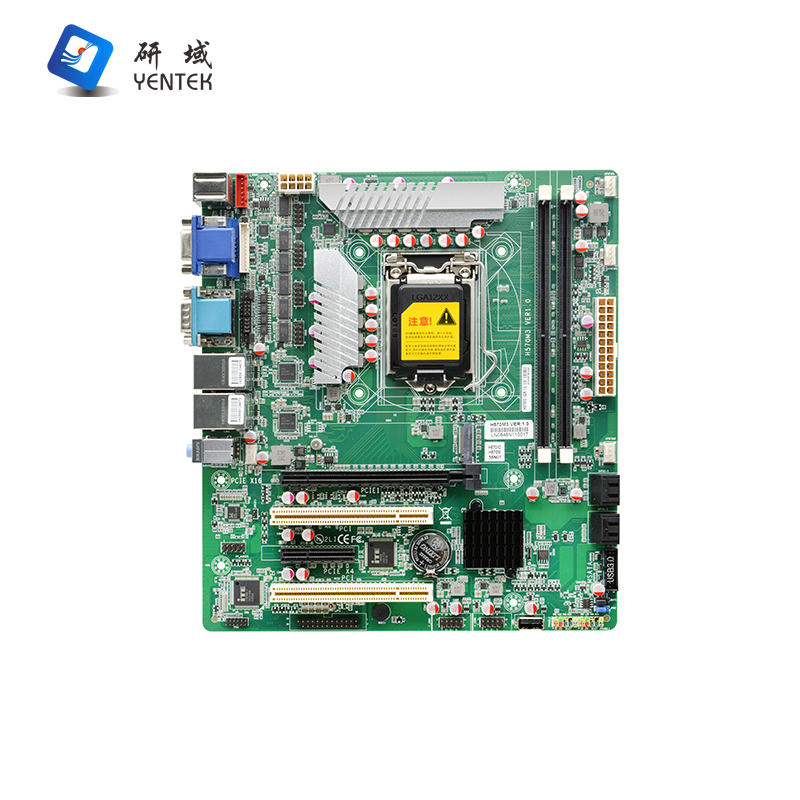

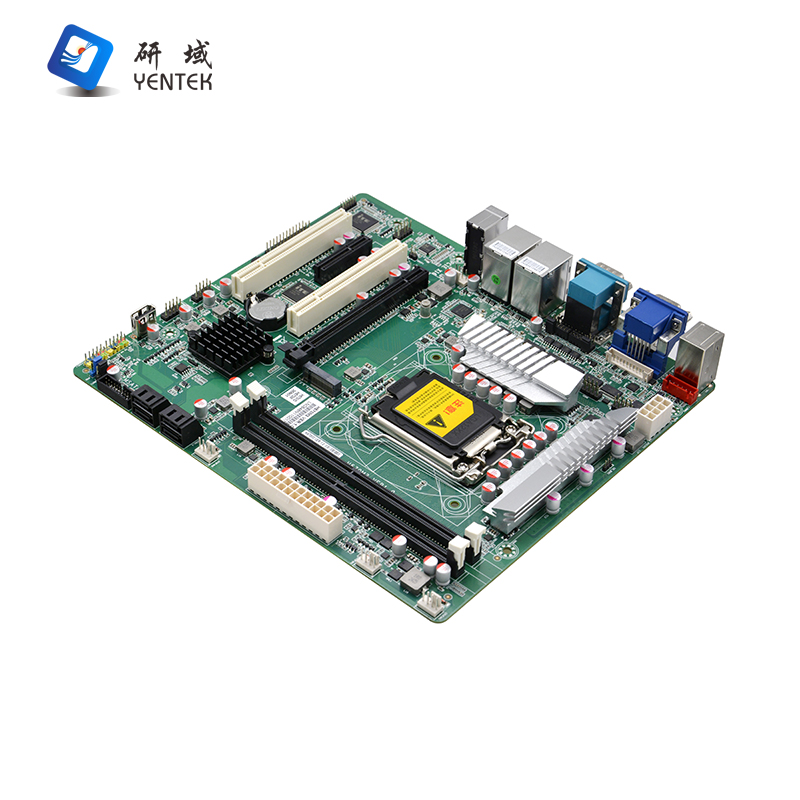

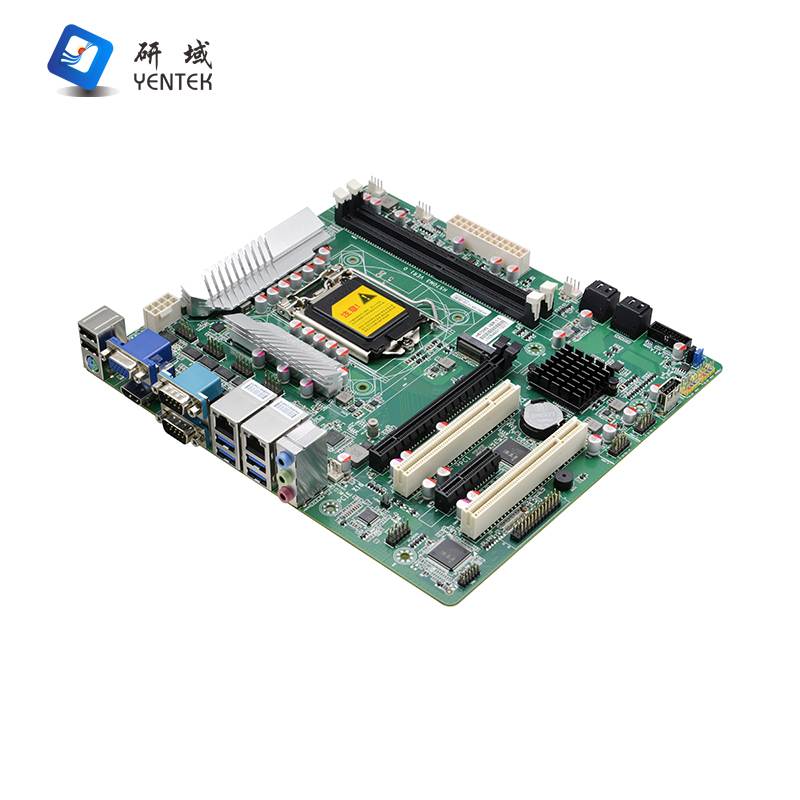

M-ATX Motherboard

H570M3

FEATURES

Support LGA1200 10th/11th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors

Product description


Product Model

H570M3 VER:1.0

Processor

Support LGA1200 10th/11th Intel®   Celeron/Pentium/Core™ i3/i5/i7/i9 processors

Note:Support 10th/11th generation   125W CPU

Chipset

Adopts Intel® H570 chipset

Memory

2* DDR4 DIMM memory slots, support dual-channel memory up to 3200MHz,   maximum support 128GB

Display



Integrated Intel® HD Graphics core graphics card support DirectX12.1,   OpenGL4.5, support for 4K display

1* VGA interface, support for the highest resolution of 1920X1200@60Hz

1* HDMI1.4 interface, support for the highest resolution of 4096x2160   @24Hz

Network

2* Intel ® I210AT Gigabit NIC chip, support for Wake-on-LAN / PXE   function

Storage



4* SATA3.0 hard drive interface, transfer speed up to 6Gbps

1* M.2 slot, support M.2 Key M 2280 PCIE X4/SATA adaptive SSD

Audio

Onboard ALC897 7.1+2-channel hi-fi audio controller, support   MIC/Line-out/Line-in

Expansion Slots



1* PCIE3.0 X16 slot

1* PCIE 3.0 X4 slot

2* PCI slot

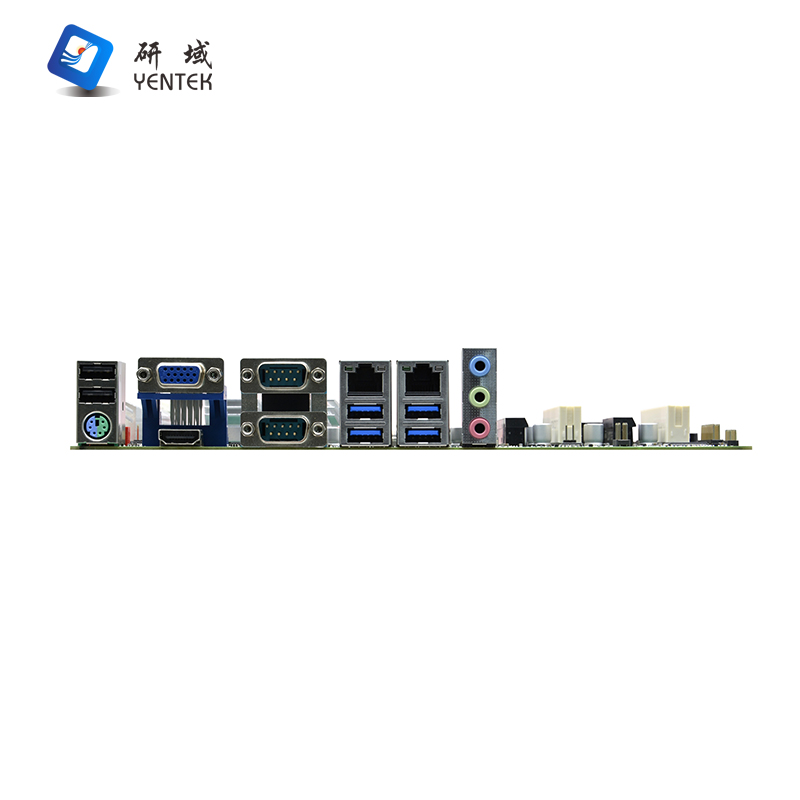

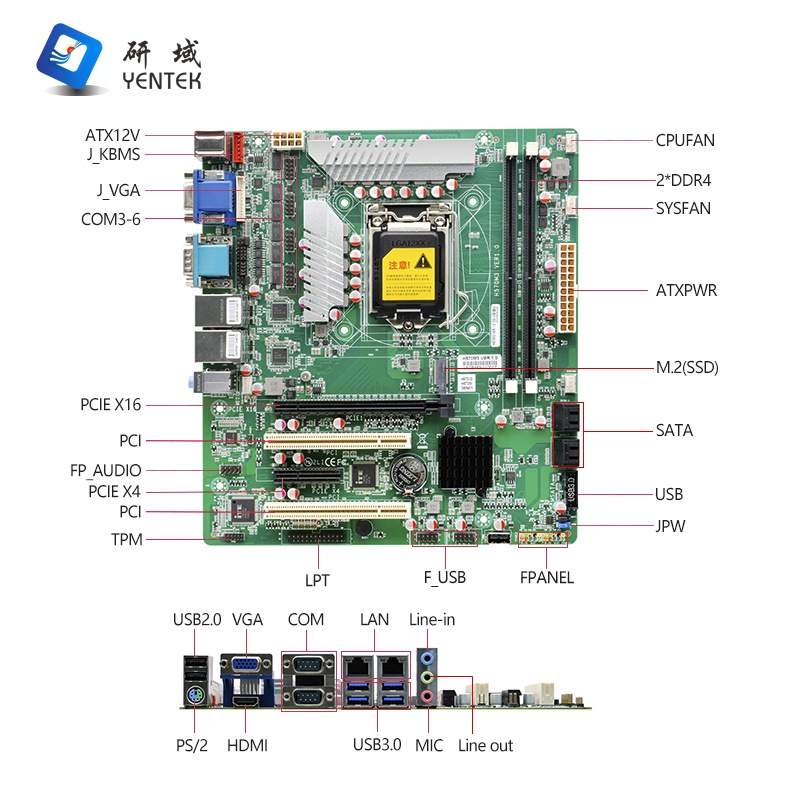

Backplane I/O Ports



1* PS/2 interface (expandable keyboard and mouse)

1* DB15 VGA port

1* HDMI1.4 interface

2* DB9 RS232 serial port, support the 9th pin with power function,   support RS485/422

2* USB2.0 interface

4* USB3.0 interface

2* RJ-45 Gigabit network interface

1* Triple audio interface, support Line-out, MICK, Line-in

Built-in I/O Ports



4* USB2.0 port 2*5pin.

1* Vertical USB2.0 interface

2* USB3.0 interface 2*10pin

1* Front panel audio interface (2*5pin)

2* Front Panel Function Button and Indicator Interface (2*5pin)

1* 24pin ATX power socket 1* 8pin ATX power socket

1* PS/2 keyboard and mouse connector 1*6pin

1* JVGA connector 1*12pin, same signal with DB15

1* TPM connector 2*6pin

4* RS232 serial port, 2*5pin

1* LPT interface 2*13pin, (default print port, can be made into GPIO,   need to brush the configuration of the GPIO BIOS)

Fan Ports

1*4pin CPU fan interface; 4*4pin system fan interface

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Operating System

Windows 10/Windows 11/Linux

Power Supply Type

Powered by ATX 24Pin and 8pin power supply

Operating Temperature

0℃~60℃

Storage Temperature

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

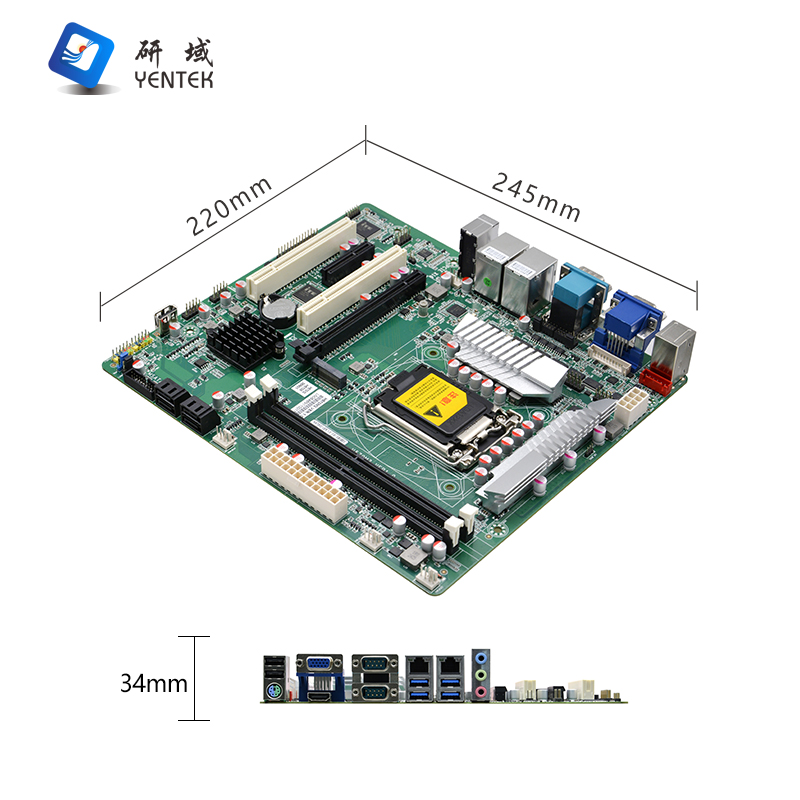

Dimension

245mm x 220mm

Order Information


No.

Model

Processor

Frequency

Southbridge

Memory

VGA

HDMI

DP

LAN

USB

COM

RS485/422

Power

1

H570M3 VER:1.0

LGA1200

/

H570

2*DDR4

1

1

/

2*I210AT

13

6

COM1/2

ATX
