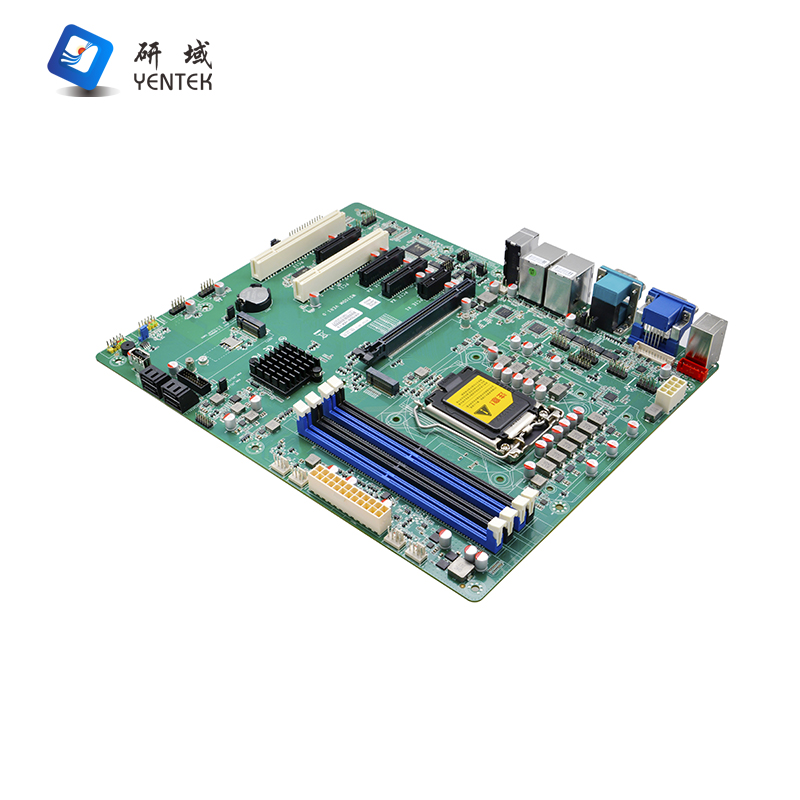

W570DM

Processor

Support   LGA1200 10th/11th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors

Chipset

Adopts Intel® Q570   chipset

Memory

4* DDR4 DIMM memory   slots, support dual-channel memory up to 3200MHz, up to 128GB.

Display

Integrated Intel® HD   Graphics core graphics card support DirectX12.1, OpenGL4.5, support for 4K   display

1* VGA interface,   support for the highest resolution of 1920X1200@60Hz

2* HDMI1.4 interface,   support for the highest resolution of 4096x2160 @24Hz

Network

2* Intel ® I210AT   Gigabit NIC chip, support for Wake-on-LAN / PXE function

Storage

4* SATA3.0 hard drive   interface, transfer speed up to 6Gbps, support RAID 0,1,5,10

1* M.2 slot, supports   M.2 Key M 2280 PCIE X2 standard SSD.

Note: M.2 only   supports PCIE X2 signals by default, if you want to support PCIE X4, you can   only use the 11th generation CPU, and you need to change the material and   change the BIOS.

Audio

Onboard ALC897   7.1+2-channel hi-fi audio controller, support MIC/Line-out/Line-in.

Expansion Slots

1* PCIE3.0 X16 slot

1*   PCIE 3.0 X1 slot

3*   PCIE 3.0 X4 slot

2*   PCI slot

1*   M.2 slot, support M.2 Key B 2242/2252 4G/5G module

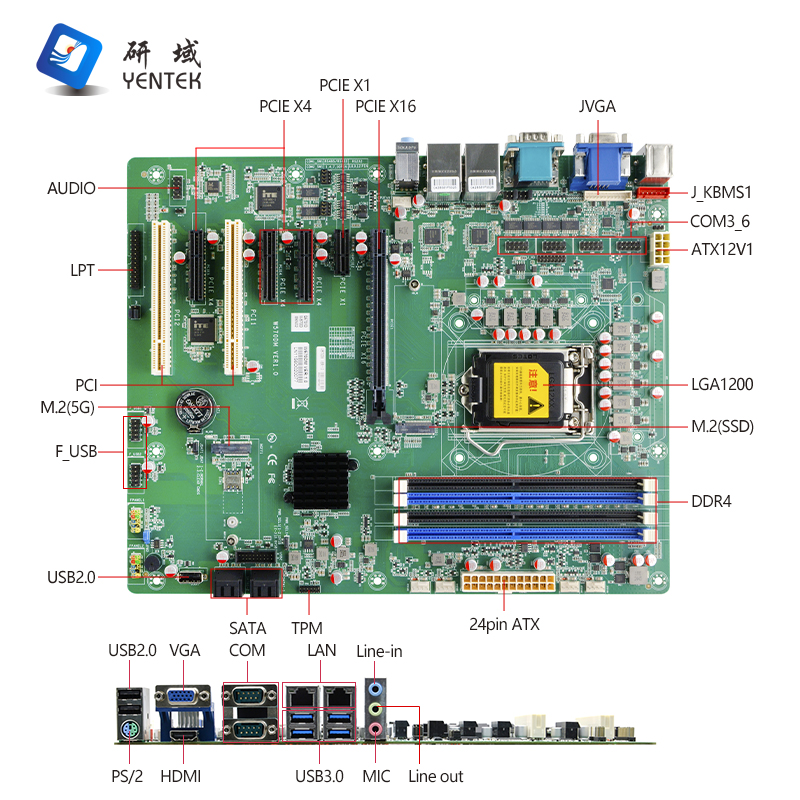

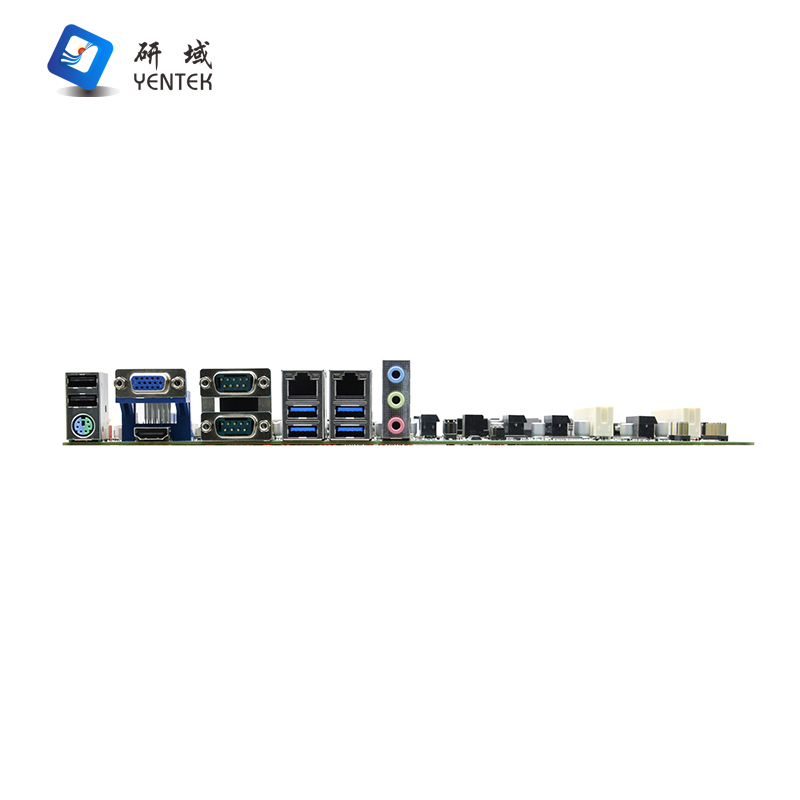

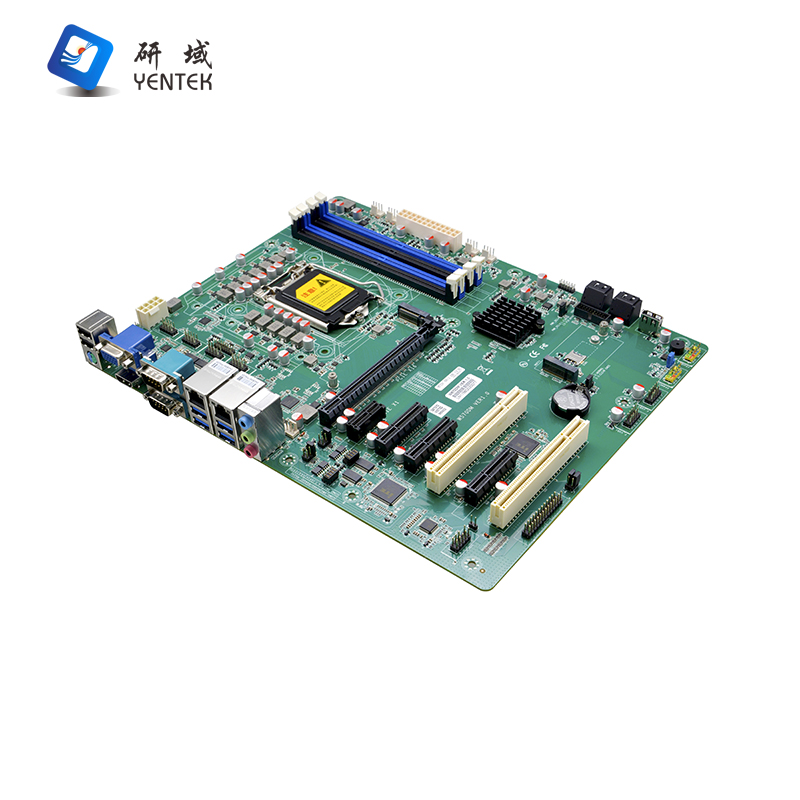

Backplane I/O Ports

1* PS/2 port   (expandable keyboard and mouse)

1* DB15 VGA port

1* HDMI1.4 interface

2* DB9 RS232 serial   port, support the 9th pin with power function, support RS485/422

2* USB2.0 interface

4* USB3.0 interface,   support for single port 2A current

2* RJ-45 Gigabit   network interface

1* Triple audio   interface, support Line-out, MICK, Line-in

Built-in I/O Ports

4* USB2.0 interface   2*5pin, support Line-out, MICK, Line-in

1* Vertical USB2.0   interface,

2* USB3.0 interface   2*10pin

1* Front panel audio   interface (2*5pin)

2* Front Panel   Function Button and Indicator Connector (2*5pin)

1* 24pin ATX power   socket 1* 8pin ATX power socket

1* PS/2 keyboard and   mouse connector 1*6pin

1* JVGA connector   1*12pin, same signal with DB15

1* JHDMI connector   2*8pin

1* TPM connector   2*6pin

4* RS232 serial port,   2*5pin

1* SIM card slot

1*LPT 2*13 pin   (default print port, can be made into GPIO, need to brush the configuration   of the GPIO BIOS)

Fan Ports

1*4pin CPU fan   connector; 4*4pin system fan connector

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset   function (256 levels, 0~255 seconds)

Operating System

Windows 10/Windows   11/Linux

Power Supply Type

Powered by ATX 24Pin   and 8pin power supply

Operating Temperature

-20℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative   humidity, non-condensing

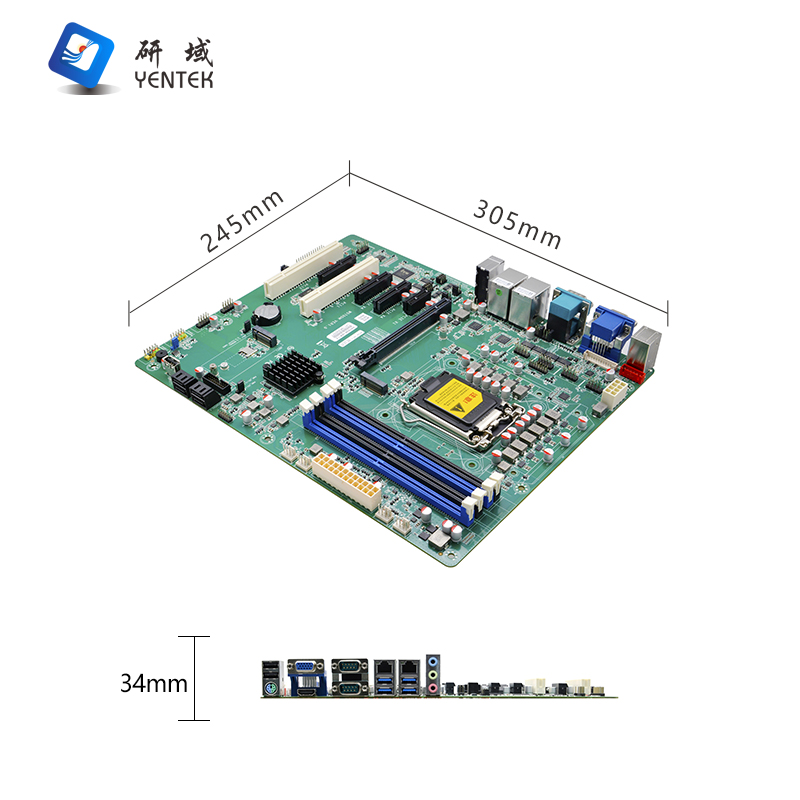

Dimension

305mm x 245mm

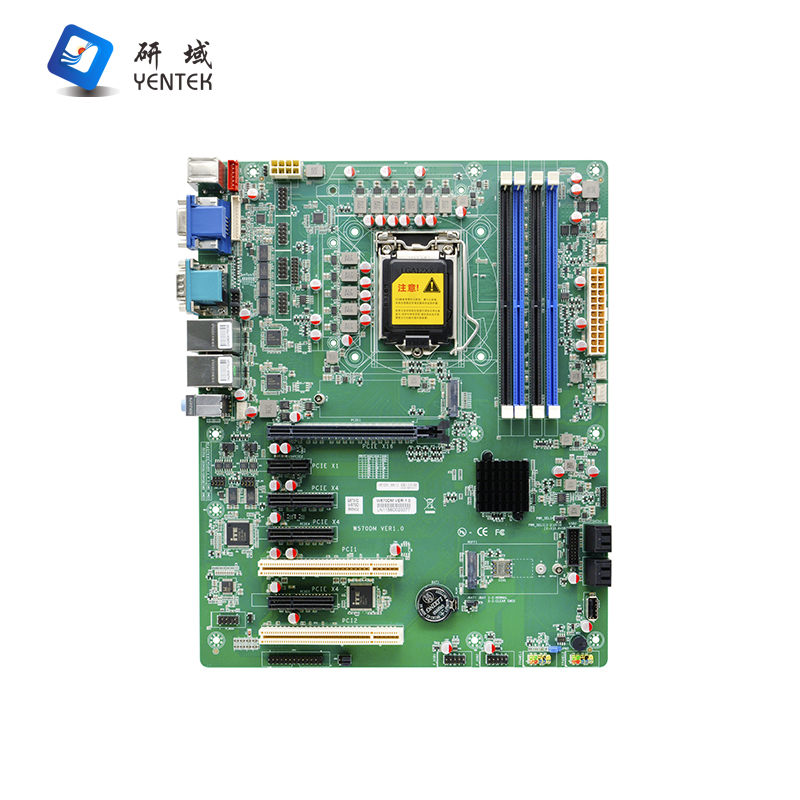

1

W570DM VER:1.0

LGA1200

/

Q570

4*DDR4

1

2

2*I210AT

13

6

COM1/2

ATX
