Processors | Supports LGA1700 12th/13th/14th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 Processors |
Chipset | Adopts Intel® W680 chipset |
Memory | 4* DDR5 DIMM memory slots, support dual-channel memory up to 4800MHz, maximum support for 128GB, support for ECC memory. |
Display | Integrated Intel® HD Graphics core graphics card support DirectX12.1, OpenGL4.5, support for 4K display |
1* VGA interface, support for the highest resolution of 1920X1200@60Hz | |
2* HDMI1.4 interface, support for the highest resolution of 4096x2160 @24Hz | |
Network | 2* Intel ® I210AT Gigabit NIC chip, support for Wake-on-LAN / PXE function |
Storage | 8* SATA3.0 hard drive interface, transfer speed up to 6Gbps, support RAID 0,1,5,10 |
1* M.2 slot, support M.2 Key M 2280 NVME PCIE X4 standard SSD | |
Audio | ALC897 7.1+2-channel hi-fi audio controller onboard, support MIC/Line-out/Line-in |
Expansion Slots | 1* PCIE5.0 X16,1* PCIE 3.0 X1,2* PCIE 4.0 X4,1* PCIE 3.0X4,2* PCI |

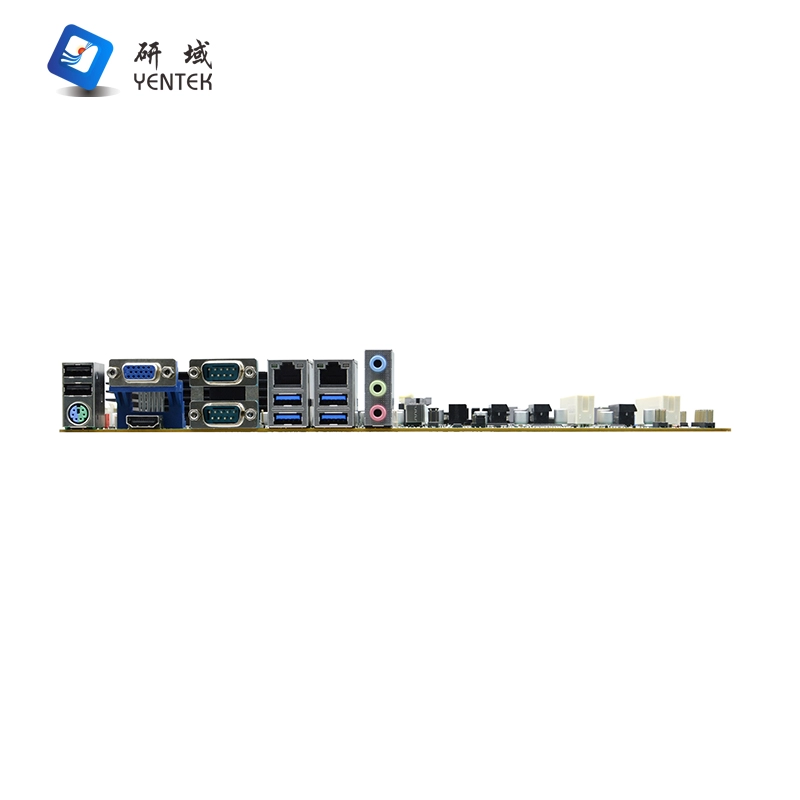

Backplane I/O
| 1* PS/2 interface (expandable keyboard and mouse) |
1* DB15 VGA port; 1* HDMI1.4 port | |
2* DB9 RS232 serial port, support the 9th pin with power function, support RS485/422 | |
2* USB2.0 interface; 4* USB3.0 interface (5Gbps), support for single port 2A current | |
2* RJ-45 Gigabit network interface | |
1* Triple audio interface, support Line-out, MICK, Line-in | |

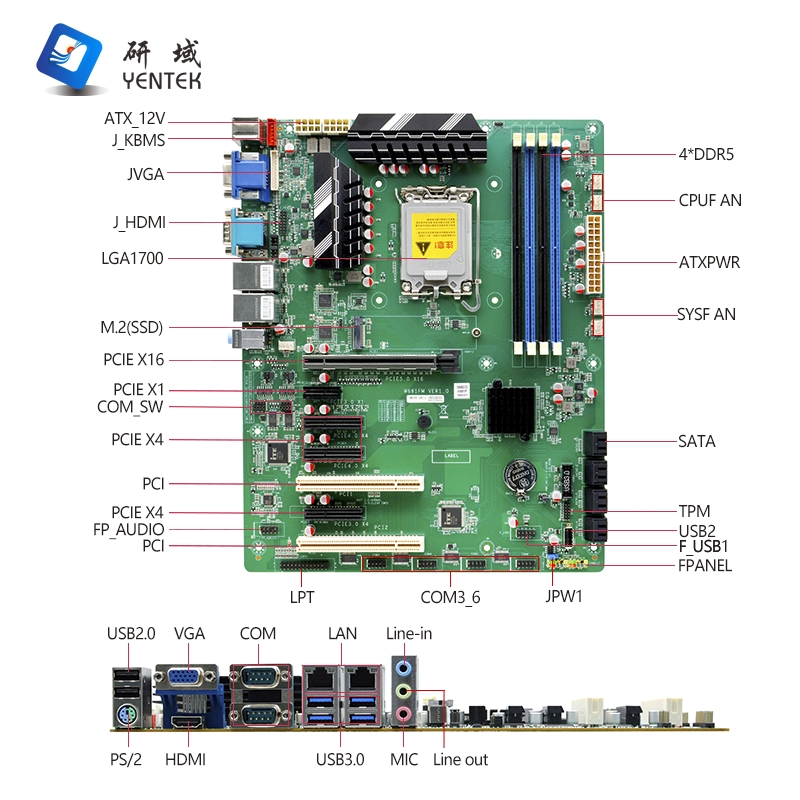

Built-in I/O
| 2* USB2.0 interface 2*5pin, 1* vertical USB2.0 interface, 2* USB3.0 interface 2*10pin |
1* Front panel audio interface (2*5pin) | |
2* Front Panel Function Button and Indicator Interface(2*5pin) | |
1* 24pin ATX power socket 2* 8pin ATX power socket | |
1* PS/2 keyboard and mouse connector 1*6pin | |
1* JVGA connector 1*12pin, same signal with DB15 | |
1* JHDMI connector 2*8pin | |
1* TPM connector 2*6pin | |
4* RS232 serial port, 2*5pin | |
1* LPT connector 2*13pin | |
Fan Interface | 2*4pin CPU fan connector; 3*4pin system fan connector |
BIOS | 128Mb Flash ROM |
Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
Operating System | Windows 10/Windows 11/Linux |
Power Supply Type | Powered by ATX 24Pin and 8pin power supply |
Operating Temperature | -20℃～60℃ |
Storage Temperature | -20℃～70℃ |
Working Humidity | 5%-95% relative humidity, non-condensing |

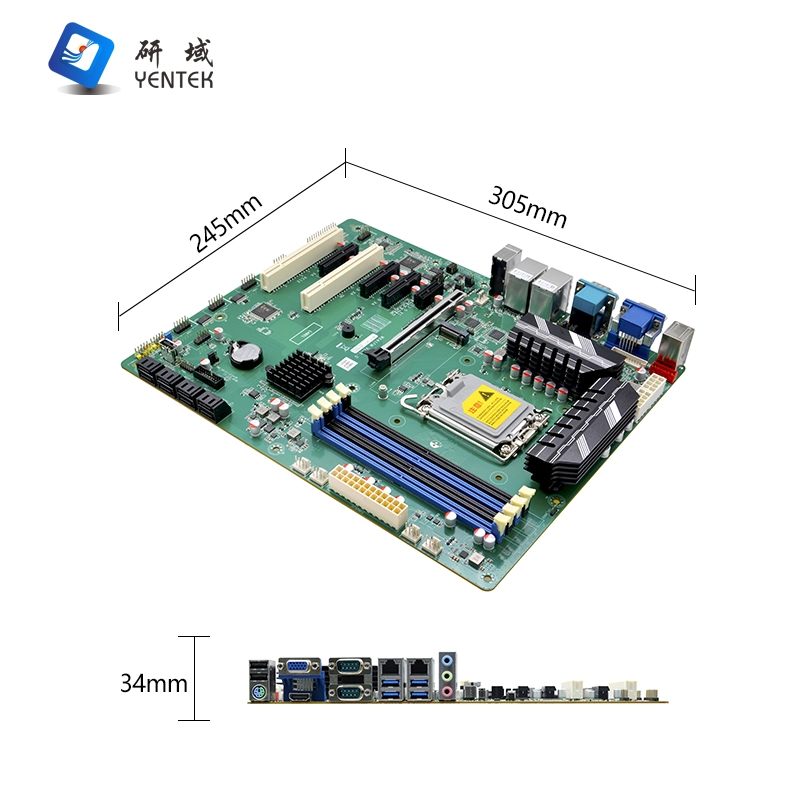

Dimension | 305mm x 245mm |
Order Information
No. | Model | Processor | Frequency | Southbridge | Memory | VGA | HDMI | DP | LAN | USB | COM | RS485/422 | Power |

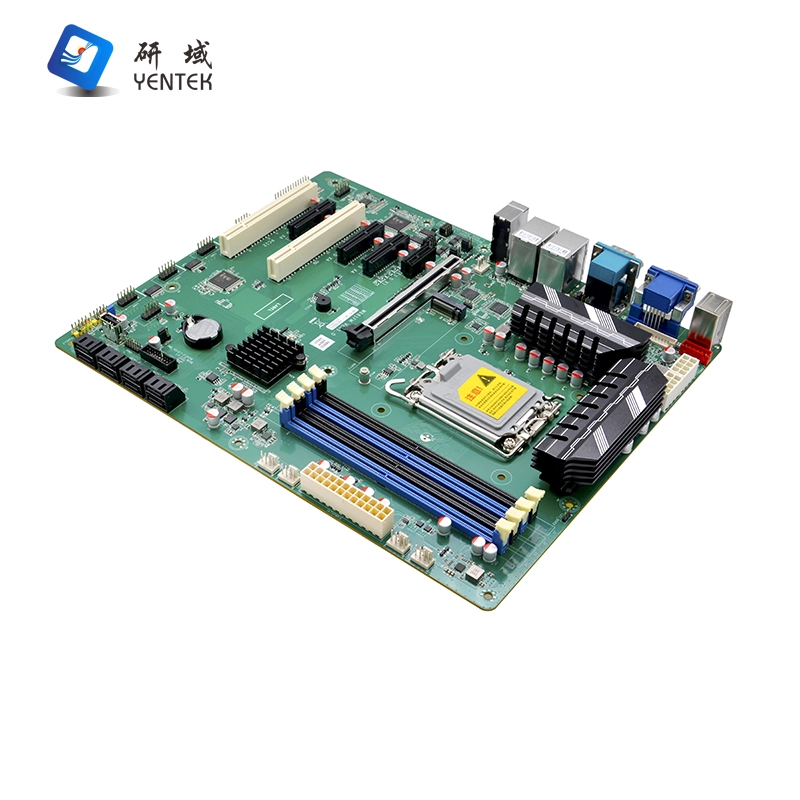

1 | W681FM VER:1.0 | LGA1700 | / | W680 | 4*DIMM | 1 | 2 | / | 2*I210AT | 11 | 6 | COM1/2 | ATX |
