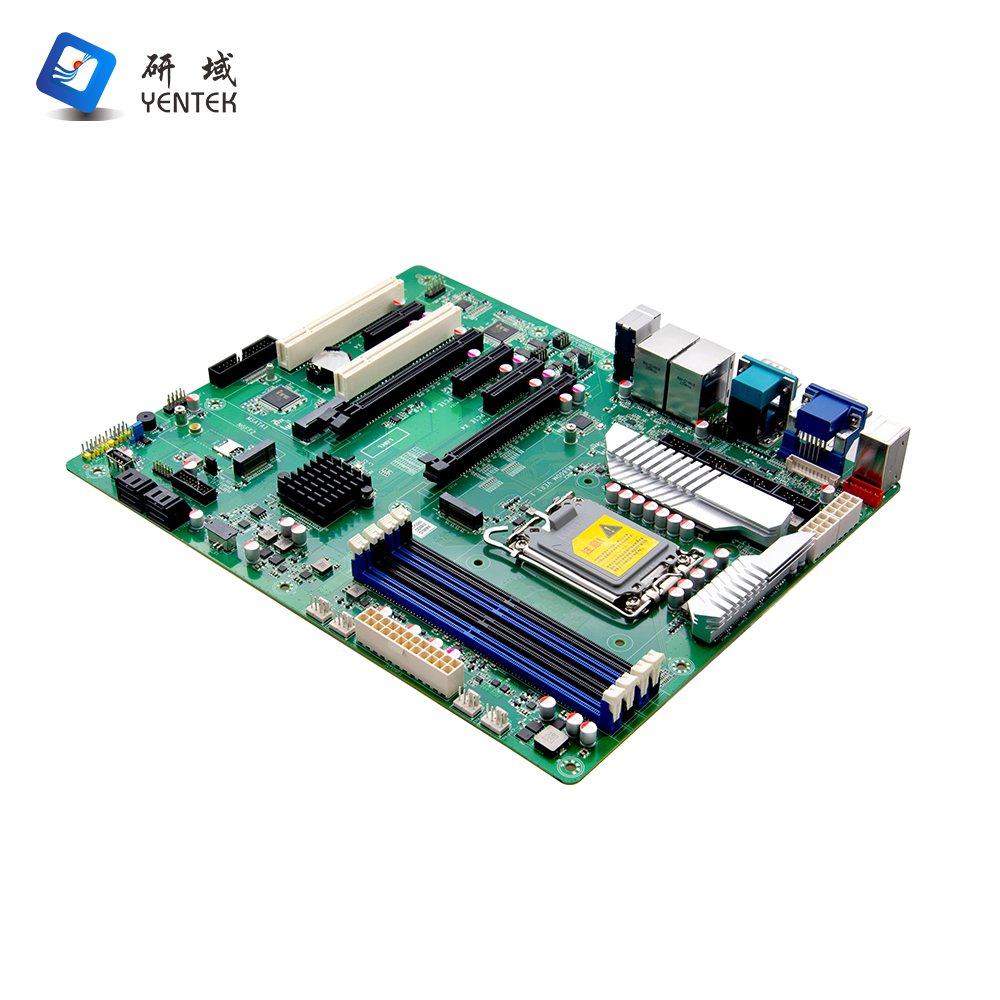

W680DM

Processor

Support LGA1700 12th/13th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9/Xeon processor

Note:125W CPU

Chipset

Intel® W680

Memory

4* DDR4 DIMM RAM slot, support dual   channel 3200MHz memory,

Max up to 128GB, supports ECC memory.

Display

Intel®HD Graphics , support DirectX12.1,OpenGL4.5, support 4K display

1* VGA, supports resolutions up to 1920X1200@60Hz

2* HDMI1.4,supports resolutions up to 4096x2160 @24Hz

LAN

2* Intel ®I210AT Gigabit Ethernet, support WOL / PXE function

Storage

4* SATA3.0 HDD interface, transfer rate up to 6Gbps, support RAID   0,1,5,10

1* MSATA slot, support Intel   protocol SSDs

1* M.2 slot, support M.2   Key M 2280 NVME PCIE X4 SSD

Audio

Onboard ALC897 7.1+2 channel high fidelity audio   controller, support MIC/Line-out/Line-in

Expansion

slot

2* PCIE4.0 X16 slot（ (These 2 PCIE X16 default for X8 signal, need X16 signal   need to change material, and only PCIE1 support X16)

3* PCIE X4 slot, PCIE2/PCIE4 is 4.0, PCIE5 is 3.0

2* PCI slot

1* M.2 slot, support M.2 Key B 2242/2252 4G/5G module

Rear Panel

I/O

1* PS/2 interface ( Extendable keyboard and mouse )

1* DB15 VGA

1* HDMI1.4

2* DB9 RS232 COM ports, support   the 9th pin charged function, RS485/422

2* USB2.0

4* USB3.2 Gen 2x1 (10Gbps)

2* RJ-45 Gigabit Ethernet interface

1* Triple-layer audio interface , support Line-out, MICK,   Line-in

Internal I/O

2* USB2.0, 2*5pin，

1* Vertical USB 2.0 port

1*TYPE-E USB3.0

2* USB3.0, 2*10pin

1* Front panel audio interface (2*5pin）

2* Front Panel Function Button and Indicator   Interface (2*5pin)

1* 24pin ATX   power socket, 2* 8pin ATX power socket

1* PS/2 keyboard and mouse interface , 1*6pin

1* JVGA port, 1*12pin, same signal as DB15

1* JHDMI port, 2*8pin

1* TPM port, 2*6pin

4* RS232 COM ports，2*5pin

1* SIM

1* LPT, 2*13pin

Fan interface

1*4pin CPU smart fan connnector;4*4pin system fan connector

BIOS

128Mb Flash ROM

Watchdog

Support   hardware reset function (L256, 0~255 seconds)

OS

Windows 10/Windows 11/Linux

Power Supply

Adopt   24Pin ATX power supply

Operating Temp.

0℃～60℃

Storage Temp.

-20℃～70℃

Working Humidity

5～90%   (relative humidity; non-condensing)

Dimension

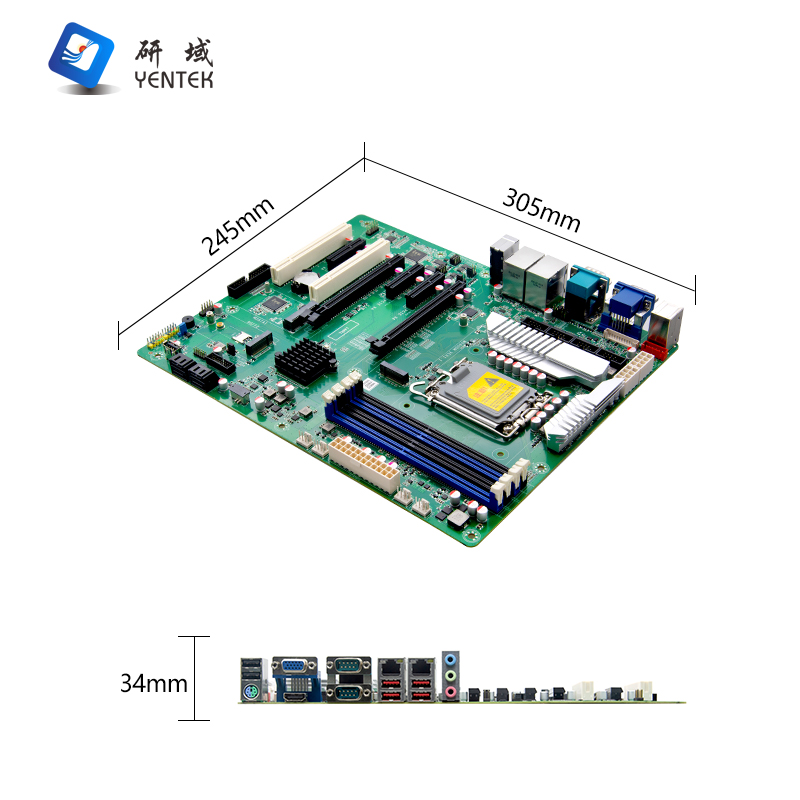

305mm x 245mm

1

W680DM VER:1.1

LGA1700

/

W680

4*DDR4

1

2

/

2*I210AT

12

6

COM1/2

ATX
