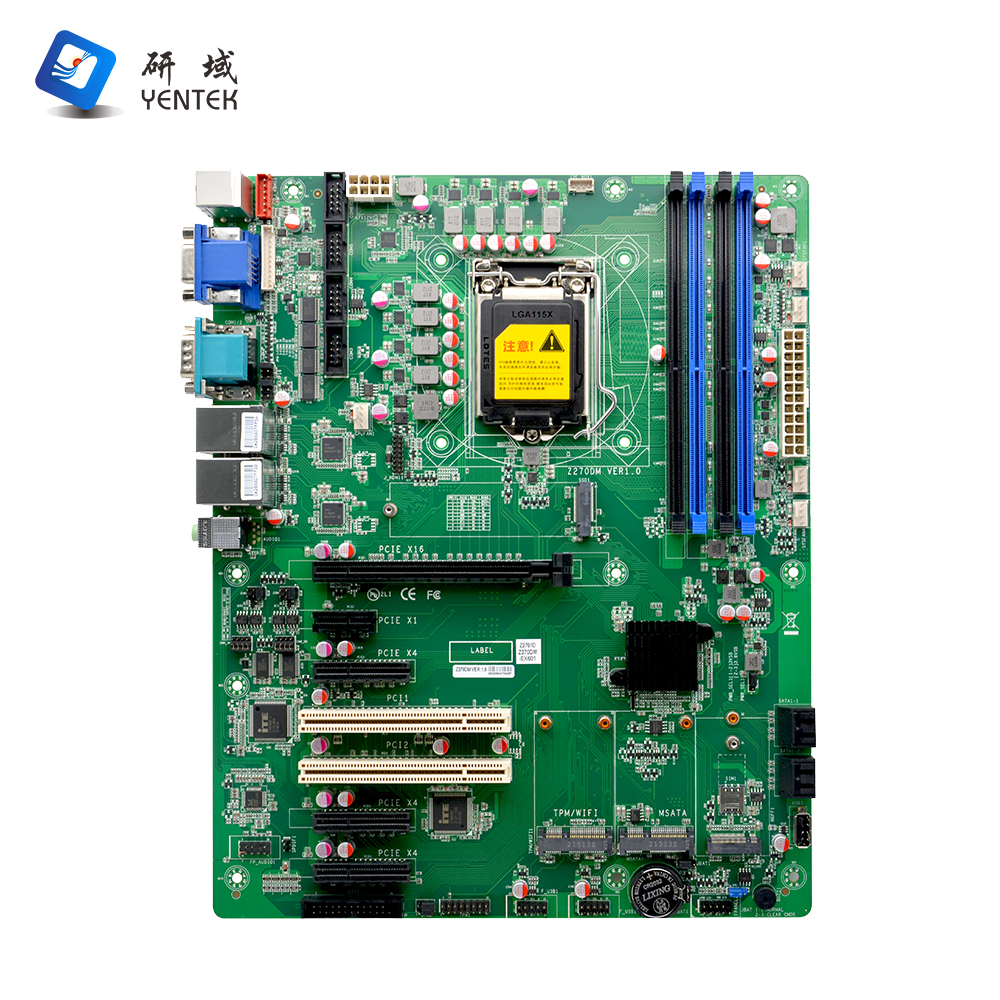

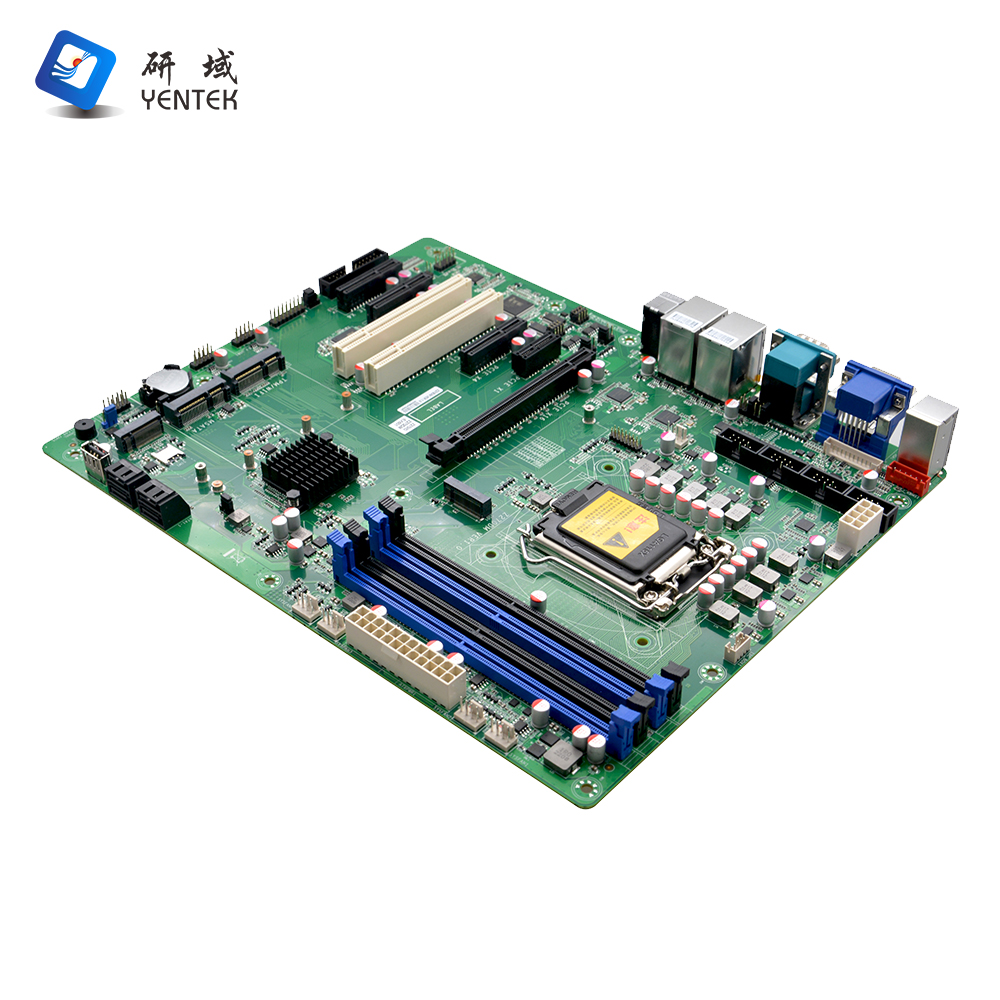

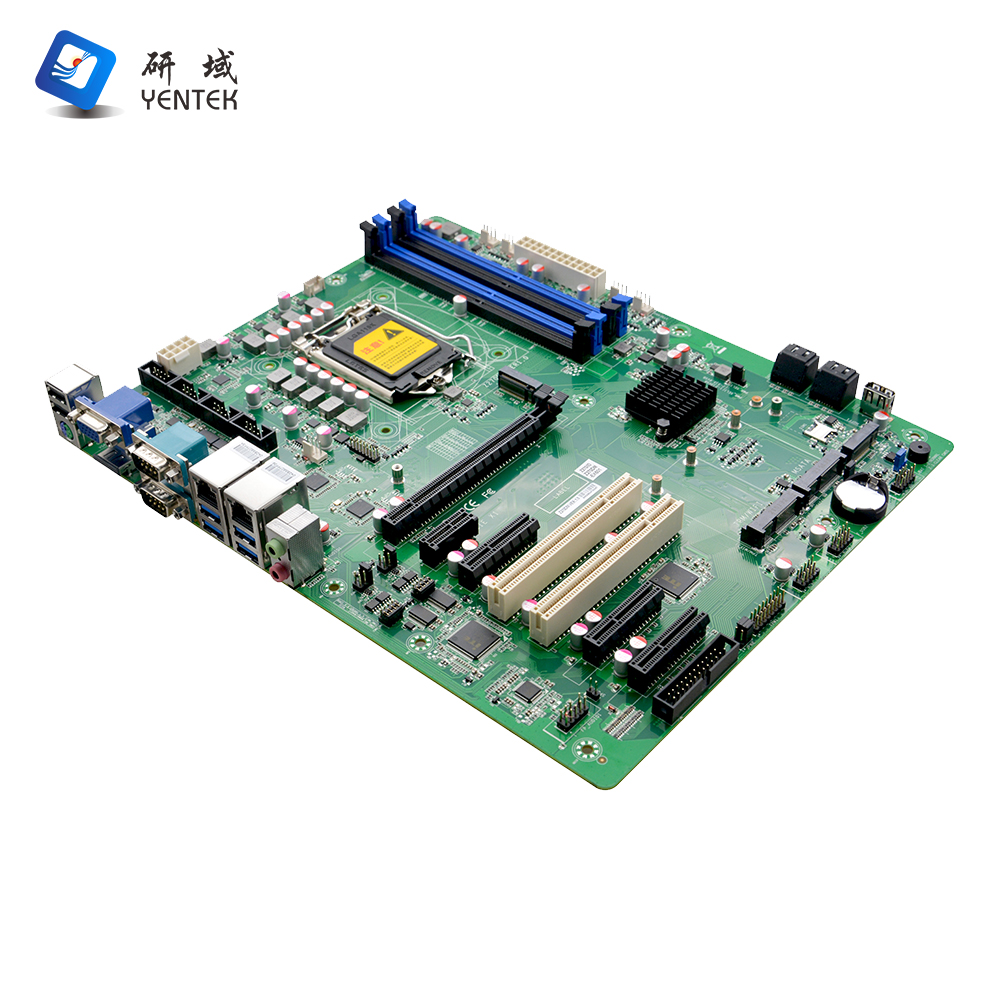

| Product model | Z270DM VER:1.0 |
| Processor | 6th/7th/8th/9th Celeron/Pentium/Core i3/i5/i7 processors supporting the LGA1151 architecture |
| Chipset | Intel Z270 high-speed chipset |
| Memory | 4 x DDR4 DIMM slots for dual-channel 2133 MHZ memory, 2400 MHZ memory, and 2666MHz memory, with a maximum of 64GB |
| Display | Integrated Intel® HD Graphics controller with 1*VGA port and 2*HD OUTPUT1.4 port, Supports single display, dual display mode, and extended mode |
| Network | 2* Intel I211AT/I210AT Gigabit network adapter, supporting wake up and PXE functions |
| Deposit | 4* SATA3.0 hard disk interface,SATA transmission speed up to 6Gbps |
| 1* MSATA interface, support Intel protocol SSD, transmission rate up to 6Gbps | |
| 1* M.2 slot, support M.2 2280 NVME PCIE x1(PCB V1.0 supports x1 only, PCB V1.1 supports x1/SATA) | |
| Tone frequency | Onboard ALC888S high fidelity audio controller, support Mic, Line out |
| Expansion slot | 1 x PCIE3.0 x16 |
| 3 x PCIE3.0 x4 | |
| 1* PCIE3.0x1 | |
| 2* PCI | |
1* Mini-PCIE slot with WiFi support (TPM-4COM can be used to expand four serial ports, and the corresponding BIOS is required) 1* M.2 slot,2242/2250, 4G/5G support | |

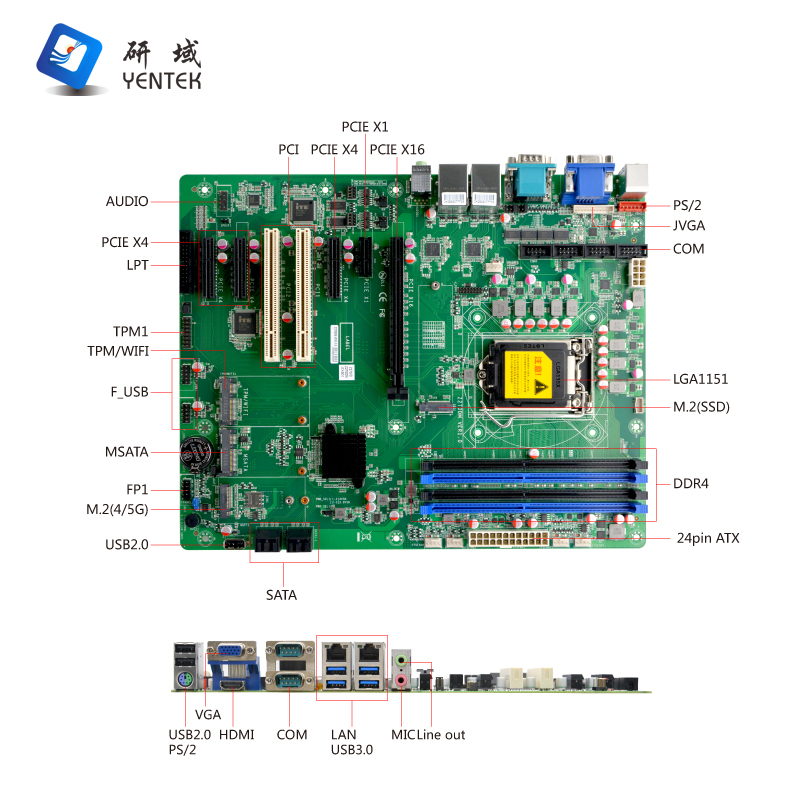

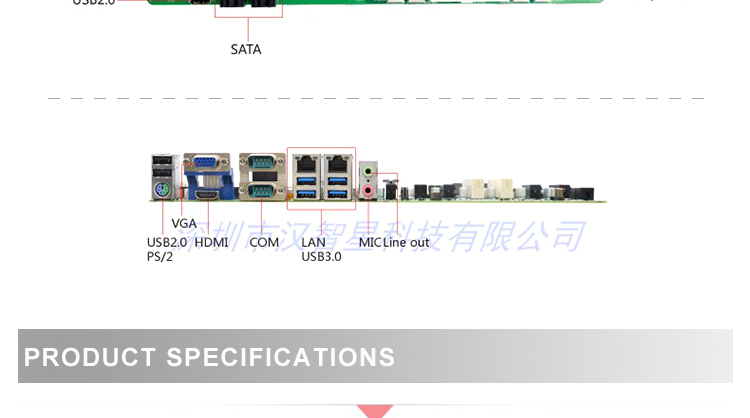

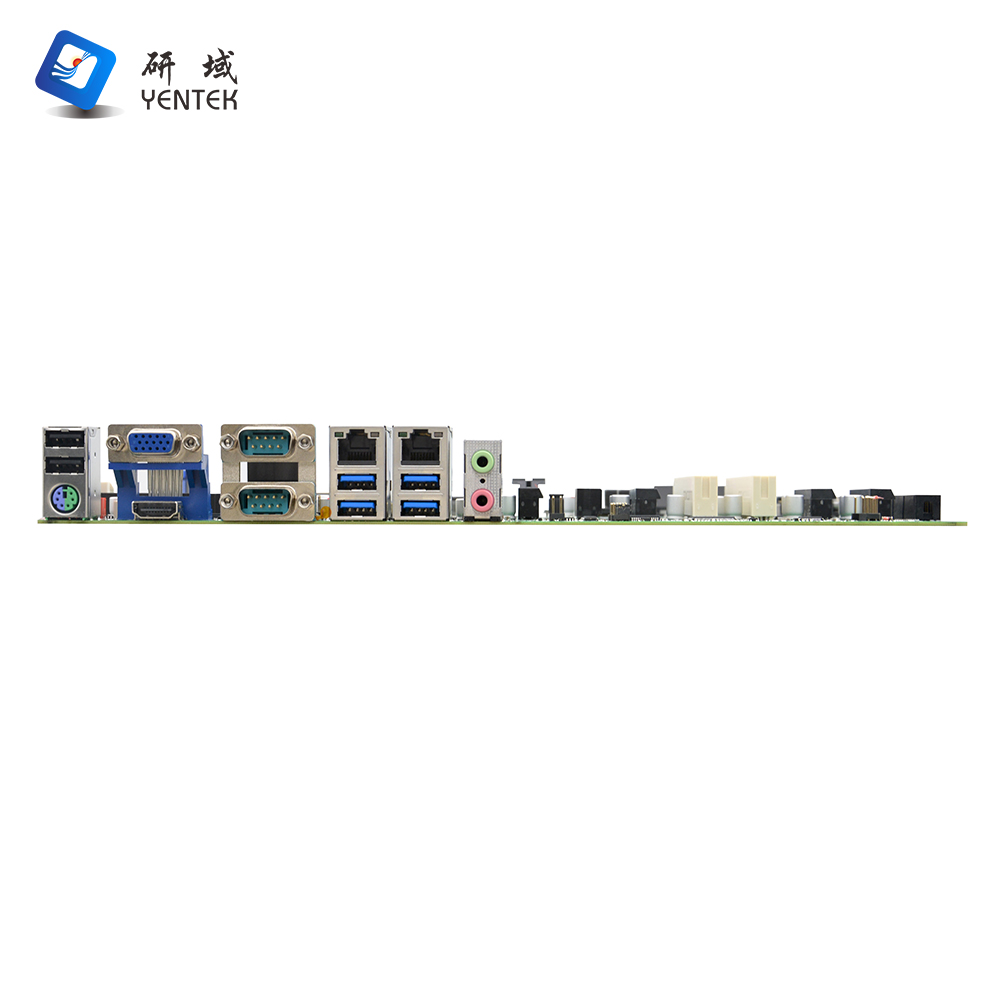

| I/O ports on the backplane | 1* PS/2 keyboard and mouse interface |
| 1 x VGA display port | |
| 1* HD OUTPUT display interface | |
| 2* RS232 serial port,COM1/2 supports 5V/12V live function,COM1/2 supports RS485/422 function | |
| 2* RJ45 Gigabit network interface | |
| 2* USB 2.0 port | |
| 4* USB 3.0 interface | |
| 1* Line out interface (green), 1* Mic interface (red) | |
| Built-in I/O interface | 1* PS/2 keyboard and mouse interface 1*6pin row pin and UK1 signal |
| 1* JVGA port 1*12pin pin row, the same signal as the external VGA | |
| 1* JHD OUTPUT port 2*8pin row pins | |
| 4 x RS232 serial port 2 x 5pin row pins | |
1* front audio interface 2*5pin row pins | |
| 4* USB 2.0 port 2*5Pin row pins | |
1*USB2.0 port USB-TYPE A | |
| 1* TPM port 2*8pin row pins | |
| 1* Front panel function buttons and indicator ports 2*5pin row pins | |
| 1*LPT 2*13 pin row pin (default print port, can be made into GPIO, need to brush to configure GPIO BIOS) | |
| 1* 24pin ATX power input interface 1* 8pin ATX power input interface | |
| Fan interface | 1*4pin CPU intelligent fan interface, 4* 4pin system intelligent fan interface |
| GPIO | Supports four input/output GPIO functions |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 7/10/Linux |
| Power supply type | ATX power supply |
| Operating temperature | 0℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

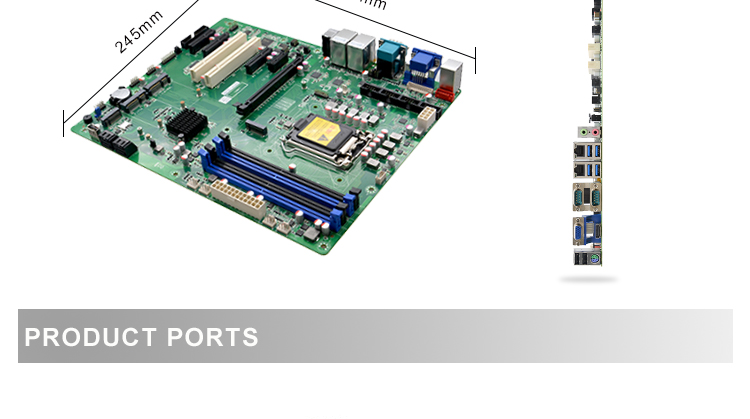

| Dimension | 305mm * 245mm（ATX） |
| NO. | Model | Processor | Southbridge | Memory | VGA | HD OUTPUT | LAN | USB | COM | RS485/RS422 | Power |
| 1 | Z270DM VER:1.0 | LGA1151 | Z270 | 4*DDR4 | 1 | 2 | 2*I211AT | 11 | 6 | 2 | ATX |
| 2 | Z270VM VER:1.0 | LGA1151 | Z370 | 4*DDR4 | 1 | 2 | 2*I225V | 11 | 6 | 2 | ATX |
