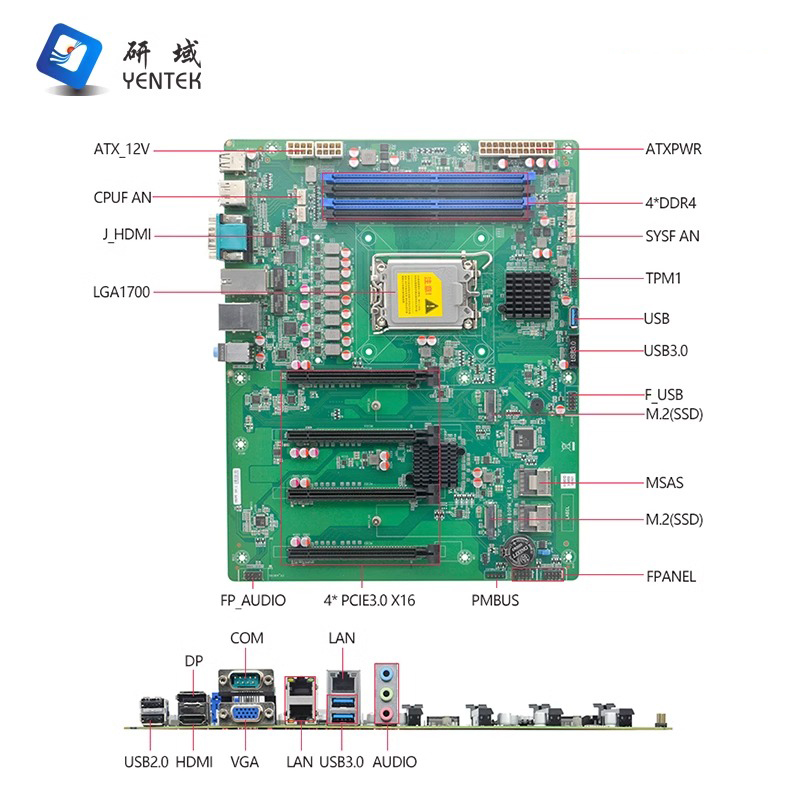

W680PM

processor

Supports LGA1700 12th/13th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 and Xeon processors

Note: Supports 125W cpu

chipset

Intel® W680 chipset,

Memory

4*DDR4 DIMM slots support a dual-channel memory of up to 3200MHz, 128GB, and   ECC memory

Display

Integrated   Intel®HD Graphics core graphics card supports DirectX12.1,OpenGL4.5, and   supports 4K display

1*   VGA port

1* HD OUTPUT1.4 interface, support the highest resolution   of 4096*2160@24Hz

1* DP interface, the maximum resolution is   4096*2160@60Hz

Network

2* I210AT Gigabit network adapter chip,   supports network wake up /PXE function

1* I219LM Gigabit network adapter, support network   wake up /PXE function, support PRO function

Store

2*   MSAS hard disk interface, each MSAS supports 4 7pin SATA, a total of 8 7pin   SATA transmission speed up to 6Gbps

2   * M.2 slot, support M.2 Key M 2280 NVME PCIE X4 standard SSD

Tone frequency

Onboard ALC897 7.1+   2-channel hi-Fi audio controller with MIC/Line-out/Line-in support

Expansion   slot

4* PCIE3.0 X16 slot, the actual X8 signal

I/O   ports on the backplane

2* USB2.0 port

1* DP interface

1* HD OUTPUT1.4 port

1* VGA port

1* DB9 serial interface

3* RJ45 Gigabit network interface

2*   USB3.0 port

1*   Layer 3 audio interface, support Line-out,MICK,Line-in

Built-in   I/O interface

1* vertical USB3.0 interface

2* USB2.0 interface 2*5pin

2* USB3.0 interface 2*10pin

1*   front audio interface 2*5pin

1*   TPM1 interface 2 x 6pin

1*   24pin ATX power interface

2*   8pin ATX power interface

2*   Front panel function buttons and indicator ports 2*5pin

Fan   interface

2*4pin   CPU fan interface; 3*4pin system fan port

BIOS

128Mb   Flash ROM

Guard   dog

Support   hardware reset function (256 level, 0~255 seconds)

Operating   system

Windows   10/Windows 11/Linux

Power   supply type

Powered   by ATX 24Pin and 8pin power supplies

Operating   temperature

0℃ to 60℃

Storage   temperature

-20℃ to 70℃

Working   humidity

5%-95% relative humidity, no condensation

Size

305mm   * 245mm

1

W680PM VER:1.0

LGA1700

/

W680

4*DDR4

1

1

1

2*I210AT

1*I219LM

9

1

/

ATX
