N1250Z-H2

Chassis

Material/structure

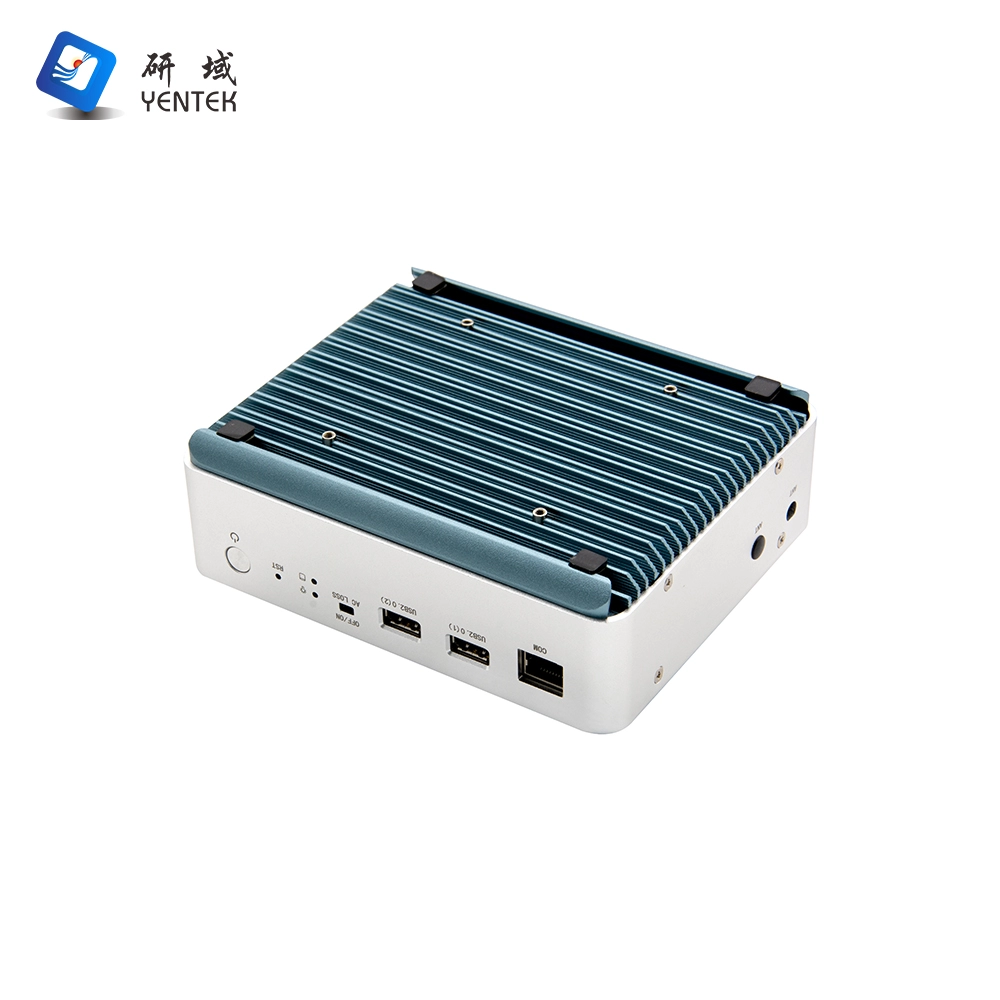

All   aluminium alloy, fanless cooling structure

Colour

Iron grey

Size (LWH)

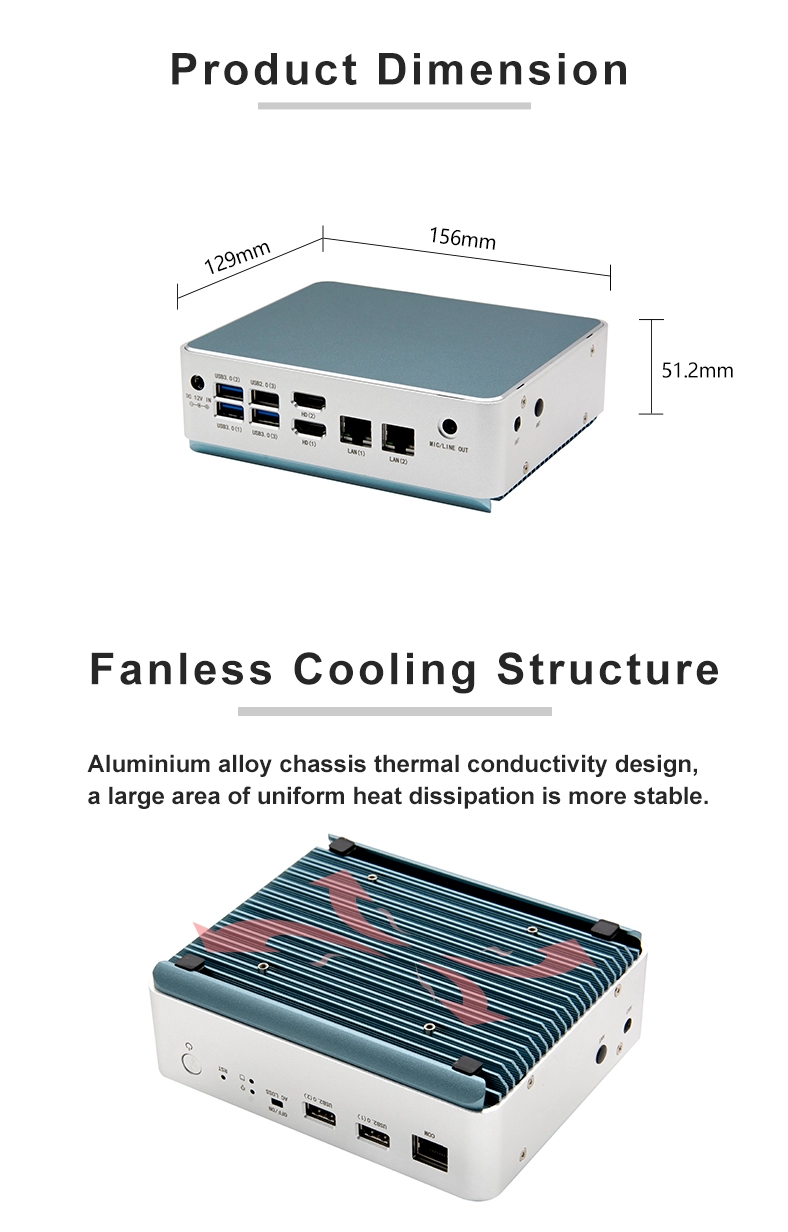

156*129*51.2MM

Weight   (bare net)

0.85KG

Installation

Desktop/VESA   (75*75)

Motherboard

CPU

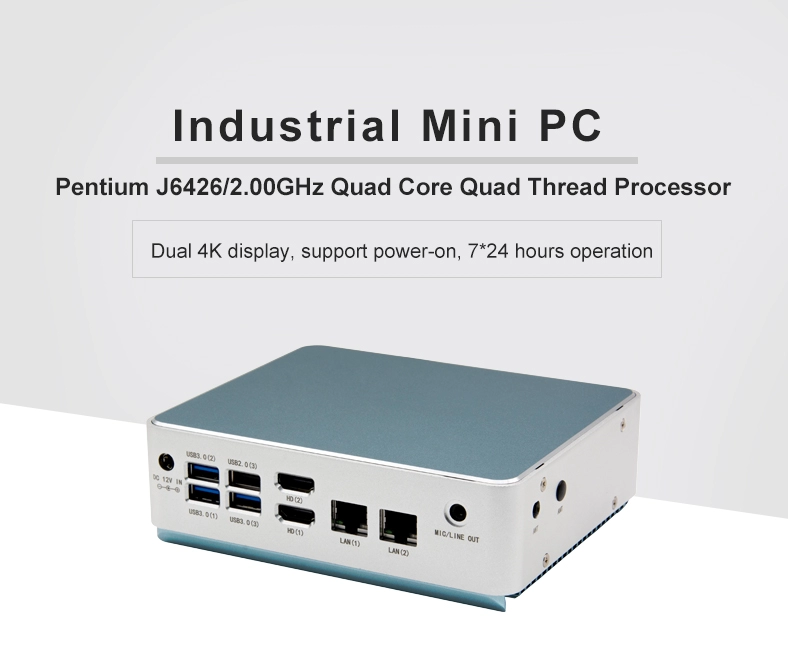

Integrated   Intel® Pentuim J6426/2.0GHz Quad-Core Quad-Thread Processor, TDP 10W

Display

Integrated   Intel® UHD Graphics

RAM

2*DDR4   SODIMM, support 3200MHz memory, maximum support 32GB

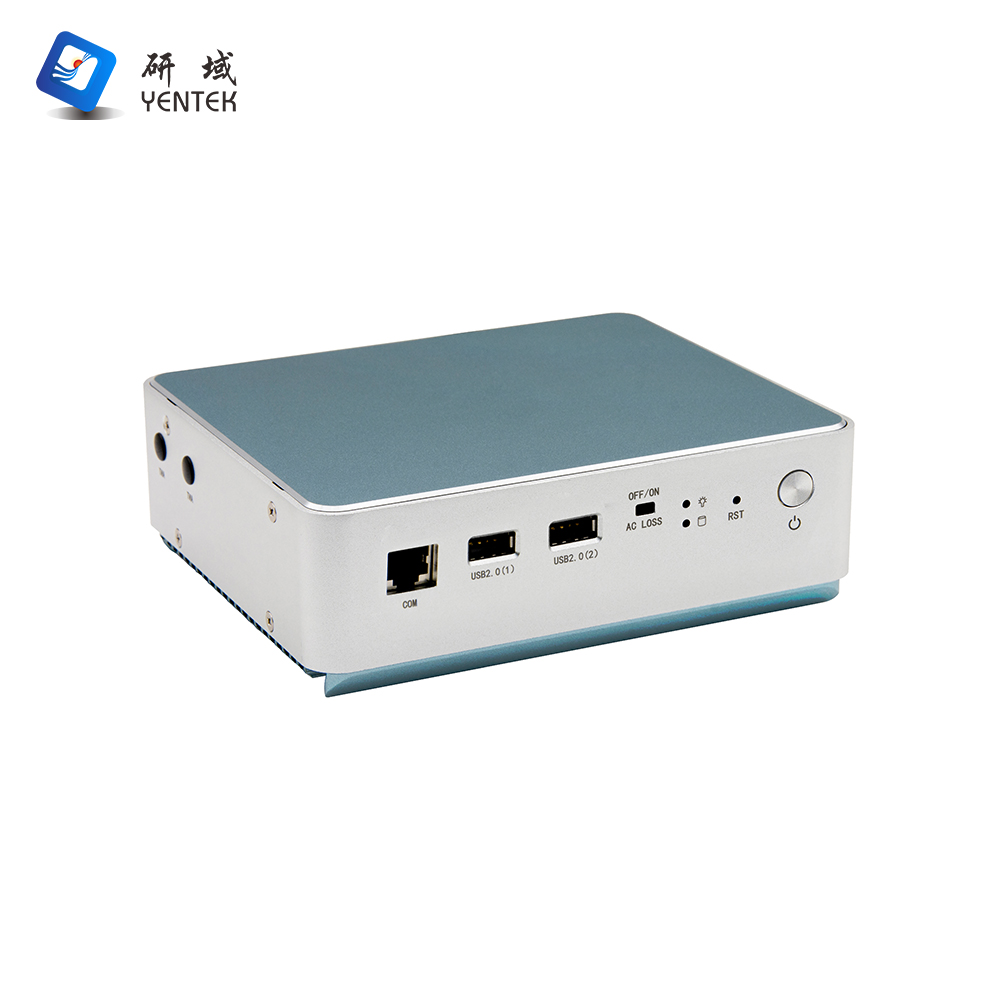

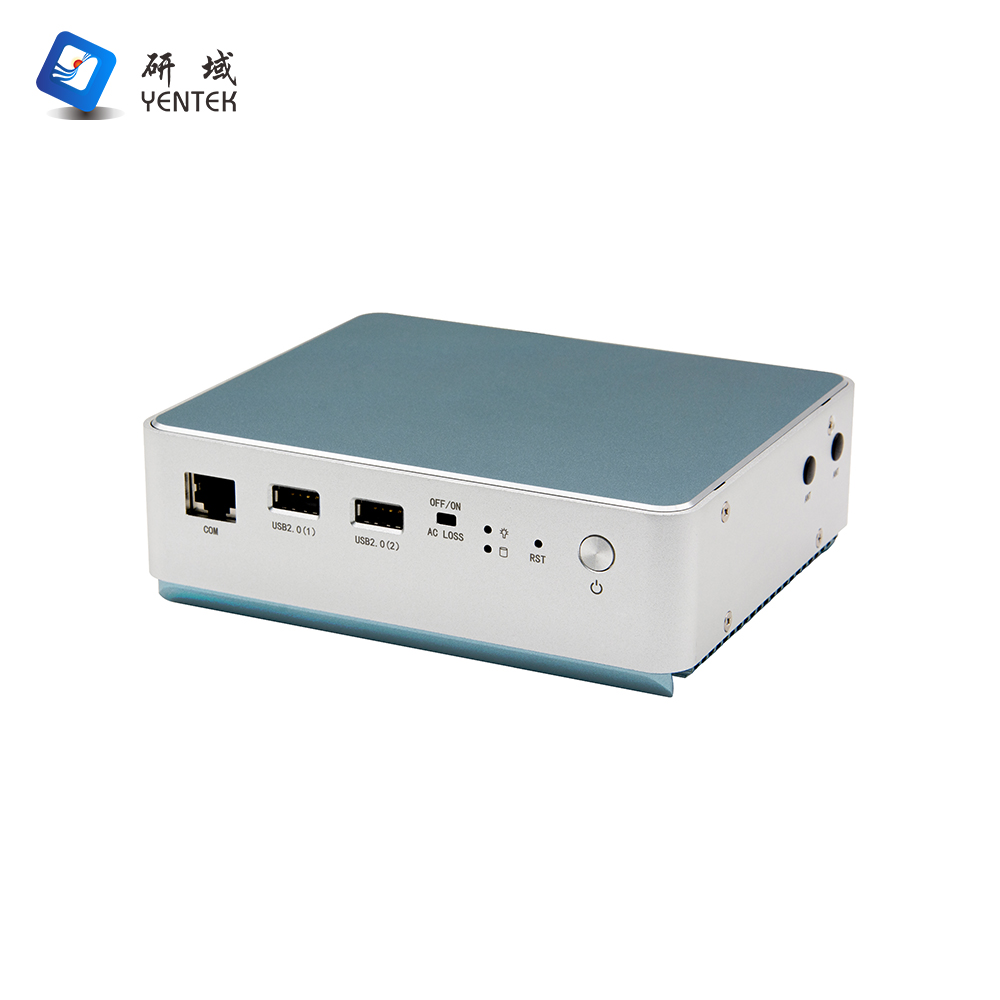

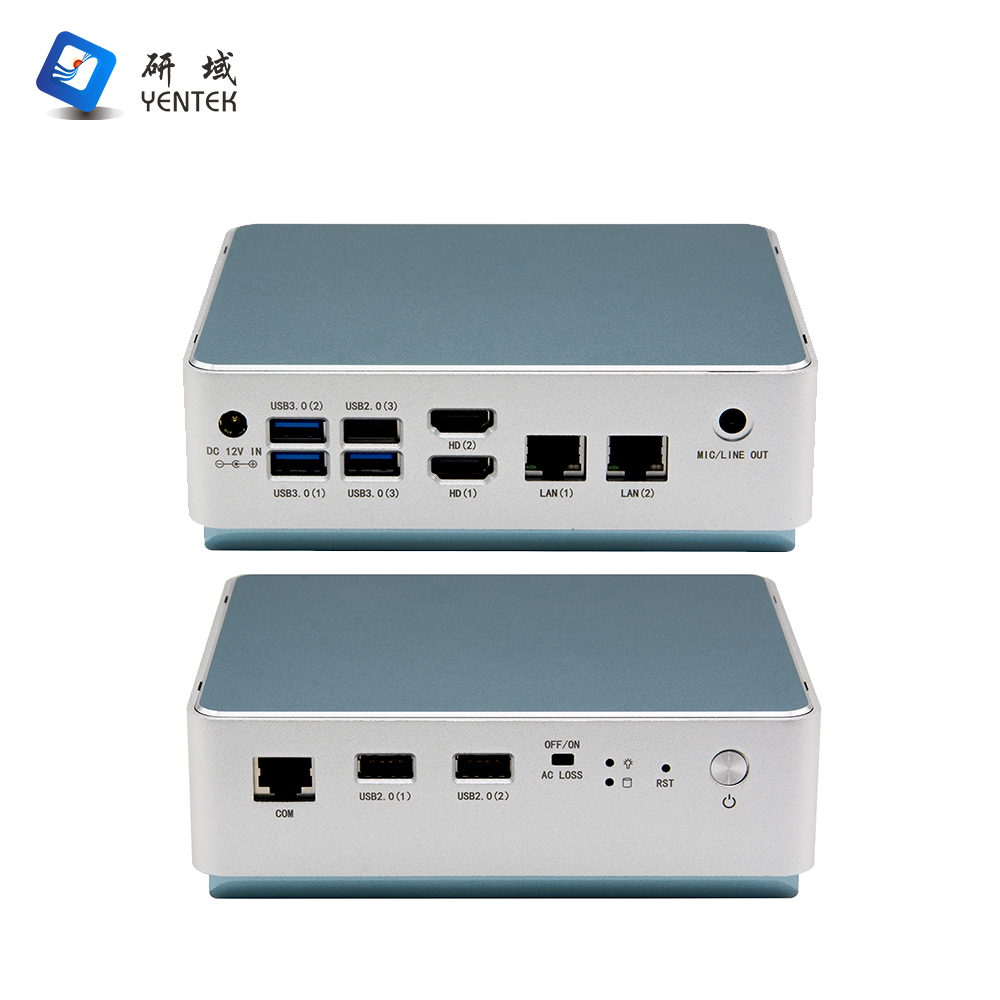

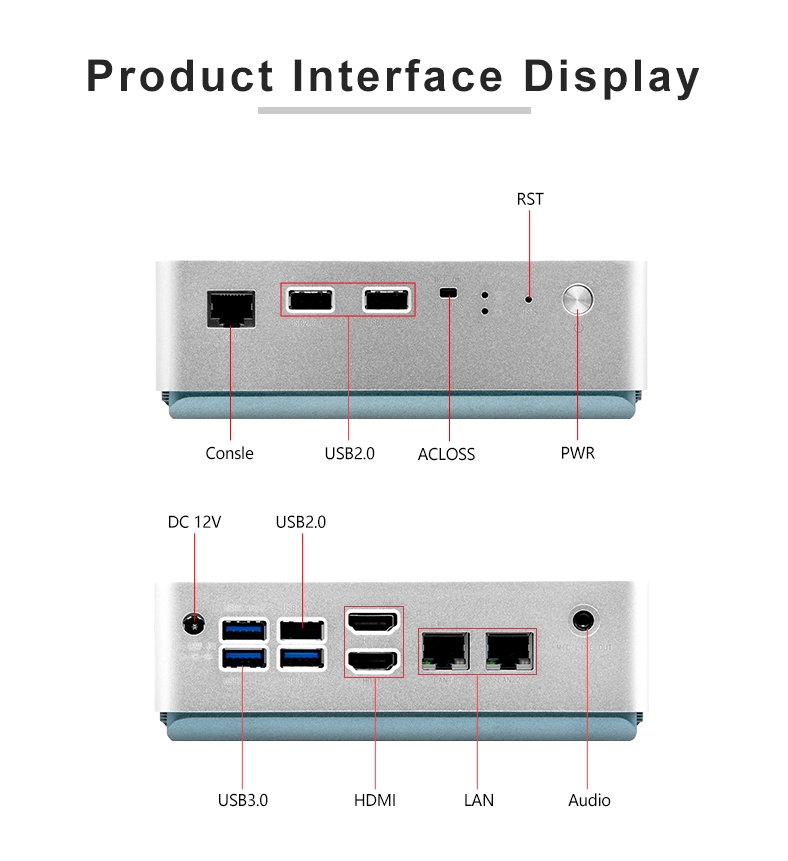

Front Panel Connectors

POWER

1*Power   Switch, 1*Reset Switch, 1*ACLOSS (Power On and Off DIP Switch)

LED

1*Power   Indicator, 1*Hard Drive Indicator

USB

2*USB2.0

Console

1*Consle   Serial Port

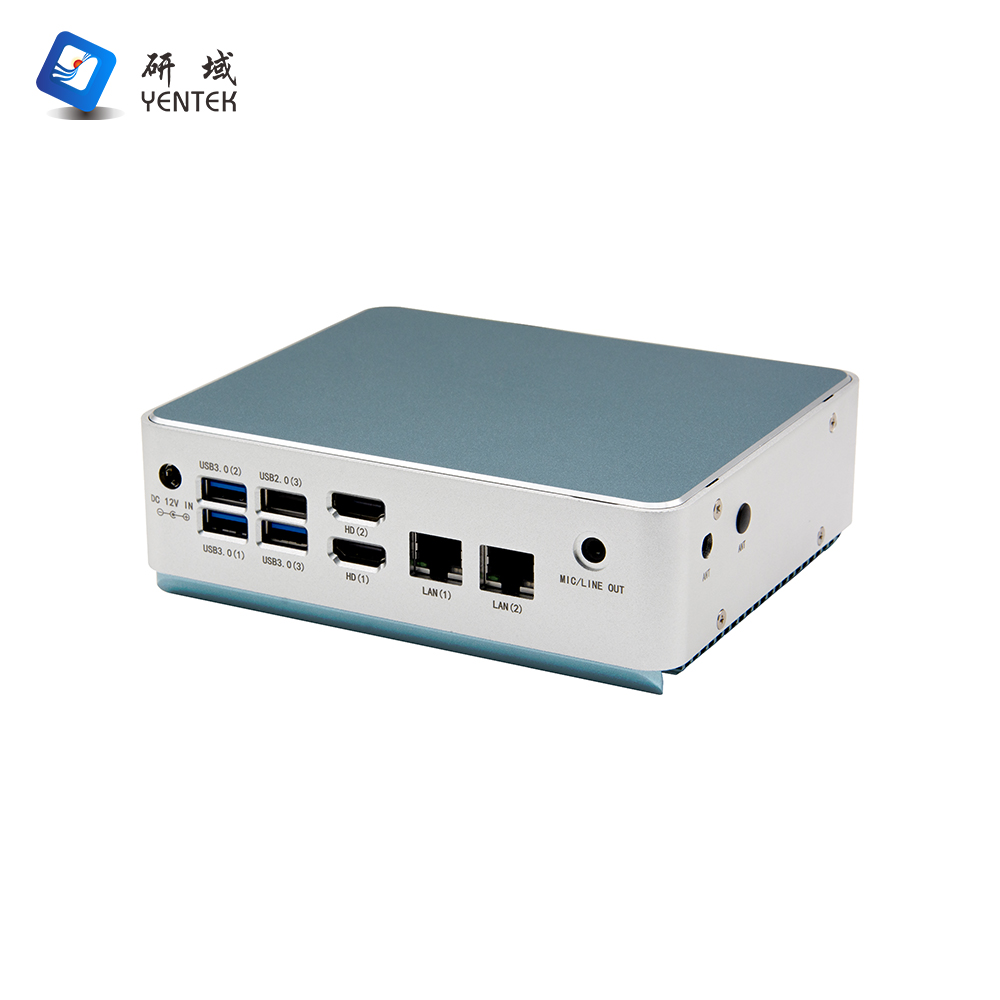

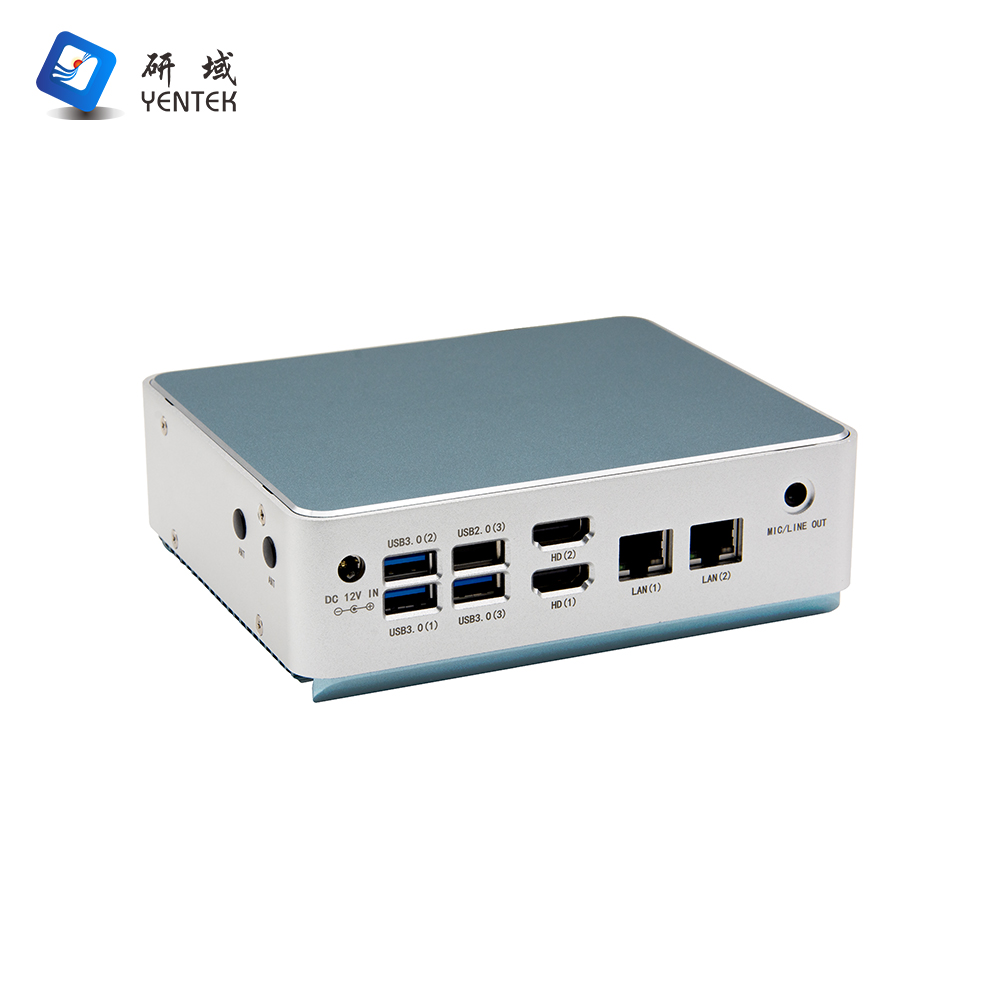

Rear Panel Interface

Display   Interface

2*HDMI1.4   (4096x2160@60Hz), support dual 4K

LAN

2*Intel   I211 Gigabit power port, support Wake-on-LAN, PXE function

USB

1*USB2.0,   3*USB3.0

Audio

1*Audio,   Line out and MIC 2 in 1

Power   supply

1*DC 12V   power input

Storage

M.2

1*M.2,   support Key-B, 2280, NVME PCIEx2 SSD

Expansion

Mini PCIE

1*Mini-PCIE   slot, support WiFi or 4G

M.2

1*M.2,   support Key-E, 2230, WiFi module

System Support

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support   hardware reset function (256 levels, 0~255 seconds)

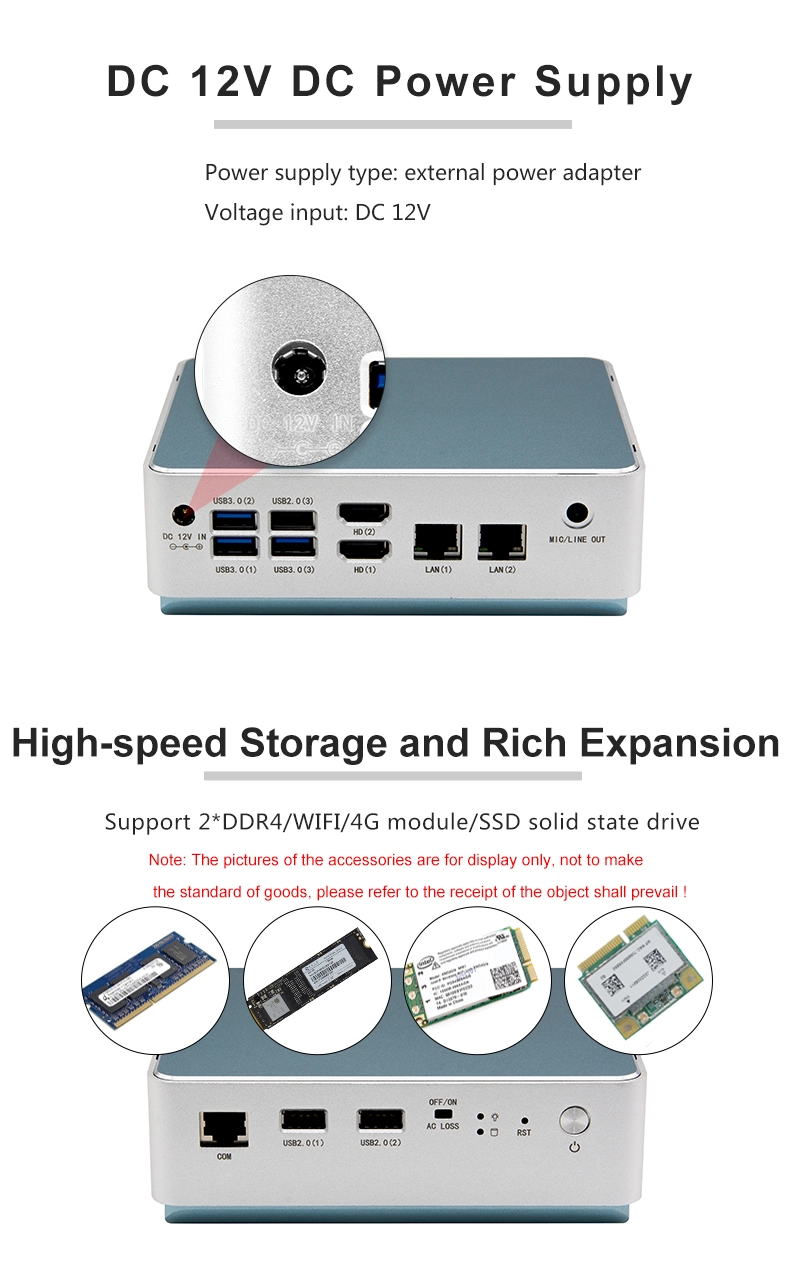

Power Requirements

Power   supply type

External   Power Adapter

Voltage   Input

DC 12V

Power   Output

AC To DC   (depending on specific device)

Environments

Operating   Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative   Humidity

5%-95%   relative humidity, non-condensing

Operating   Vibration

0.5g   rms/5-500HZ/random/operating

1

N1250Z-H2 V1.0(J6426)

J6426/2.0G

2*SODDR4

EPIC-J6426

J6426-IO

2*I211

M.2(NVME)

2

3

3

DC 12V

2

N1250Z-H2 V1.0(N6211)

N6211/1.2G

2*SODDR4

EPIC-N6211

J6426-IO

2*I211

M.2(NVME)

2

3

3

DC 12V
