N8150Z-V

Chassis

Material/structure

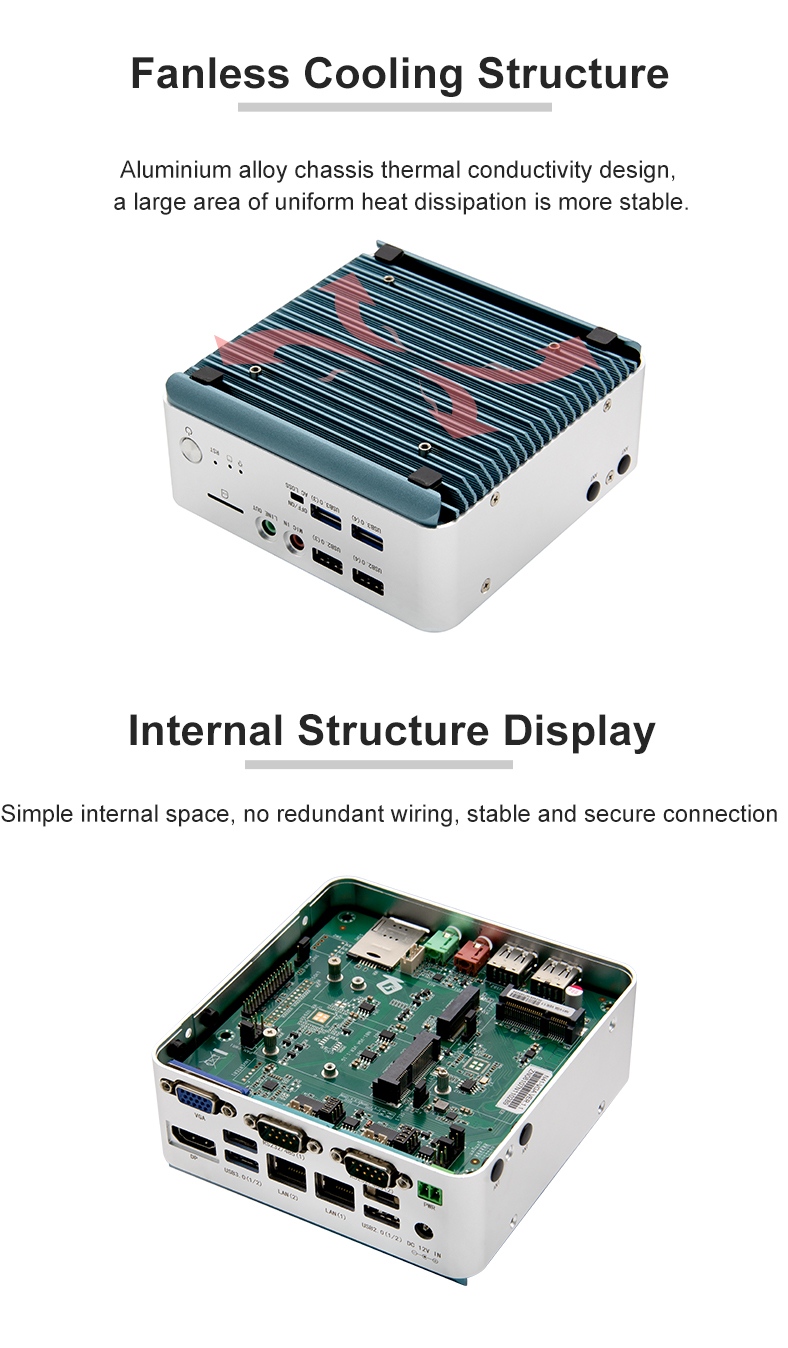

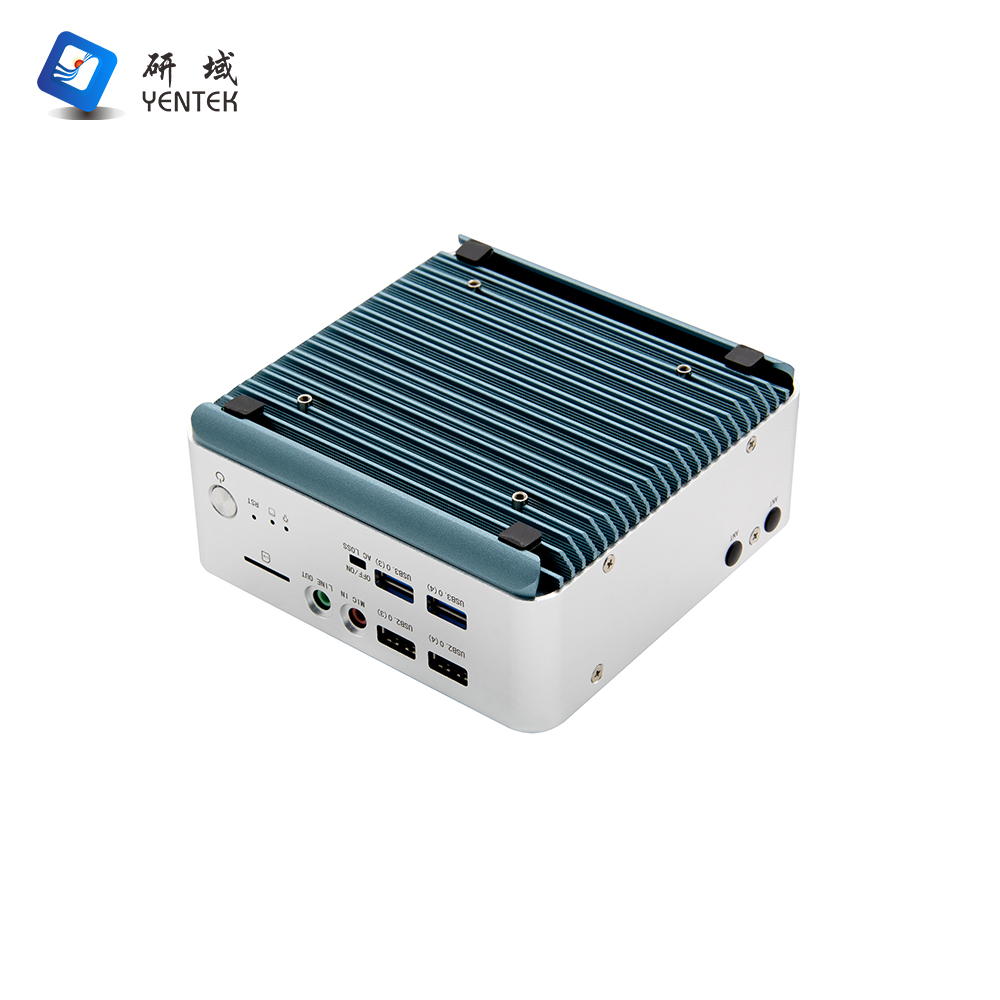

All aluminium alloy, fanless   cooling structure

Colour

Iron grey + silver

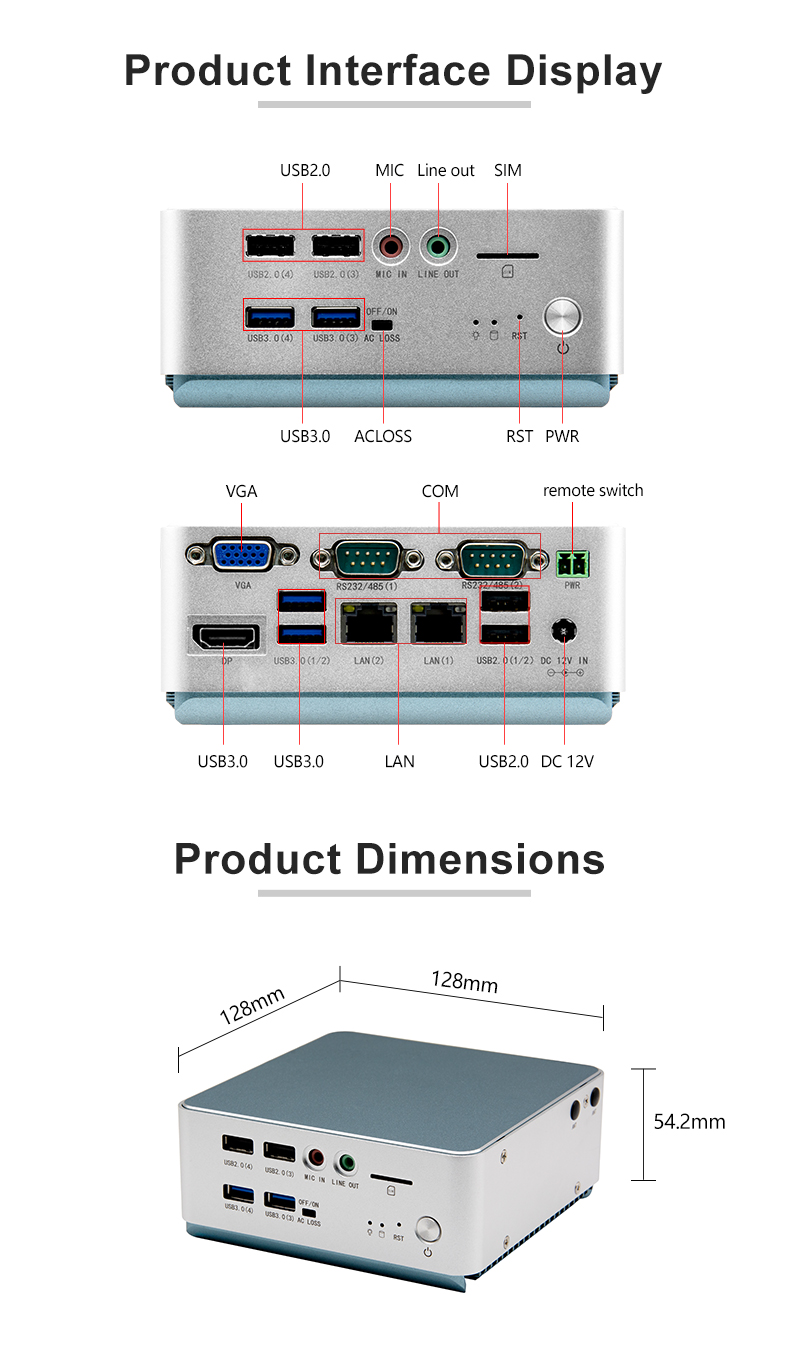

Size (LWH)

128*128*54.2MM

Weight (bare net)

1.20KG

Installation

Desktop/Wall Mount/VESA/DIN   Rail(35mm)

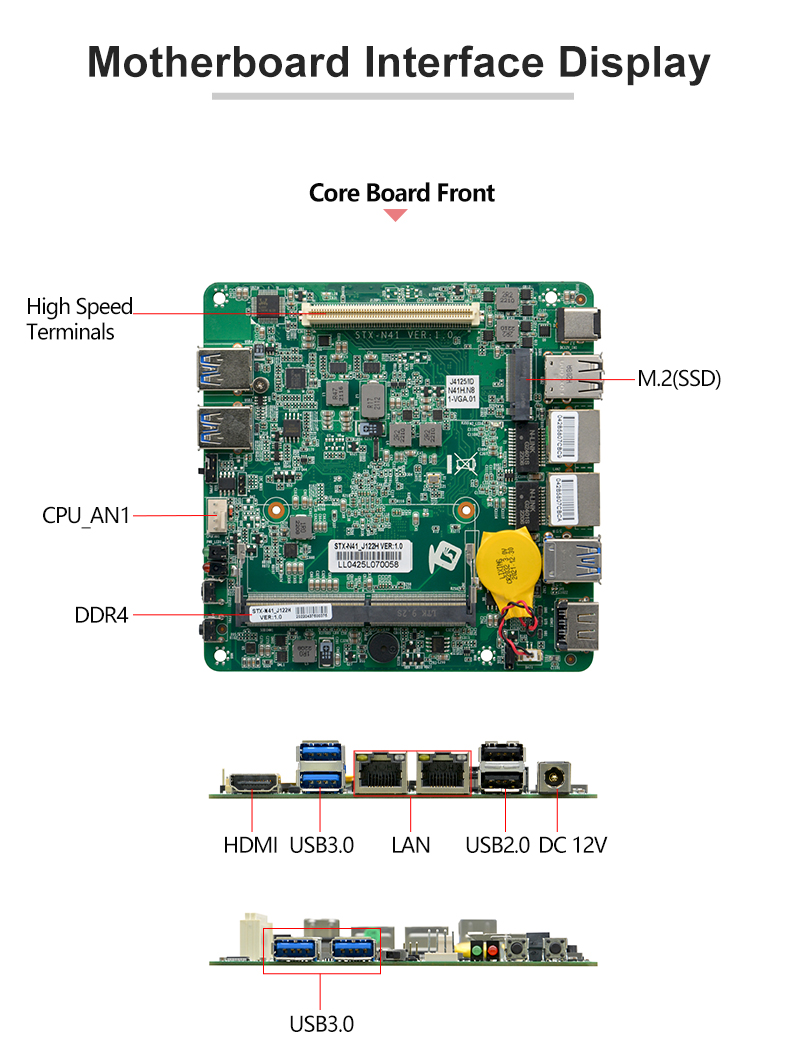

Motherboard

CPU

Integrated Intel® Celeron   J4125/2.0GHz Quad-Core Quad-Thread Processor, TDP 15W

Display

Integrated Intel® UHD Graphics   600

RAM

1*SODDR4 2400MHz, support up to   8GB

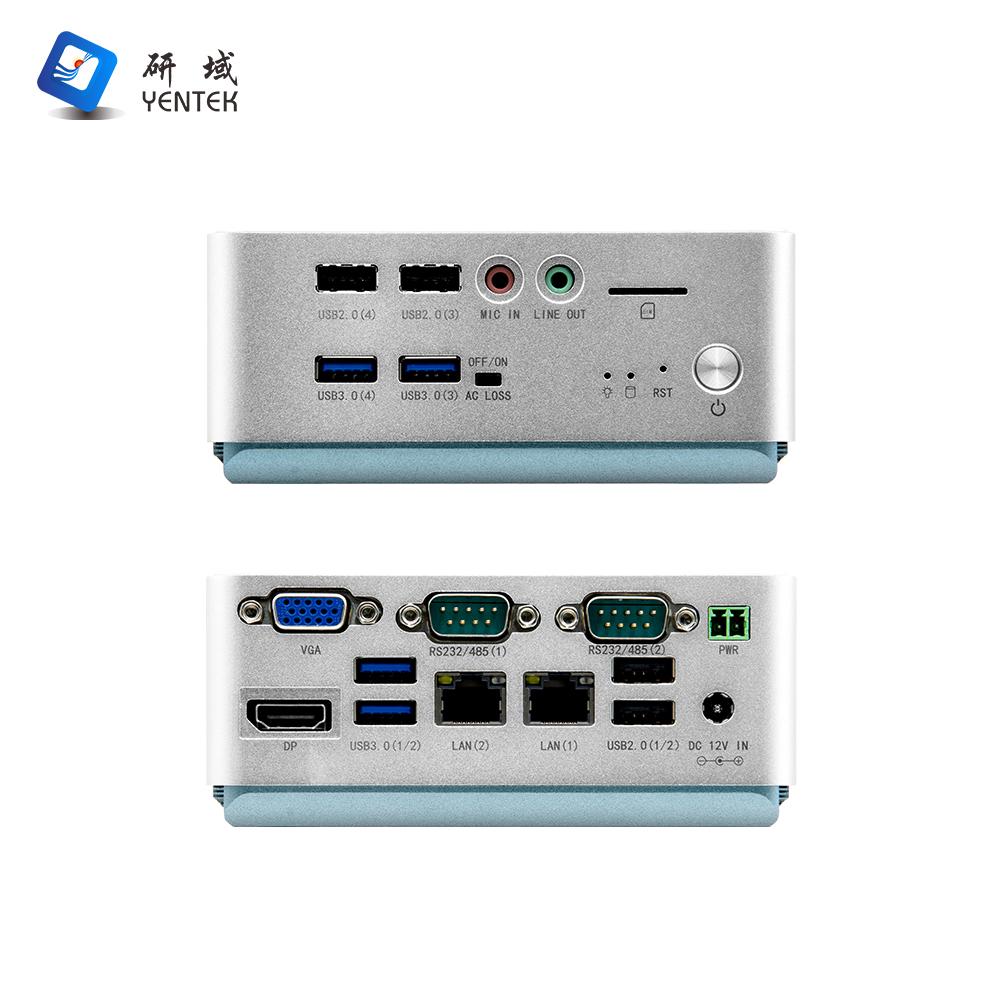

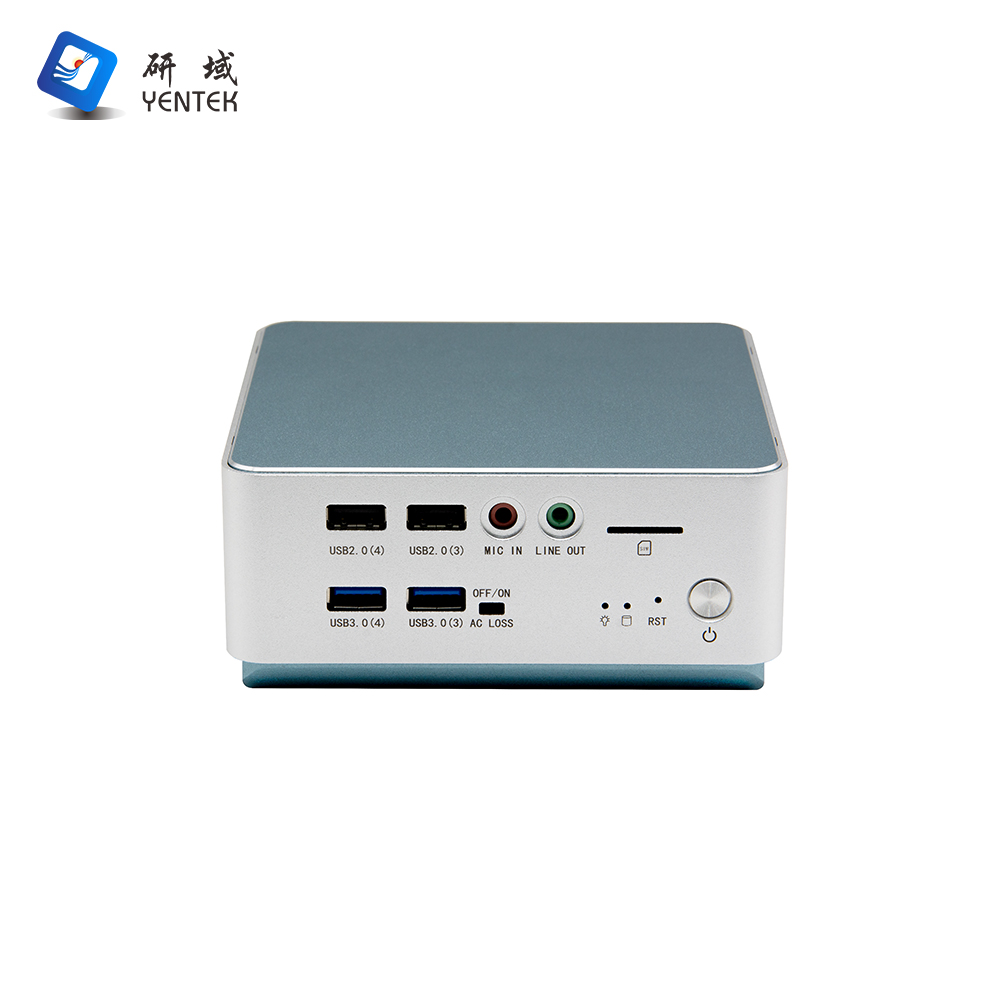

Front Panel Connectors

POWER

1*Power On/Off, 1*One-Key   Restore, 1*AC LOSS (Power On/Off toggle switch)

LED

1*Power Indicator, 1*Hard Drive   Indicator

USB

2*USB3.0, 2*USB2.0

AUDIO

1*Line out, 1*MIC

SIM

1*SIM card slot

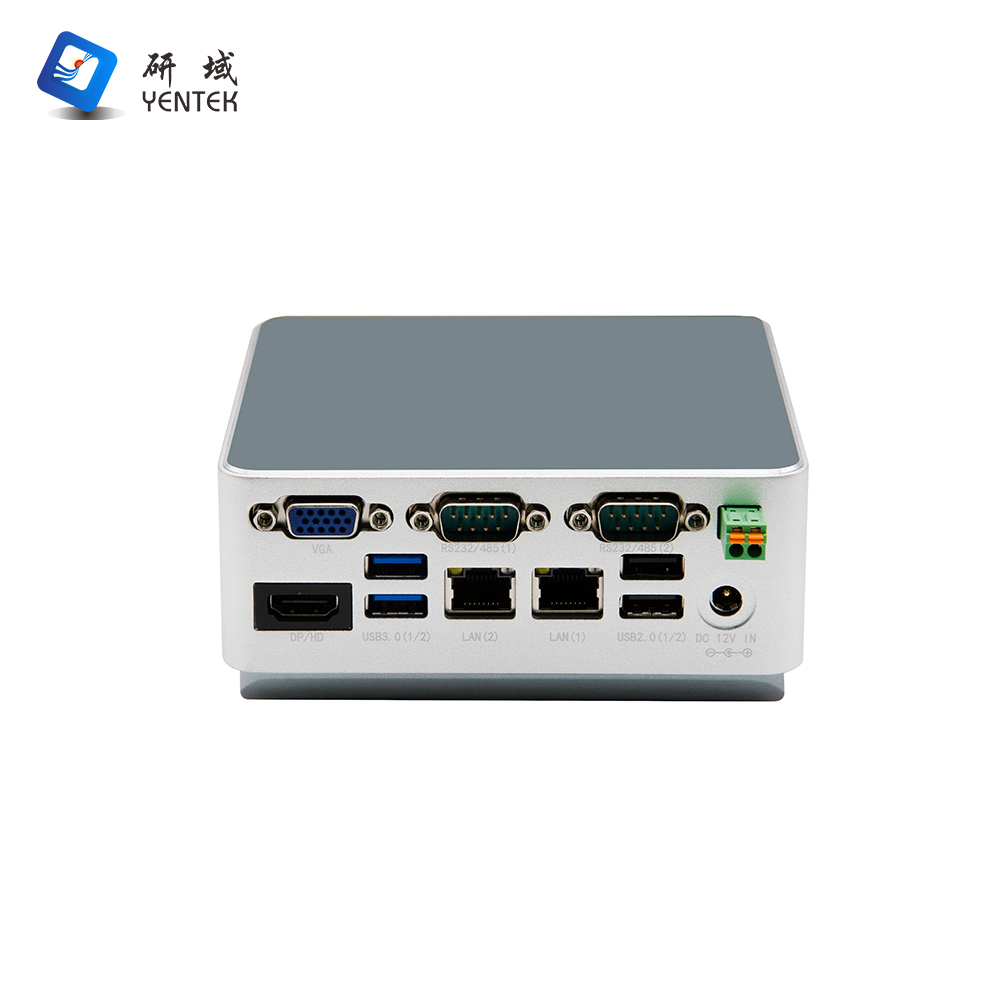

Rear Panel Interface

Display Interface

1*HDMI1.4(4096x2160@30Hz),1*VGA,   support dual display

LAN

2*Realtek 8111H Gigabit LAN   card, support Wake on LAN, PXE function

USB

2*USB2.0,2*USB3.0

COM

2*RS232/485 DB9 serial port,   support the 9th pin with power function, support CAN

Power supply

1*DC 12V power input

Storage

MSATA

1*MSATA

SSD

1*M.2, support Key-M, 2280, SATA   standard SSD

Expansion

WiFi/4G

1*MiniPCIE, support WiFi or 4G.

5G

1*M.2, support Key-B, 3042/3052,   5G module (no signal on this interface)

System Support

Microsoft Windows

Windows 10

Microsoft Windows

Ubuntu

Watch Dog

Support hardware reset function   (256 levels, 0~255 seconds)

Power Requirements

Power Type

External Power Adapter

Voltage Input

DC 12V

Power Output

AC TO DC, 36W / 60W (optional)

Environments

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5% to 95% relative humidity,   non-condensing

Operating Vibration

0.5g   rms/5-500HZ/random/operating

1

N8150Z-V V2.0(J4125)

J4125/2.0G

1*SODDR4

N41_J122H

N41-VGA

MSATA+M.2

2*8111H

2

1

1

4

4

DC 12V

2

N8150Z-V V2.0(5205U)

5205U/1.9G

2*SODDR4

N10_C322H

N81-VGA

MSATA+M.2

2*8111H

2

1

1

4

4

DC 12V
