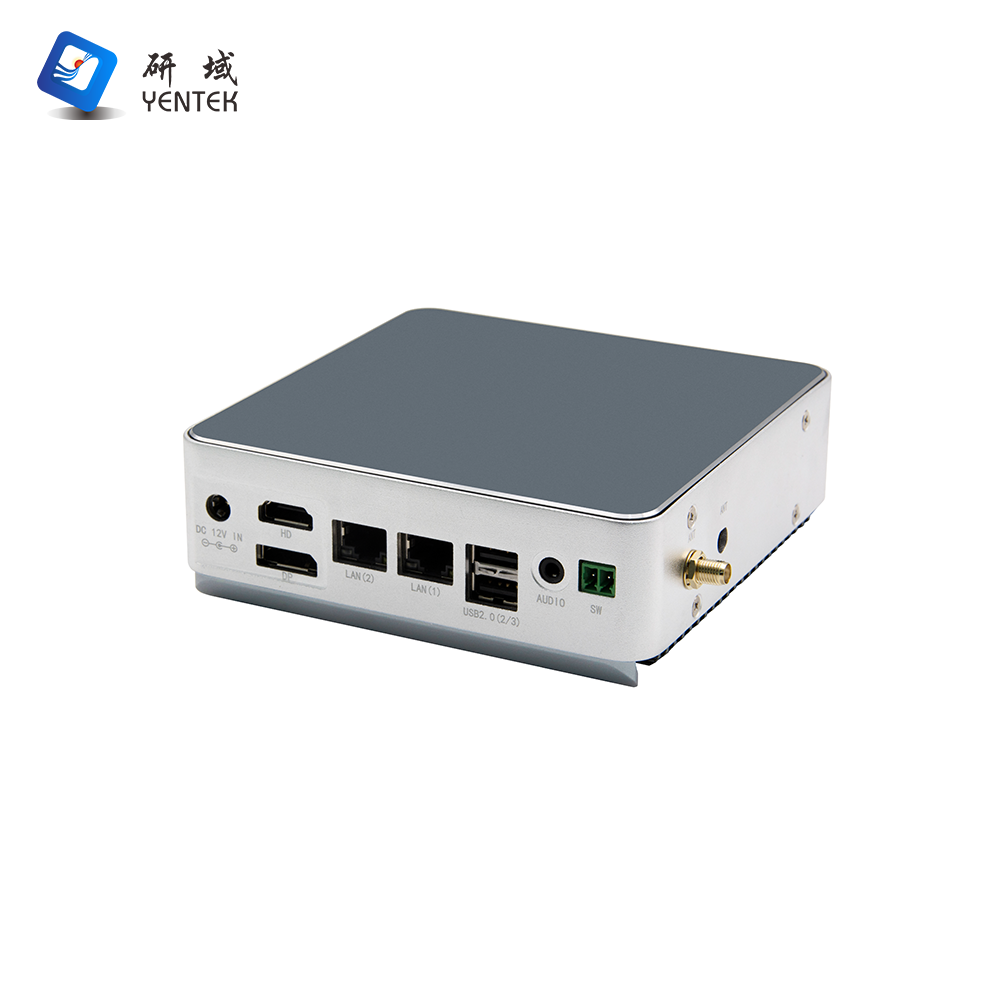

N8250Z-HD

Chassis

Material/structure

All aluminium alloy, fan cooling   structure

Colour

Iron grey + silver

Size (LWH)

128*128*58MM

Weight (bare net)

1.20KG

Installation

Desktop/Wall Mount/Din   Rail(35mm)

Motherboard

CPU

Integrated 10th Generation   Intel®i5-10210U/1.6GHz Quad-Core 8-Thread Processor,TDP 15W

Display

Integrated Intel® UHD Graphics,   support 4K/60Hz

RAM

2*SODDR4 2400MHz, support up to   64GB

Front Panel Connectors

POWER

1*Power On/Off, 1*One-Key Restore,   1*AC LOSS (Power On/Off toggle switch)

LED

1*Power Indicator, 1*Hard Drive   Indicator

POWER LED

2*USB3.0, 2*USB2.0

SIM

1*SIM card slot

Rear Panel Interface

Display Interface

1*HDMI2.0(4096x2304@60Hz), 1*DP(4096x2304@60Hz),   support dual display

LAN

2*Realtek 8111H Gigabit LAN   card, support Wake-on-LAN and PXE function

USB

2*USB2.0, 2*USB3.0

COM

2*RS232/485 DB9 serial port,   support the 9th pin with power function

AUDIO

1*Line out, 1*MIC

Power supply

1*DC 12V(5.5*2.5) power input

Storage

SATA

1*2.5 inch hard drive bay

SSD

1*M.2, support Key-M, 2 2280,   NVME PCIEx4/SATA Adaptive SSD

Expansion

4G

1*MINIPCIE, support 4G module

WiFi

1*M.2, support Key-E, 2230, WIFI   module

System Support

Microsoft Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support hardware reset function   (256 levels, 0~255 seconds)

Power Requirements

Power Type

External Power Adapter

Voltage Input

DC 12V

Power Output

AC TO DC 60W

Environments

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5% to 95% relative humidity,   non-condensing

Operating Vibration

0.5g   rms/5-500HZ/random/operating

1

N8250Z-HD V2.0(10210U)

I5-10210U/1.6G

2*SODDR4

N10_I522D

N41-HD

2.5+M.2

2*8111H

2

1

1

4

4

DC 12V
