| Model number | N8150Z-L6 V1.0(5205U) | |

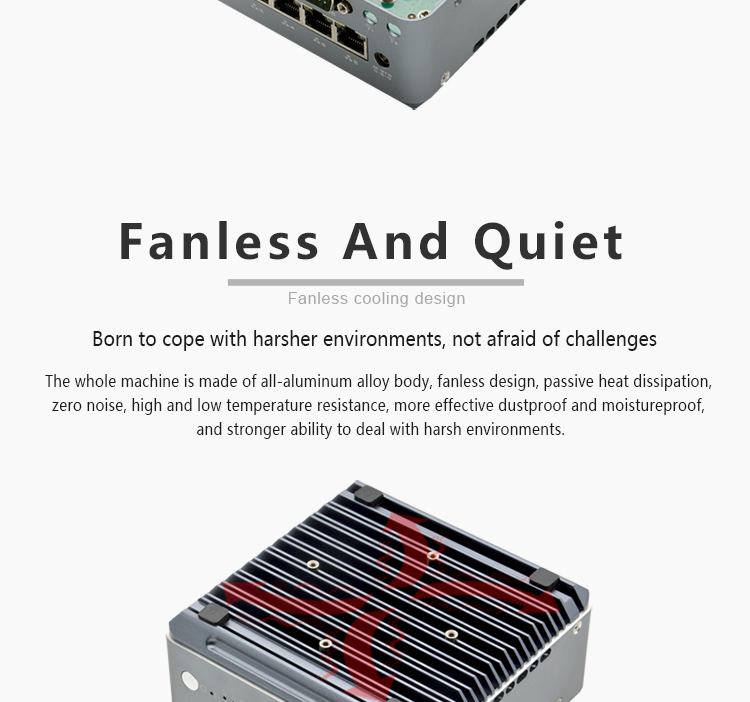

| Case | Material/Structure | All aluminum alloy, fanless cooling structure |
| Color | gray | |
| Dimension(L*W*H) | 128*128*56MM | |
| Install | Table top/wall mounted | |

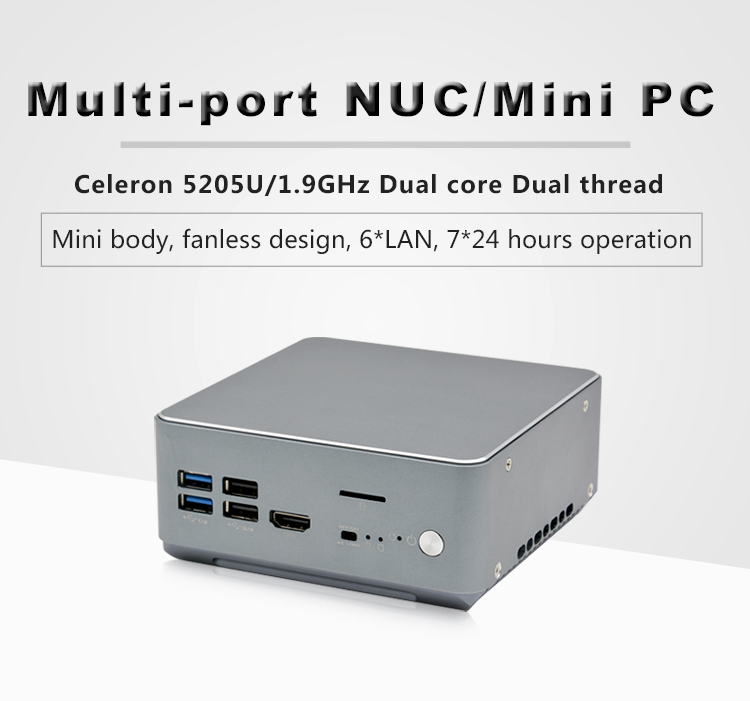

| Motherboard | CPU | Integrated 10 generation Comet Lake-U Intel®Celeron 5205U 1.9GHz dual-core dual-thread processor,TDP 15W |
| Display | Integrated Intel® UHD Graphics core Graphics card | |

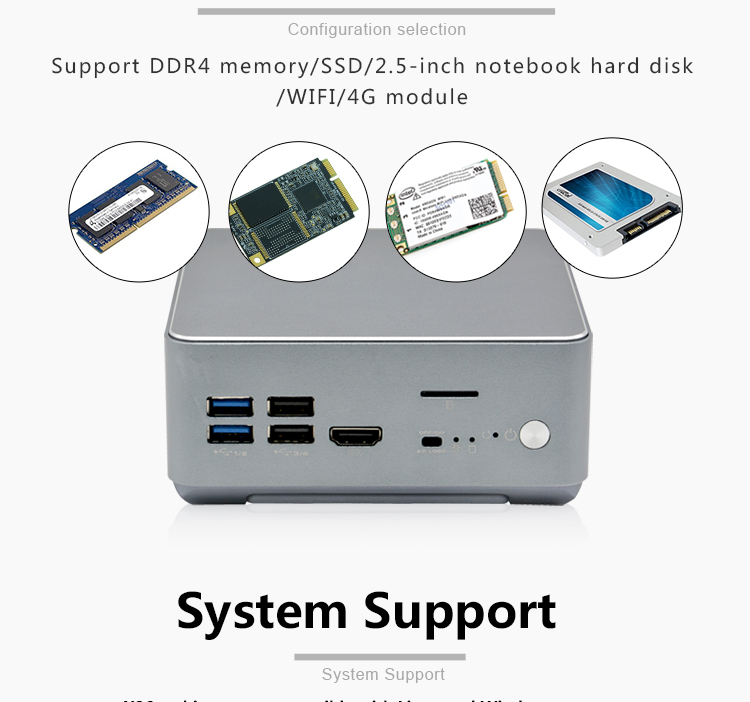

| Memory | 1* SODIMM slot for supporting a single-channel 2400MHz DDR4 memory of up to 32GB | |

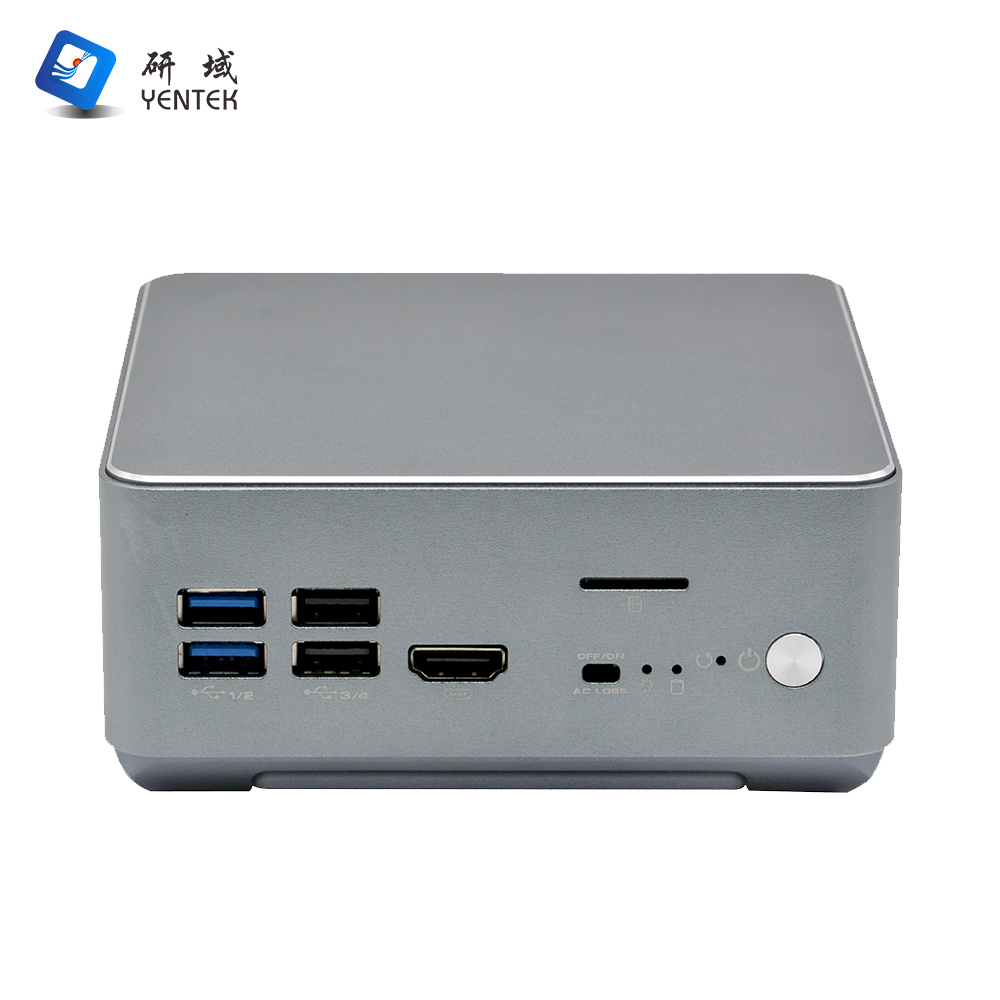

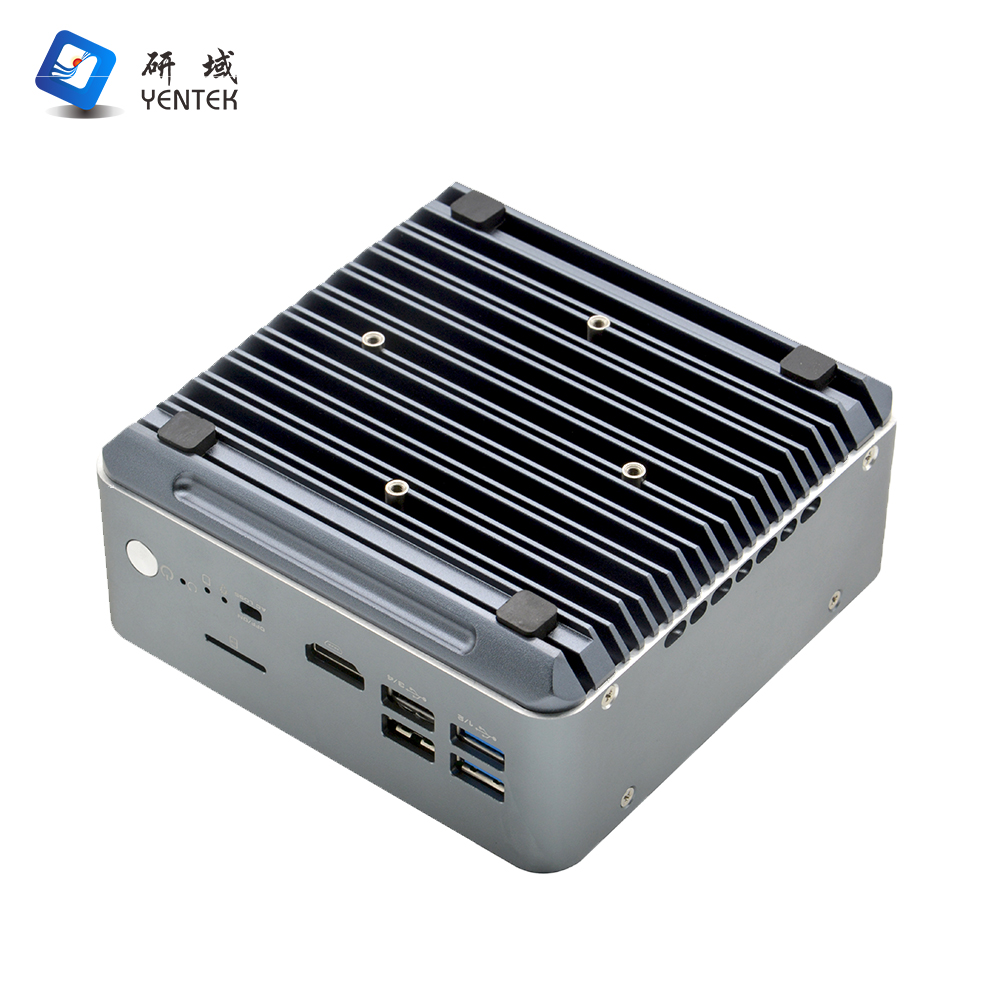

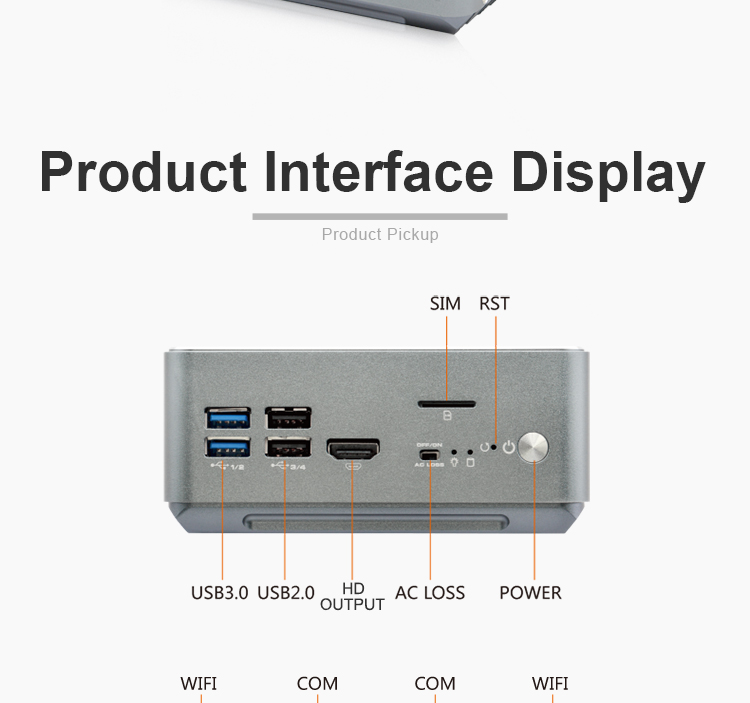

Front panel interface | POWER | 1* Power switch, 1* Reset switch, 1* AC LOSS (Power on and start up dial button switch) |
| Display interface | 1* HD OUTPUT1.4 (4096X2160@30Hz) | |
| USB | 2* USB2.0 ports, 2* USB3.0 ports, 1* built-in USB2.0 | |
| LED | 1 * Power indicator, 1 * Hard disk indicator | |
| SIM | 1* SIM standard slot | |

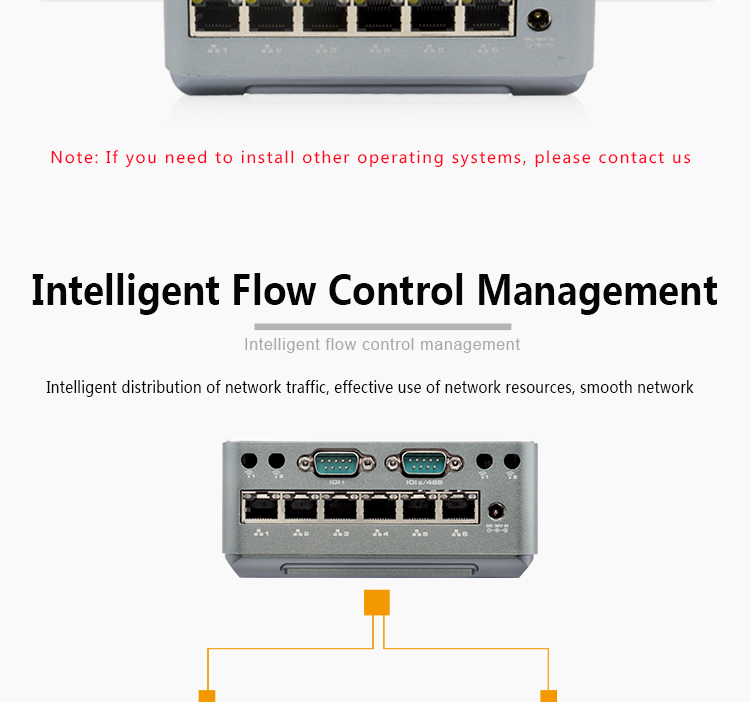

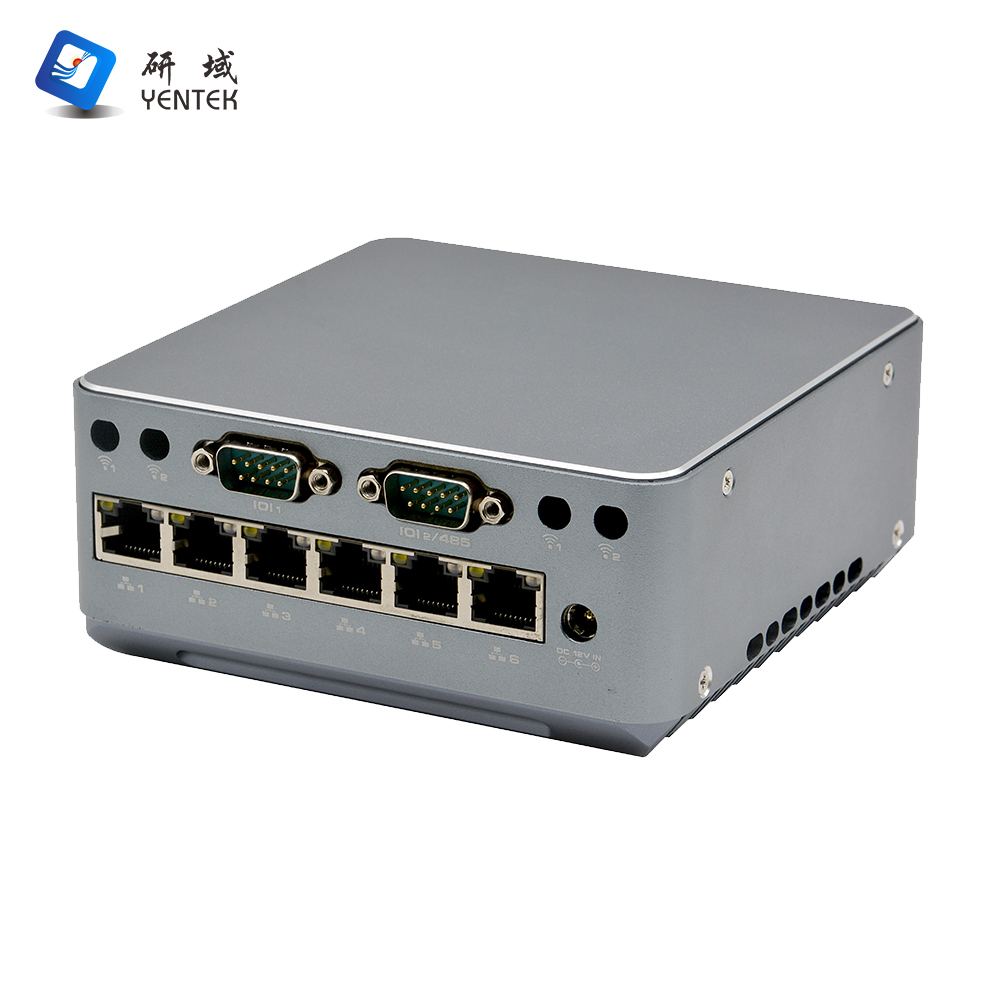

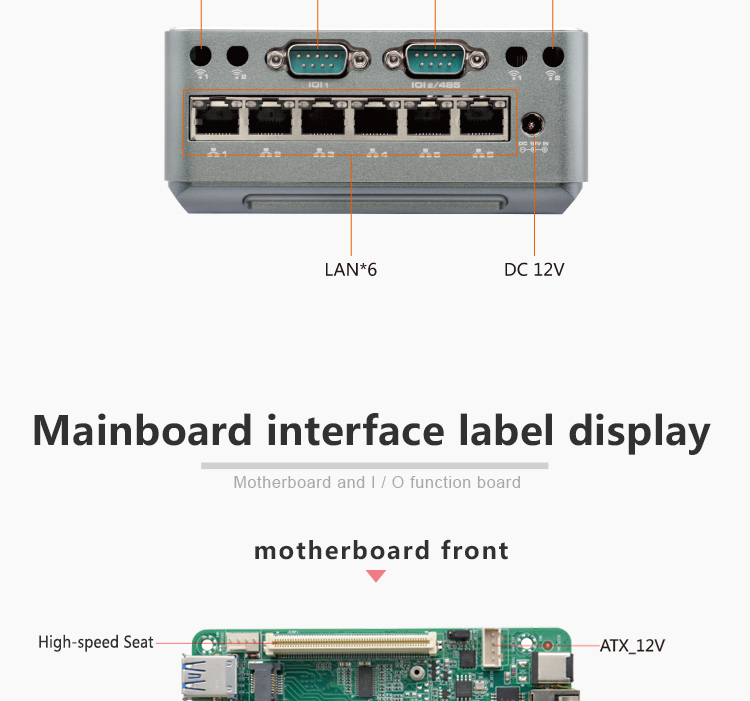

Rear panel interface | LAN | 6* I225V 2.5G gigabit electrical port supporting wake up /PXE functions |
| COM | 2* RS232 DB9 serial interface,COM2 can support RS485 | |
| Power supply | 1* DC power port supports 12V DC power input | |
| Storage | SATA | 1* 2.5-inch notebook hard disk |

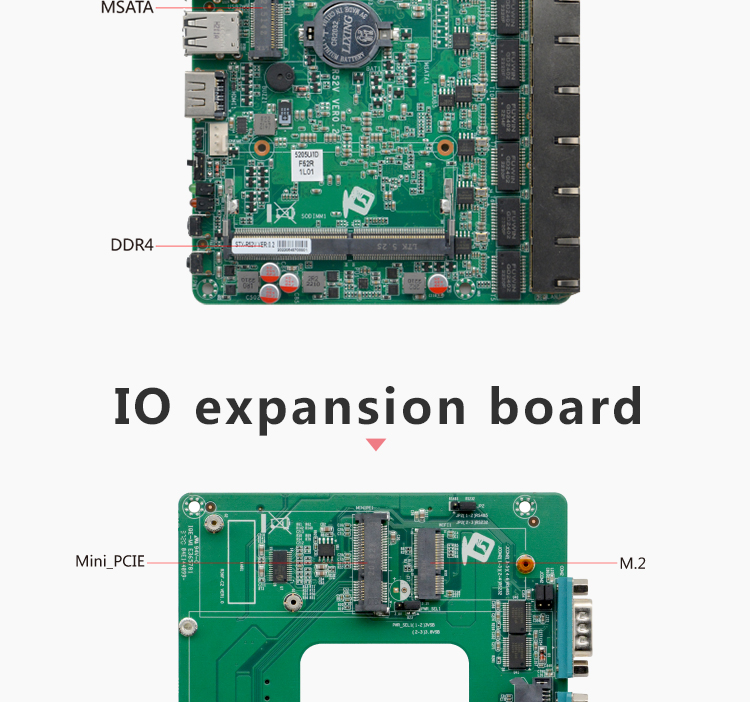

| MSATA | 1* MSATA slot, supports Intel SSDS, and the transmission rate is 6Gbps | |
| Expansion | Mini PCIE | 1* Mini-PCIE slot supporting 4G modules |
| M.2 | 1* M.2 slot, supporting M.2 2230 WIFI | |
OS Support | Microsoft Windows | Windows 10 |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function(L256, 0~255 seconds) | |

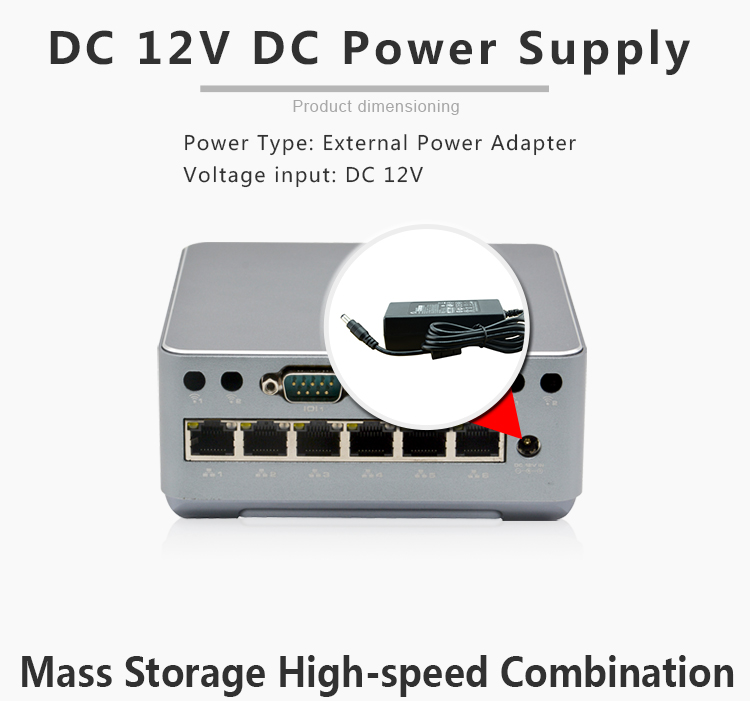

| Power | Power supply type | External power adaptor |
| Voltage input | DC 12V | |
| Power output | AC TO DC 60W | |
| Environment | Operating temperature | -10℃～60℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Motherboard | IO Board | Memory | LAN | COM | HD OUTPUT | VGA | USB | SIM | Power-input |
| 1 | N8150Z-L6 V1.0(5205U) | 5205U/1.9GHz | R52V | R36F-C2 | 1*SODDR4 | 6*I225V | 2 | 1 | 1 | 4 | 1 | DC 12V |
