Home > Products > Mini PC/NUC > Mini PC/NUC >R41EZ

  • R41EZ
  • R41EZ
Mini PC/NUC

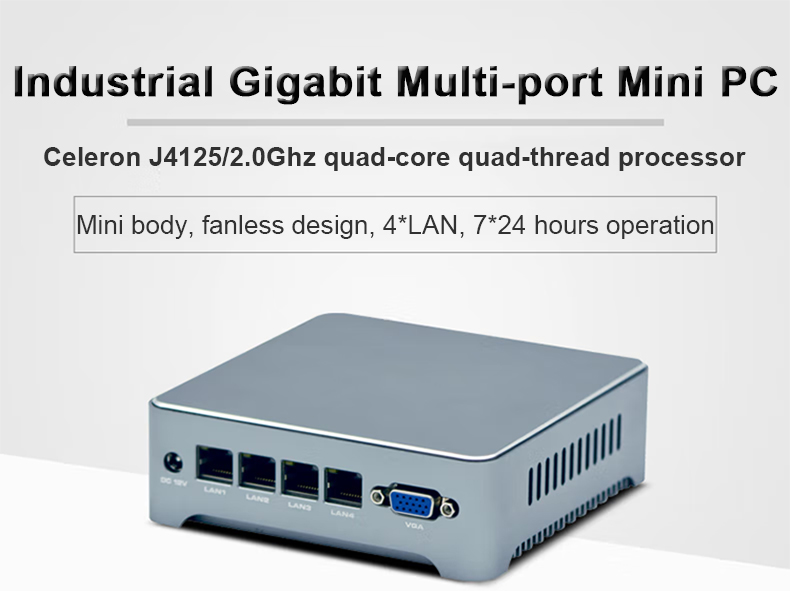

R41EZ

See 2 sizes
FEATURES

Integrated Intel® Celeron J4125 2.0GHz quad-core quad-thread processor

Integrated Intel® Celeron J4125 2.0GHz quad-core quad-thread processor

Support 1*VGA display output

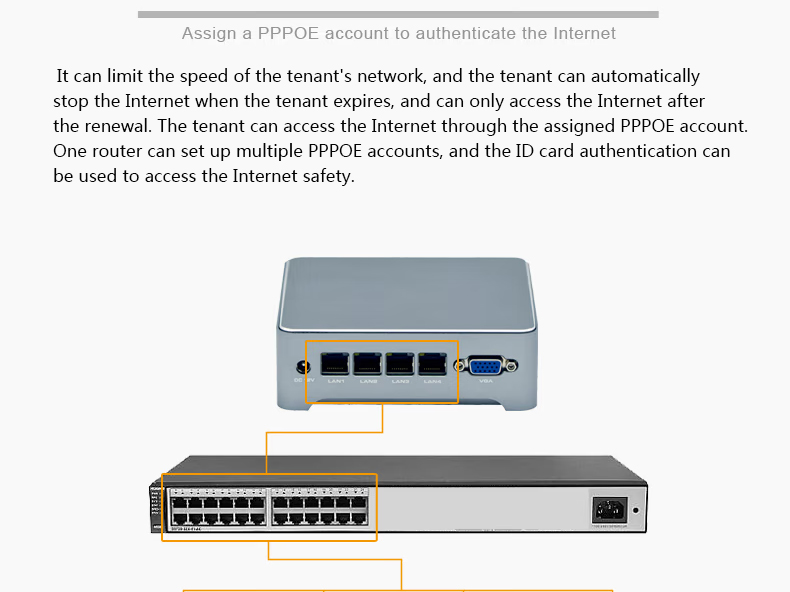

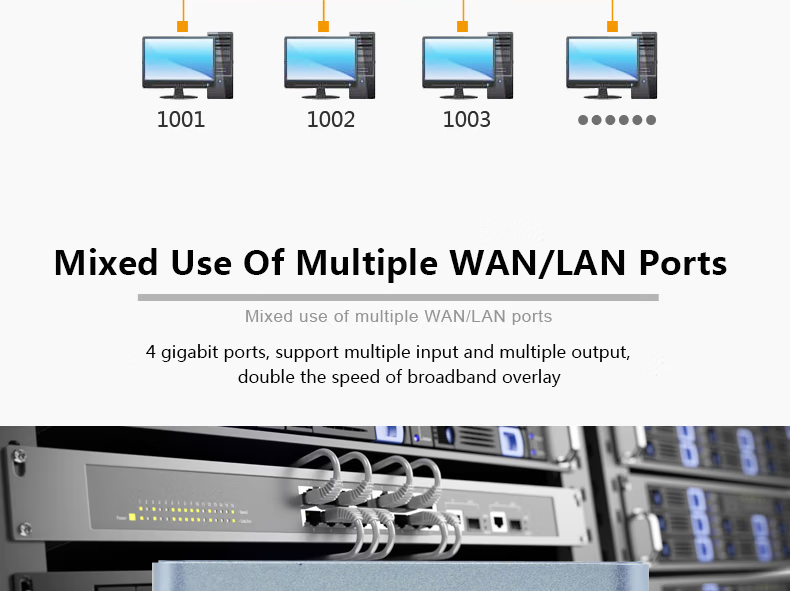

4* WGI211AT Gigabit LAN chip, support LAN/PXE function

Support 1* CISCO standard RS232 serial interface

Support 1* USB3.0 interface, 2* USB2.0 interface

Support 1* USB3.0 interface, 2* USB2.0 interface

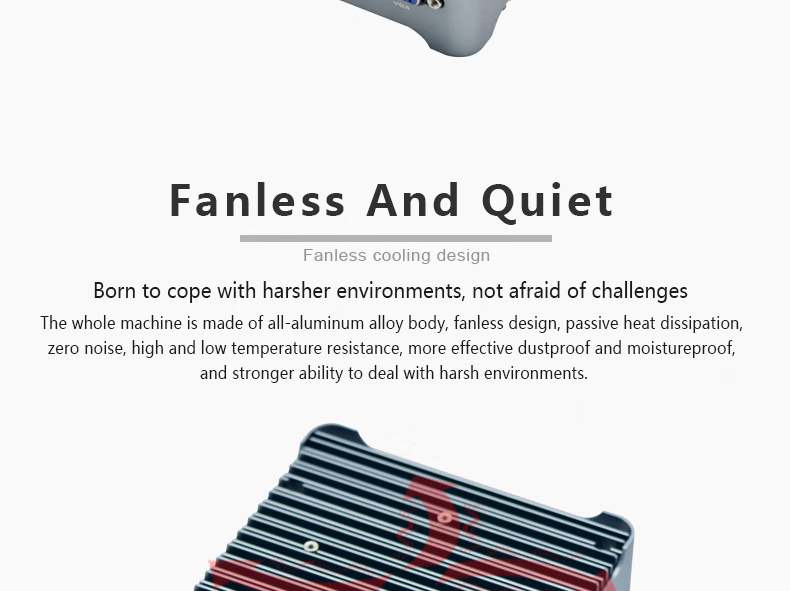

Fanless cooling structure, all aluminum alloy chassis

More
Product description



Model number

R41EAZ V1.0(j4125)

Chassis

Material/Structure

All aluminum alloy material, fanless cooling structure
ColorIron gray

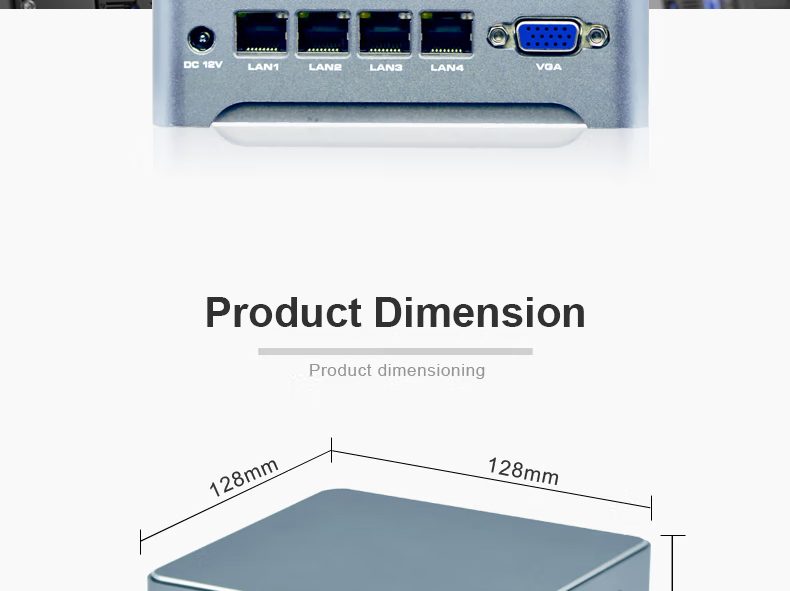

Size (length, width and height)128mm*128mm*41mm
InstallDesktop or Wall Mounted

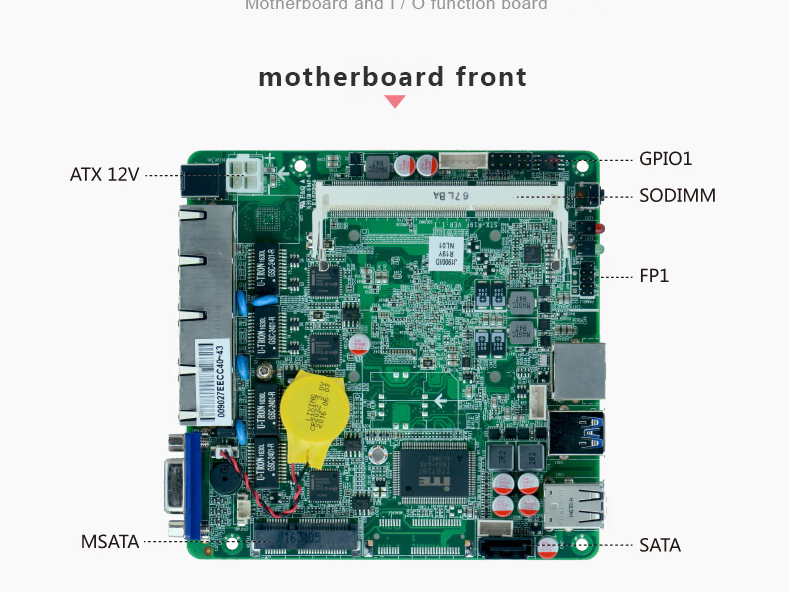

MotherboardCPUIntegrated Intel® Celeron J4125 2.0GHz quad-core quad-thread processor, TDP 10W,Compatible with all Intel® Gemini Lake CPUs
ChipsetSOC
DisplayIntegrated Intel® UHD Graphics 600 Core Graphics
RAMMemory

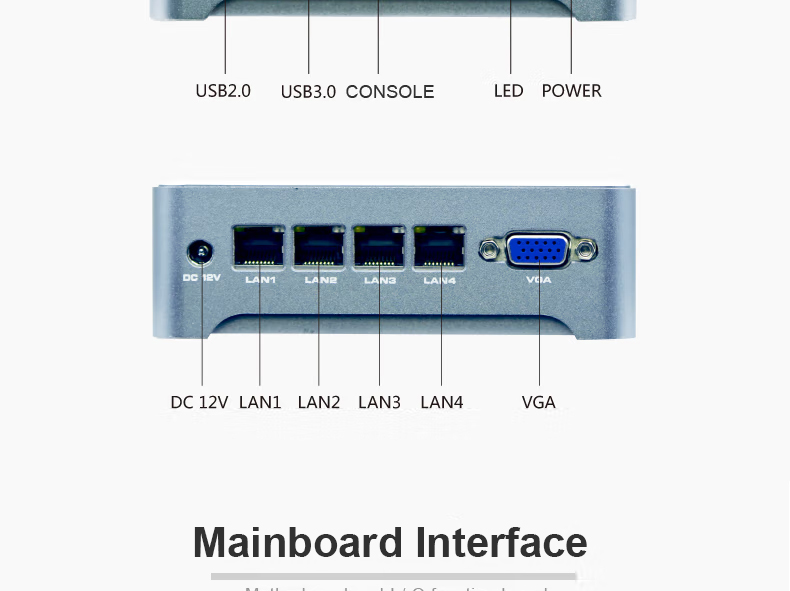

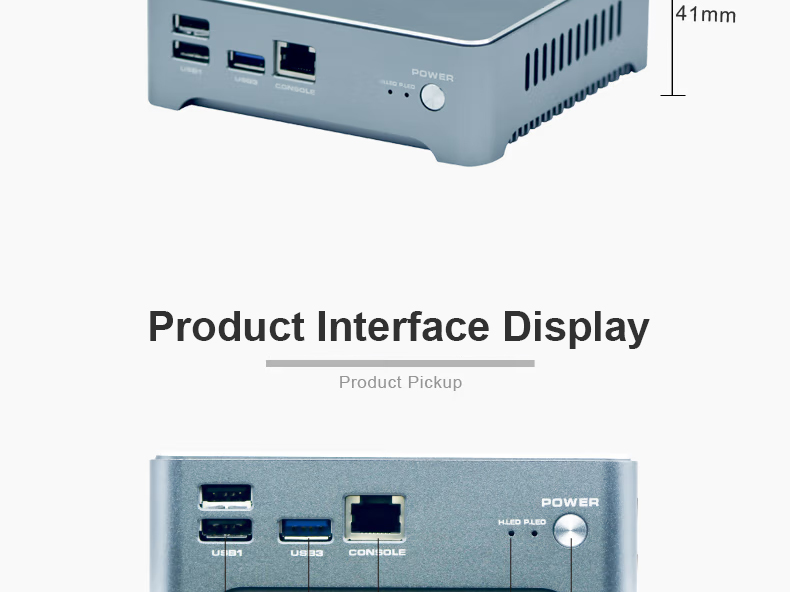

Front Panel PortCOM1* CISCO standard RS232 serial interface
POWER1*Power switch
USB2* USB2.0 interface, 1*USB3.0 interface

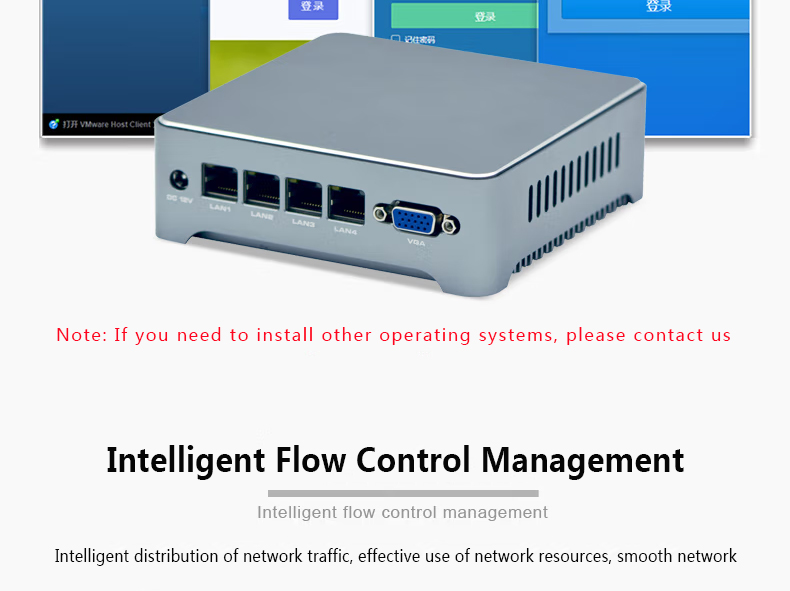

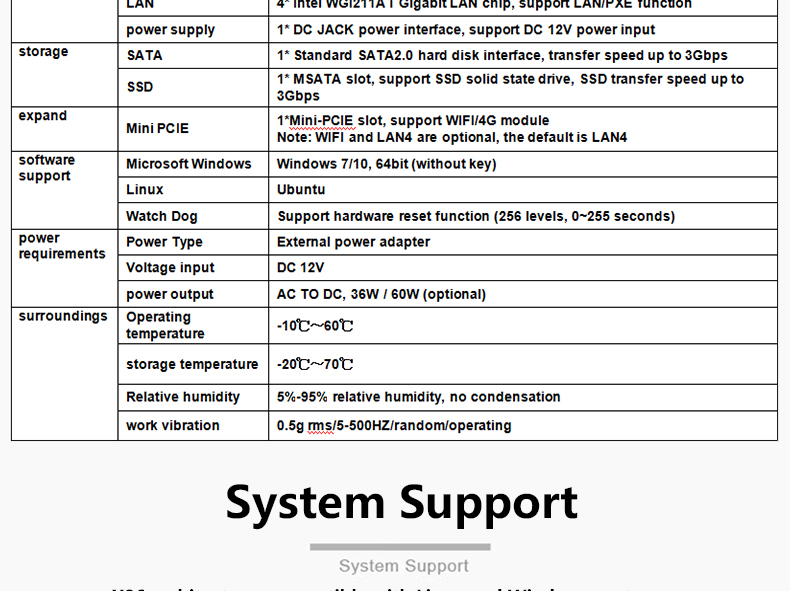

Rear Panel PortLAN

4* Intel WGI211AT Gigabit LAN chip, support LAN/PXE function

Display Port1*VGA interface
Power Supply1* DC JACK power interface, support DC 12V power input
StorageSATA1* Standard SATA2.0 hard disk interface, transfer speed up to 3Gbps

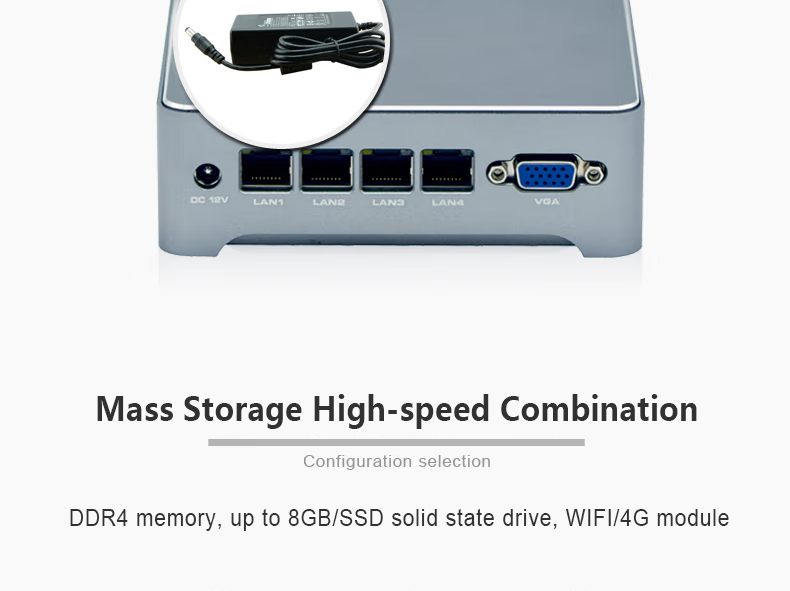

SSD1* MSATA slot, support SSD solid state drive, SSD transfer speed up to 3Gbps
ExtendMini PCIE

1*Mini-PCIE slot, support WIFI/4G module

Note: WIFI and LAN4 are optional, the default is LAN4

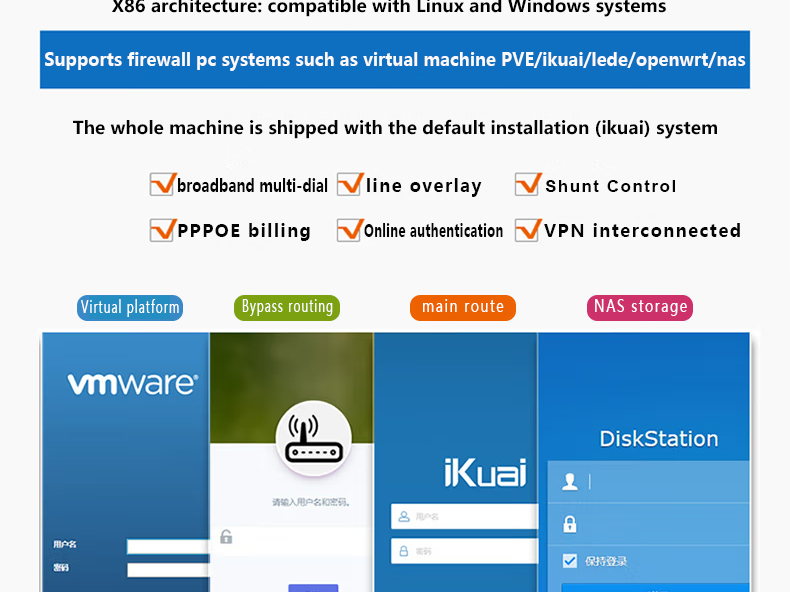

Software Support

Microsoft WindowsWindows 7/10，64bit(without key)
LinuxUbuntu
Watch DogSupport hardware reset function (L256，0~255 seconds)

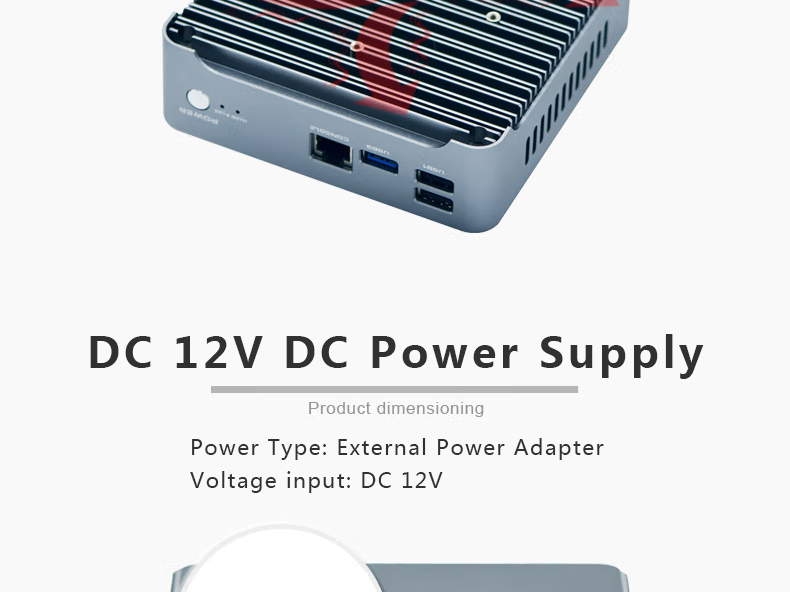

Power SupplyPower supply typeExternal power adaptor
Voltage inputDC 12V
Power outputAC TO DC，36W / 60W（optional）
EnvironmentOperating temperature-10℃～60℃
Storage temperature-20℃～70℃
Relative humidity5%-95% relative humidity, no condensation
Working vibration0.5g rms/5-500HZ/random/operating

Order Information

No.ModelProcessorMotherboardMemoryHDDGPIOLANCOMHD OUTPUTVGAUSB2.0USB3.0SIMPower-input
1R9FAZJ1900/2.0GHzSTX-R19F1*DDR3LN/AN/A4*WG82583V1N/A121N/ADC 12V
2R19EZ V1.0(J1900)J1900/2.0GHzSTX-R19F1*DDR3LN/AN/A4*WGI211AT1N/A121N/ADC 12V
3R41EZ V1.0(J4125)J4125 /2.0GHzSTX-R41F1*DDR4N/AN/A4*WGI211AT1N/A121N/ADC 12V
Download
    No Data
Related Products

Online Message

  • First Name*
  • Last name*
  • Company Name*
  • Email*
2 Model
$154-$160
  • Model
    Price
    Quantity
  • R19EZ V1.0(J1900)
    $154.00
  • R41EZ V1.0(J4125)
    $160.00
ltem subtotal ( 0 items) $0.00
Shipping total $0.00
Subtotal $0.00
