G Series (New Design)

G3060S-L6

FEATURES

● Integrated Intel i5-1135G7/2.4GHz, quad-core, eight-thread processor

● 2*SODDR4 3200MHz, up to 64GB

● 1*DP, 1*HDMI2.0, 1*VGA

● 6*Intel I210AT Gigabit ports, 4 of which support POE

● 4*RS232/485 DB9 serial ports

● 4*USB3.0, 2*USB2.0

● Support DC 9~36V wide voltage

● Fanless cooling, copper tube heat conduction


Product description



Model

G3060S-L6   V2.0(1135G7)



Chassis



Material/structure

Aluminium   alloy + sheet metal, fanless cooling

Colour

Black

Size   (LWH)

205*192*68.4MM

Weight   (bare net)

2.2KG

Installation

Desktop/DIN   Rail(35mm)/Wall Mounted

Motherboard



CPU

Intel®i5-1135G7/2.4GHz,   Quad-Core 8-Thread Processor, TDP 28W

Display

Intel®Iris   Xe Graphics

Memory

2*SODDR4   3200MHz , Support up to 64GB

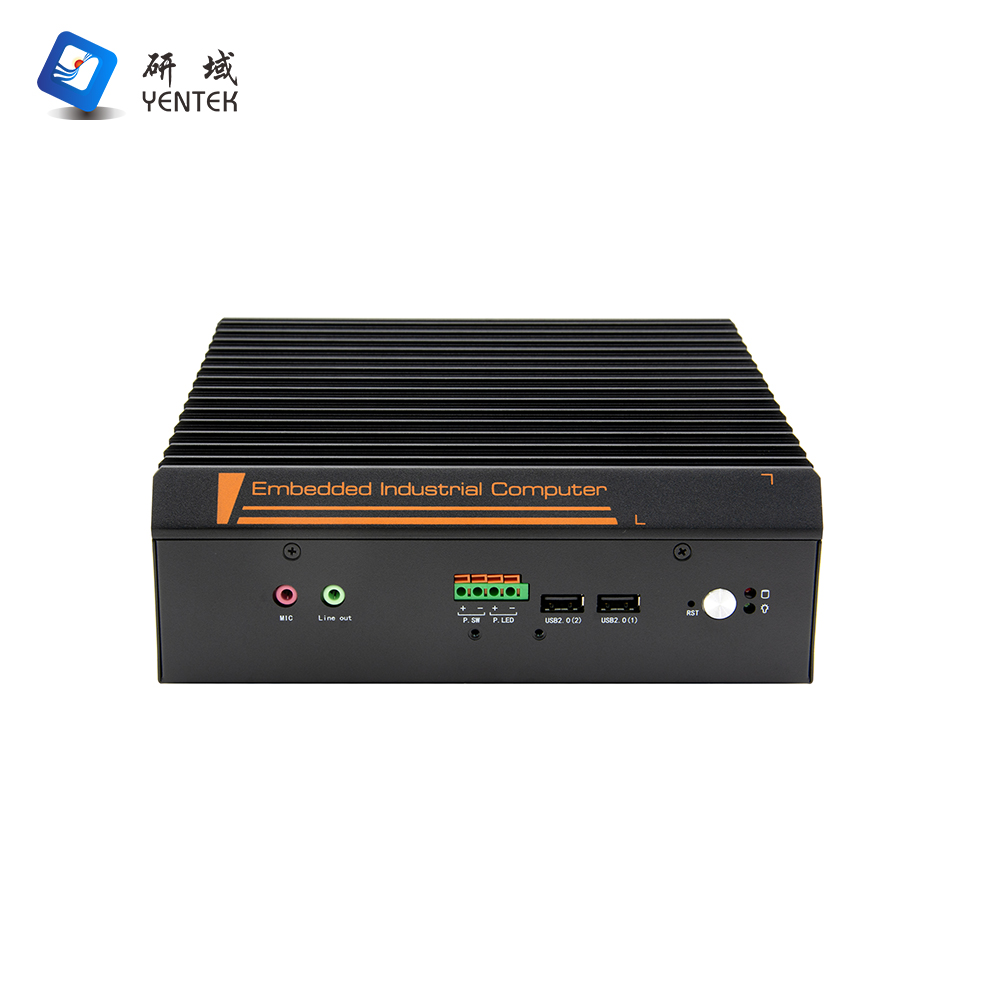

Front   Panel Connectors



Switch

1*Boot   Button, 1*CMOS Reset Button

LED

1*Power   Indicator, 1*Hard Drive Indicator

USB

2*USB2.0

Audio

1*Line   out, 1*Mic

Phoenix   Terminal

1*4P (1*Boot   signal/1*Power indicator signal)

Rear   Panel Interface



Switch

1*Boot   button, 1*CMOS restore button

LED

1*Power   Indicator, 1*HDD Indicator

Display   Interface

1*DP1.4(4096*2304@60Hz),   1*HDMI2.0(4096*2304@60Hz), 1*VGA, support triple displays

LAN

6*Intel   I210AT Gigabit ports, 4 of which support POE (15W single port)

COM

4*RS232/485   DB9 serial port

USB

4*USB3.0

DIP   Switches

4 sets of   6-position dip switches, RS232/485 switching use (located at the bottom)

Power connector

1*DC   connector or 1*2P(P=5.08mm) Phoenix terminal, support DC 9~36V wide voltage   power input

Storage



SATA

1*2.5-inch   hard drive bay

MSATA

1*MSATA

SSD

1*M.2,   support Key-M, 2280, NVME PCIE x4 SSD

Expansion

5G

1*M.2,   support Key-B, 3042/3052 5G module

System   Support



Microsoft

Windows   10

Linux

Linux

Power   Supply Type Input



Power   Supply Type

External   Power Adapter

Voltage   Input

DC 9-36V   wide voltage

Power   Output

AC TO DC   60W or more (depending on specific equipment)

Environment

Operating   Temperature

-10℃~50℃

Storage   Temperature

-20℃~70℃

Relative   Humidity

5%-95%   relative humidity, non-condensing

Operating   Vibration

0.5g   rms/5-500HZ/random/operating


Order information

No.

Model

CPU

Memory

Motherboard

IO Board

HDD

LAN

COM

USB2.0

USB3.0

power

1

G3060S-L6   V2.0(1135G7)

I5-1135G7/2.4G

2*SODDR4

Q112HD1

P68-L6/P68-C4/IPC505-SW/AUDIO-IO

msata+M.2(NVME)+2.5

6*I210

4

2

4

 9-36V

2

G3060S-G16   V2.0(1195G7)

I7-1195G7/2.9G

2*SODDR4

Q112HD1

P68-L6/P68-C4/IPC505-SW/AUDIO-IO

msata+M.2(NVME)+2.5

6*I210

4

2

4

 9-36V

3

G3060S-G16   V2.0(1235U)

I5-1235U/1.3G

2*SODDR4

Q122HD1

P68-L6/P68-C4/IPC505-SW/AUDIO-IO

msata+M.2(NVME)+2.5

6*I210

4

2

4

 9-36V

4

G3060S-G16   V2.0(1255U)

I7-1255U/1.7G

2*SODDR4

Q122HD1

P68-L6/P68-C4/IPC505-SW/AUDIO-IO

msata+M.2(NVME)+2.5

6*I210

4

2

4

 9-36V
