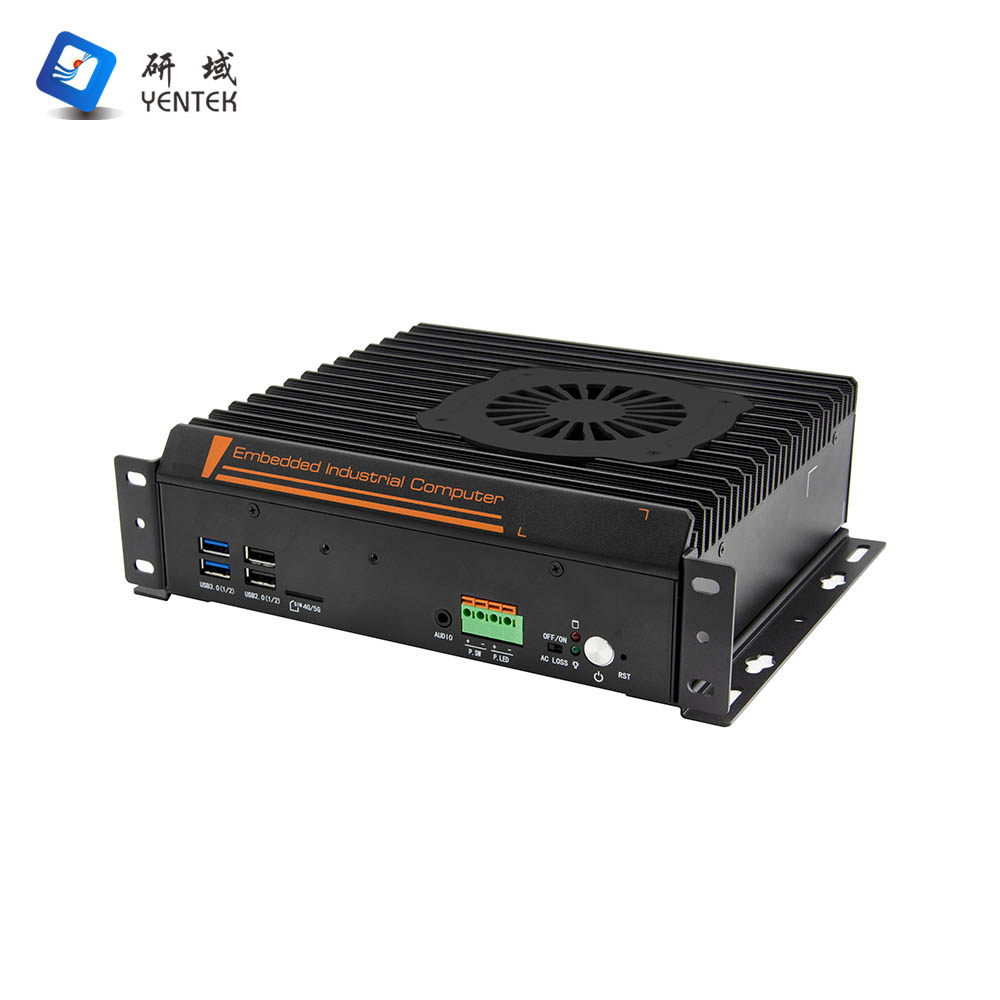

G3250F-L6

Chassis

Material/structure

Aluminium   + sheet metal

Colour

Black+Silver

Size   (LWH)

205*192*63.3MM

Weight   (bare net)

2.4KG

Installation

Desktop/Embedded/DIN   rail

Motherboard

CPU

Integrated   Intel i5-3210M/2.50GHz Dual-Core Quad-Thread Processor, TDP 35W

System   Chip

Intel   HM77

Memory

2*SODDR3 1600MHz,   support up to 32GB

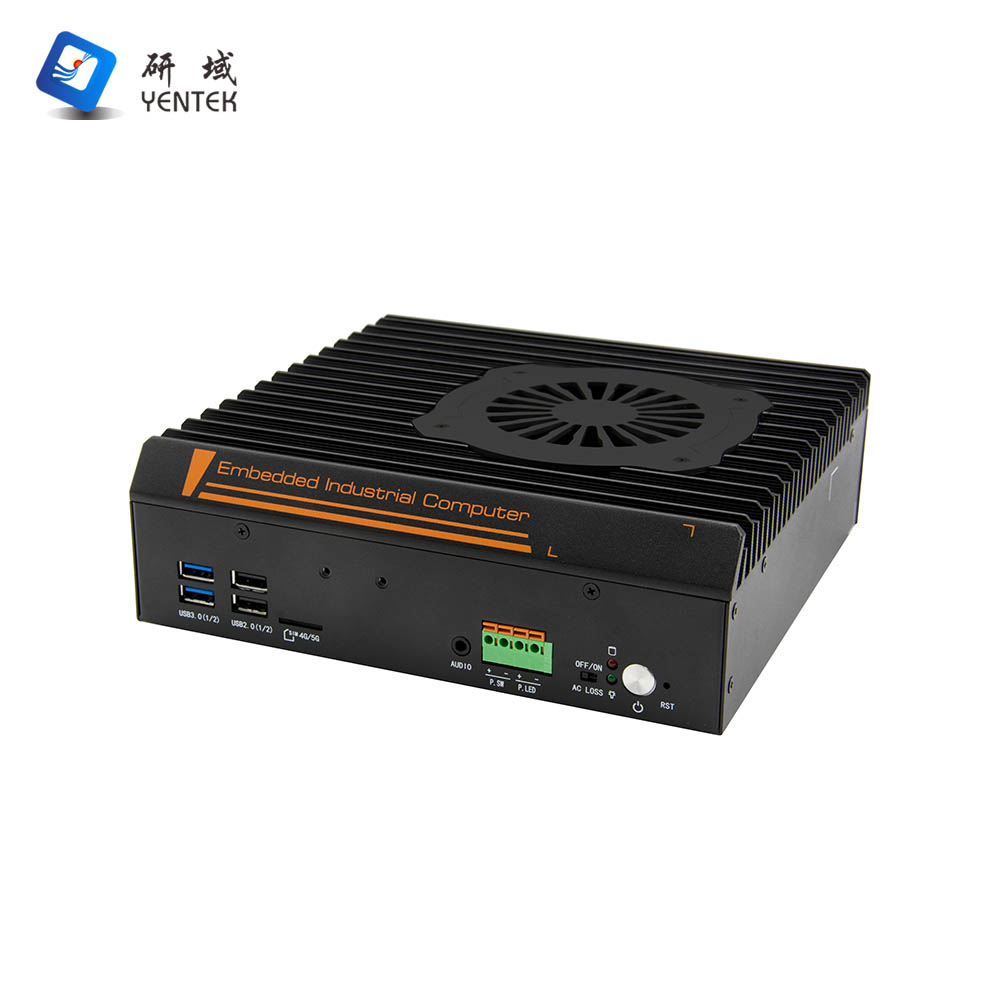

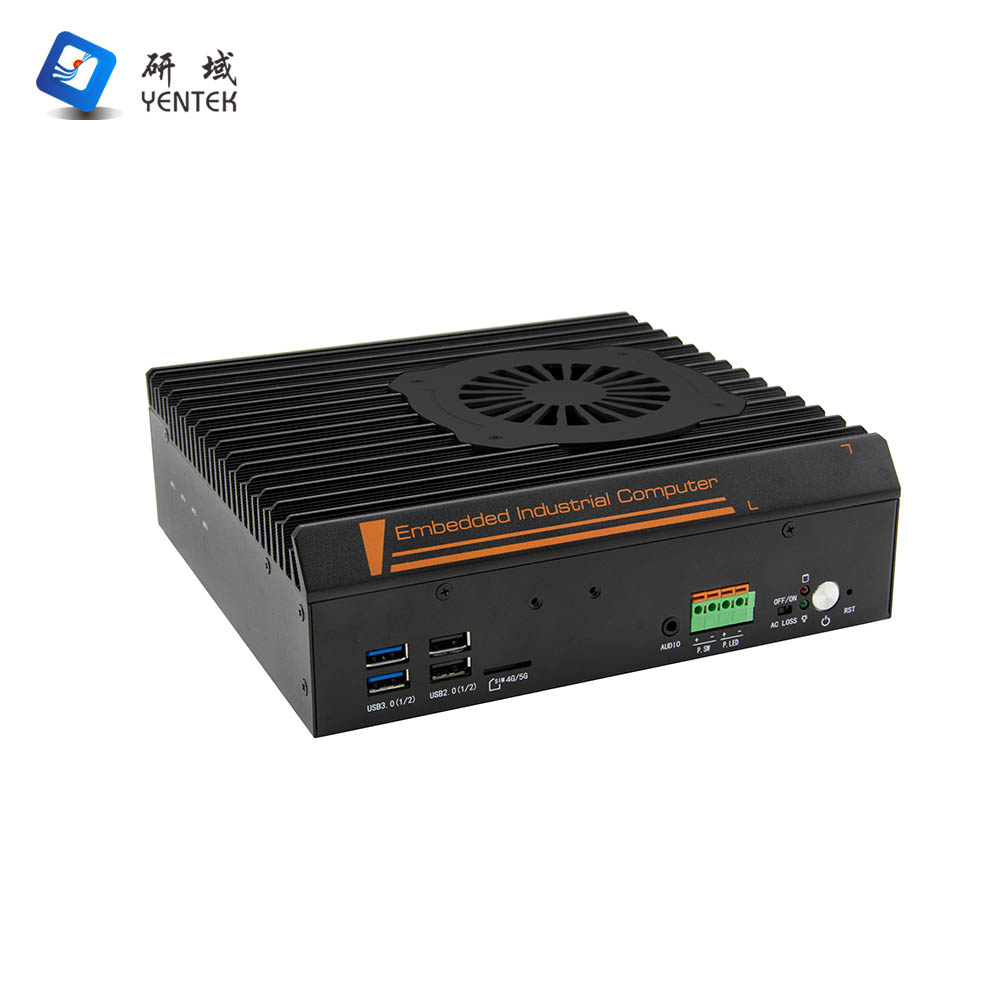

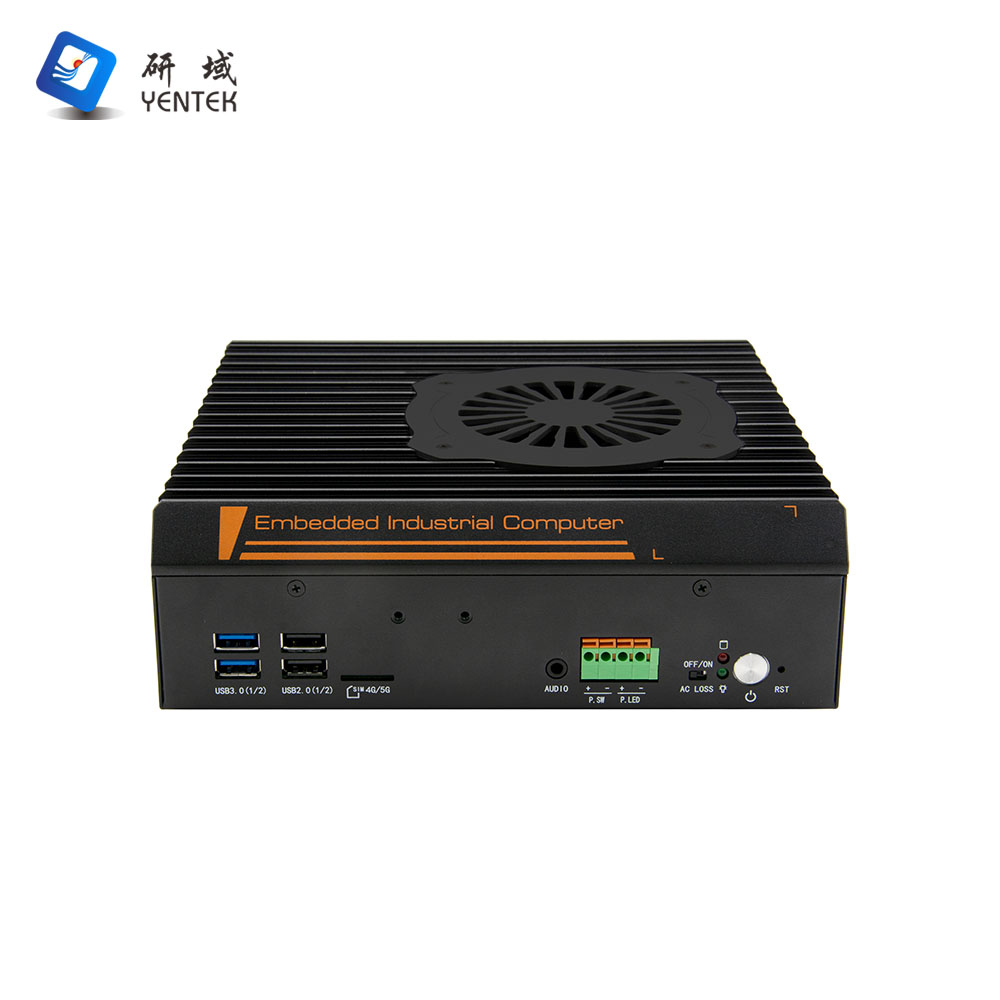

Front   Panel Connectors

Switch

1*Boot   Button, 1*One-Key Restore, 1*ACLOSS (Power-on DIP Switch)

LED

1*Power   Indicator, 1*Hard Drive Indicator

USB

2*USB3.0,   2*USB2.0, built-in 1*USB2.0

Phoenix   Terminal

1*4P   Phoenix terminal (1*Power indicator, 1*Power switch)

Audio

1*Audio,   Line out and Mic 2-in-1

SIM

1*SIM   standard card slot

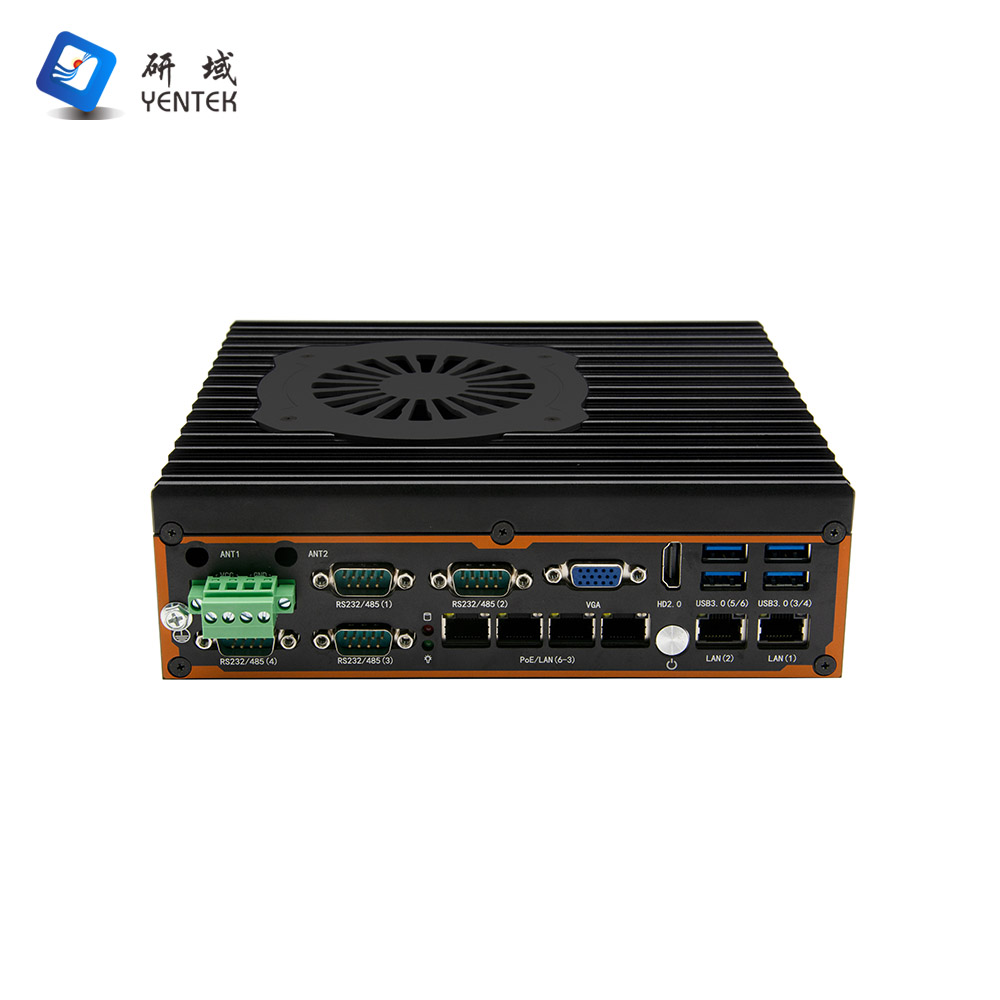

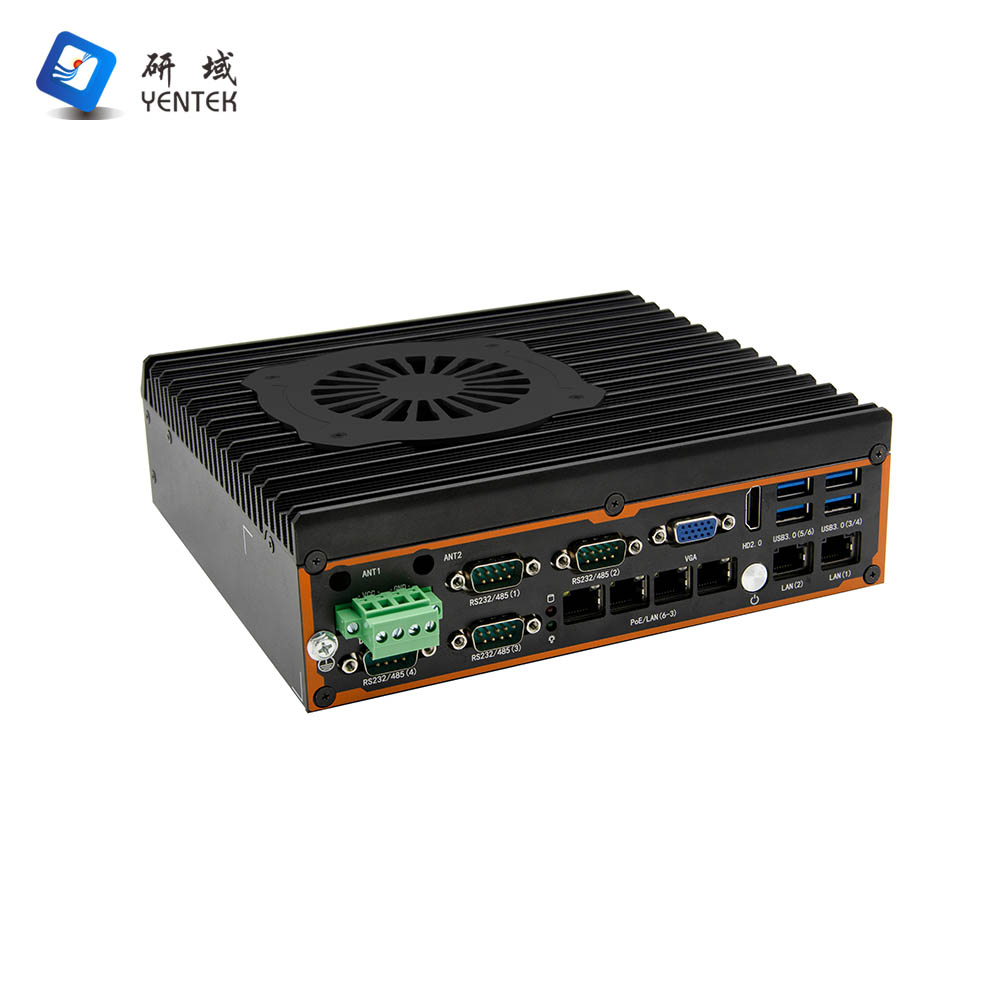

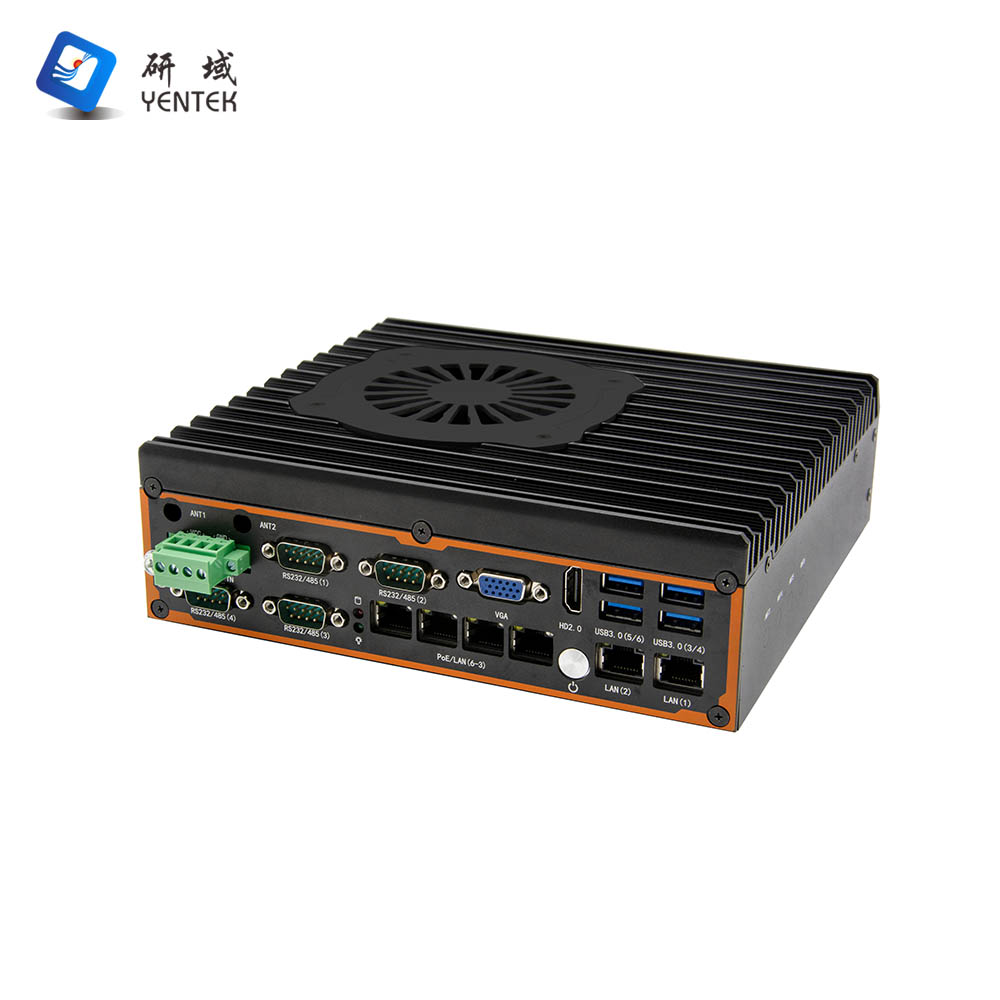

Rear   Panel Interface

Display   Interface

1*HDMI1.4,   1*VGA, support dual display

USB

4*USB3.0

COM

4*RS232/485   DB9 serial port, of which COM3~4 can support CAN (need to load CAN module)

LAN

6*Intel   I210AT Gigabit Ethernet ports, 4 of which support POE / 15W single port

DIP   Switch

4 sets of   6-position dip switches, COM1-4 RS232/485 switching through dip switches +   BIOS settings to achieve

Power   Interface

1*4P   P=5.08mm Phoenix terminal, support 9~36V wide voltage input

Storage

MSATA/SSD

1*MSATA(3210M)

1*M.2,   support Key-M, 2280, NVME PCIEx4/SATA Adaptive SSD (M.2 for other CPU )

SSD

1*M.2,   Key-M support, 2280, SATA SSD

Expansion

WiFi/4G

1*MINIPCIE,   support WiFi+BT or 4G

5G

1*M.2,   support Key-B, 3042/3052, 5G module

System   Support

Microsoft

Windows 7

Linux

Linux

Power   Supply Type

Power   Type

External   Power Adapter

Input

Voltage   Input

DC 9-36V   wide voltage

Power   Output

AC TO DC   90W or more (depending on specific equipment)

Environment

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95%   relative humidity, non-condensing

Operating   Vibration

0.5g rms/5-500HZ/random/operating

1

G3250F-L6 V2.0(3210M)

I5-3210M/2.5G

1*SODDR3

GL320

HM77

GL730-L6 /G370-PW

6*I210

4

2

MSATA+M.2(SATA)

3

6

DC 9-36V

2

G3250F-L6 V2.0(7300HQ)

I5-7300HQ/2.5G

2*SODDR4

GL730

H270

GL730-L6 /G370-PW

6*I210

4

2

M.2+M.2(SATA)

3

6

DC 9-36V

3

G3250F-L6 V2.0(7820HK)

I7-7820HK/2.9G

2*SODDR4

GL730

H270

GL730-L6 /G370-PW

6*I210

4

2

M.2+M.2(SATA)

3

6

DC 9-36V

4

G3250F-L6 V2.0(8300H)

I5-8300H/2.3G

2*SODDR4

GL830

HM370

GL730-L6 /G370-PW

6*I210

4

2

M.2+M.2(SATA)

3

6

DC 9-36V

5

G3250F-L6 V2.0(12450H)

I5-12450H/up   to 3.3G

2*SODDR4

GL120H

/

GL730-L6 /G370-PW

6*I210

4

2

M.2+M.2(SATA)

3

6

DC 9-36V
