G3750F-L6

Chassis

Material/structure

Aluminium   alloy + sheet metal material Fan cooling

Colour

Black+Silver

Size   (LWH)

229*208*67.4MM

Weight   (bare net)

3.5KG

Installation

Desktop/Embedded/DIN   rail(35mm)

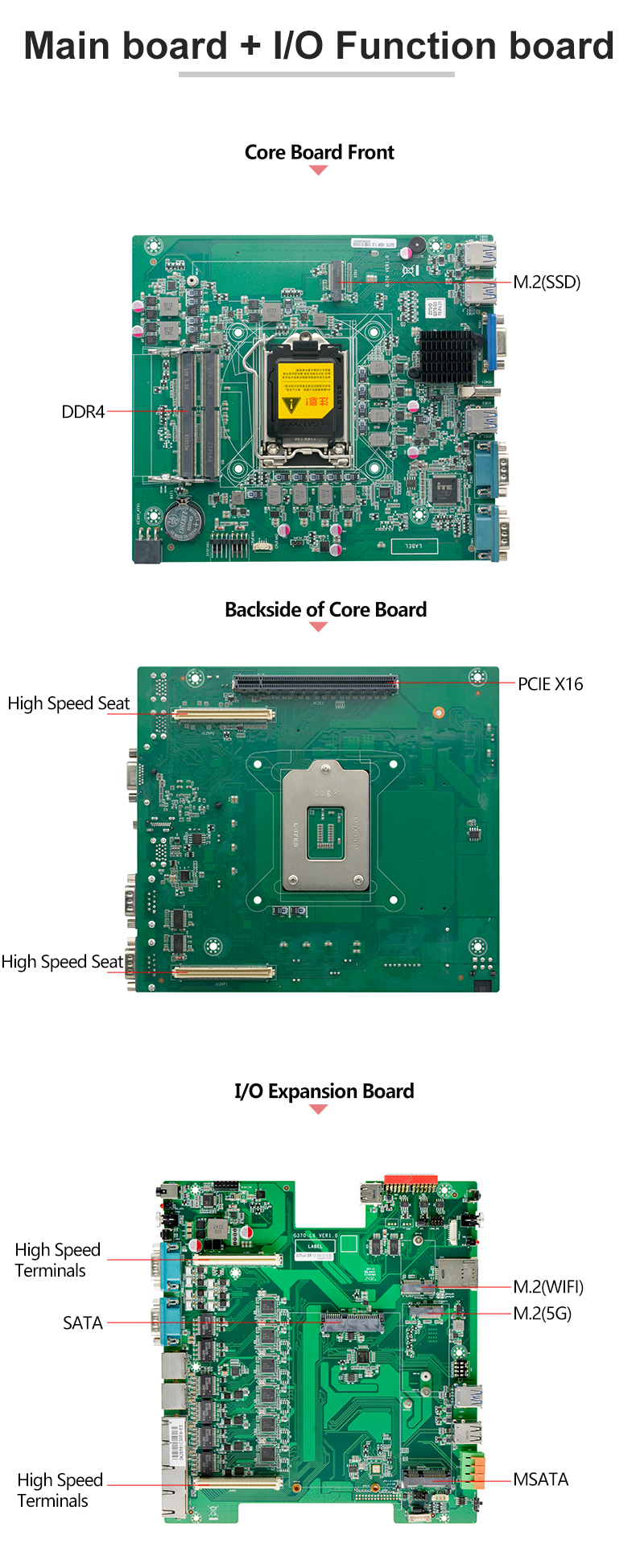

Motherboard

CPU

Intel®LGA1151   /6~9 Generation Processor Series

Chipset

Intel®Q250

Memory

2*SODDR4,   supports up to 64GB

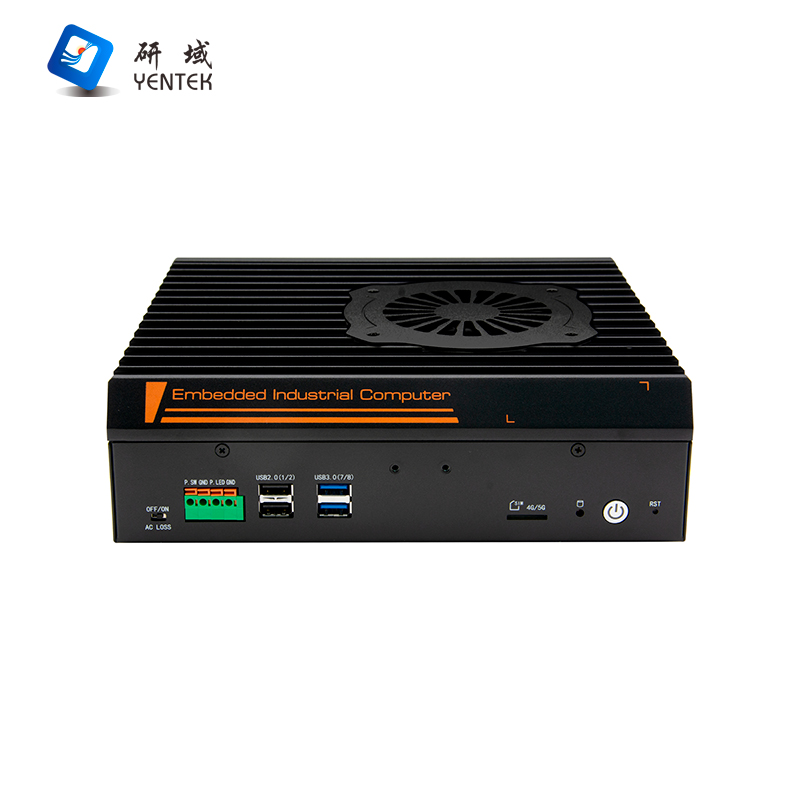

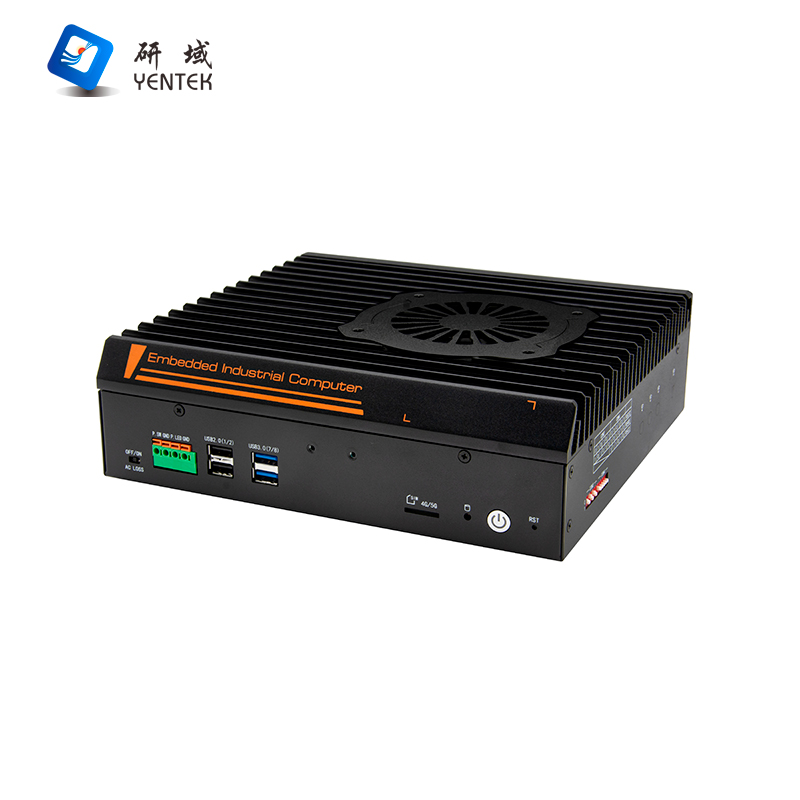

Front   Panel Connectors

Switch

1*Boot   Button with Indicator Light, 1*One-Key Restore, 1*ACLOSS (Power-On DIP   Switch)

LED

1*Hard   Drive Indicator

USB

2*USB3.0,   2*USB2.0, built-in 1*USB2.0

Phoenix   Terminal

1*4P   Phoenix terminal (1*power indicator signal, 1*power switch signal)

SIM

1*SIM   standard card slot

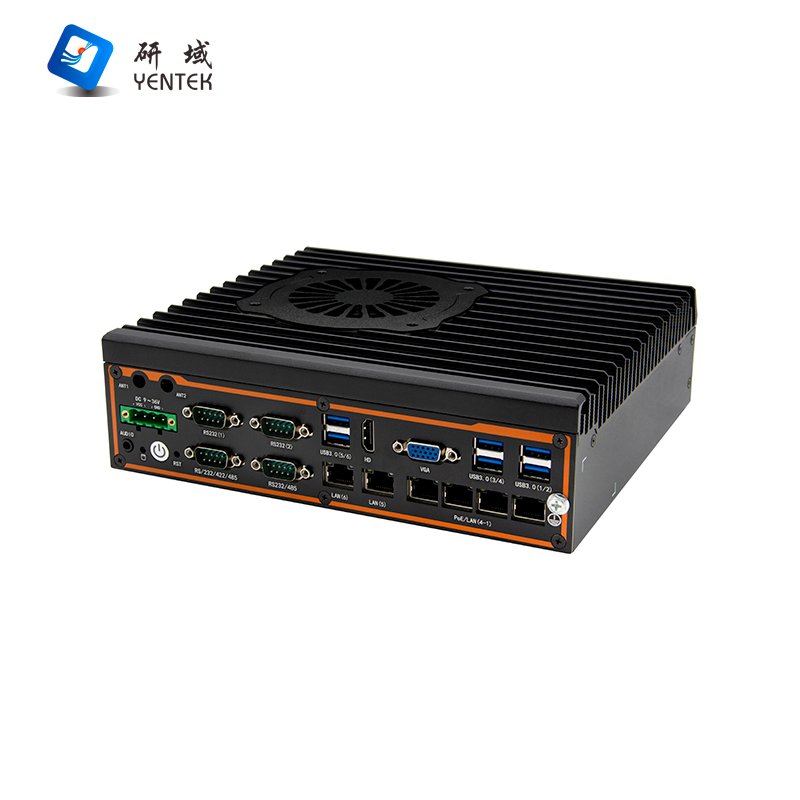

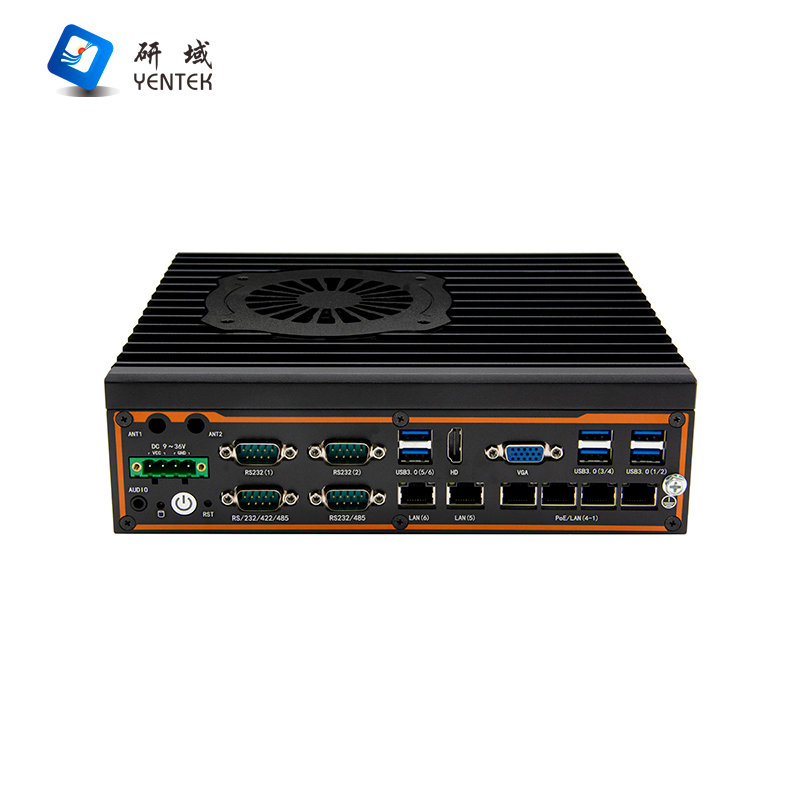

Rear   Panel Interface

Switch

1*Boot   button with indicator, 1*One-Key Restore

LED

1*Hard   Drive Indicator

Display   Interface

1*VGA(1920*1200@60Hz),   1*HDMI1.4, support dual display

USB

6*USB3.0

COM

4*RS232   DB9 serial port, COM3 support RS232/485, COM4 support RS232/422/485

LAN

6*Intel   I210AT Gigabit ports, 4 of which support POE

AUDIO

1*Audio,   Line out and MIC 2-in-1

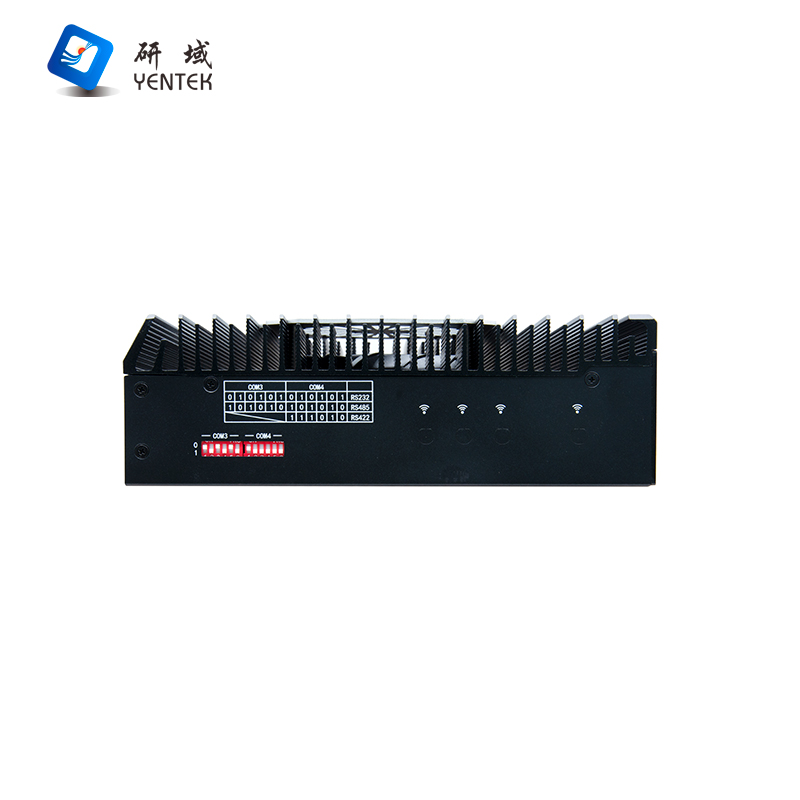

DIP   Switch

2 sets of   6-digit dip switches, RS232/422/485 switching through the dip switches + jump   caps + BIOS settings

Power   connector

1*4P   P=5.08mm Phoenix terminal, support 9~36V wide voltage input

Storage

SATA

1*2.5-inch   hard drive bay (IO board side)

MSATA

1*MSATA   (IO board side)

SSD

1*M.2/SSD,   support Key-M, 2280, NVME PCIEx4 SSD (motherboard side)

Expansion

WiFi

1*M.2i,   support Key-E, 2230, WiFi module

5G

1*M.2,   Key-B support, 3042/3052, 5G module

System   Support

Microsoft

Windows   10

Linux

Linux

Power   Supply Type

Input

Power   Type

External   Power Adapter

Voltage   Input

DC 9-36V   wide voltage, max load 220W

Power   Output

AC TO DC   120W or more (depending on specific equipment)

Environment

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95%   relative humidity, non-condensing

Operating   Vibration

0.5g   rms/5-500HZ/random/operating

1

G3750F-L6 V2.0(G250)

LGA1151

6~9th

2*SODDR4

G250

Q250

G370-L6/G370-PW

2.5+msata+M.2(NVME)

6*I210

4

3

8

 9-36V

2

G3750F-L6 V2.0(G670)

LGA1700

12~14th

2*SODDR4

G670

H770

G370-L6/G370-PW

2.5+msata+M.2(NVME)

6*I210

4

3

8

 9-36V
