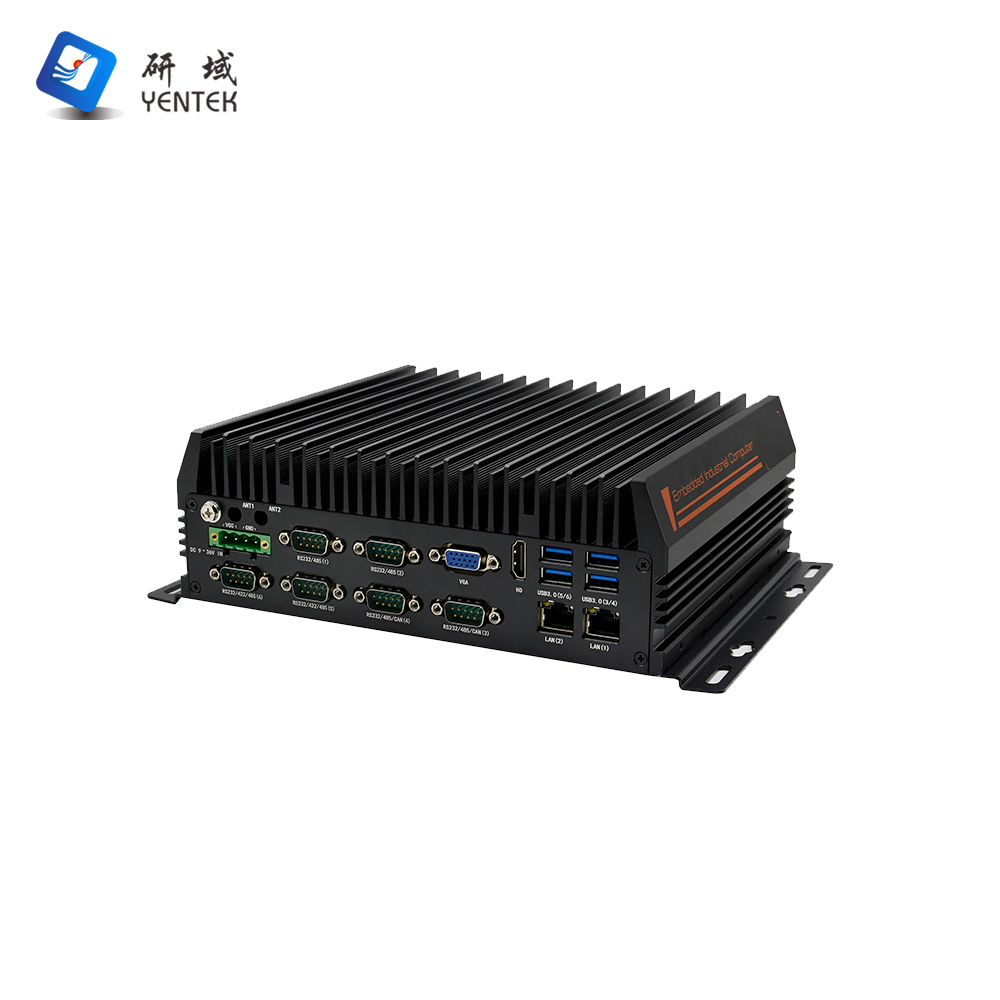

G3060S-G16

Chassis

Material/structure

Aluminium   + sheet metal

Colour

Black

Size   (LWH)

205*192*68.4MM

Weight   (bare net)

2.2KG

Installation

Desktop/Embedded/DIN   rail(35mm)

Motherboard

CPU

Intel®   i5-1135G7/2.40GHz, Quad-Core 8-Thread Processor, TDP 28W

Display

Intel®Iris   Xe Graphics

Memory

2*SODDR4   3200MHz , support up to 64GB

Front   Panel  Interface

Switch

1*Boot   button, 1*Reboot button

LED

1*Power   Indicator, 1*Hard Drive Indicator

USB

2*USB2.0

Audio

1*Line   out, 1*Mic

Phoenix   Terminal

1*4P   (1*Boot signal/1*Power indicator signal)

Rear   Panel Interface

Switch

1*Power   on key, 1*COMS reset key

LED

1*Power Indicator,   1*HDD Indicator

Display   Interface

1*DP1.4(4096*2304@60Hz),   1*HDMI2.0(4096*2304@60Hz), 1*VGA, support triple displays

USB

4*USB3.0

COM

2*RS232/485   DB9 serial port

LAN

6*Intel   I210AT Gigabit ports, 4 of which support POE (single port 15W)

DIO

8 in 8   out DIO (2.5KV optical isolation input/output)

DIP   Switch

2 sets of   6-position dip switches, RS232/485 switching (located in the bottom of the   chassis)

Power   Connector

1*DC   interface or 1*2P(P=5.08mm) Phoenix terminal, support DC 9~36V wide voltage   power input

Storage

SATA

1*2.5-inch   hard drive bay

MSATA

1*MSATA

SSD

1*M.2,   support Key-M, 2280, NVME PCIEx4 SSD

Expansion

5G

1*M.2,   support Key-B, 3042/3052 5G module

Power   Supply Type Input

Power   Type

External   Power Adapter

Voltage   Input

DC 9-36V   wide voltage

Power   Output

AC TO DC   90W or more (depending on specific equipment)

Environment

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95%   relative humidity, non-condensing

Operating   Vibration

0.5g   rms/5-500HZ/random/operating

1

G3060S-G16   V1.0(1135G7)

I5-1135G7/2.4G

2*SODDR4

Q112HD1

P68-L6/P68-G16/IPC505-SW/AUDIO-IO

msata+M.2(NVME)+2.5

6*I210

8in

8out

2

2

4

 9-36V

2

G3060S-G16   V1.0(1195G7)

I7-1195G7/2.9G

2*SODDR4

Q112HD1

P68-L6/P68-G16/IPC505-SW/AUDIO-IO

msata+M.2(NVME)+2.5

6*I210

8in

8out

2

2

4

 9-36V

3

G3060S-G16   V1.0(1235U)

I5-1235U/1.3G

2*SODDR4

Q122HD1

P68-L6/P68-G16/IPC505-SW/AUDIO-IO

msata+M.2(NVME)+2.5

6*I210

8in

8out

2

2

4

 9-36V

4

G3060S-G16   V1.0(1255U)

I7-1255U/1.7G

2*SODDR4

Q122HD1

P68-L6/P68-G16/IPC505-SW/AUDIO-IO

msata+M.2(NVME)+2.5

6*I210

8in

8out

2

2

4

 9-36V
