G3750F-C6

Chassis

Material/Construction

Aluminium   alloy + sheet metal material Fan cooling

Colour

Black+Silver

Size   (LWH)

229*208*67.4MM

Weight   (bare net)

2.8KG

Installation

Desktop/Embedded/DIN   rail(35mm)

Motherboard

CPU

Intel®LGA1151   /6~9 Generation Processor Series

Chipset

Intel®Q250

Memory

2*SODDR4,   supports up to 64GB

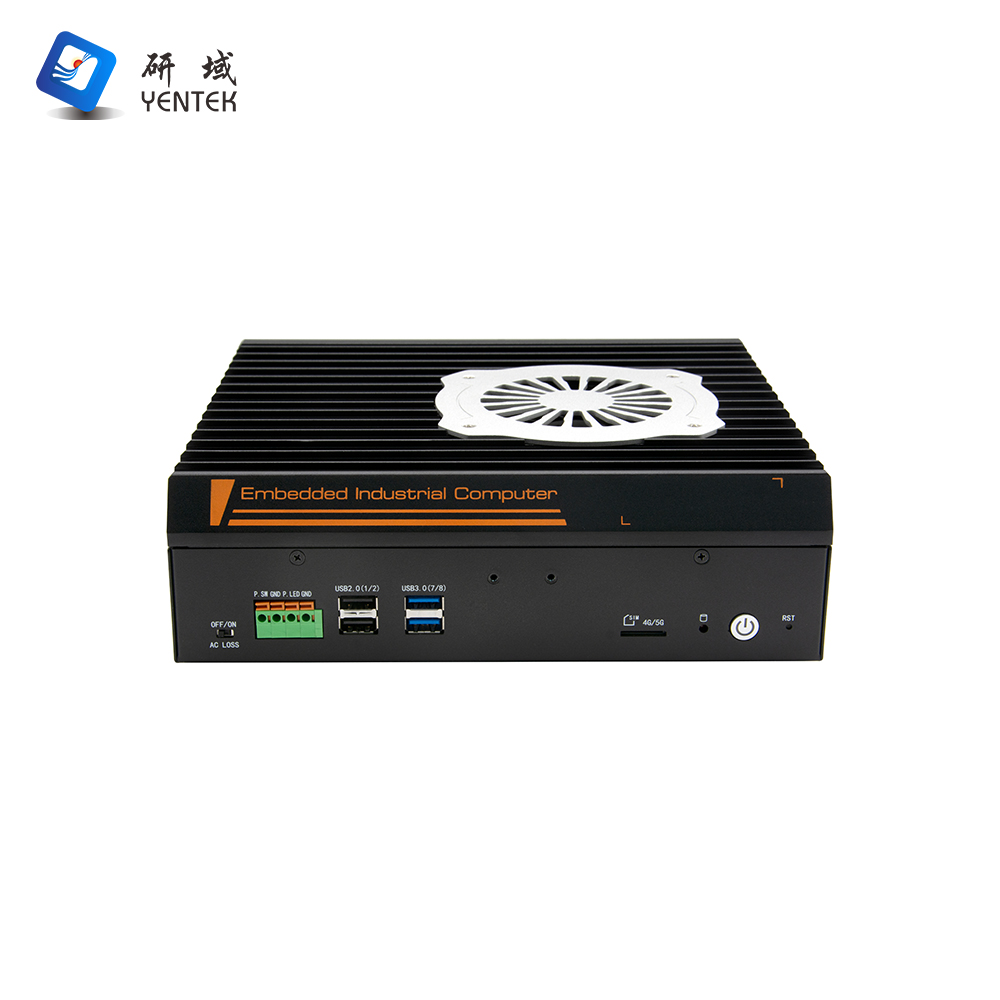

Front   Panel Connectors

Switch

1*Boot   Button with Indicator, 1*One-Key Restore, 1*ACLOSS (Power-on DIP Switch)

LED

1*Hard   Drive Indicator

USB

2*USB3.0,   2*USB2.0, built-in 1*USB2.0

Phoenix   Terminal

1*4P   Phoenix terminal (1*power indicator signal, 1*power switch signal)

SIM

1*SIM   standard card slot (signal default M.2 5G)

Rear Panel   Interface

Display   Interface

1*VGA(1920*1200@60Hz),   1*HDMI1.4, support dual display

USB

6*USB3.0

COM

6*RS232   DB9 serial port, COM3~6 support RS232/485, COM4~6 support RS232/422/485,   COM3~4 support CAN function (need to load CAN module)

LAN

2*Intel   I210AT Gigabit power port

DIO

8 in 8   out DIO (located in 2*10P Phoenix terminal)

AUDIO

1*Audio,   Line out and Mic 2-in-1

DIP   Switches

2 sets of   6-position dip switches, RS232/422/485 switching via dip switches + jump caps   + BIOS settings

Power   Connector

1*4P   P=5.08mm Phoenix terminal, support 9~36V wide voltage input

Storage

SATA

1*2.5-inch   hard drive bay (IO board side)

MSATA

1*MSATA(IO   board side)

M.2

1*M.2/SSD,   support Key-M, 2280, NVME PCIEx4 SSD (motherboard side)

Expansion

WiFi

1*MINIPCIE,   support WiFi or 4G module (4G and built-in USB2.0 with the same signal,   default does not support 4G)

WiFi

1*M.2,   support Key-E, 2230, WiFi module

5G

1*M.2,   support Key-B, 3042/3052, 5G module

System   Support

Microsoft

Windows   10

Linux

Linux

Power   Supply Type

Input

Power   Type

External   Power Adapter

DC 9-36V   wide voltage, max load 220W

Power   Output

AC TO DC   120W or more (depending on specific equipment)

Environment

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95%   relative humidity, non-condensing

Operating   Vibration

0.5g   rms/5-500HZ/random/operating
