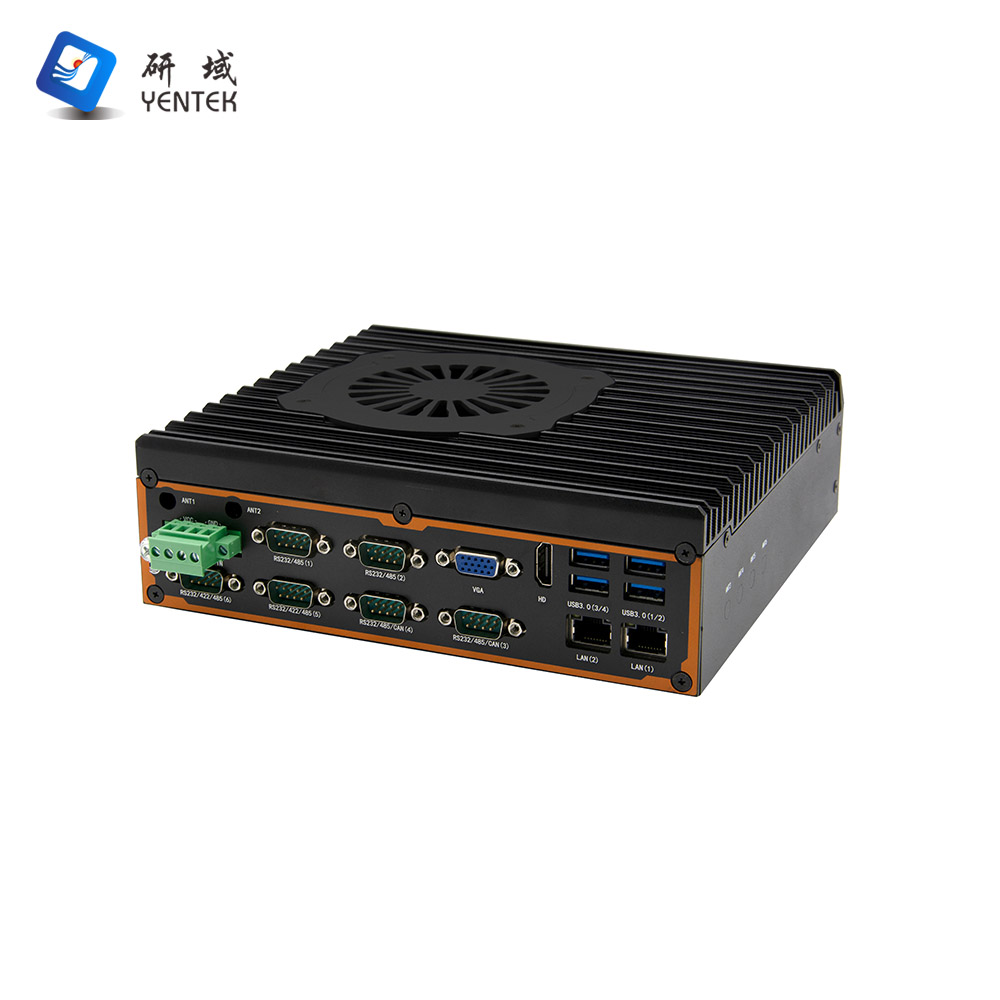

G3250F-C6

Chassis

Material/Construction

Aluminium   + sheet metal

Colour

Black+Silver

Size   (LWH)

205*192*61.2MM

Weight   (bare net)

2.2KG

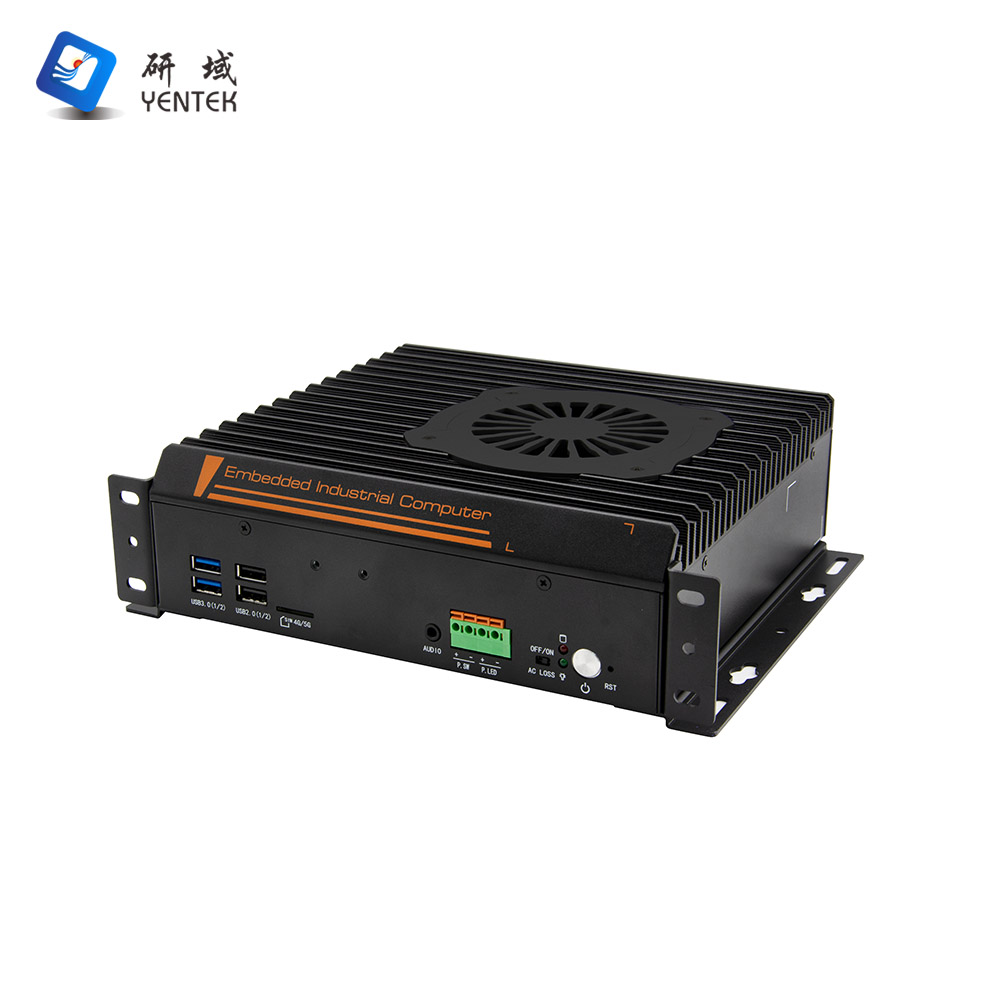

Installation

Desktop/Embedded/DIN   rail(35mm)

Motherboard

CPU

Integrated   Intel i5-8300H/2.30GHz Quad-Core 8-Thread Processor, TDP 45W

System   Chip

Intel HM370

Memory

2*SODDR4   2666MHz, supports up to 64GB

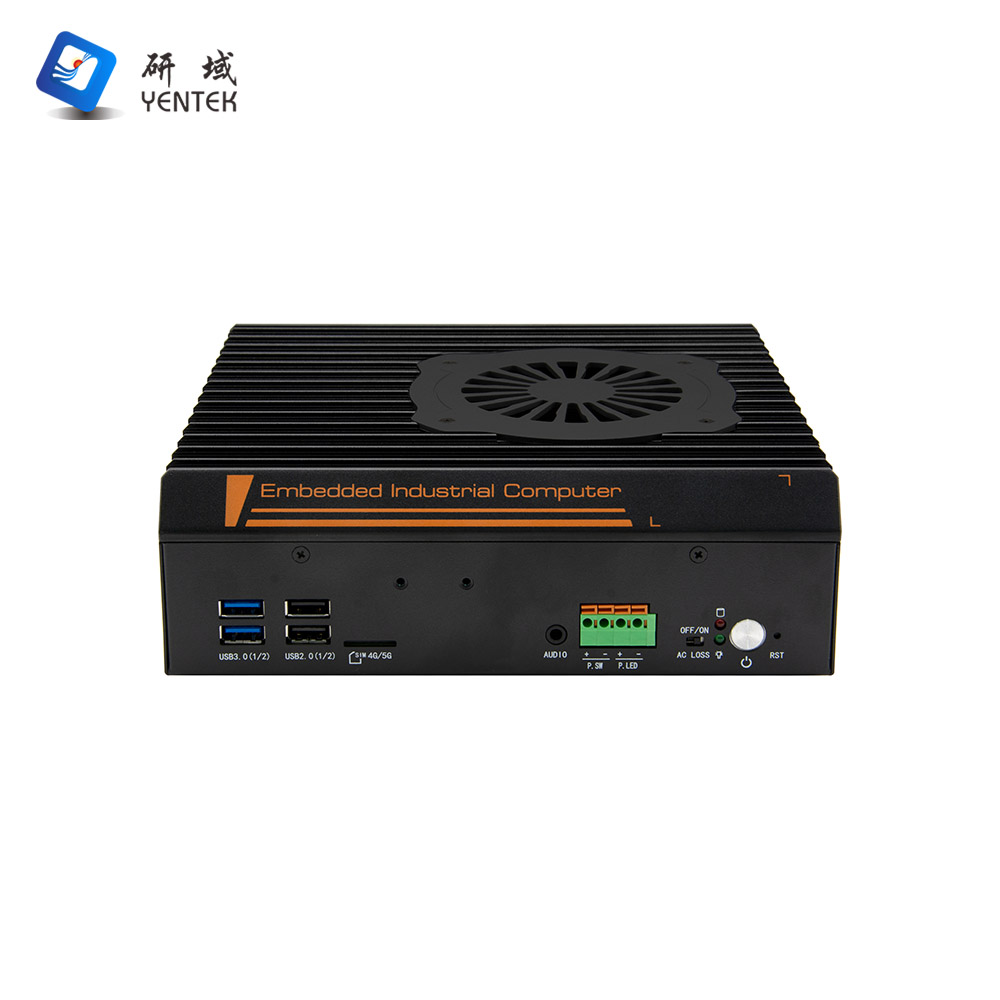

Front   Panel Connectors

Switch

1*Boot   Button, 1*One-Key Restore, 1*ACLOSS (Power-On DIP Switch)

LED

1*Power   Indicator, 1*Hard Drive Indicator

USB

2*USB3.0,   2*USB2.0, built-in 1*USB2.0

Phoenix   Terminal

1*4P   Phoenix terminal (1*power indicator signal, 1*power switch signal)

Audio

1*Audio,   Line out and Mic 2-in-1

SIM

1*SIM   standard card slot

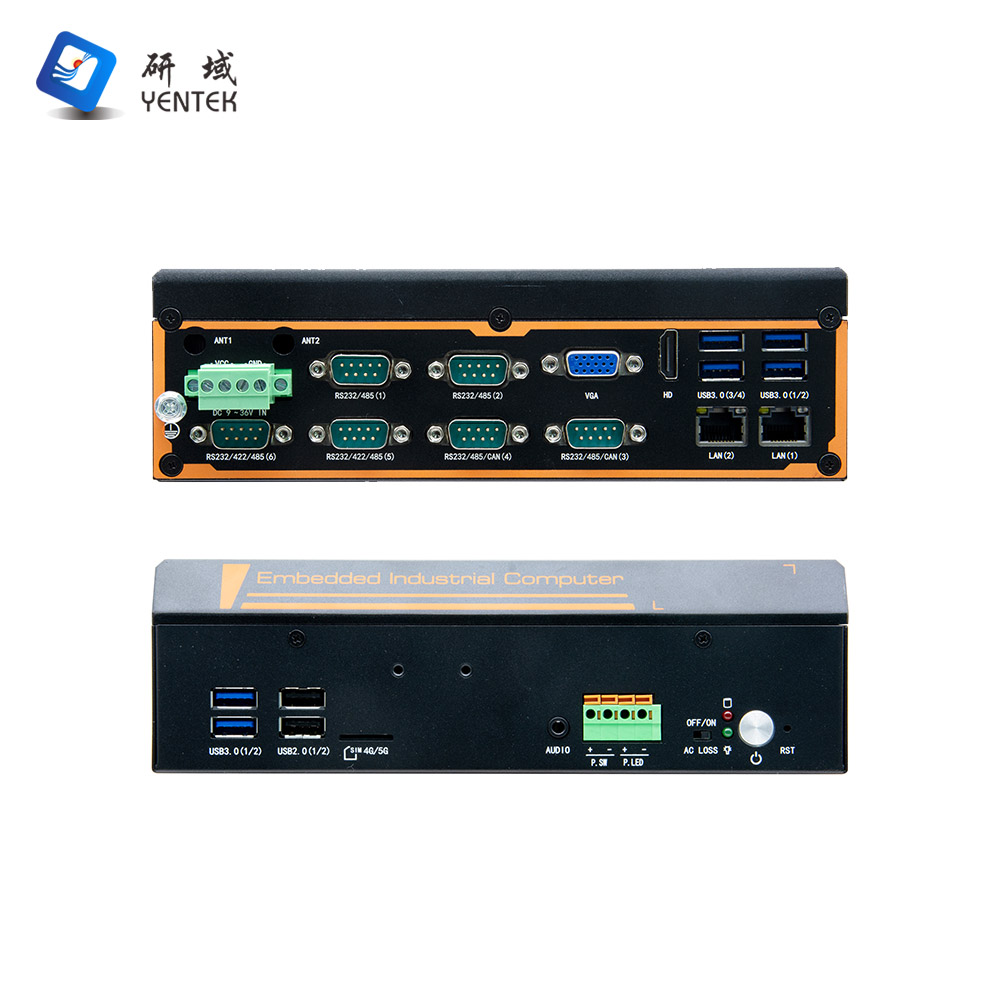

Rear   Panel Interface

Display   Interface

1*HDMI1.4(4096*2304@30Hz),   1*VGA, support dual display

USB

4*USB3.0

COM

6*RS232/485   DB9 serial port, COM5~6 support RS422, COM3~4 support CAN function (need to   load CAN module)

LAN

2*Intel   I210AT Gigabit power port

DIP   Switch

6 sets of   6-position dip switches, RS232/485 switching is achieved by dip switches +   jump caps + BIOS.

Power   Interface

1*4P   P=5.08mm Phoenix terminal, support 9~36V wide voltage input

Storage

SATA

1*2.5   inch HDD bay

SSD

1*M.2,   support Key-M, 2280, NVME PCIEx4/SATA Adaptive SSD

Expansion

WiFi/4G

1*MINIPCIE,   support WiFi+BT or 4G

WiFi

1*M.2,   support Key-E, 2230, WiFi module

5G

1*M.2,   support Key-B, 3042/3052, 5G module (no signal by default)

Power   Supply Type

Input

Power   Type

External   Power Adapter

DC 9-36V   wide voltage

Power   Output

AC TO DC   90W or above (depending on specific equipment)

Environment

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95%   relative humidity, non-condensing

Operating   Vibration

0.5g rms/5-500HZ/random/operating

1

G3250F-C6   V2.0(3210M)

I5-3210M/2.5G

1*SODDR3

GL320

HM77

GL730-C4/G370-PW

MSATA+2.5

2*I210

6

2

6

3

9-36V

2

G3250F-C6   V2.0(7300HQ)

I5-7300HQ/2.5G

2*SODDR4

GL730

H270

GL730-C4/G370-PW

M.2(NVME)+2.5

2*I210

6

2

6

3

9-36V

3

G3250F-C6   V2.0(7820HK)

I7-7820HK/2.9G

2*SODDR4

GL730

H270

GL730-C4/G370-PW

M.2(NVME)+2.5

2*I210

6

2

6

3

9-36V

4

G3250F-C6   V2.0(8300H)

I5-8300H/2.3G

2*SODDR4

GL830

HM370

GL730-C4/G370-PW

M.2(NVME)+2.5

2*I210

6

2

6

3

9-36V

5

G3250F-C6   V2.0(12450H)

I5-12450H/up   to 4.4G

2*SODDR4

GL120H

/

GL730-C4/G370-PW

M.2(NVME)+2.5

2*I210

6

2

6

3

9-36V
