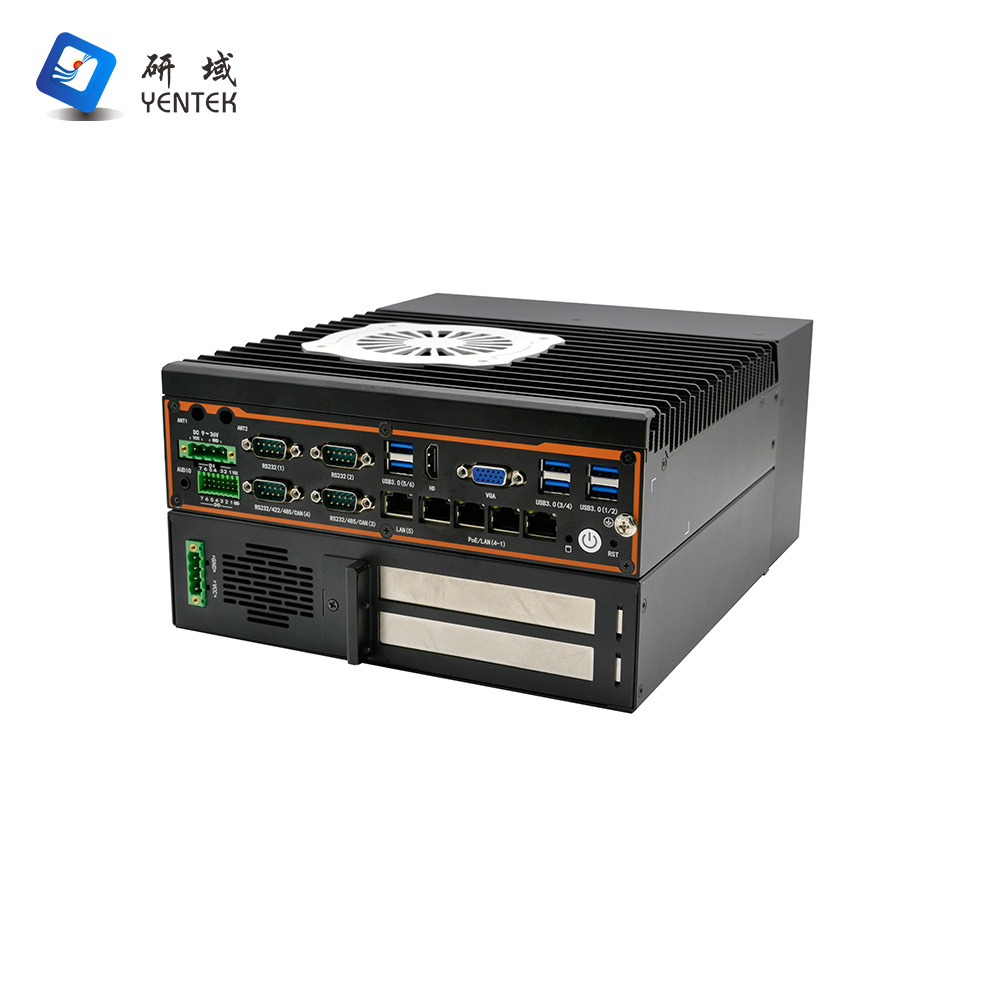

| Model number | G3781F-C6E2 V1.0(Z370) | |
| Chassis | Material/Structure | Aluminium alloy + sheet metal material Fan cooling |
| Colour | Iron grey + sand grain grey | |
| Dimensions | 229*275*125MM | |
| Weight (bare weight) | 5.25 KG | |
| Install | Desktop/Embedded/DIN rail | |
| Main board | CPU | Intel®LGA1151 / 6th~9th Generation Processor Series |
| System Chip | Intel®Z370 | |
| RAM | 2*SODIMM DDR4 memory slots, support up to 64GB | |
| Front panel interface | Switch | 1*On key with indicator, 1*One key restore (choose one with reset key), 1*ACLOSS (power on/off toggle switch) |
| LED | 1*Hard Drive Indicator | |
| USB | 2*USB2.0 | |
Phoenix terminal | 1*4pin Phoenix terminal (1*power indicator signal, 1*power switch signal) | |
| SIM | 1*SIM standard card slot (signal default M.2 5G) | |
| Rear Panel Interface | Audio | 1*Audio, Line out and MIC 2 in 1 |
| USB | 6*USB3.0 | |
| COM | 6*RS232 DB9 serial ports, 4 of them support RS485, 3 support RS422, COM3~4 support CAN function (need to load CAN module) | |
| LAN | 2*Intel I210AT Gigabit power port | |
| Phoenix terminal | 2*8pin (7 in 7 out GPIO with isolation) | |
| Display port | 1*VGA(1920*1200@60Hz)，1*HDMI1.4 | |
| Dip switch | 2 sets of 6-position dip switches, COM3 RS232/485 switching is achieved through COM3 dip switches, COM4 RS232/485/422 needs to be achieved through the combination of COM-SW1 jump caps + COM4 dip switches, COM5~6 RS232/485 is achieved through the in-board jump caps. | |
| Power connector | 1*4P P=5.08mm Phoenix terminal, support DC 9~36V wide voltage input | |
| Store | SATA | 1*2.5-inch hard drive bay |
| MSATA | 1*MSATA | |
| M.2 | 1*M.2/SSD, support Key-M, 2280, NVME PCIEx4 SSD | |
| Extend | PCIE | 1*PCIE3.0 x16 slot 1*PCIE3.0 x8 slot (this slot is not functional by default) Note: Supports BIOS for 6th~9th generation CPUs, x16 expansion slots only. |
| Mini PCIE | 1*MINIPCIE, support WiFi/4G (4G and built-in USB2.0 same signal, default built-in USB2.0) | |
| M.2 | 1*M.2/WiFi, support Key-E, 2230, WiFi module | |
| 1*M.2/5G, support Key-B, 2242/52, 5G module | ||
| System support | Microsoft | Windows 10 |
| Linux | Linux | |
| Power supply type input | Power supply type | External power adaptor |
| Voltage input | DC 9-36V wide voltage | |
| Power output | AC TO DC 90W+ | |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | CPU | Motherboard | Memory | IO Board | PCIE | GIPO | LAN | COM | CAN | HDMI | VGA | USB2.0 | USB3.0 | Power |
| 1 | G3781F-C6E2 V1.0(Z370) | LGA1151 6~9th gen | G370 | 2*SODDR4 | G370-C6/G370-PW/G371-E2 | x16 | 7in7out | 2 | 6 | 2 | 1 | 1 | 3 | 8 | 9-36V |
| 2 | G3781F-P4E2 V1.0(Z370) | LGA1151 6~9th gen | G370 | 2*SODDR4 | G370-C6/G370-PW/G371-E2 | x16 | 7in7out | 5 | 4 | 2 | 1 | 1 | 3 | 8 | 9-36V |
