| Model number | G3780F-P4E2 V1.0(Z370) | |
| Chassis | Material/Structure | Aluminum alloy + sheet metal fan heat dissipation |
| Colour | Iron gray + sand gray | |
| Dimensions | 229 * 208 * 125 MM | |
| Weight (bare weight) | 4.47 KG | |
| Install | Desktop/embedded /DIN rail | |
| Main board | CPU | Intel® LGA1151/6-9 series processors |
| System chip | Intel Z370 | |
| Internal memory | 2*SODIMM DDR4 memory, supports a maximum of 64GB | |

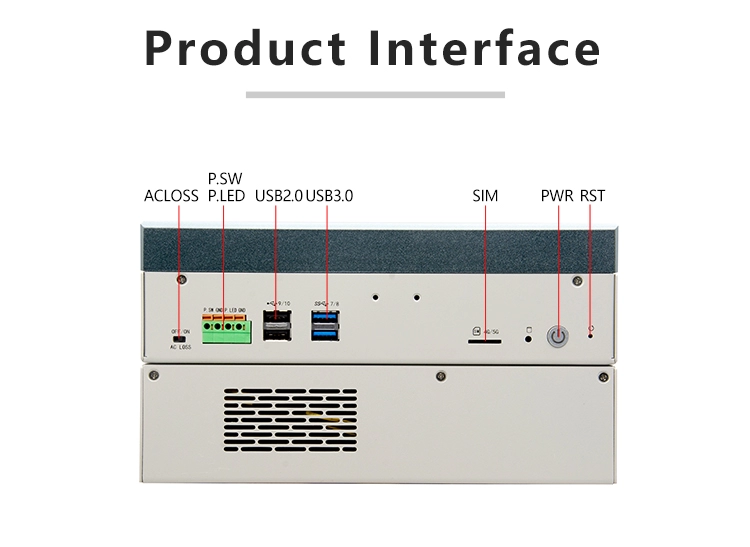

| Front panel interface | Switch | 1* Power key with indicator light, 1* one key restore (and reset key to choose one), 1*ACLOSS (power on DIP switch) |
| LED | 1* hard disk indicator | |
| USB | 2*USB3.0, 2*USB2.0 | |
Phoenix terminal | 1*4P Phoenix terminal (1* power indicator signal, 1* power switch signal) | |
| SIM | 1*SIM standard card slot (Signal default M.2 5G) | |
| Rear panel interface | Switch | 1*Power button with indicator light, 1* one-key restore (choose one of the two reset keys) |
| LED | 1*hard disk indicator | |
| Display interface | 1*VGA(1920*1200@60Hz), 1*HD OUTPUT1.4 | |
| USB | 6*USB3.0 | |
| COM | 4*RS232 DB9 serial ports, of which 2 support RS485, 1 support RS422, COM3~4 support CAN function (need to load CAN module) | |
| LAN | 5*Intel I210AT Gigabit ports, four of which support POE | |
| Phoenix terminal | 2*8pin(7 in 7 out GPIO tape isolation) | |
| Audio frequency | 1*Audio, Line out and MIC in one | |
| Dip switch | Two sets of 6-bit dip switches. The COM3 RS232/485 switch is implemented by the COM3 DIP switch, and the COM4 RS232/485/422 switch is implemented by the COM-SW1 hop cap and COM4 DIP switch combination | |
| Power interface | 1 * 4P P=5.08mm Phoenix terminal, support DC 9~36V wide voltage input | |
| Store | SATA | 1 * 2.5-inch hard disk |
| MSATA | 1*MSATA | |
| M.2 | 1*M.2/SSD: Key-M, 2280, NVME PCIEx4 SSD | |
| Extend | Mini PCIE | 1*MINIPCIE, support WiFi/4G module (4G and built-in USB2.0 same signal, default built-in USB2.0) |
| M.2 | 1*M.2/WiFi, supports Key-E, 2230, WiFi module | |
| 1*M.2/5G, supports Key-B, 2242/52, 5G modules | ||
| System support | Microsoft | Windows 10 |
| Linux | Linux | |
| Power supply type input | Power supply type | External power adaptor |
| Voltage input | DC 9-36V wide voltage | |
| Power output | AC TO DC more than 90W | |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | CPU | Motherboard | Memory | IO Board | PCIE | GPIO | LAN | COM | CAN | HD OUTPUT | VGA | USB2.0 | USB3.0 | Power |
| 1 | G3780F-P4E2 V1. 0(Z370) | LGA1151 8~9th | G370 | 2*SODDR4 | G370-P4/G370-PW | X8+X8 | 7 in 7 out | 5 | 4 | 2 | 1 | 1 | 8 | 3 | 9-36V |
| 2 | G3780F-P4E2 V1. 0(G250) | LGA1151 8~9th | G250 | 2*SODDR4 | G370-P4/G370-PW | X8+X1 | 7 in 7 out | 5 | 4 | 2 | 1 | 1 | 8 | 3 | 9-36V |
| 3 | G3780F-C6E2 V1. 0(Z370) | LGA1151 8~9th | G370 | 2*SODDR4 | G370-P4/G370-PW | X8+X8 | 7 in 7 out | 2 | 6 | 2 | 1 | 1 | 8 | 3 | 9-36V |
| 4 | G3780F-C6E2 V1. 0(G250) | LGA1151 8~9th | G250 | 2*SODDR4 | G370-P4/G370-PW | X8+X1 | 7 in 7 out | 2 | 6 | 2 | 1 | 1 | 8 | 3 | 9-36V |
