● Integrated Intel i5-7300HQ/2.5GHz, quad-core, four-thread processor
● 2*SODDR4 2400MHz, support up to 64GB
● 1*HDMI, 1*VGA, support dual display
● 2*Intel I210AT
● 6*RS232/485 DB9 serial ports, COM5~6 support RS422, COM3~4 can support CAN (need to load CAN module)
● 6*USB3.0, 2*USB2.0, built-in 1*USB2.0
● Support 1*PCIE x8, 1*PCIE x1
● Support DC 9~36V wide voltage (1*4P Phoenix terminal)
● Fanless cooling, copper tube heat conduction
Model | G3280F-C6E2 V2.0(7300HQ) | |
Chassis
| Material/structure | Aluminium alloy + sheet metal material + fan cooling |
Colour | Black+Silver | |
Size (LWH) | 205*192.5*121.6MM | |
Weight (bare net) | 3.45KG | |

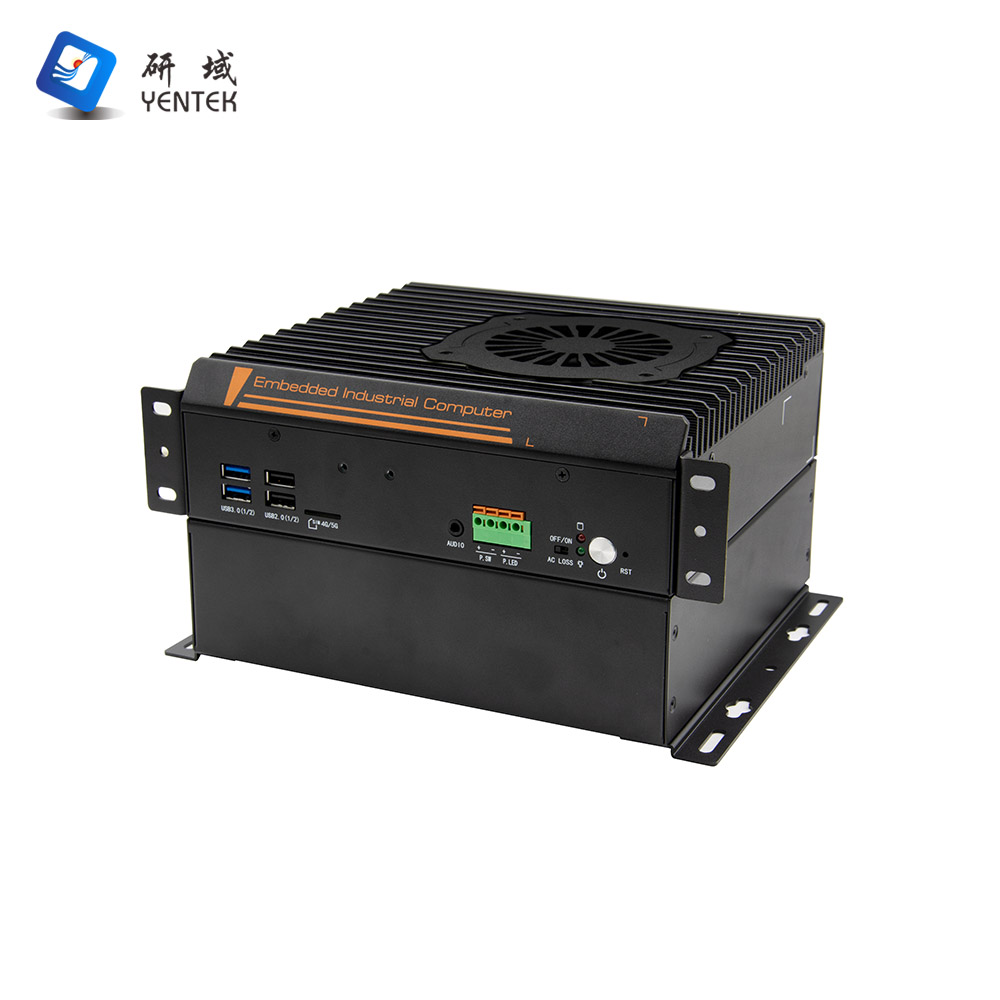

Installation | Desktop/Embedded/DIN rail(35mm) | |
Motherboard
| CPU | Integrated Intel i5-7300HQ/2.50GHz Quad-Core Quad-Thread Processor, TDP 45W |
System Chip | Intel H270 | |
Memory | 2*SODDR4 2400MHz, supports up to 64GB | |

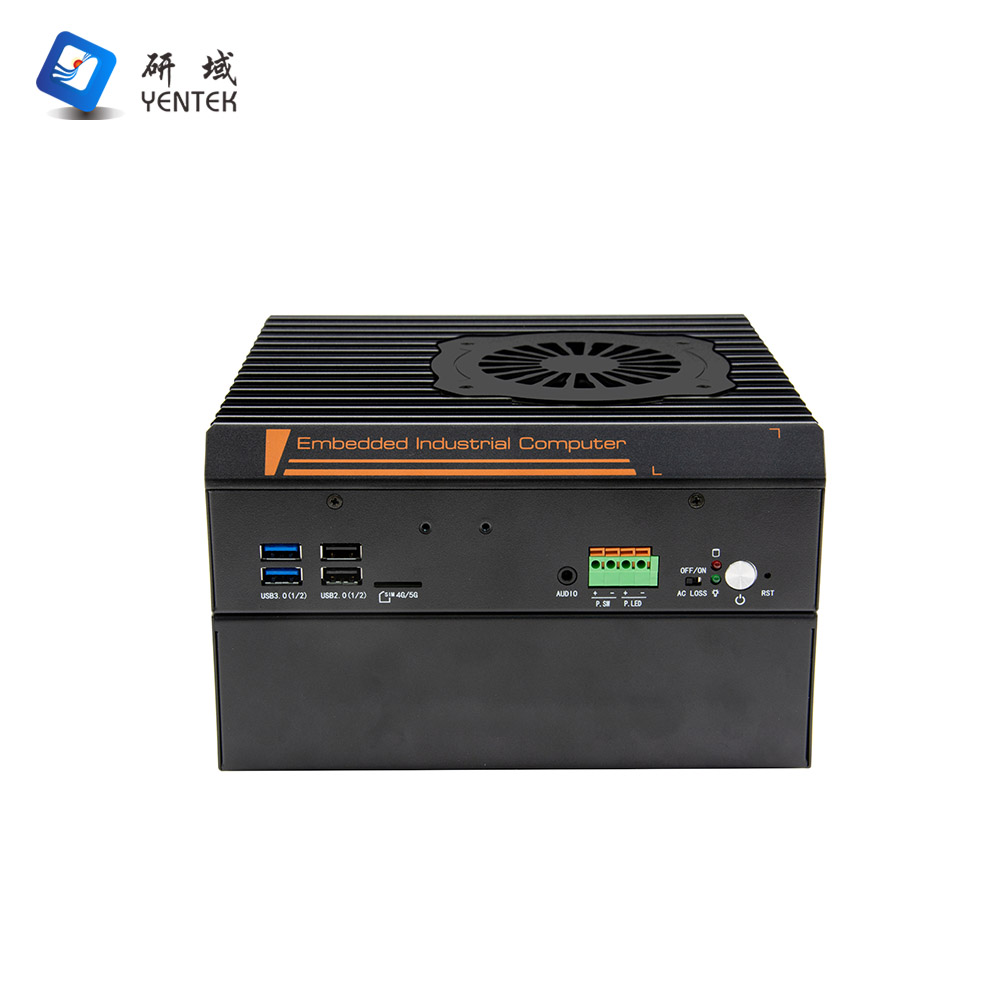

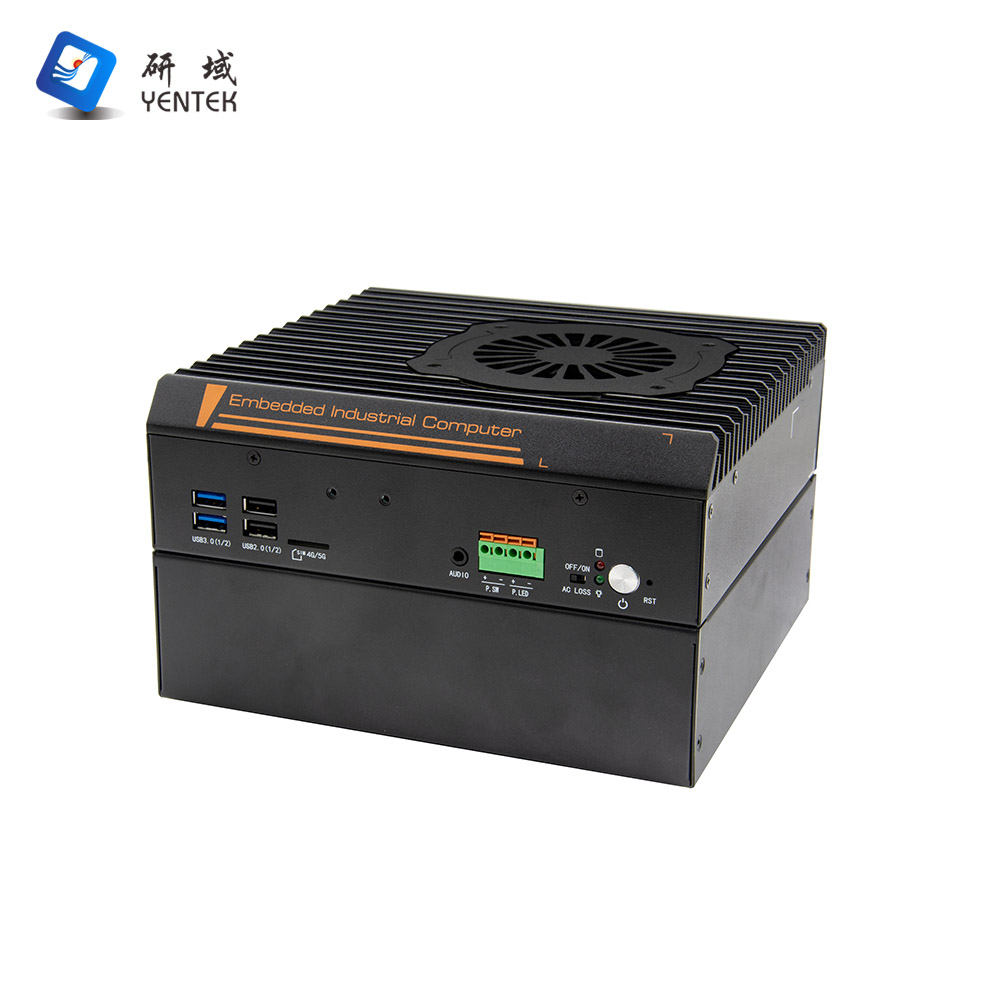

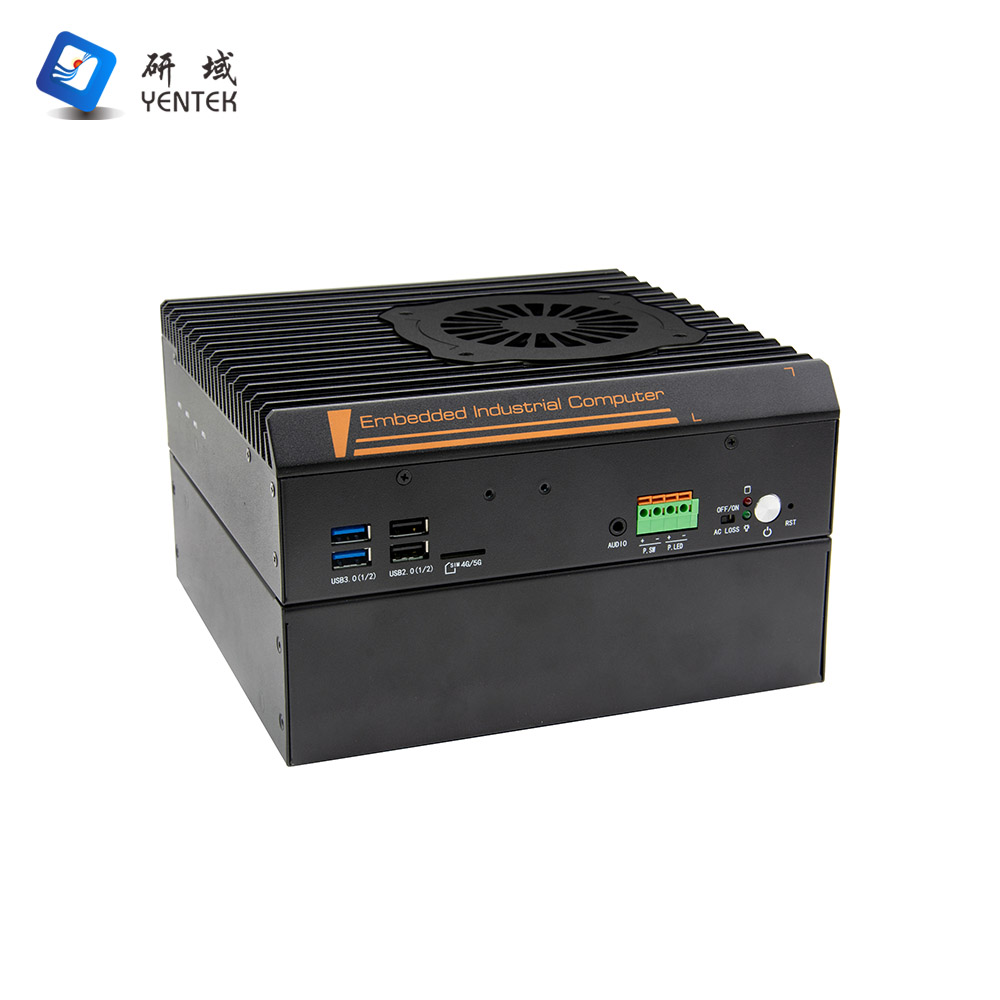

Front Panel Connectors
| Switch | 1*Boot Button, 1*One-Key Restore, 1*ACLOSS (Power-On DIP Switch) |
LED | 1*Power Indicator, 1*Hard Drive Indicator | |
USB | 2*USB3.0, 2*USB2.0, built-in 1*USB2.0 | |
Phoenix Terminal | 1*4P Phoenix terminal (1*power indicator signal, 1*power switch signal) | |
Audio | 1*Audio, Line out and MIC 2-in-1 | |
SIM | 1*SIM standard card slot | |

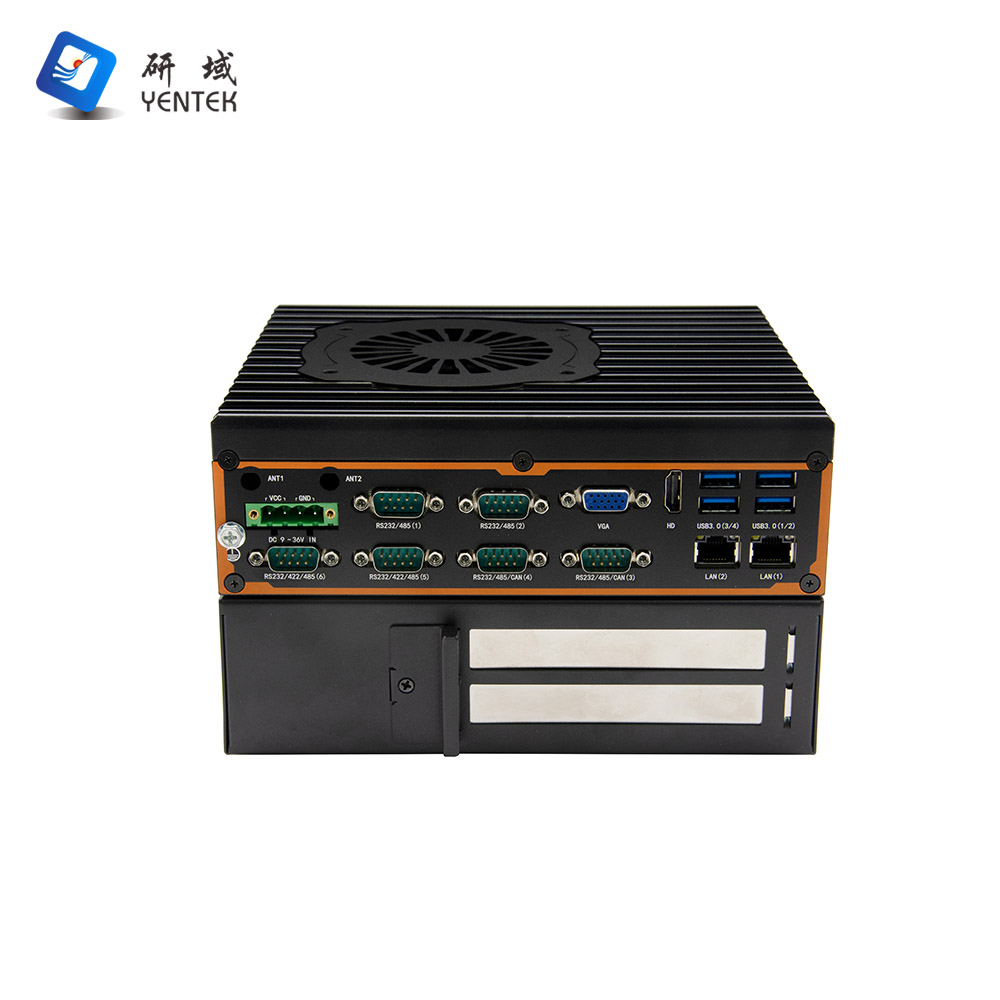

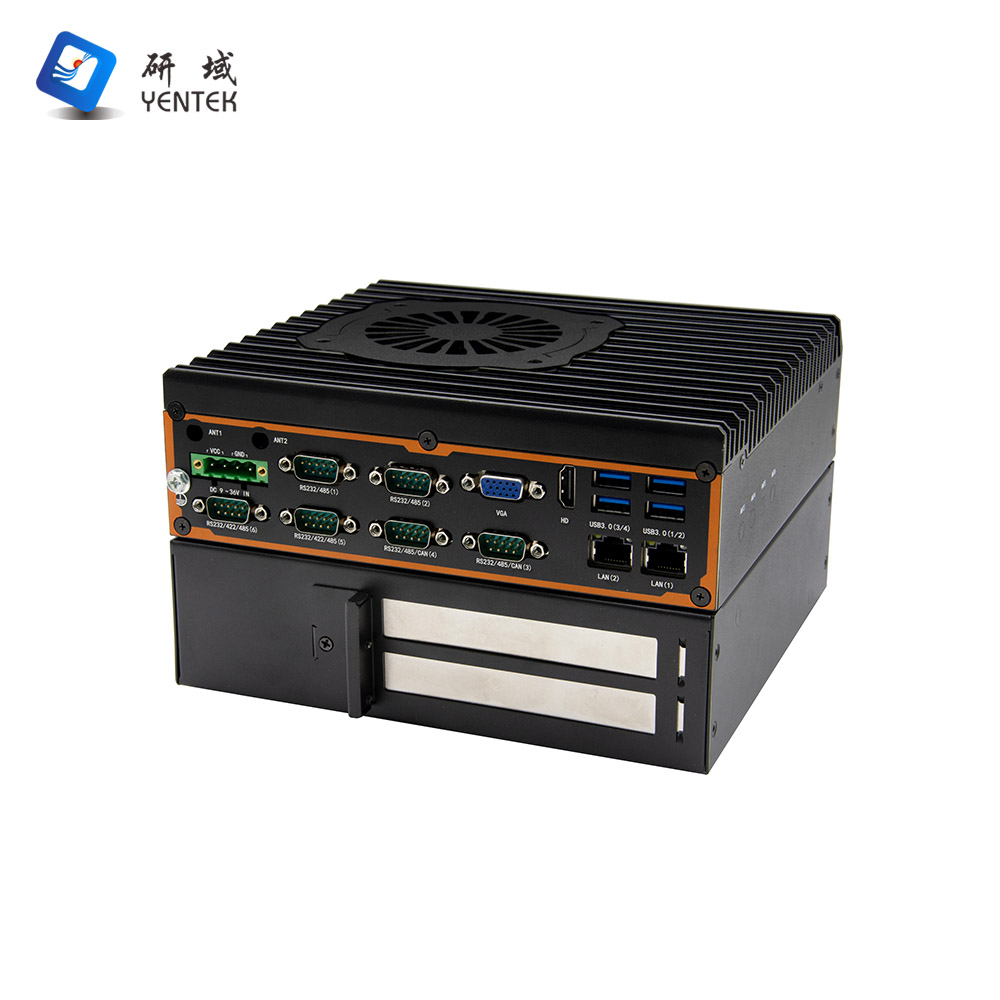

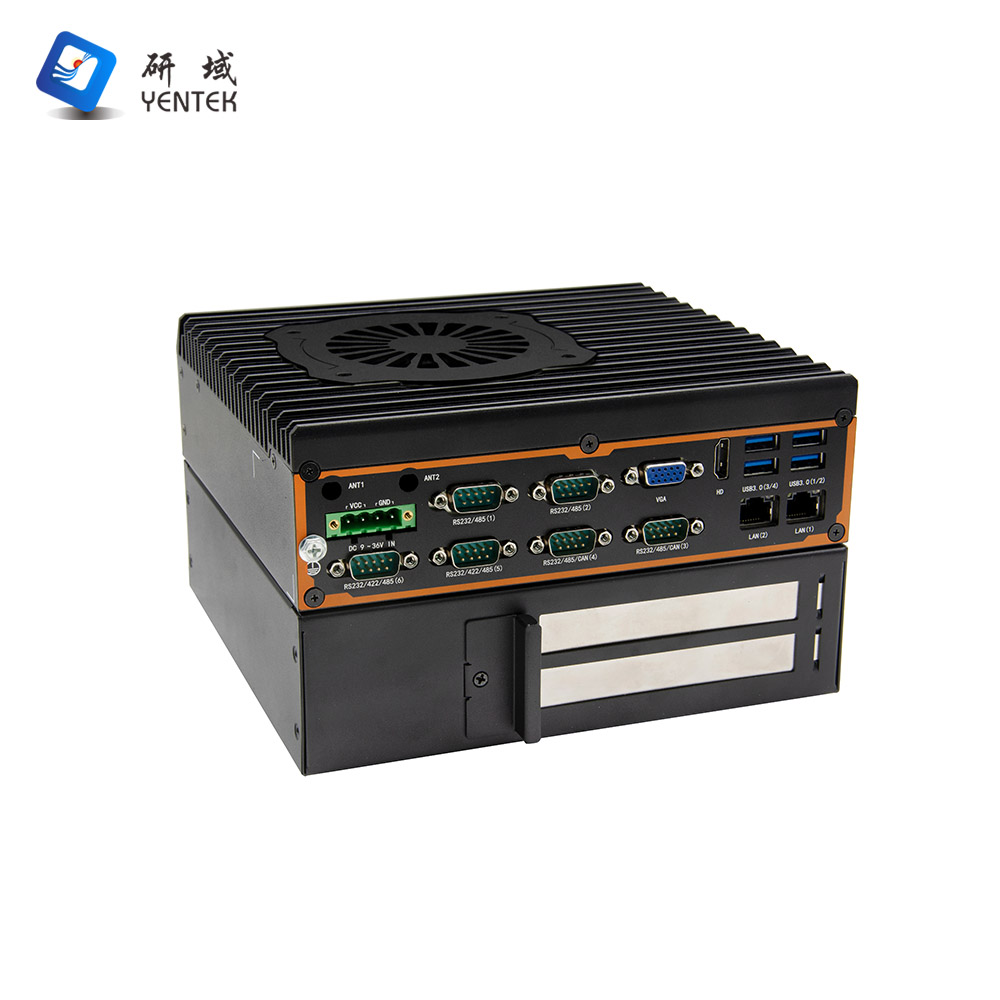

Rear Panel Interface
| Display Interface | 1*VGA, 1*HDMI1.4(4096*2304@30Hz), support for dual display |
USB | 4*USB3.0 | |
COM | 6*RS232/485 DB9 serial port, COM5~6 support RS422, COM3~4 can support CAN function (need to load CAN module) | |
LAN | 2*Intel I210AT Gigabit power port | |
DIP Switch | 6 sets of 6-position dip switches, COM1-6 RS232/485 switching is achieved by dip switches, COM5-6 RS422 needs to be achieved by COM-SW2 jump cap + BIOS | |
Power Interface | 1*4P(P=5.08mm) Phoenix terminal, support 9~36V wide voltage input | |
Storage
| SATA | 1*2.5-inch hard drive bay |
MSATA | 1*MSATA (3210M only) | |
SSD | 1*M.2, support Key-M, 2280, NVME PCIE SSD (except 3210M, other CPUs only support M.2 SSD) | |
Expansion
| PCIE
| 1*PCIE x16 (x8 signals) |
1*PCIE x8 (x1 signal) | ||
WiFi | 1*MINIPCIE, support WiFi | |
WiFi | 1*M.2, support Key-E, 2230, WiFi module | |
5G | 1*M.2, support Key-B, 3042/3052, 5G module | |
Power Supply Type Input
| Power Type | External Power Adapter |
Voltage Input | DC 9-36V wide voltage | |
Power Output | AC TO DC 60W or above (depending on specific equipment) | |
Environment | Operating Temperature | -10℃~50℃ |
Storage Temperature | -20℃~70℃ | |
Relative Humidity | 5%-95% relative humidity, non-condensing | |
Operating Vibration | 0.5g rms/5-500HZ/random/operating |
No. | Model | CPU | Memory | Motherboard | Chipset | IO Board | HDD | PCIE | LAN | COM | CAN | USB3.0 | USB2.0 | power |
1 | G3280F-C6E2 V1.0(3210M) | I5-3210M/2.5G | 1*SODDR3 | GL320 | HM77 | GL730-C4/G370-PW/G250-E2 | MSATA+2.5 | X8+X1 | 2*I210 | 6 | 2 | 6 | 3 | 9-36V |
2 | G3280F-C6E2 V1.0(7300HQ) | I5-7300HQ/2.5G | 2*SODDR4 | GL730 | H270 | GL730-C4/G370-PW/G250-E2 | M.2(NVME)+2.5 | X8+X1 | 2*I210 | 6 | 2 | 6 | 3 | 9-36V |
3 | G3280F-C6E2 V1.0(7820HQ) | I7-7820HK/2.9G | 2*SODDR4 | GL730 | H270 | GL730-C4/G370-PW/G250-E2 | M.2(NVME)+2.5 | X8+X1 | 2*I210 | 6 | 2 | 6 | 3 | 9-36V |
4 | G3280F-C6E2 V1.0(8300HK) | I5-8300HQ/2.3G | 2*SODDR4 | GL730 | HM370 | GL730-C4/G370-PW/G250-E2 | M.2(NVME)+2.5 | X8+X1 | 2*I210 | 6 | 2 | 6 | 3 | 9-36V |
5 | G3280F-C6E2 V2.0(12450H) | I5-12450H/up to 4.4G | 2*SODDR4 | GL120H | / | GL730-C4/G370-PW | M.2(NVME)+2.5 | X8+X1 | 2*I210 | 6 | 2 | 6 | 3 | 9-36V |
