G3780F-C8E2

Chassis

Material/structure

Aluminium   alloy + sheet metal material Fan cooling

Colour

Black   colour

Size   (LWH)

229*209*125.7MM

Weight   (bare net)

3.5KG

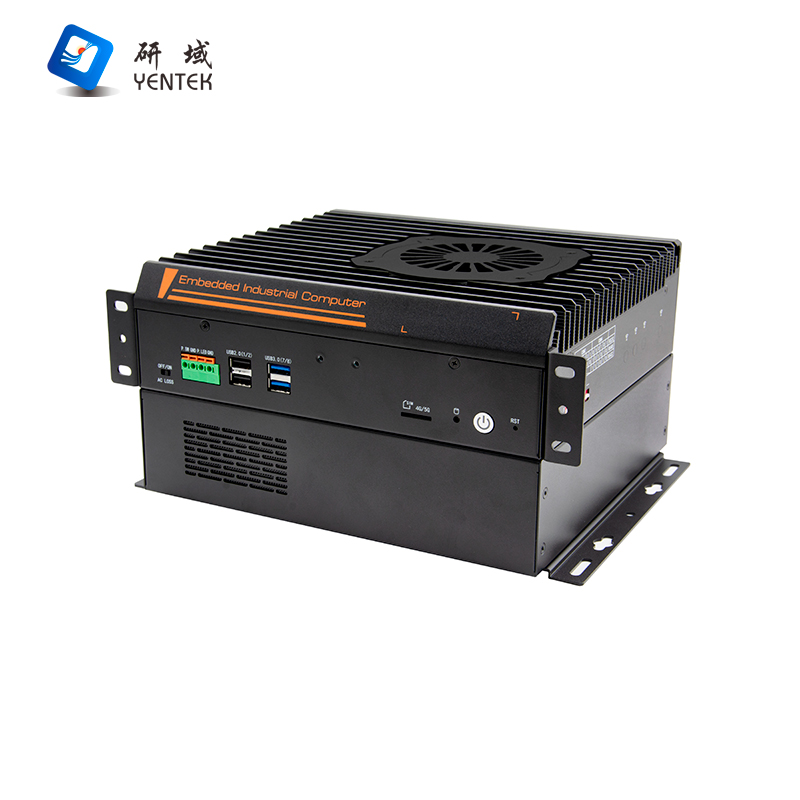

Installation

Desktop /   Embedded / DIN rail

Motherboard

CPU

Intel®LGA1151   /8~9 Generation Processors

System   Chip

Intel®Z390

Memory

2*SODDR4,   support up to 64GB

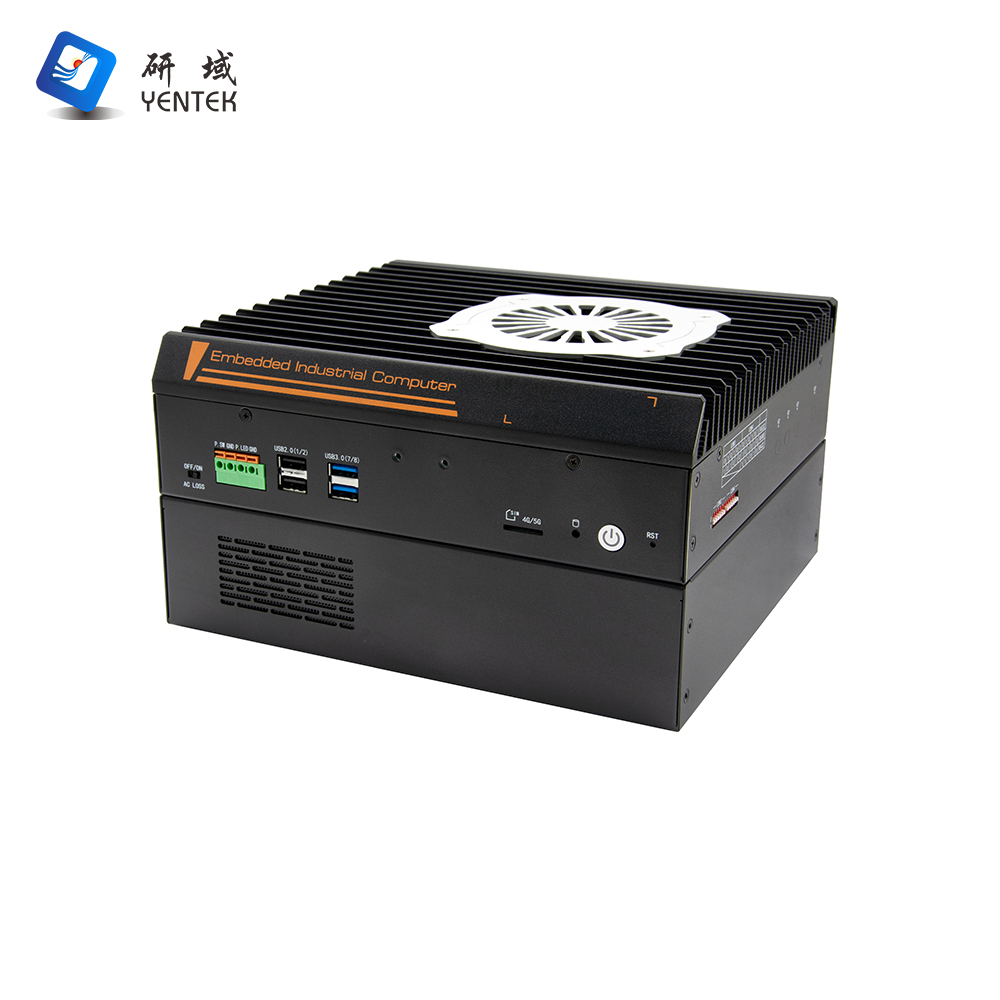

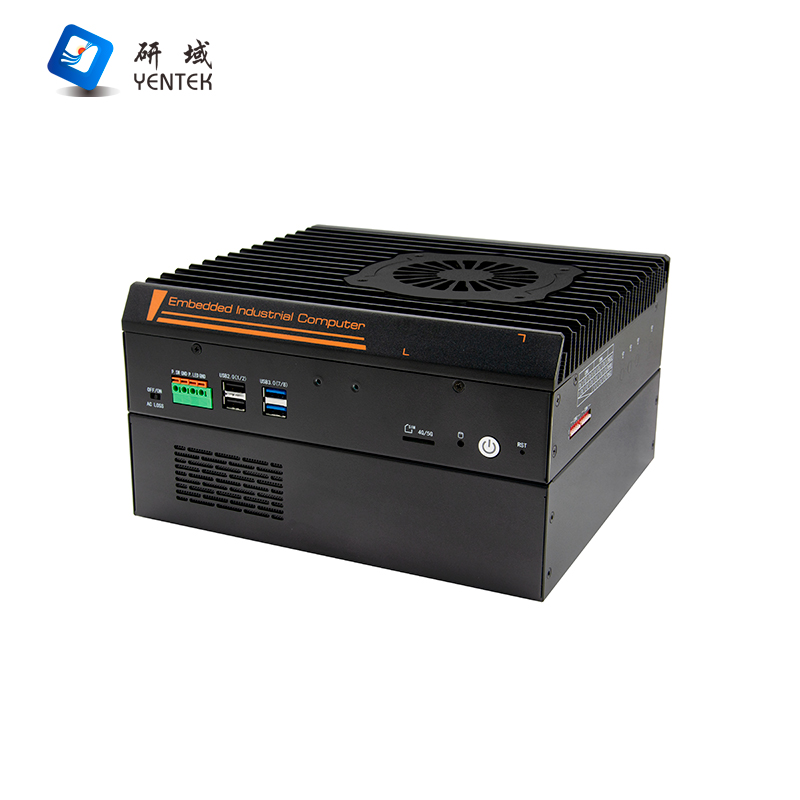

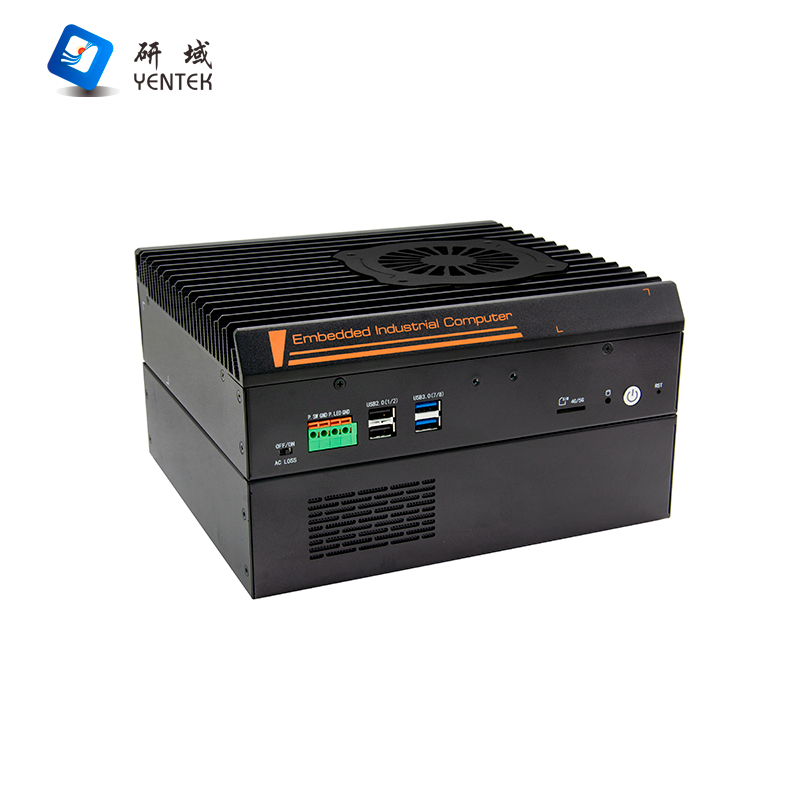

Front   Panel Connectors

Switch

1*Boot Button   with Indicator, 1*One-Key Restore, 1*ACLOSS (Power-On DIP Switch)

LED

1*Hard   Drive Indicator

USB

2*USB3.0,   2*USB2.0, built-in 1*USB2.0

Phoenix   Terminal

1*4P   Phoenix terminal (1*power indicator signal, 1*power switch signal)

SIM

1*SIM standard   card slot (signal default M.2 5G)

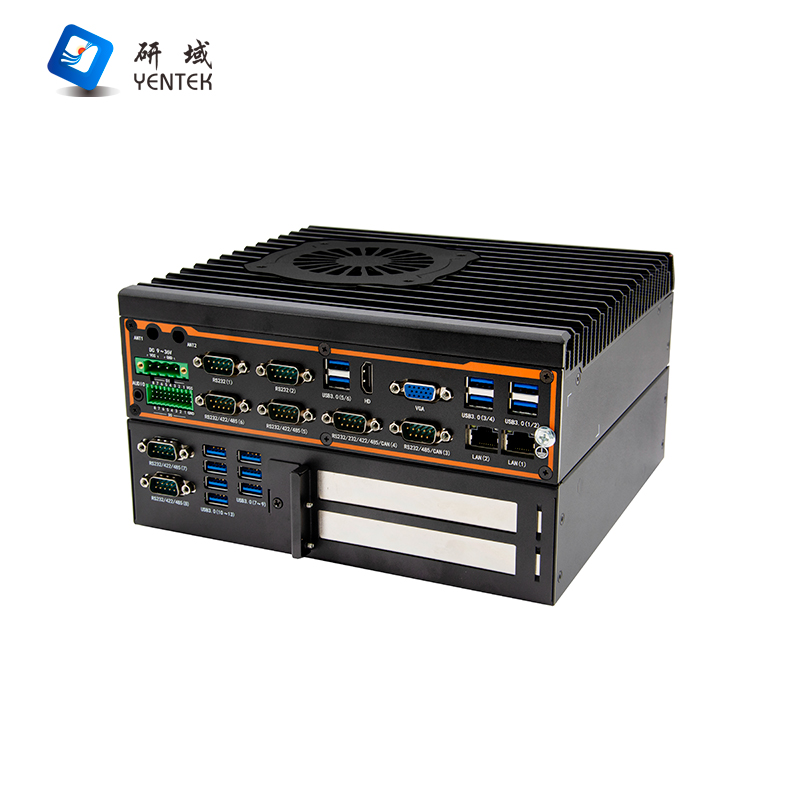

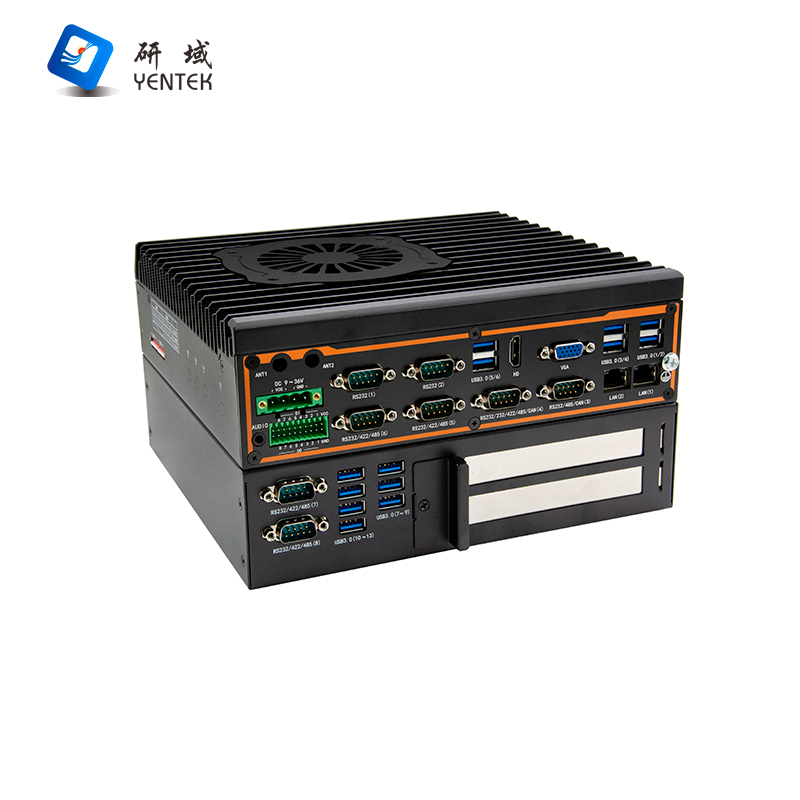

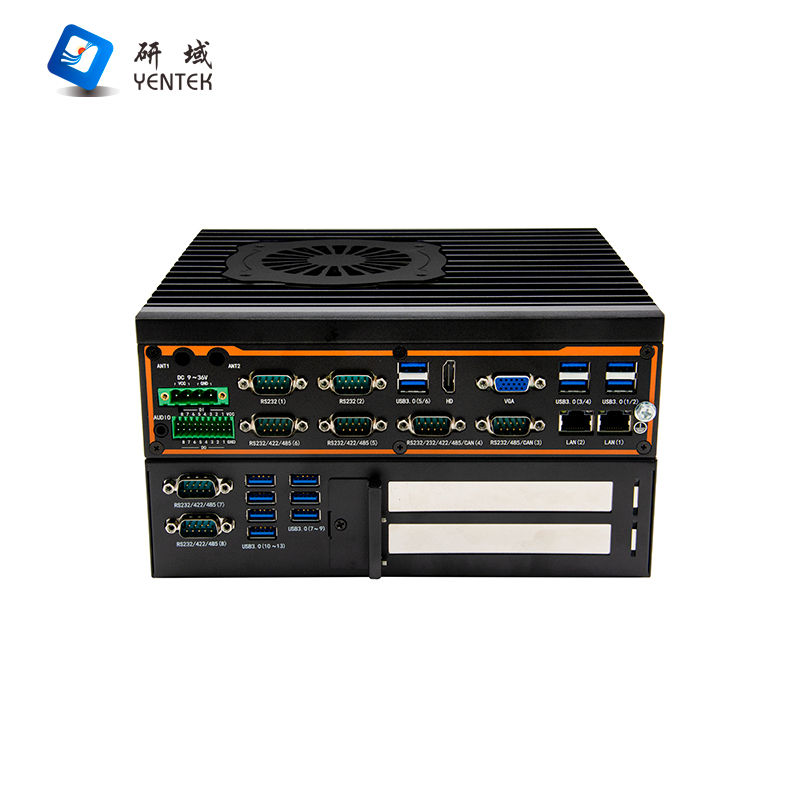

Rear   Panel Interface

Display   Interface

1*VGA(1920*1200@60Hz),   1*HDMI1.4

COM

8*RS232   DB9 serial port, COM3~8 support RS232/485, COM4~6 support RS232/422/485,   COM3~4 support CAN function (need to load CAN module)

LAN

2*Intel   I210AT Gigabit power port

USB

13*USB3.0

DIO

8 in 8   out DIO (located in 2*10P Phoenix terminal)

AUDIO

1*Audio,   Line out and Mic 2 in 1

DIP   Switches

2 sets of   6-position dip switches, RS232/485 switching via dip switches + jump caps +   BIOS settings

Power   connector

1*4P   P=5.08mm Phoenix terminal, support DC 9~36V wide voltage input

Storage

SATA

1*2.5-inch   hard drive bay (IO board side)

MSATA

1*MSATA   (IO board side)

SSD

1*M.2,   support Key-M, 2280, NVME PCIEx4 SSD (motherboard side)

Expansion

PCIE

1*PCIE3.0   x16 (x8 signals)

1*PCIE3.0   x8 (x8 signals)

WiFi

1*MINIPCIE,   support WiFi or 4G (4G and built-in USB2.0 with the same signal, default does   not support 4G)

WiFi

1*M.2,   support Key-E, 2230, WiFi module

5G

1*M.2,   support Key-B, 3042/3052, 5G module

System   Support

Microsoft

Windows   10

Linux

Linux

Power   Supply Type

Power   Type

External   Power Adapter

Input

Voltage   Input

DC 9-36V   wide voltage

Power   Output

AC TO DC   90W or more (depending on specific equipment)

Environment

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95% relative   humidity, non-condensing

Operating   Vibration

0.5g   rms/5-500HZ/random/operating

1

G3780F-C8E2   V2.0(G250)

LGA1151

6~9th

2*SODDR4

G250

Q250

G370-C4/G370-PW/G370-E2/G250-U8

X8+X1

2.5+MSATA+M.2(NVME/SATA)

8in8out

2*I210

8

2

15

3

9-36V

2

G3780F-C8E2   V2.0(G390)

LGA1151

8~9th

2*SODDR4

G390

Z390

G370-C4/G370-PW/G370-E2/G250-U8

X8+X8

2.5+MSATA+M.2(NVME/SATA)

8in8out

2*I210

8

2

15

3

9-36V

3

G3780F-C8E2   V2.0(G670)

LGA1700

12~14th

2*SODDR4

G670

H770

G370-C4/G370-PW/G370-E2/G250-U8

X8+X8

2.5+MSATA+M.2(NVME/SATA)

8in8out

2*I210

8

2

15

3

9-36V
