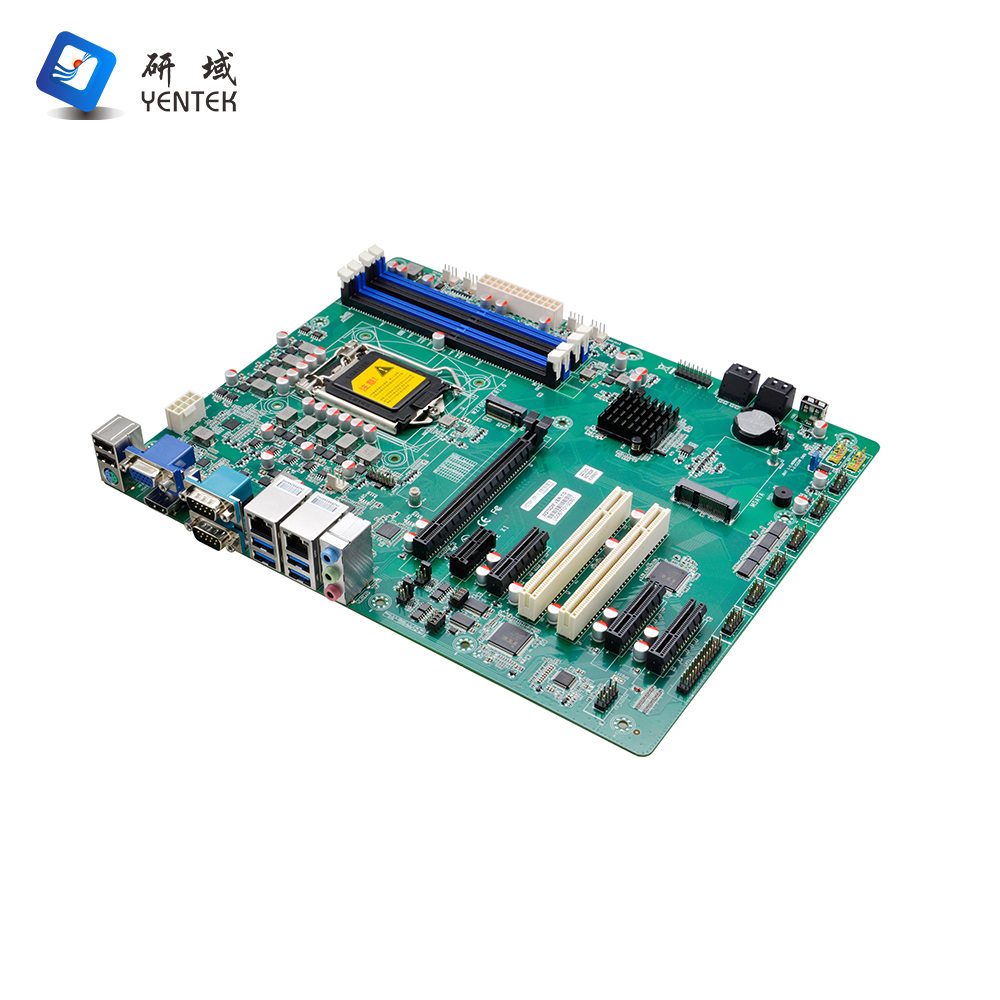

W671DM

Processor

Support LGA1700 12th/13th/14th   Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors

Chipset

Adopting Intel® Q670 chipset

Internal Memory

4* DDR4 DIMM memory slots, support dual-channel up to 3200MHz memory,   support up to 128GB

Display

Integrated Intel® HD Graphics core graphics card support   DirectX12.1,OpenGL4.5, support 4K display

1* VGA interface, support for the highest resolution of 1920X1200 @60Hz

2* HDMI1.4 interface, support for the highest resolution of 4096x2160   @24Hz

Network

2* Intel ® I210AT Gigabit LAN chip, support for Wake-on-LAN/PXN. Support   Wake-on-LAN/PXE function

Storage

8* SATA3.0 HDD interface, transfer speed up to 6Gbps, support RAID   0,1,5,10

1* M.2 slot, support for M.2 Key M 2280 NVME PCIE X4 SSD

Audio

Onboard ALC897 7.1+2-channel high-fidelity audio controller, support for   MIC/Line-out/Line-in

Expansion Slots

1* PCIE4.0 X16 slot

3* PCIE X4 slots, of which PCIE2/PCIE4 is 4.0, PCIE5   is 3.0

1* PCIE X1 slot

2* PCI slot

1* M.2 slot, support M.2 Key B 2242/2252 4G/5G   module

Backplane I/O Ports

1* PS/2 interface (expandable keyboard and mouse)

1* DB15 VGA interface

1* HDMI1.4 interface

2* DB9 RS232 serial port, support 9thpin with power function, support   RS485/422

2* USB2.0 interface

4* USB3.2 Gen 2x1 interface (10Gbps)

2* RJ-45 Gigabit network interface

1* Triple-layer audio interface, support Line-out,MICK,Line- in

Built-in I/O Ports

2* USB2.0 connector 2*5pin,

1* Vertical USB2.0 connector

1*TYPE-E USB3.0 connector

2* USB3.0 connector 2*10pin

1* Front panel audio connector (2*5pin)

2* Front panel function button and indicator connector (2*5pin)

1* 24pin ATX power socket 2* 8pin ATX Power Socket

1* PS/2 Keyboard and Mouse Interface 1*6pin

1* JVGA Interface 1*12pin,same signal as DB15

1* JHDMI Interface 2*8pin

1* TPM Interface 2*6pin

4* RS232 Serial Interface, 2*5pin

1* SIM Card Slot

1* LPT Interface 2*13pin

Fan Ports

1*4pin CPU Fan Interface; 4* 4pin system fan interface

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Operating System

Windows 10/Windows 11/Linux

Power Supply Type

Powered by ATX 24Pin and 8pin power supply

Operating Temperature

0℃~60℃

Storage Temperature

-20℃~70℃

Operating Humidity

5%-95% relative humidity, no condensation

Dimensions

305mm x 245mm
