W610DM

Processor

Support LGA1700 12th/13th/14th   Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors

Chipset

Adopts Intel® H610 chipset.

Memory

2* DDR4 DIMM memory slots, support dual-channel memory up to 3200MHz,   maximum support for 128GB

Display

Integrated Intel® HD Graphics core graphics card support DirectX12.1,   OpenGL4.5, support for 4K display

1* VGA interface, support for the highest resolution of 1920X1200@60Hz

2* HDMI1.4 interface, support for the highest resolution of 4096x2160   @24Hz

Network

2* Intel ® I210AT Gigabit NIC chip, support for Wake-on-LAN / PXE   function

Storage

4* SATA3.0 hard drive interface, transfer speed up to 6Gbps

1* M.2 slot, support M.2 Key M 2280 NVME PCIE X1 SSD

Audio

ALC897 7.1+2-channel hi-fi audio controller on board, support   MIC/Line-out/Line-in

Expansion Slots

1* PCIE5.0 X16 slot

1* PCIE3.0 X4 slot

5* PCI slot

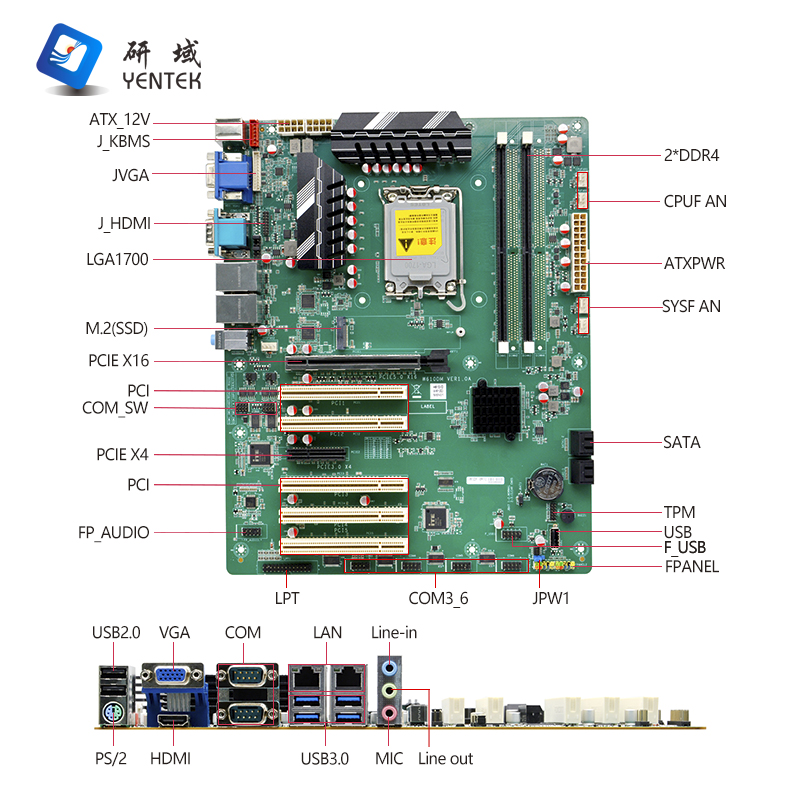

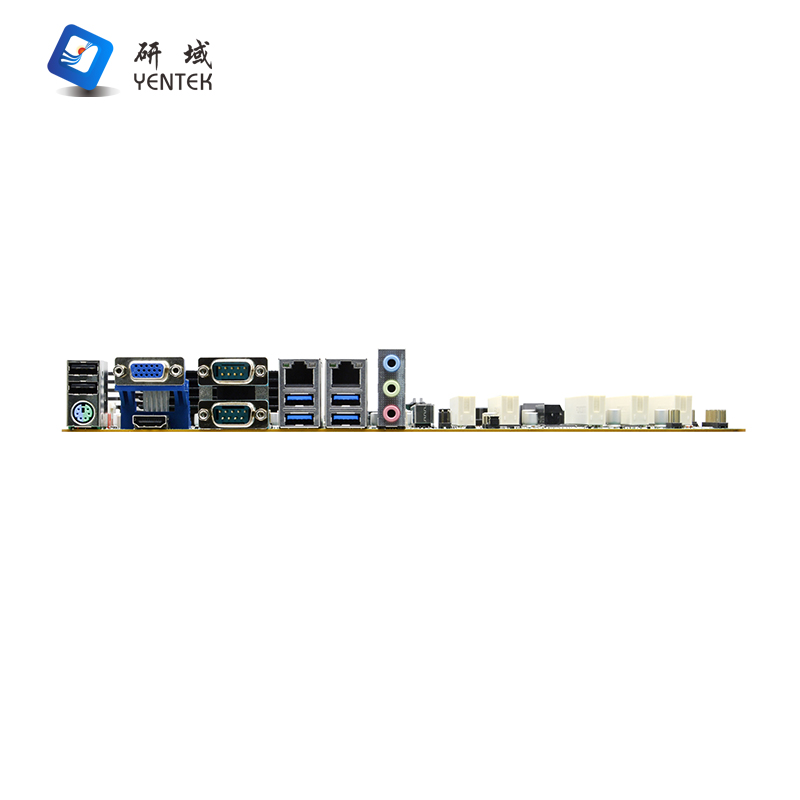

Backplane I/O Ports

1* PS/2 interface (expandable keyboard and mouse)

1* DB15 VGA port

1* HDMI1.4 connector

2* DB9 RS232 serial port, support the 9th pin with power function,   support RS485/422

2* USB2.0 interface

4* USB3.0 interface (5Gbps), support for single-port 2A current

2* RJ-45 Gigabit network interface

1* Triple audio interface, support Line-out, MICK, Line-in

Built-in I/O Ports

2* USB2.0 interface 2*5pin, 2*5pins, 1*Vertical USB2.0 interface, support   Line-out, MICK, Line-in

1* Vertical USB2.0 interface

1* Front Panel Audio Interface (2*5pin)

2* Front Panel Function Button and Indicator Connector (2*5pin)

1* 24pin ATX power socket 2* 8pin ATX power socket

1* PS/2 keyboard and mouse connector 1*6pin

1* JVGA connector 1*12pin, same signal with DB15

1* JHDMI connector 2*8pin

1* TPM connector 2*6pin

4* RS232 serial port, 2*5pin

1* LPT connector 2*13pin

Fan Ports

1*4pin CPU fan connector; 4*4pin system fan connector

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Operating System

Windows 10/Windows 11/Linux

Power Supply Type

Powered by ATX 24Pin and 8pin power supply

Operating Temperature

-20℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

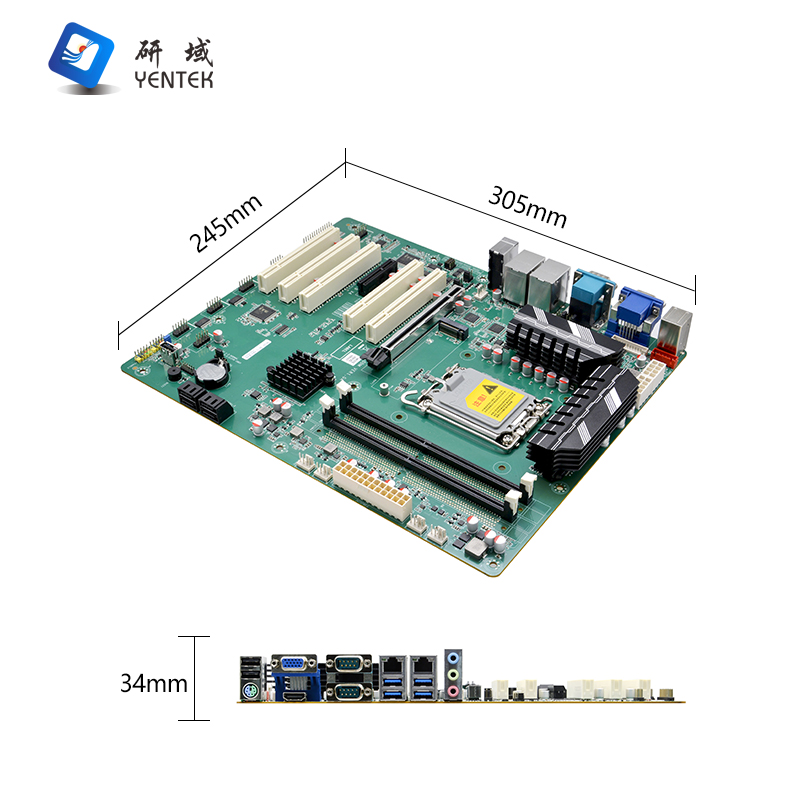

Dimension

305mm x 245mm
