| Model number | P6750F-D2 V1.0(1235U) | |
| Chassis | Material/Structure | Aluminium alloy + sheet metal, fan cooling |
| Colour | Iron grey + sand grain grey | |

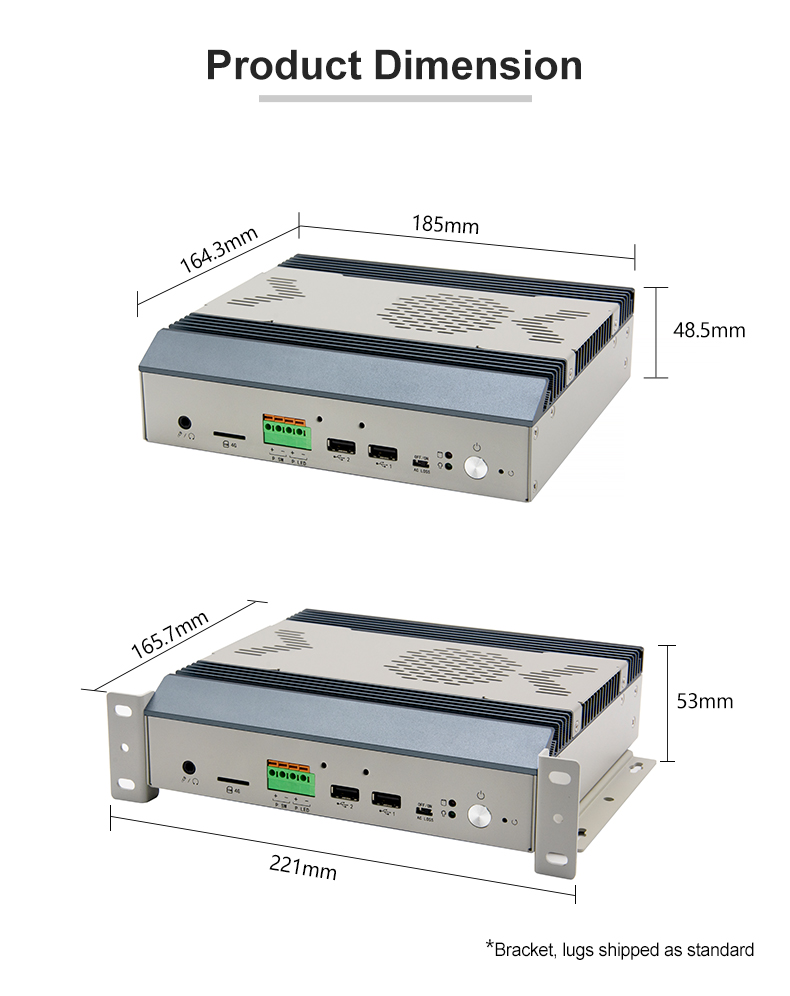

| Dimensions (length, width and height) | 185*164.3*48.5MM | |
| Weight (bare weight) | 1.5KG | |
| Install | Desktop/Wall Mount/DIN Rail | |

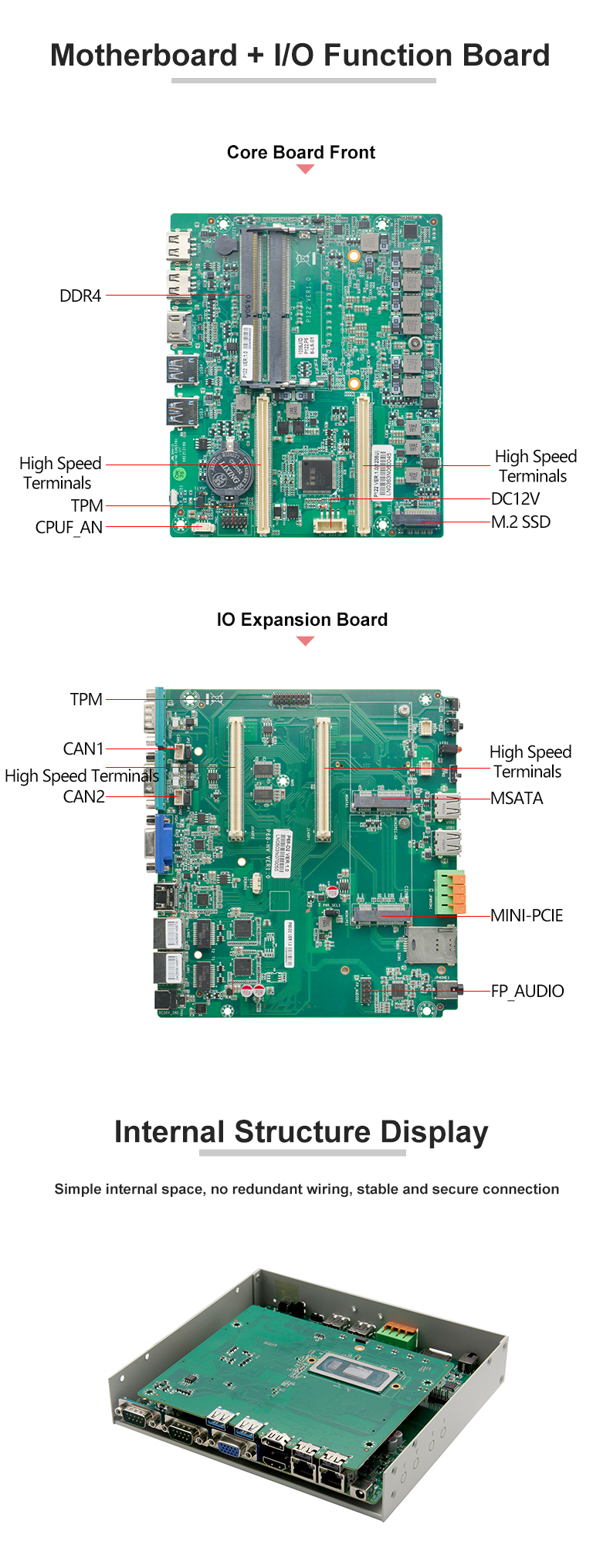

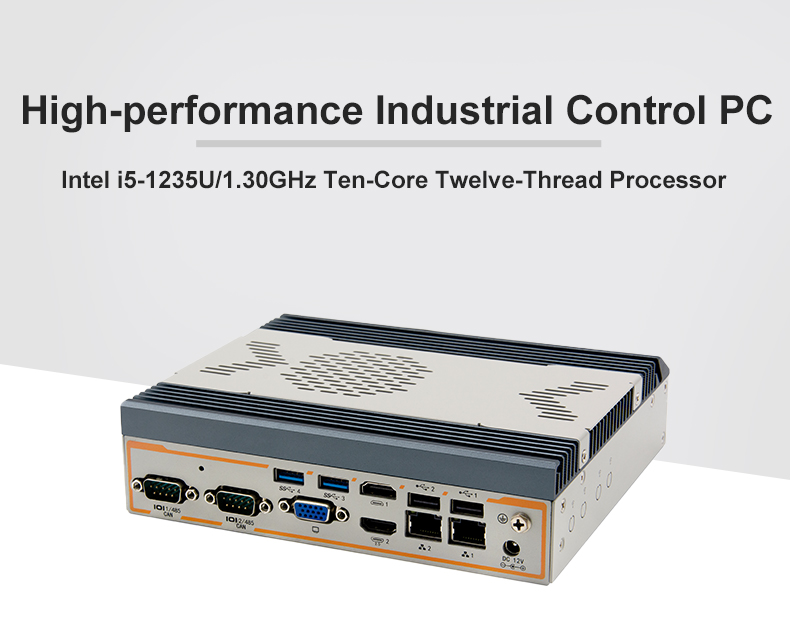

| Main board | CPU | Intel® i5-1235U/1.30GHz, Turbo 4.4GHz, 10-core, 12-thread processor, TDP 15W |
| Display | Intel Iris Xe Graphics eligible | |
| RAM | 2*SODIMM DDR4 3200MHz, support up to 64GB | |

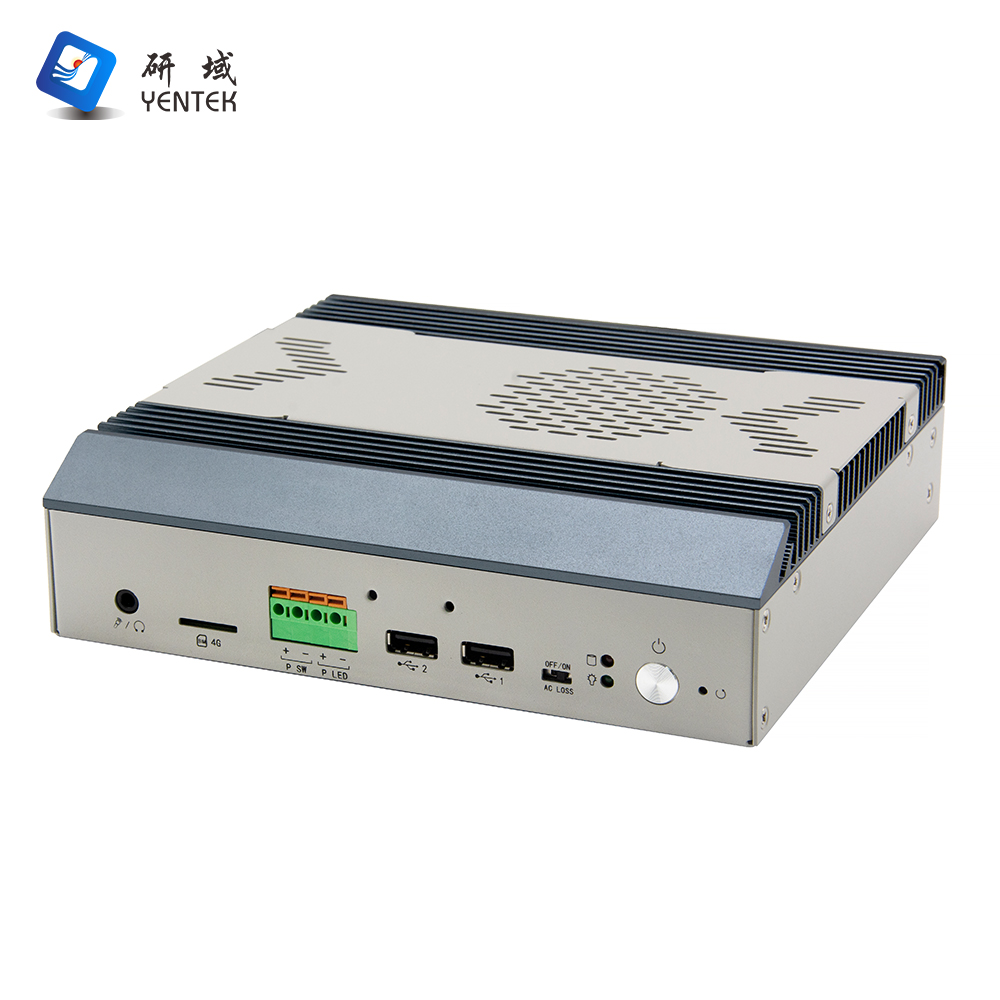

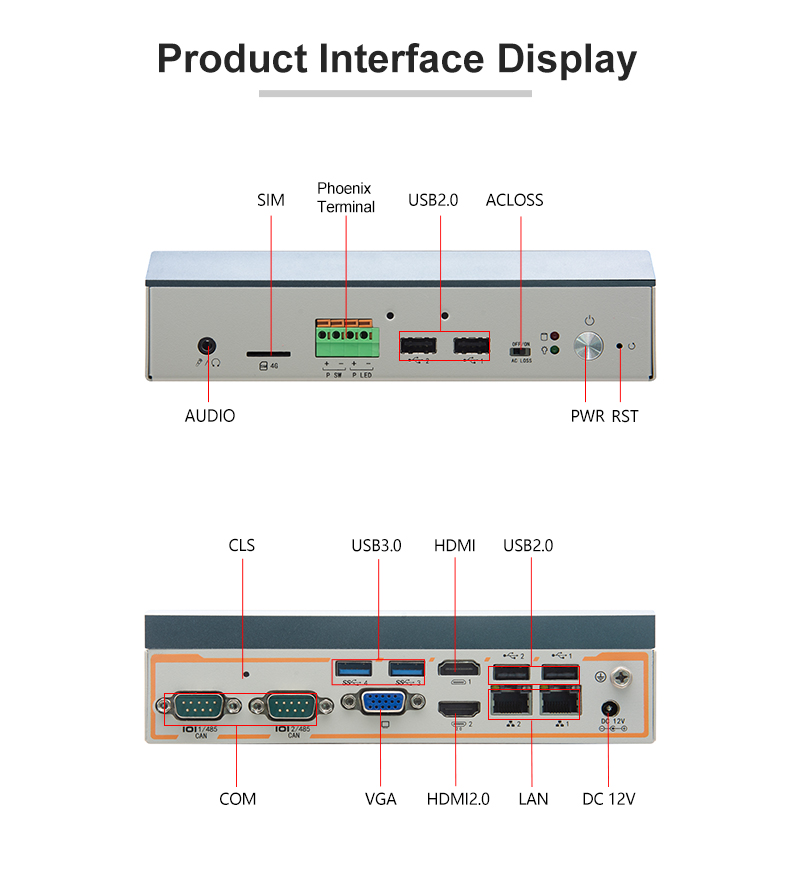

| Front panel interface | Switch | 1*Boot Button, 1*One-Key Restore, 1*ACLOSS (Power-On DIP Switch) |
| LED | 1*Hard Drive Indicator Light, 1*Hard Drive Indicator Light | |
| USB | 2*USB2.0 | |
| Audio | 1*Audio, Line out&Mic 2-in-1 | |
| Phoenix Terminal | 1*4P (1*power on signal/1*power indicator signal) | |
| SIM | 1*SIM standard card slot | |

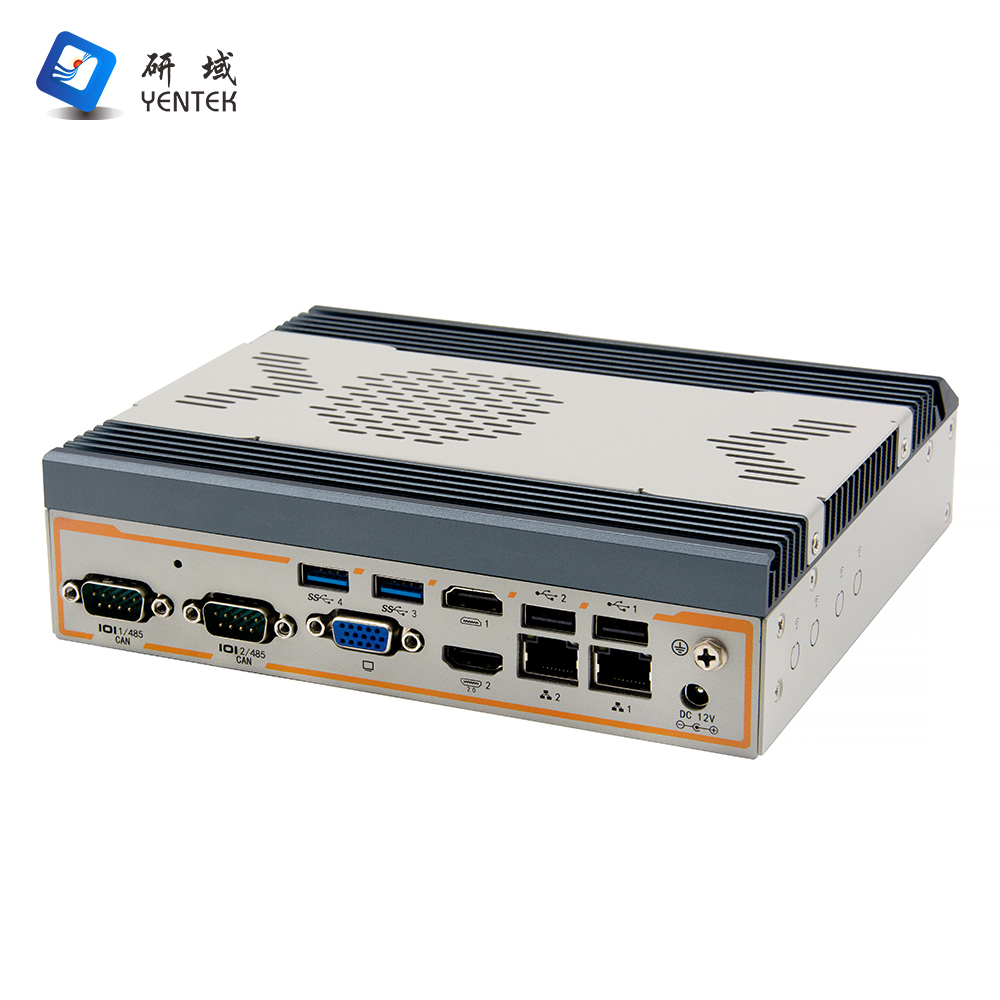

| Rear panel interface | Display port | 1*HDMI2.0(4096*2304@60Hz),1*HDMI1.4(4096*2304@60Hz),1*VGA,Support triple display |
| Switch | 1*CMOS Restore Key | |

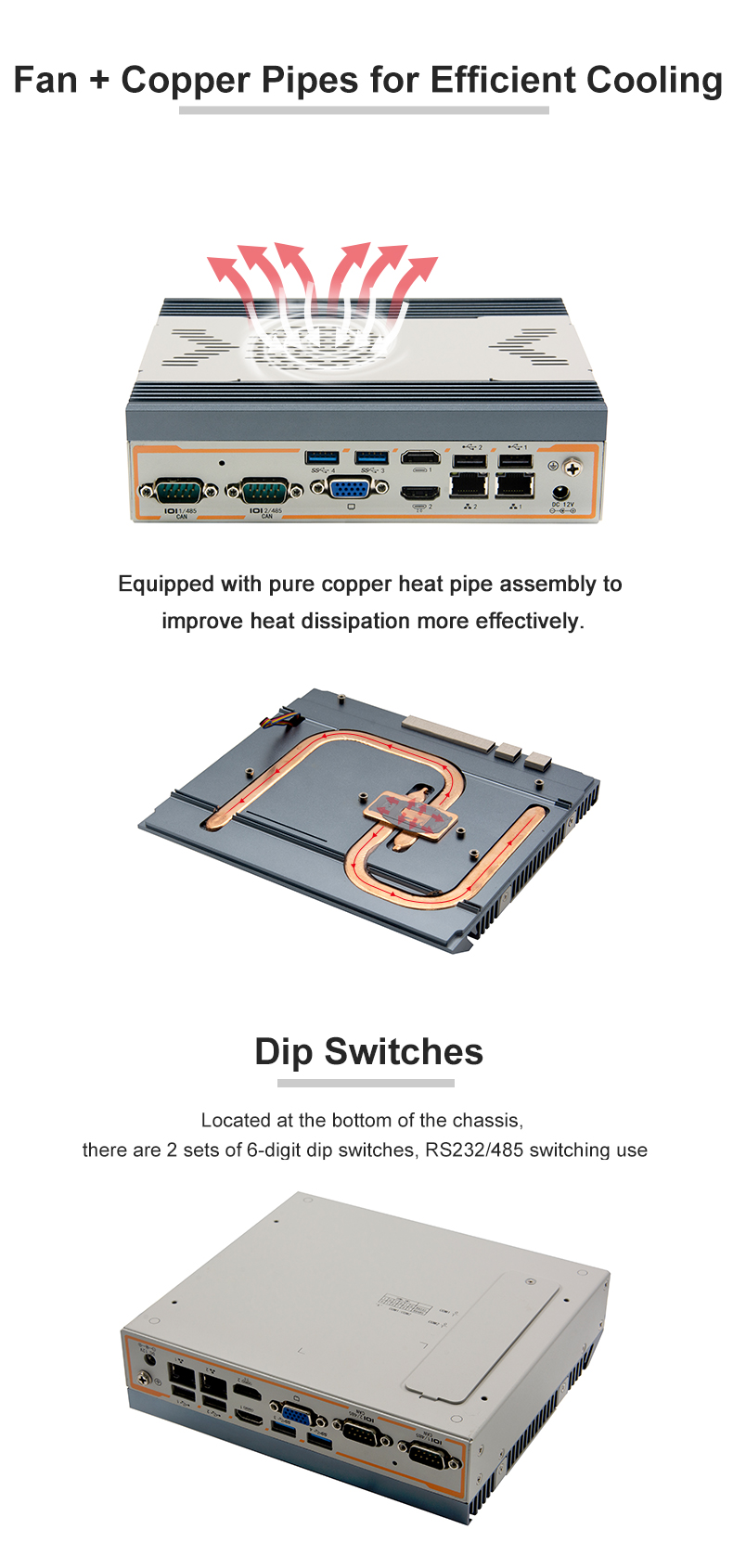

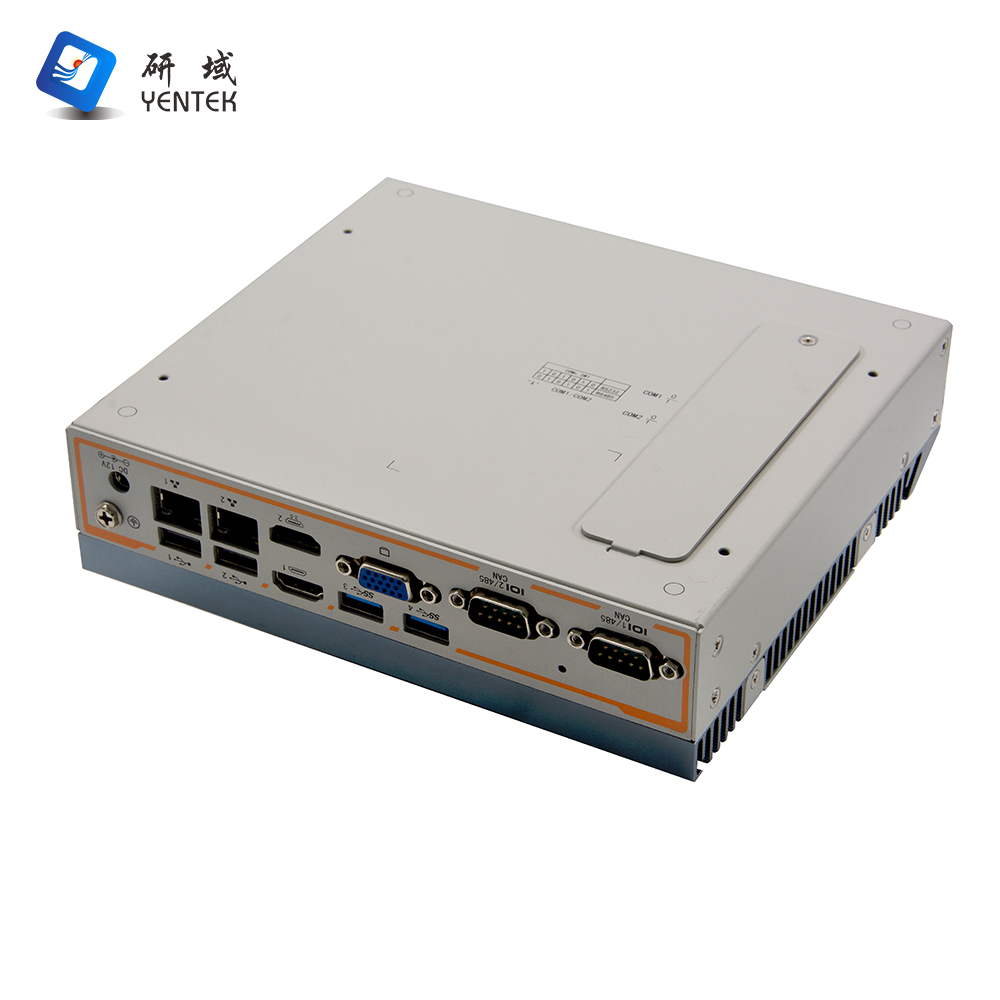

| DIP switches | 2 sets of 6-position dip switches, RS232/485 switching use (located in the bottom of the chassis) | |
| COM | 2*RS232/485 DB9 serial ports, CAN support (need to load MINIPCIE CAN module) | |
| LAN | 2*Intel I210AT Gigabit power port | |
| USB | 2*USB3.0, 2*USB2.0 | |

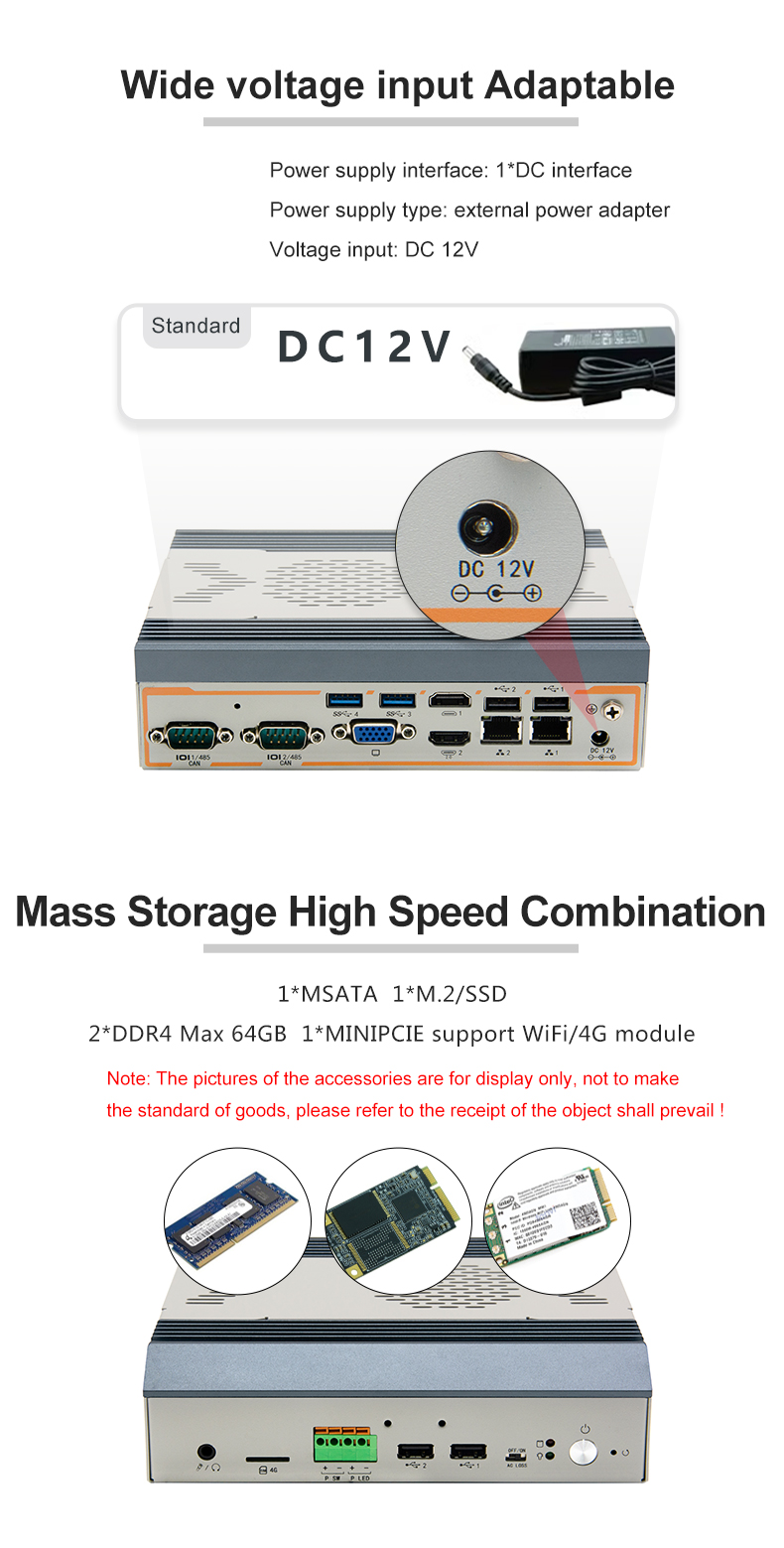

| Power connector | 1*DC 12V (5.5*2.5) | |
| Store | MSATA | 1*MSATA |
| M.2 | 1*M.2/SSD，support Key-M，2280，NVME PCIE x4 SSD | |
| Extend | MINIPCIE | 1*MINIPCIE，support WiFi/4G module |
| Power supply type input | Power supply type | External power adapter |
| Voltage input | DC 12V | |
| Power output | AC TO DC 60W above（ Depends on specific equipment ） | |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | CPU | Motherboard | Memory | IO Board | LAN | COM | CAN | HDMI | VGA | USB2.0 | USB3.0 | Power |
| 1 | P6750F-D2 V1.0(7567U) | I7-7567U/3.5G | P68 | 2*SODDR4 | P68-D2 | 2*I210 | 2 | 2 | 2 | 1 | 4 | 2 | DV 12V |
| 2 | P6750F-D2 V1.0(1135G7) | I5-1135G7/2.4G | P112 | 2*SODDR4 | P68-D2 | 2*I210 | 2 | 2 | 2 | 1 | 4 | 2 | DV 12V |
| 3 | P6750F-D2 V1.0(1235U) | I5-1235U/1.3G | P122 | 2*SODDR4 | P68-D2 | 2*I210 | 2 | 2 | 2 | 1 | 4 | 2 | DV 12V |
