| Model number | P3250E-V V1.0(8265U) | |

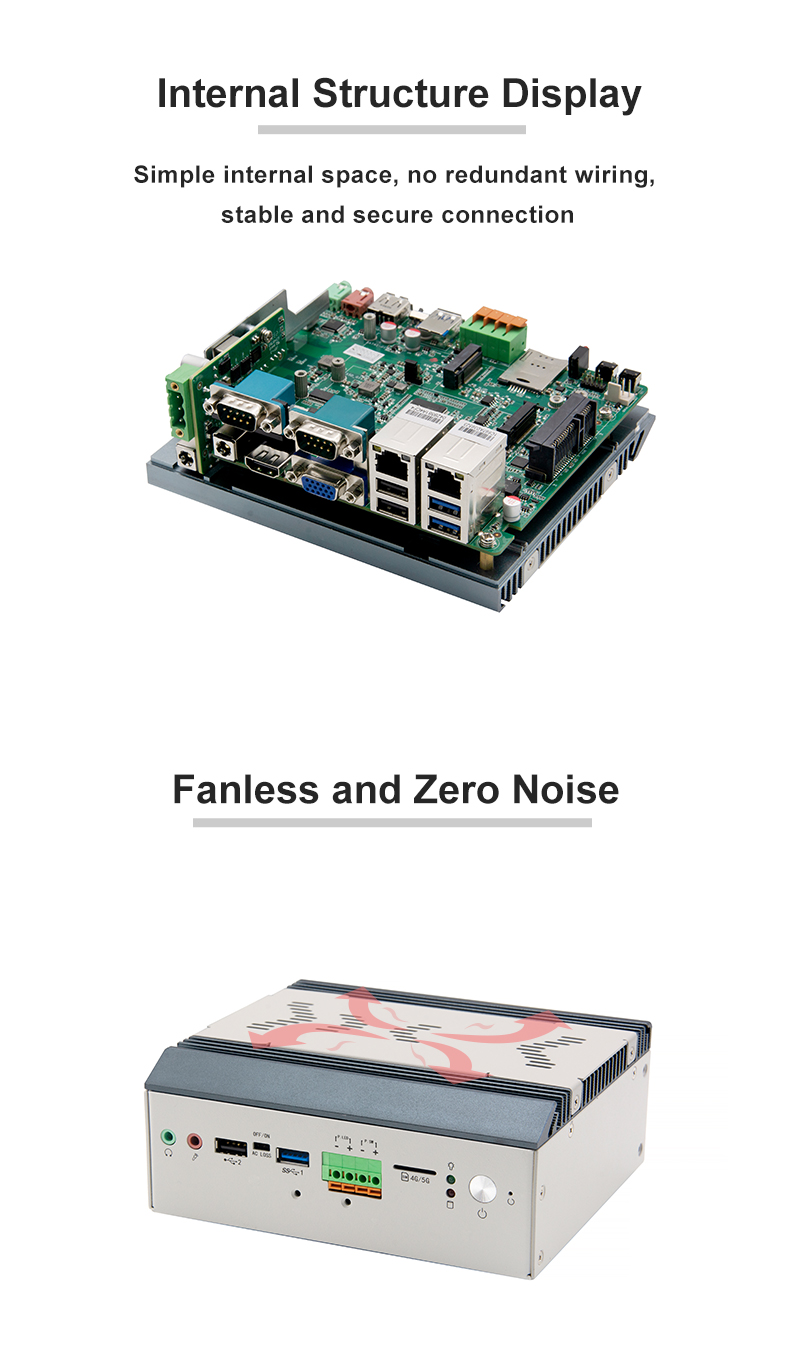

| Chassis | Material/Structure | Aluminium alloy + sheet metal material, fanless cooling |
| Colour | Iron grey + sand grain grey | |

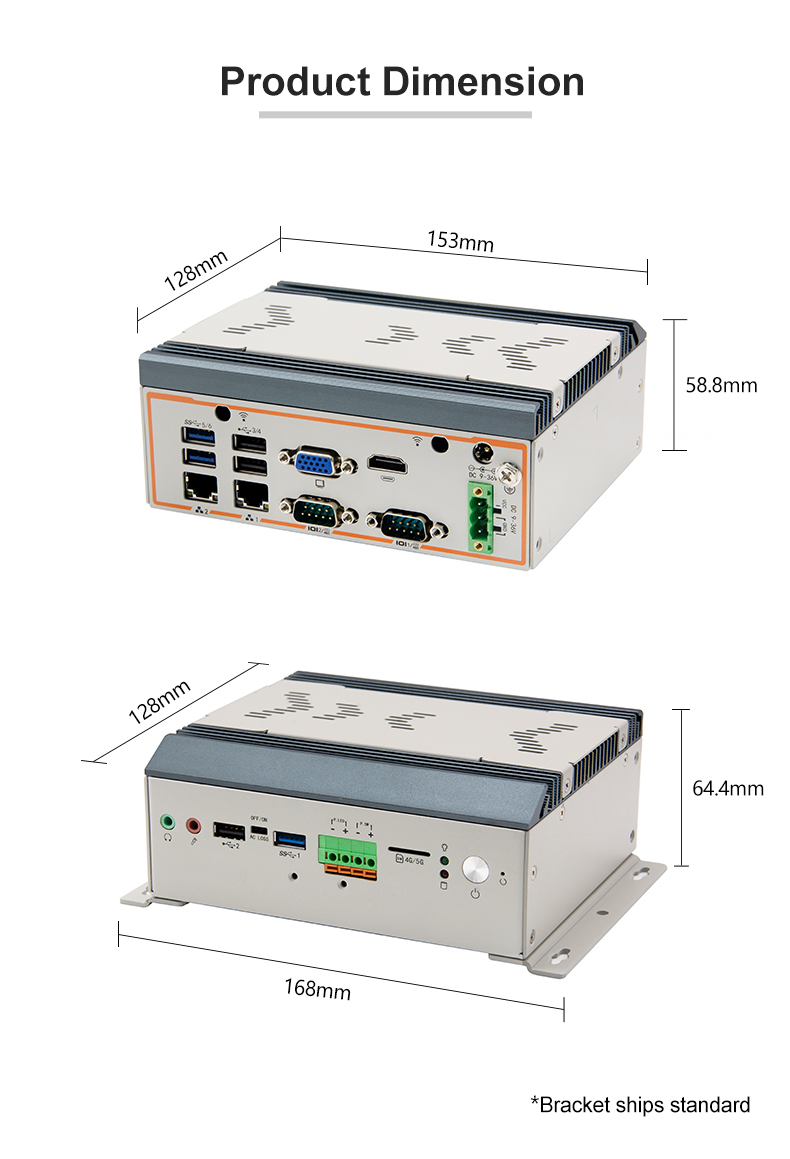

| Dimensions (length, width and height) | 153*128*58.8MM | |
| Weight (bare weight) | 1.1KG | |
| Install | Desktop/DIN Rail/Wall Mounted | |
| Main board | CPU | Integrated Intel® i5-8265U/1.60GHz Quad-Core 8-Thread Processor, TDP 15W |
| Display | Integrated Intel® UHD Graphics | |
| Memory | Integrated 8G LPDDR3 2133MHz Memory | |

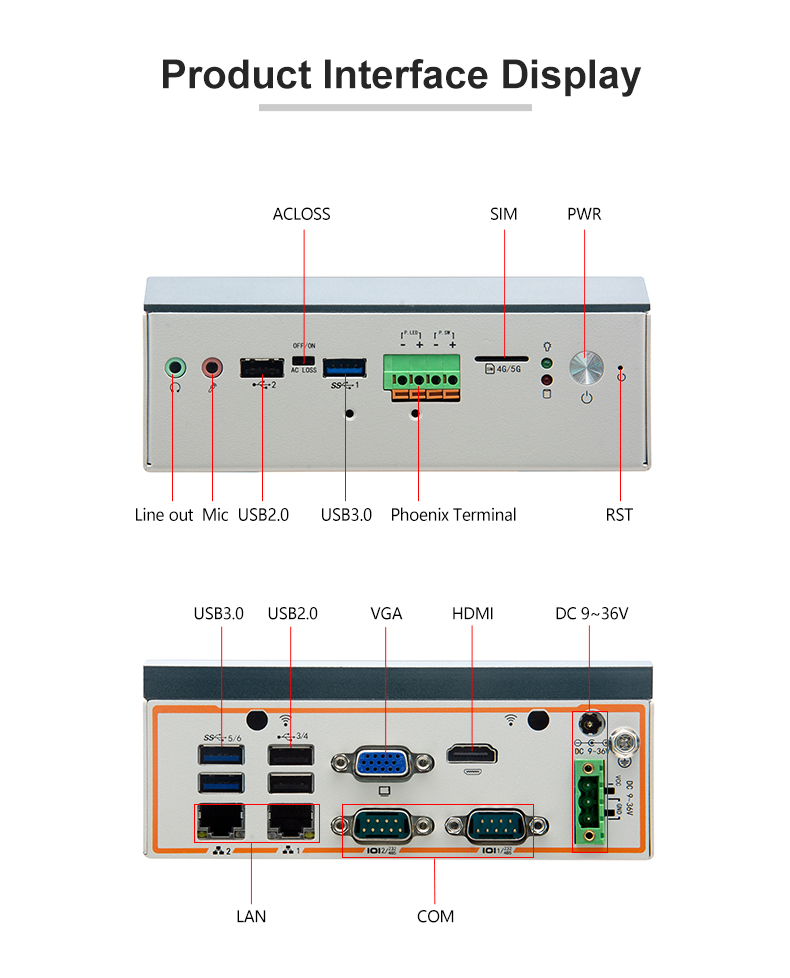

| Front panel interface | Switch | 1*Boot button, 1*One-Key Restore, 1*ACLOSS (power on/off toggle switch) |
| LED | 1*Power Indicator, 1*Hard Drive Indicator | |
| USB | 1*USB2.0, 1*USB3.0 | |
| Audio | 1*Line out, 1*Mic | |
| Phoenix Terminal | 1*4P(1*power on signal/1*power indicator signal) | |
| SIM | 1*SIM standard card slot | |

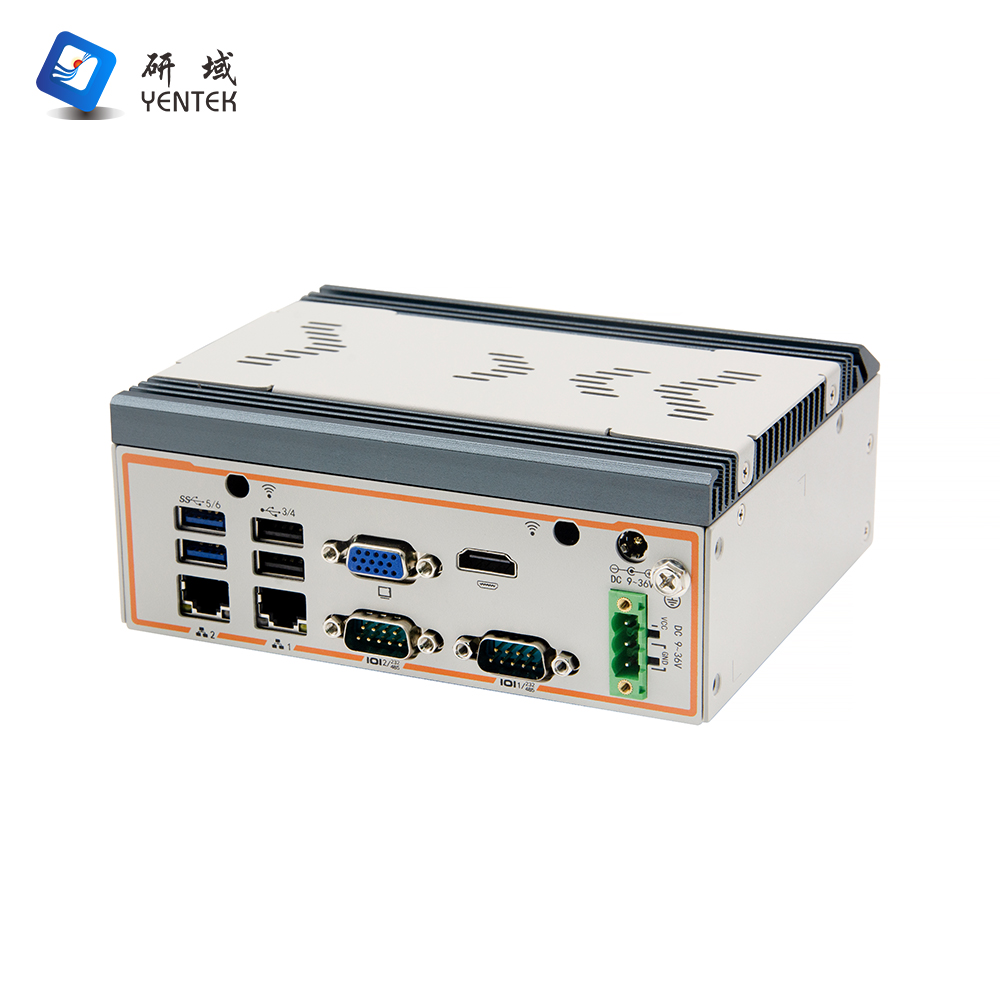

| Rear panel interface | Display Interface | 1*VGA, 1*HDMI1.4 |
| COM | 2*RS232/485 DB9 serial port | |
| LAN | 1*Intel I219V, 1*Intel I226V | |
| USB | 2*USB3.0, 2*USB2.0 | |

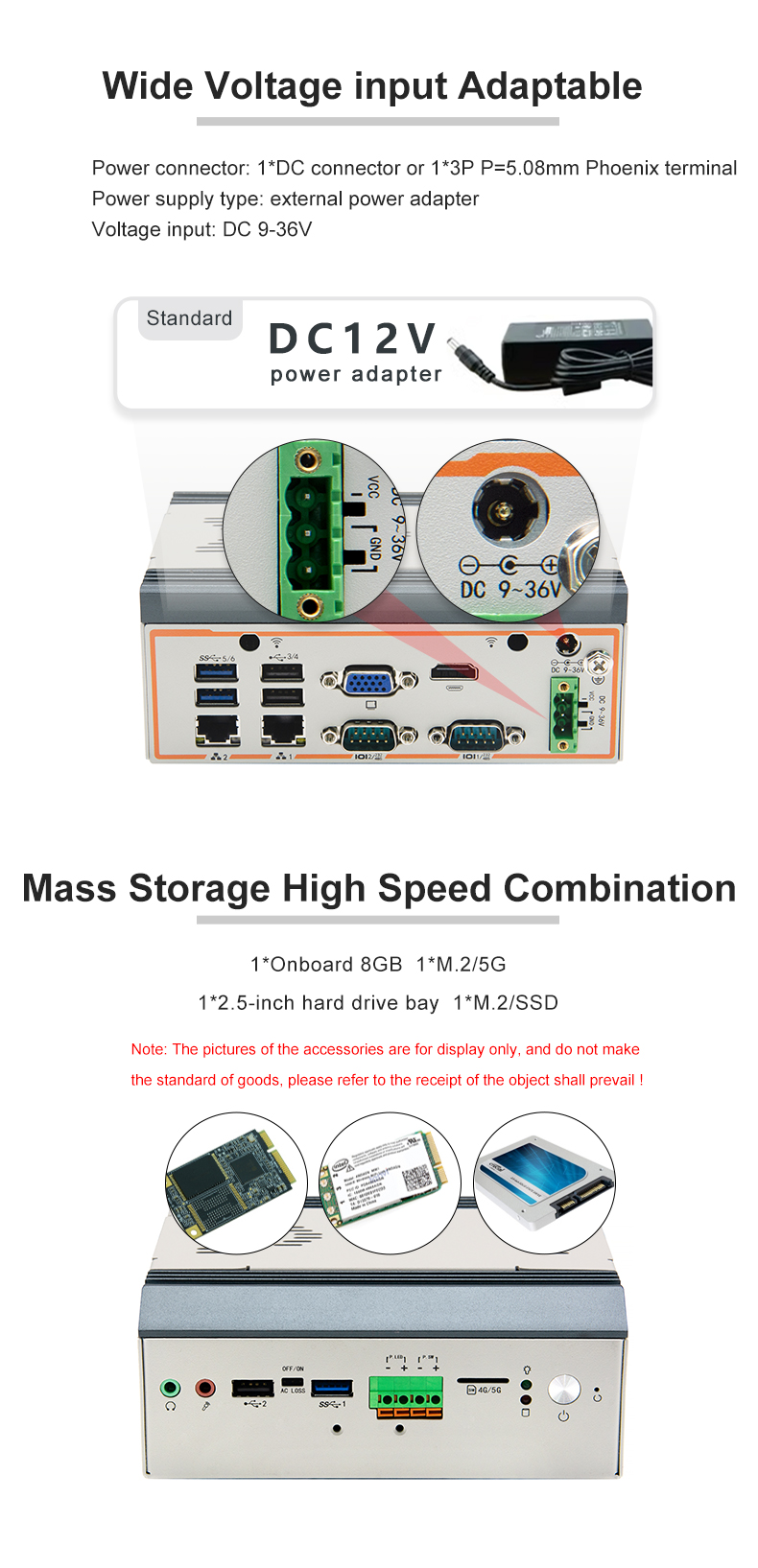

| Power connector | 1*DC(5.5*2.5) or 1*3P P=5.08mm Phoenix terminal, support DC 9~36V wide voltage | |
| Store | SATA | 1*2.5 inch HDD bay |
| MSATA | 1*MSATA | |
| M.2 | 1*M.2/SSD, support Key-M, 2280, NVME PCIE x4 SSD | |
| Extend | Wireless Network Card | Integrated Intel 9560 WiFi (WiFi model based on NUC module) |
| M.2 | 1*M.2/5G, Key-B support, 2242/2252, 5G module | |
| System support | Microsoft Windows | Windows 10 |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function (256 levels, 0~255 seconds) | |
| Power supply type input | Power supply type | External power adapter |
| Voltage input | DC 9-36V | |
| Power output | AC TO DC 36W or above | |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Memory | IO Board | WIFI | LAN | COM | HDMI | VGA | USB2.0 | USB3.0 | Power |
| 1 | P3250E-V V1.0(8265U) | I5-8265U/1.6G | 8G | NFE32-V/P1021-PW | 9560 | 1*I219V 1*I226V | 2 | 1 | 1 | 3 | 3 | 9-36V |
| 2 | P3250E-V V1.0(1135G7) | I5-1135G7/2.4G | 8G | NFE32-V/P1021-PW | AX201 | 1*I219V 1*I226V | 2 | 1 | 1 | 3 | 3 | 9-36V |
