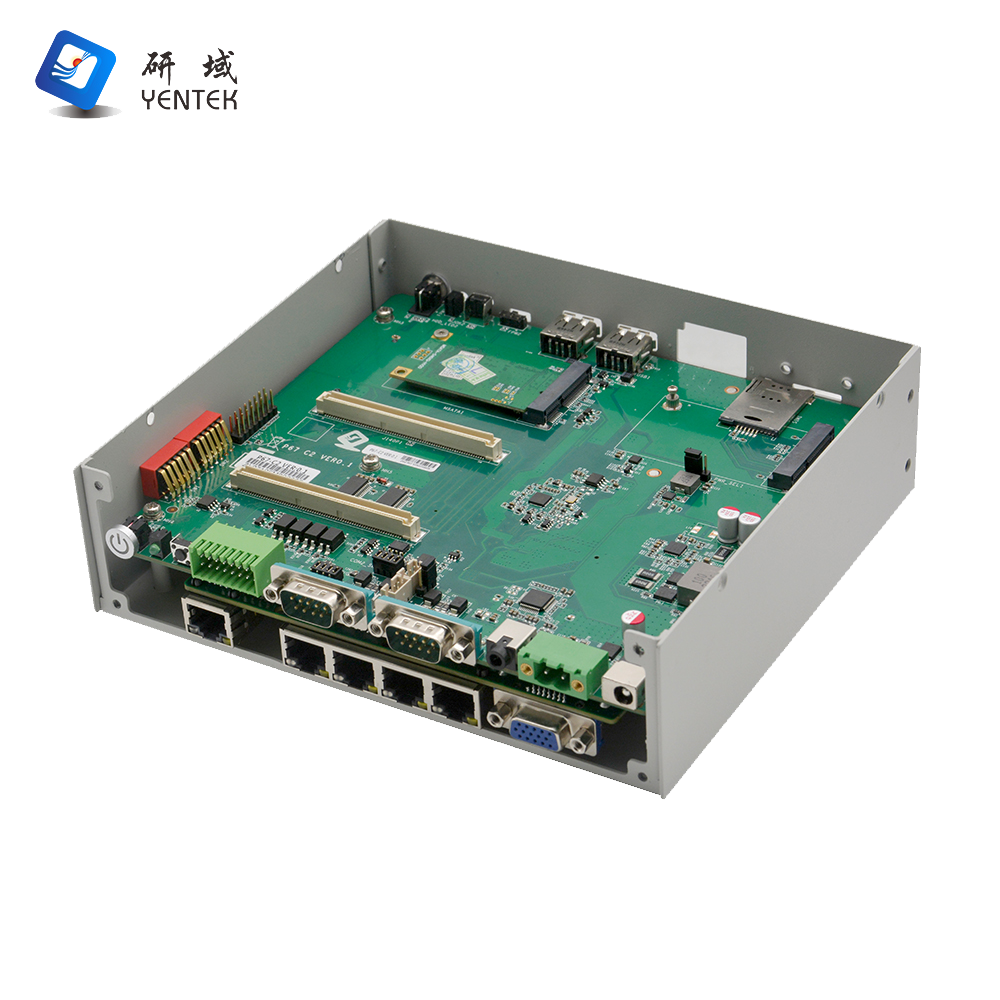

| Model number | P6760F-P4 V1.0(7300U) | |
| Chassis | Material/Structure | Aluminum alloy + sheet metal material, fan heat dissipation |
| Colour | Iron gray + sand gray | |
| Dimensions (length, width and height) | 185 * 164 * 65.6 MM | |
| Weight (bare weight) | 1.80 KG | |
| Install | Desktop /DIN rail/rack type | |
| Main board | CPU | Intel®i5-7300U/2.60GHz dual-core quad-thread processor, TDP 15W |
| Reveal | Intel®UHD Graphics 620 | |
| Internal memory | 2*SODIMM slots for supporting DDR4 2133 MHZ and a maximum of 32GB | |
| Front panel interface | Switch | 1* Power key with indicator light, 1* one key restore (and reset key to choose one) key, 1*ACLOSS (power on DIP switch) |
| LED | 1* hard disk indicator | |
| USB | 2 * USB2.0 | |
| SIM | 1*SIM standard card slot | |
| Rear panel interface | Switch | 1*CMOS restore key, 1* one-key restore (choose one of the two reset keys) |
| LED | 1* hard disk indicator | |
| Display interface | 1*VGA(1920*1200@60Hz), 1*HD OUTPUT1.4(4096*2304@24Hz) | |
| COM | 2*RS232/485 DB9 serial port; COM2 supports RS422, COM1~2 supports CAN(need to load CAN module) | |
| LAN | 5*Intel I210AT Gigabit ports, four of which support POE/15W | |
| USB | 2 * USB3.0, 2 x USB2.0 | |
| Phoenix terminal | 2*8 pin (4 in 4 out GPIO isolation, VCC/GND/HDDLED/PWRLED/PWRS) | |
| Audio frequency | 1*Audio, Line out&Mic 2-in-1 | |
| Dip switch | Two sets of 6-bit dip switches, COM1 to 2 RS232/485 switch, COM2 RS485/422 through the COM2-SW1+ DIP switch combination | |
| Power interface | 1 * DC connector or 1 * 2P P=5.08mm Phoenix terminal, support DC 9 to 36V wide voltage power input | |
| Store | SATA | 1 x 2.5-inch hard disk |
| MSATA | 1*MSATA | |
| M.2 | 1*M.2/SSD, supports Key-M, 2280, NVME PCIE x4 SSDS | |
| Extend | MINIPCIE | 1*MINIPCIE/4G, support 4G module |
| System support | Microsoft | Windows 10 |
| Linux | Linux | |
| Power supply type input | Power supply type | External power adapter |
| Voltage input | DC 9-36V wide voltage | |
| Power output | Above AC TO DC 90W | |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | CPU | Motherboard | Memory | IO Board | GPIO | LAN | COM | HD OUTPUT | VGA | USB2.0 | USB3.0 | Power |
| 1 | P6760F-P4 V1.0(7567U) | I7-7567U/3.5G | P67 | 2*SODDR4 | P67-C2/P67-POE | 4 in 4 out | 5 | 2 | 1 | 1 | 4 | 2 | 9-36V |
| 2 | P6760F-P4 V1.0(7300U) | I5-7300U/2.6G | P67 | 2*SODDR4 | P67-C2/P67-POE | 4 in 4 out | 5 | 2 | 1 | 1 | 4 | 2 | 9-36V |
| 3 | P6760F-P4 V1.0(J6412) | J6412/2.0G | P641 | 2*SODDR4 | P67-C2/P67-POE | 4 in 4 out | 5 | 2 | 1 | 1 | 4 | 2 | 9-36V |
| 4 | P6760F-P4 V1.0(8260U) | I5-8260U/1.6G | P81 | 2*SODDR4 | P67-C2/P67-POE | 4 in 4 out | 5 | 2 | 1 | 1 | 4 | 2 | 9-36V |
| 5 | P6760F-P4 V1.0(1135G7) | I5-1135G7/2.4G | P110 | 2*SODDR4 | P67-C2/P67-POE | 4 in 4 out | 5 | 2 | 1 | 1 | 4 | 2 | 9-36V |
