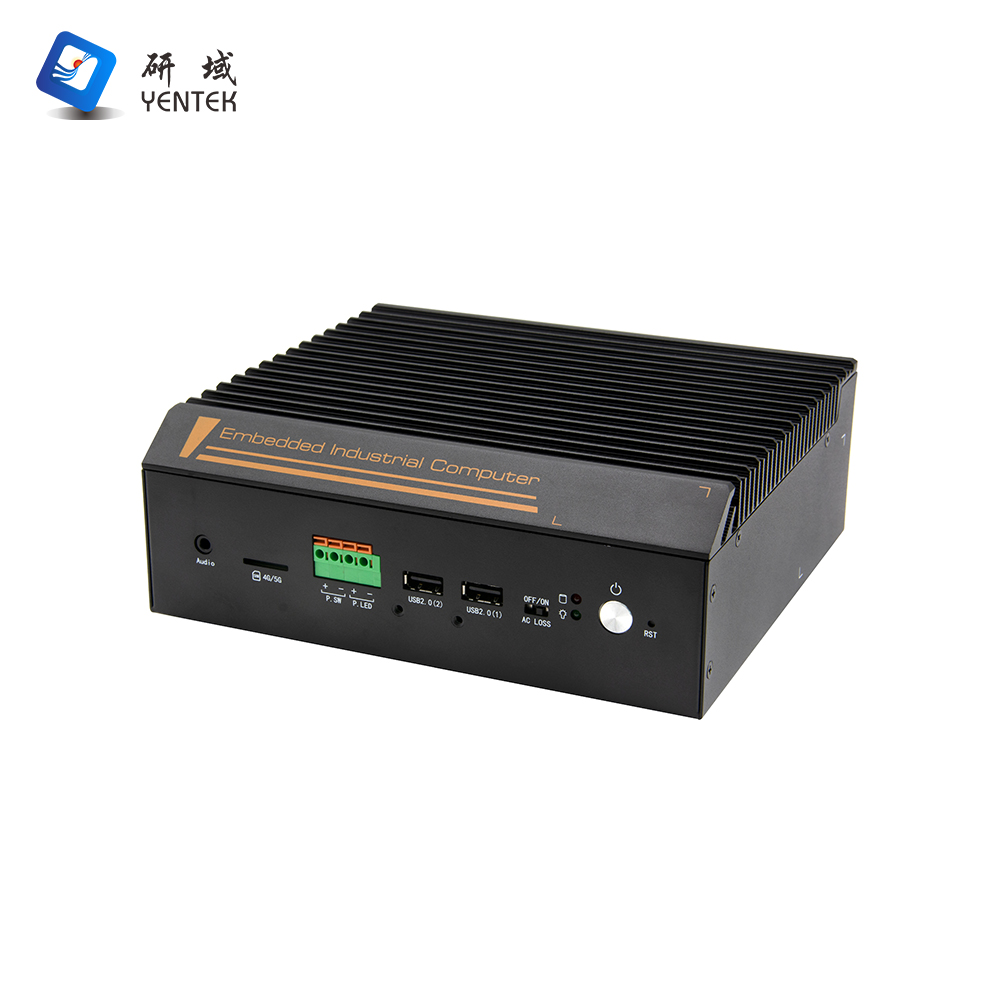

P6760S-C6

Chassis

Material/structure

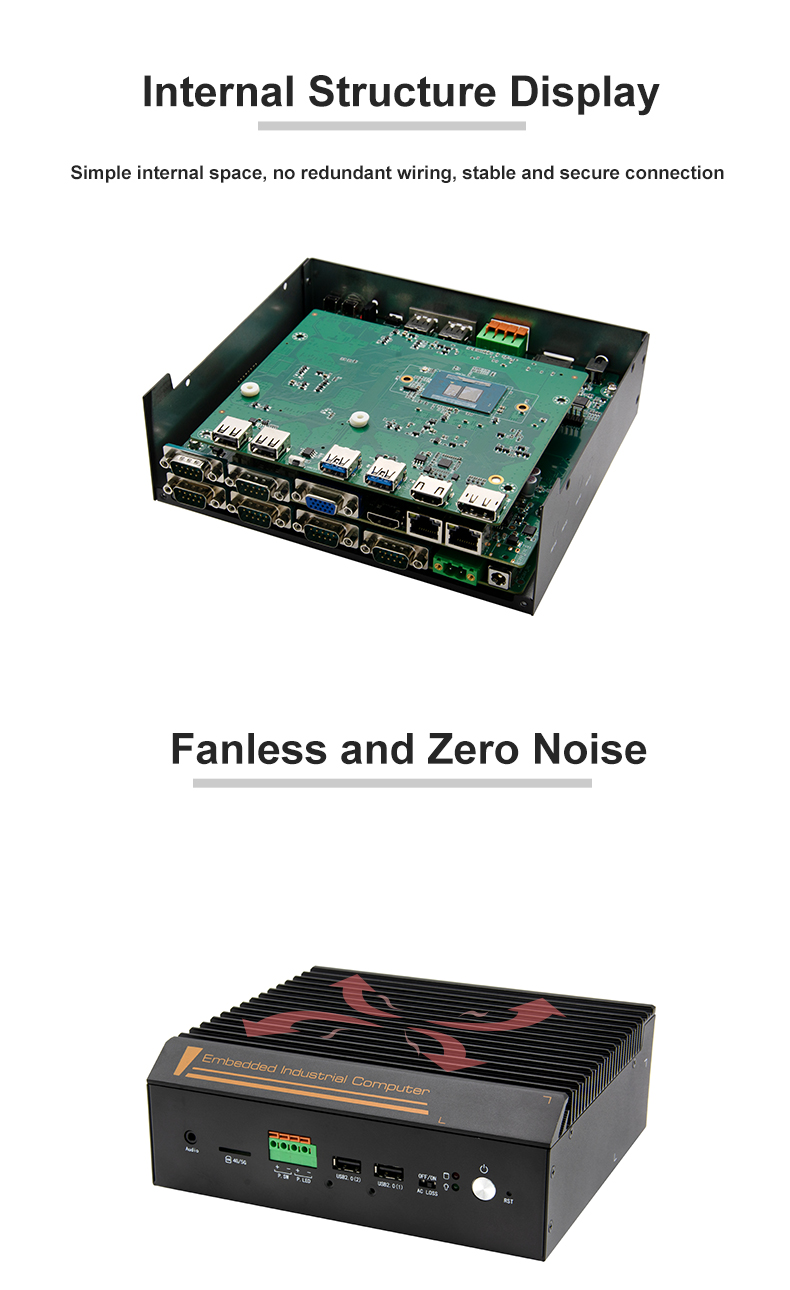

Aluminium   alloy + sheet metal, fanless cooling

Colour

Black

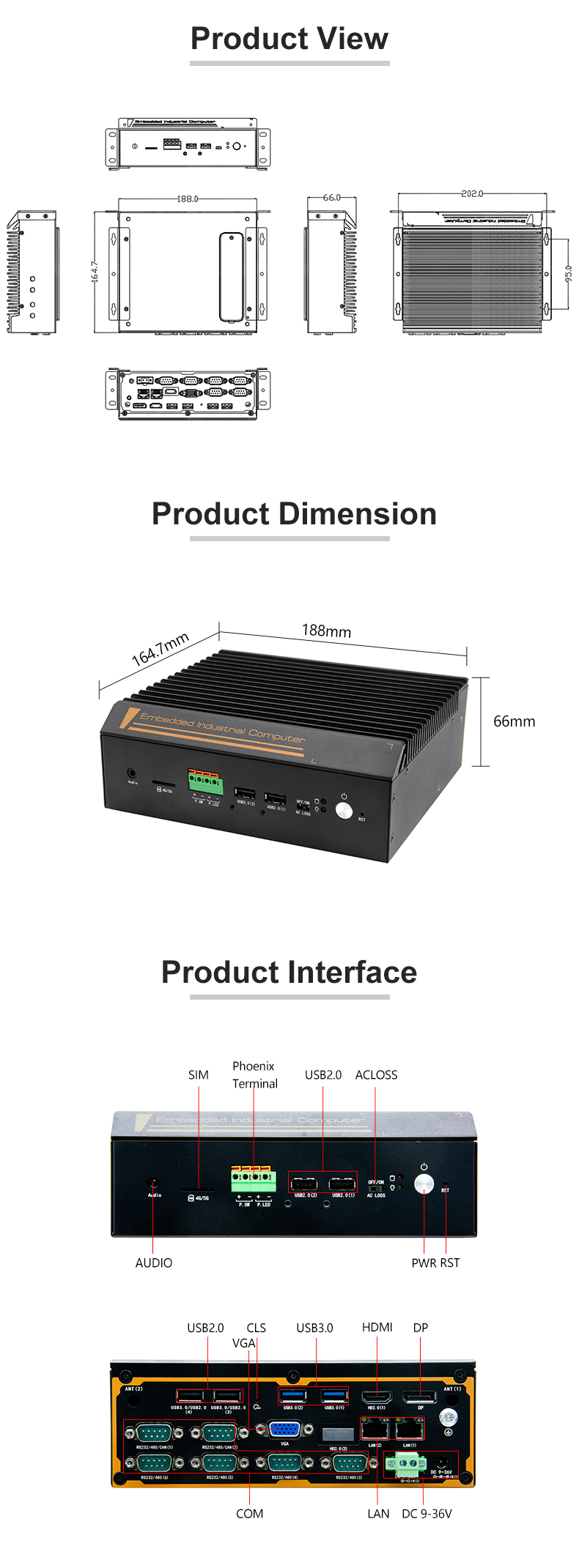

Size   (LWH)

188*164.7*66MM

Weight   (bare net)

1.6KG

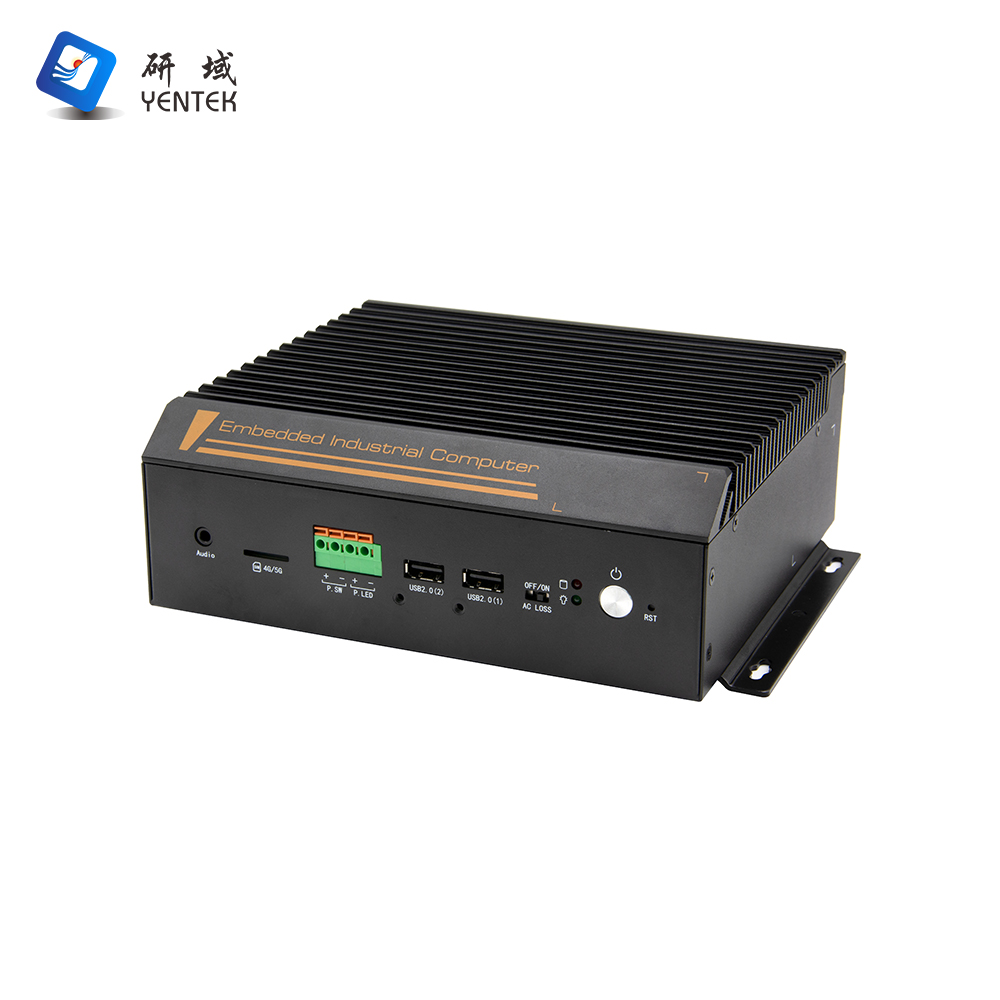

Installation

Desktop/Wall   Mount/DIN Rail(35mm)

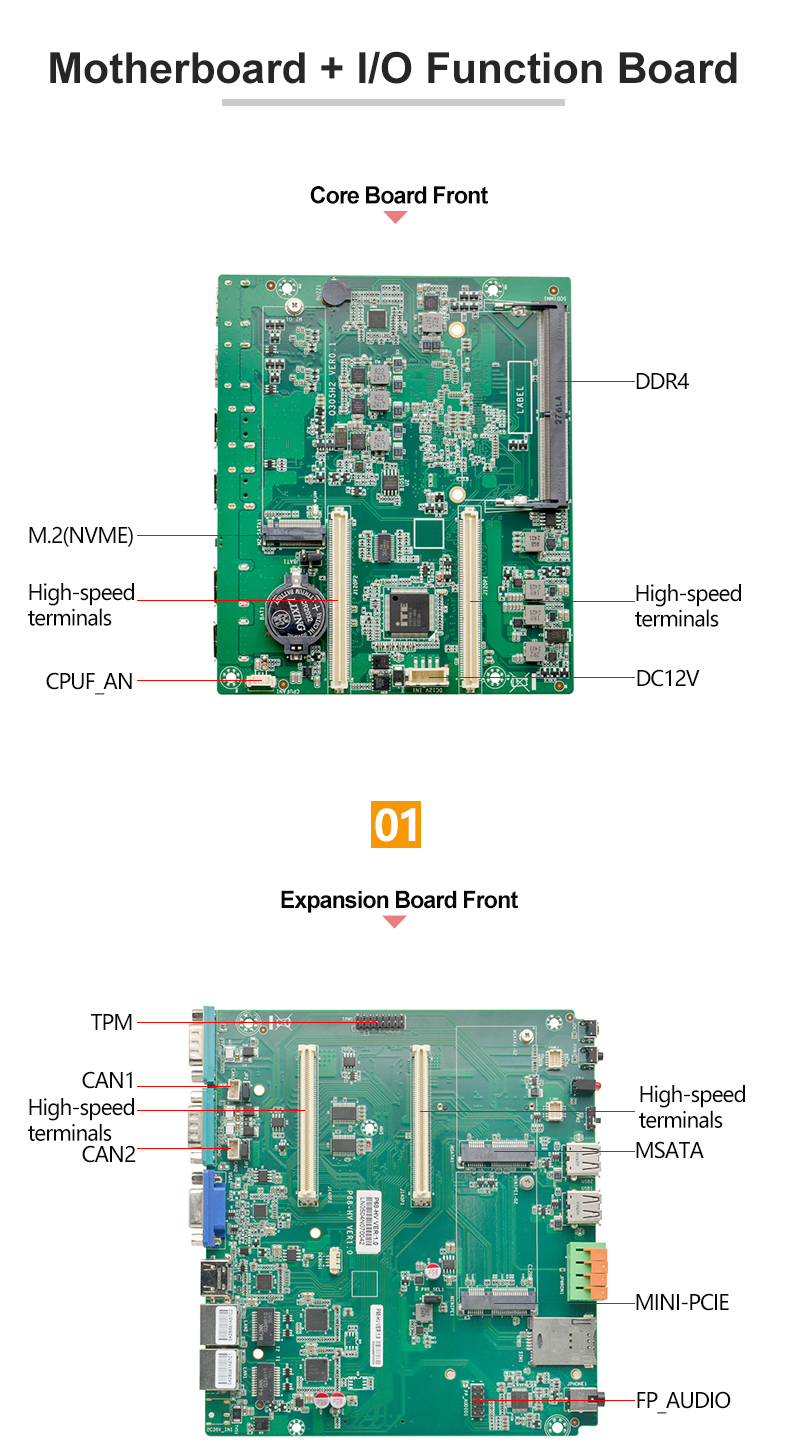

Motherboard

CPU

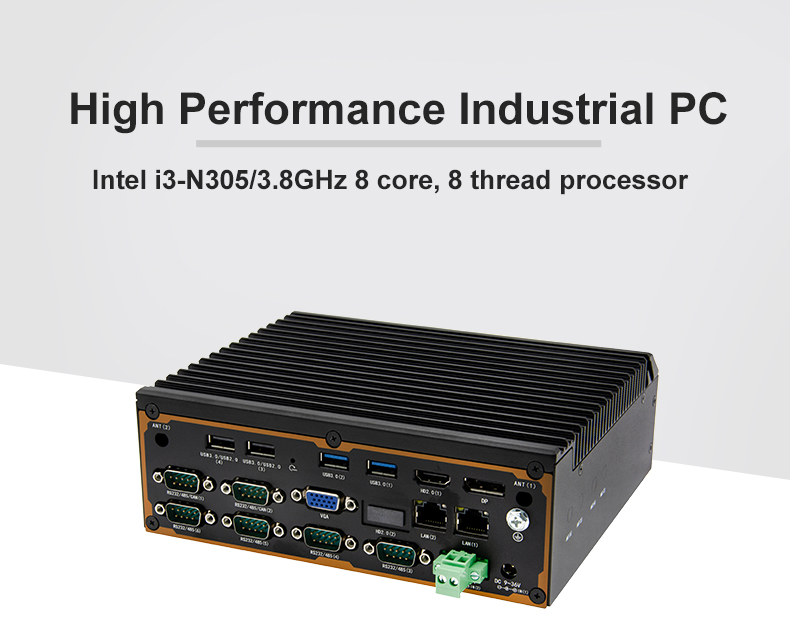

Intel®   Alder Lake-N i3-N305/Turbo 3.8GHz, Eight-Core, Eight-Thread Processor, TDP   15W

Display

Intel®UHD   Graphics

Memory

1*SODIMM   DDR4 3200MHz , supports up to 32GB

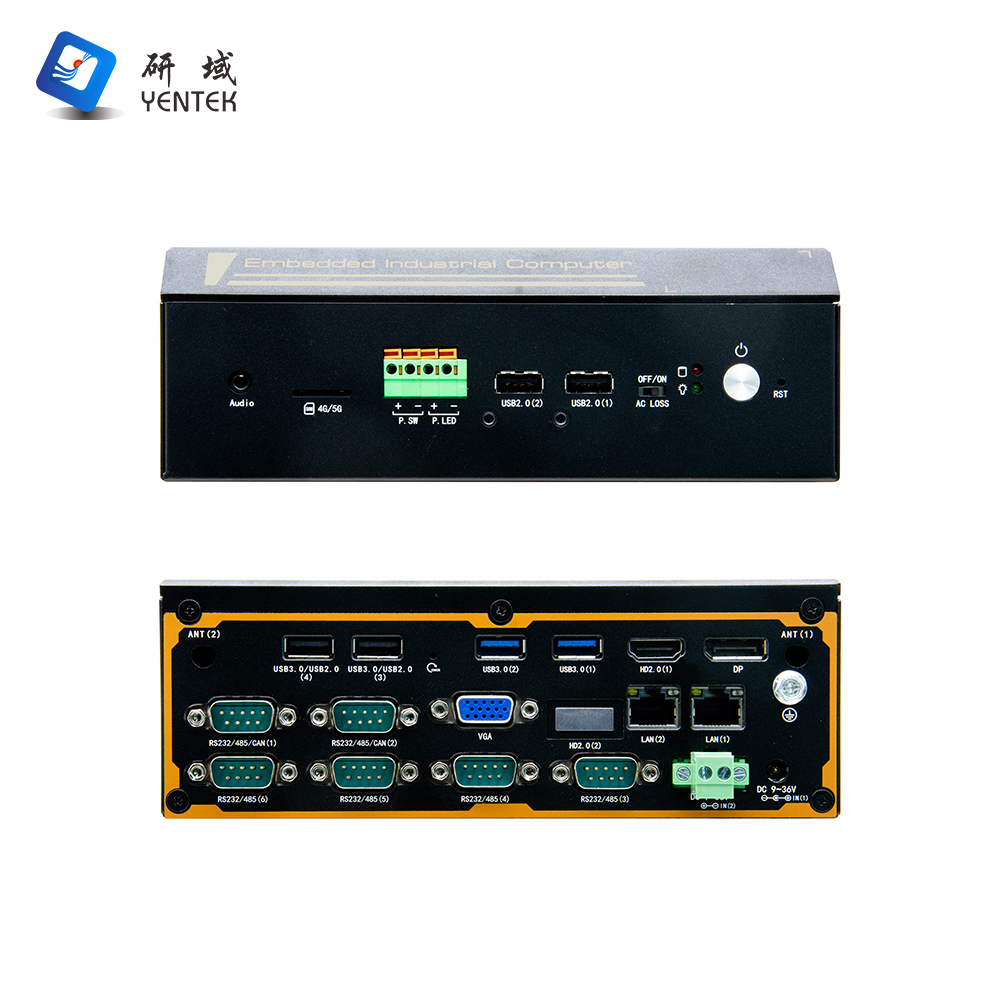

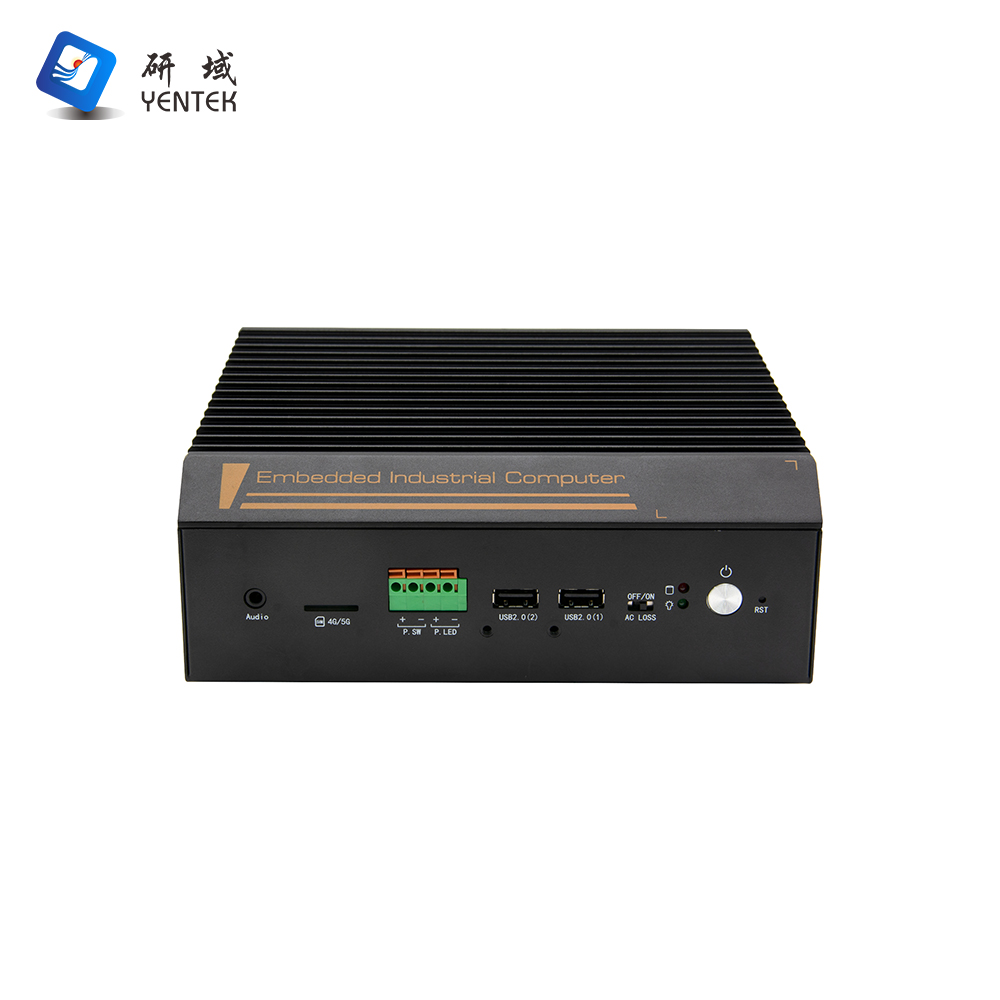

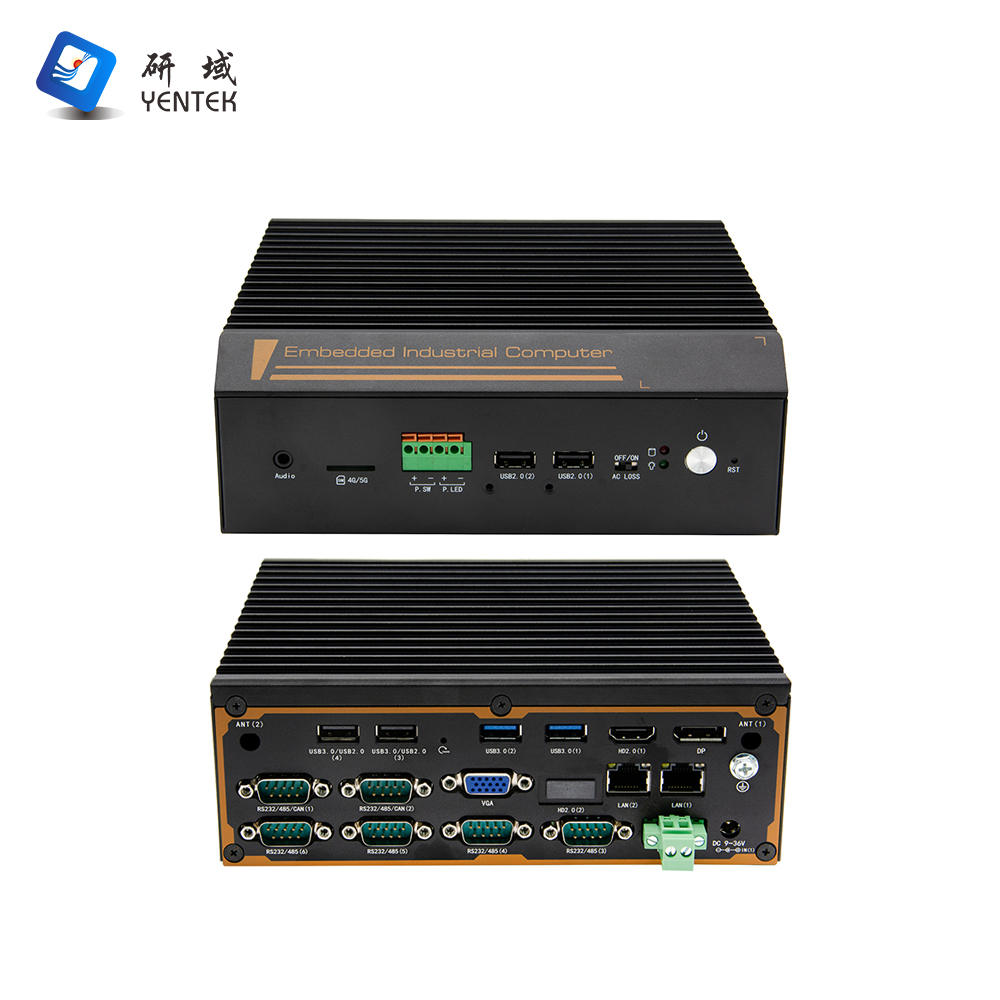

Front   Panel Connectors

Switch

1*Boot   Button, 1*One-Key Restore, 1*ACLOSS (Power-On DIP Switch)

LED

1*Power   Indicator, 1*Hard Drive Indicator

USB

2*USB2.0

Audio

1*Audio,   Line out&Mic 2-in-1

Phoenix   Terminal

1*4P   (1*power on signal/1*power indicator signal)

SIM

1*SIM   standard card slot

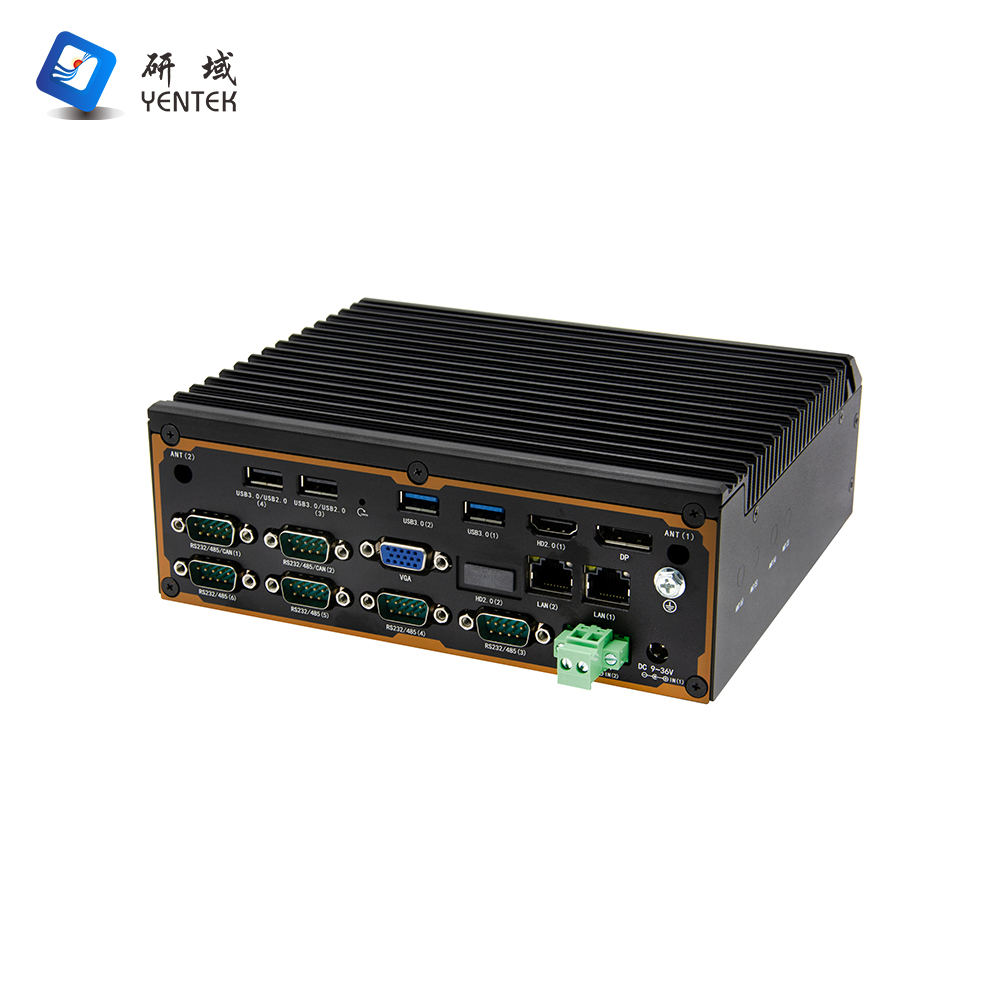

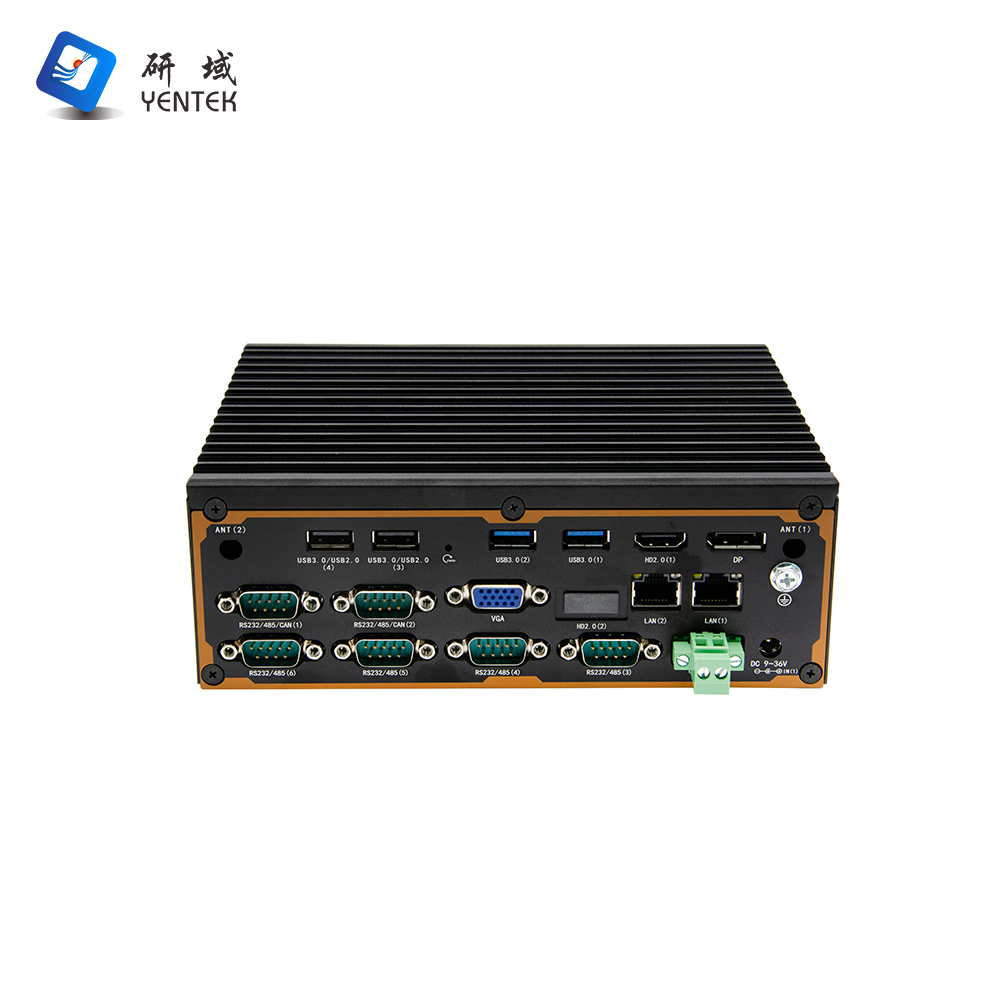

Rear   Panel Interface

Switch

1*CMOS   restore button

Display   Interface

1*HDMI2.0(4096*2160@60Hz),   1*DP1.4(4096*2160@60Hz), 1*VGA, support for triple display

Note:   connect DP, then support dual display DP + HDMI (upper), not connect DP, then   support triple display HDMI + HDMI + VGA

COM

6*RS232/485   DB9 serial port; COM1~2 can support CAN (need to load CAN module)

LAN

2*Intel   I210AT Gigabit power port

USB

2*USB3.0,   2*USB2.0

DIP   Switches

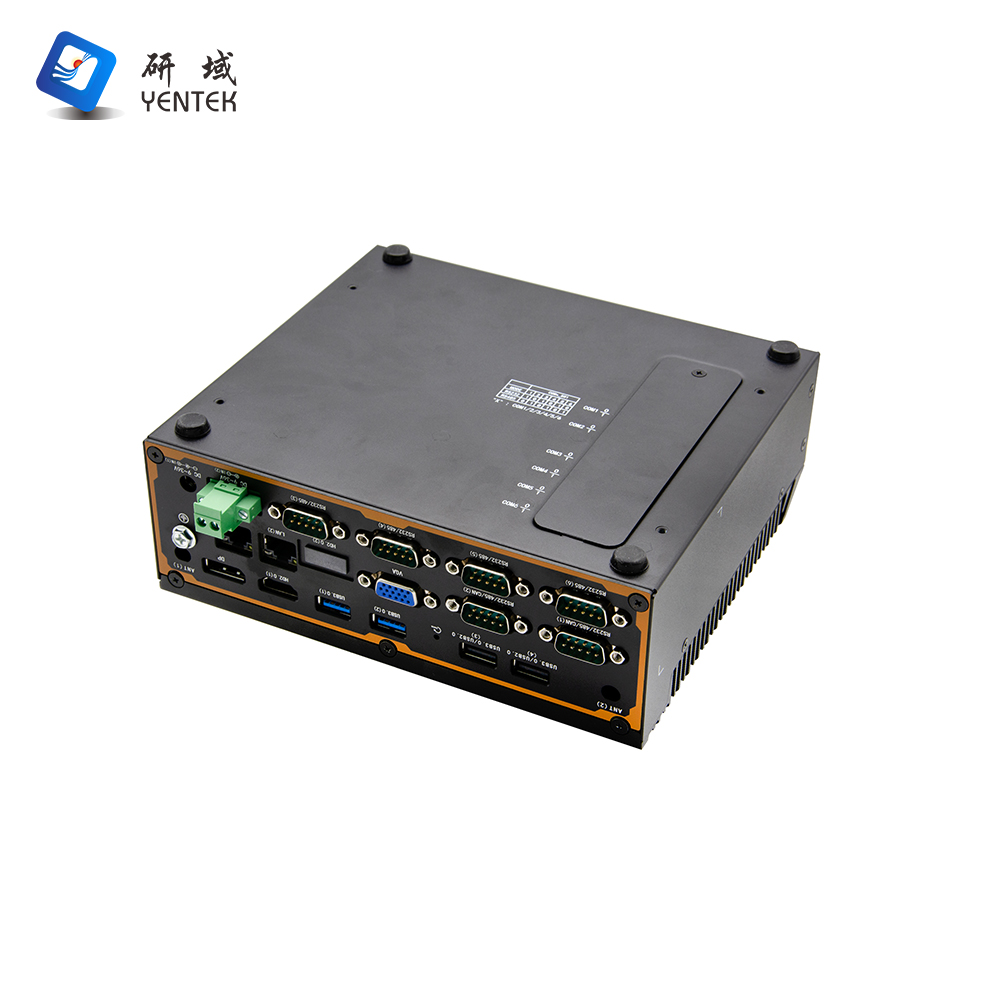

6 sets   of 6-position dip switches, RS232/485 switching use (dip switches are located   at the bottom of the chassis)

Power   Interface

1*DC   interface or 1*2P P=5.08mm Phoenix terminal, support DC 9~36V wide voltage   power input

Storage

SATA

1*2.5-inch   hard drive bay

MSATA

1*MSATA   (this interface is invalid)

M.2

1*M.2/SSD,   support Key-M, 2280, NVME PCIE x2/SATA Adaptive SSD

Expansion

MINIPCIE

1*MINIPCIE,   support WiFi+BT or 4G module or CAN module

System   Support

Microsoft

Windows   10

Linux

Linux

Power   Supply Type

Power   supply type

External   Power Adapter

Voltage   input

DC 9-36V   wide voltage

Power   output

AC TO DC   60W or more (depending on specific equipment)

Environment

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95%   relative humidity, non-condensing

Operating Vibration

0.5g   rms/5-500HZ/random/operating

1

P6760S-C6 V2.0(N97)

N97/Turbo   3.6G

Q305HD1

1*SODDR4

P68-HV/P68-C4

2.5+M.2(NVME)

2*I210

6

2

4

2

 9-36V

2

P6760S-C6 V2.0(N305)

I3-N305/Tubor   3.8.0G

Q305HD1

1*SODDR4

P68-HV/P68-C4

2.5+M.2(NVME)

2*I210

6

2

4

2

 9-36V
