| Model number | N5450Z-C2 V1.0(6360U) | |
| Case | Material/Structure | All aluminum alloy, fan cooling |
| Color | Iron gray | |
| Dimension(L*W*H) | 155*155*56.10MM | |
| Install | Desktop/Wall Mount | |
| Motherboard | CPU | Integrated Intel® Skylake-U I5 6360U/2.0GHz dual-core quad-thread processor TDP 15W |
| System Chip | Based on Intel® Skylake-U SOC platform | |
| Memory | Integrated 8G LPDDR3 2133MHz memory | |
| Show | 2*DDR4 SODIMM memory slots, support 2133MHz memory, up to 32GB | |

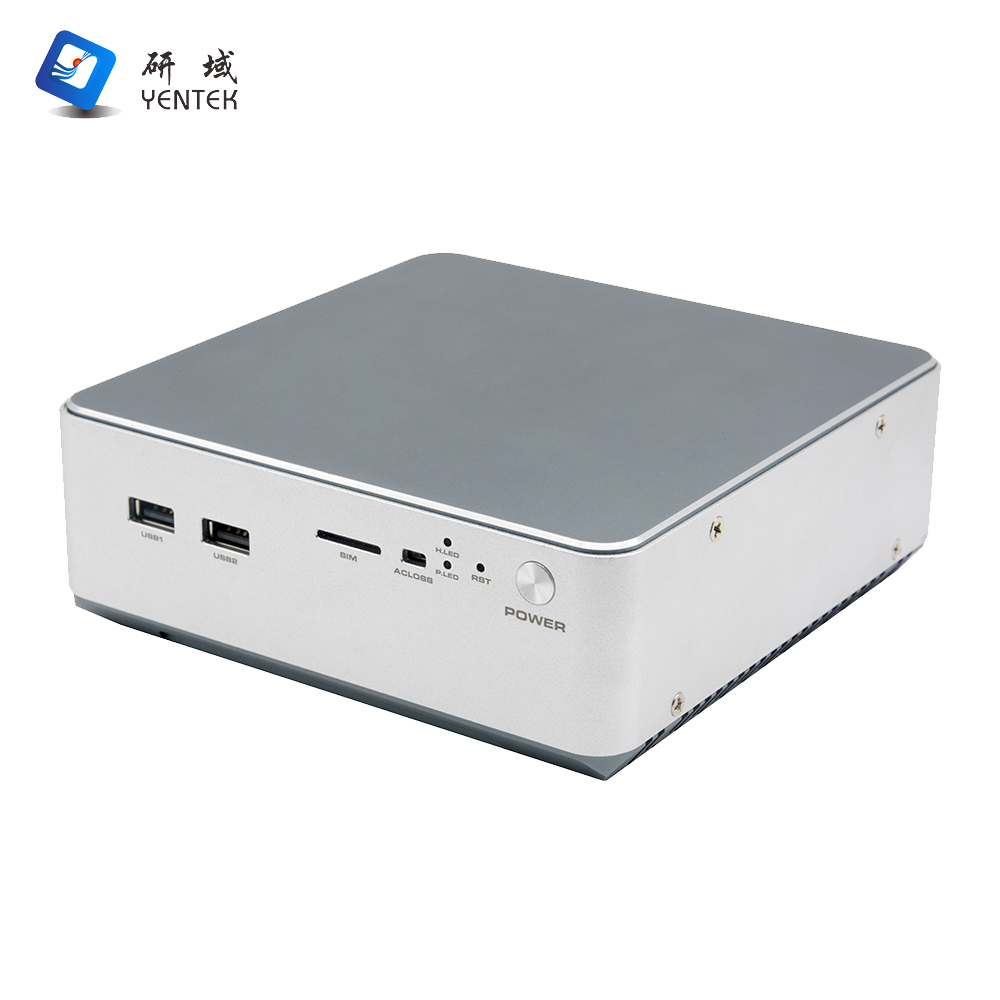

Front panel interface | POWER | 1*Power switch, 1*Reset switch |
| LED | 1* power indicator, 1* hard disk indicator | |
| USB | 2* USB2.0 interface | |
| AC LOSS | 1*AC LOSS (power-on toggle switch) | |
| SIM | 1* SIM card slot, 3G/4G module application | |
Rear panel interface | LAN | 2*Intel® WGI211AT Gigabit LAN, support Wake-on-LAN, PXE function |
| Display interface | 1*VGA interface(1920X1200@60Hz), 1*HD OUTPUT1.4 interface(4096X2306@24Hz),1* DP interface (4096X2304@60Hz) | |
| USB | 4* USB3.0 interface | |
| COM | 2* RS232 DB9 serial interface, COM2 supports RS232/RS485 switching | |
| Audio | 1* Line out interface, 1* MIC interface | |
| Power supply | 1* DC power adapter interface, support DC 12V power input | |
| Storage | SATA | 1*2.5 inch hard drive expansion |
| Solid state drive | 1* MSATA SSD expansion, transfer speed up to 6Gbps | |
| Expand | Mini PCIE | 1* Mini PCIE slot, support WIFI/4G module |
| M.2 | 1* M.2 slot, support M.2 2260/2280 NVME PCIE x4 standard SSD | |
System Support | Microsoft Windows | Windows 10(without key) |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function(L256, 0~255 seconds) | |
| Power | Power supply type | External power adaptor |
| Voltage input | DC 12V | |
| Power output | AC TO DC 60W above | |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Motherboard | Memory | M.2 | LAN | COM | HD OUTPUT | VGA | DP | USB2.0 | USB3.0 | insideUSB | SIM | Power-input |
| 1 | N5450Z-C2（6360U） | 6360U/2.0GH | C57_I526D | 2*SODDR4 | 1 | 2 | 2 | 1 | 1 | 1 | 2 | 4 | N/A | 1 | DC 12V |
| 2 | N5450Z-C2（6650U） | 6650U/2.2GH | C57_I726D | 2*SODDR4 | 1 | 2 | 2 | 1 | 1 | 1 | 2 | 4 | N/A | 1 | DC 12V |
| 3 | N5450Z-C2（7360U） | 7360U/2.3GH | C57_I726D | 2*SODDR4 | 1 | 2 | 2 | 1 | 1 | 1 | 2 | 4 | N/A | 1 | DC 12V |
| 4 | N5450Z-C2（8145U） | 8145U/2.1GH | C81-I326D | 2*SODDR4 | 1 | 2 | 2 | 1 | 1 | 1 | 2 | 4 | N/A | 1 | DC 12V |
| 5 | N5450Z-C2（8265U） | 8265U/1.6GH | C81-I526D | 2*SODDR4 | 1 | 2 | 2 | 1 | 1 | 1 | 2 | 4 | N/A | 1 | DC 12V |
