| Model number | N5350Z-HD V1.0(5205U) |
| Case | Material/Structure | All aluminum alloy, fan cooling structure |
| Color | Iron gray |
| Size(L*W*H) | 155*155*52MM |
Weight (bare metal net weight) | 1.25KG |
| Install | Desktop/VESA Mount |
| Motherboard | CPU | Integrated 10th generation Intel® Celeron 5205U 1.9GHz dual-core two-thread processor, TDP 15W |
| Chipset | SOC |
| Show | Integrated Intel® UHD Graphics supports DirectX 12 OpenGL 4.5, supports 4K |
| Memory | 2*DDR4 SODIMM memory slots, support 2400MHz memory, maximum support 32GB |
Ffront panel interface
| POWER | 1*Power switch, 1*Reset switch |
| USB | 2* USB2.0 interface |
| AC LOSS | 1*AC LOSS (power-on toggle switch) |
| LED | 1* power indicator, 1* hard disk indicator |
| Audio | 1* Audio interface, support Line out/ MIC |
| SIM | 1* SIM card slot, 3G/4G module application |

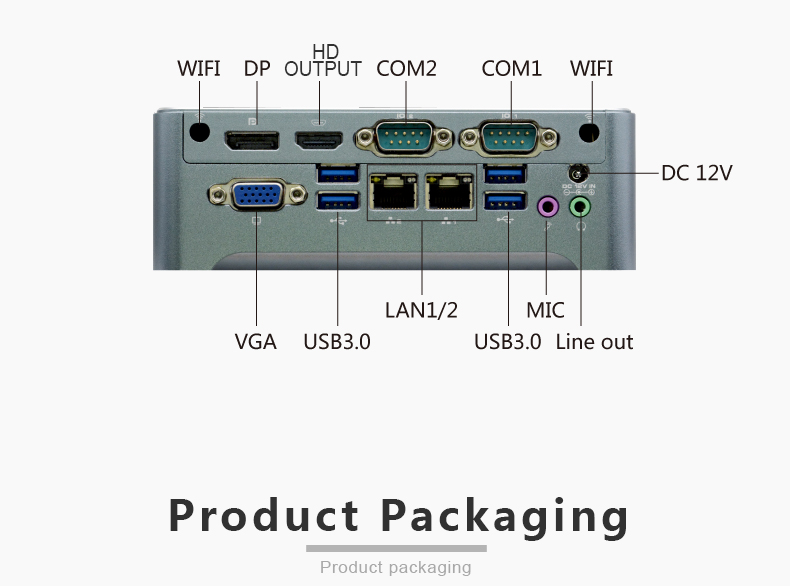

Rear panel interface | LAN | 2* Intel I211 Gigabit LAN, support Wake-on-LAN, PXE function |
| Display interface | 1*VGA interface (1920X1200@60Hz),
1* DP interface (4096X2304@60Hz), 1* HD OUTPUT2.0 interface (4096X2304@60Hz),
Remarks: N353-HD and N53-C2 DP and HD OUTPUT interface positions are opposite |
| USB | 4* USB3.0 interface |
| COM | 2* RS232 DB9 serial interface, COM2 supports RS232/RS485 switching |
| Audio | 1* Line out interface, 1* MIC interface |
| Power | 1* DC power adapter interface, support DC 12V power input |
| Storage | SATA | 1*2.5 inch hard drive expansion |
| SSD | 1* MSATA slot, SSD supporting Intel protocol, transfer rate up to 6Gbps |
| Expansion | Mini PCIE | 1* Mini PCIE slot, support WIFI/4G module |
| M.2 | 1* M.2 slot, support M.2 2260/2280 NVME PCIE x4 standard SSD |
OS Support | Microsoft Windows | Windows 10, 64bit (not include OS code) |
| Linux | Ubuntu |
| Watch Dog | Support hardware reset function(L256, 0~255 seconds) |
| Power | Power supply type | External power adaptor |
| Voltage input | DC 12V |
| Power output | AC TO DC, 36W / 60W (optional) |
| Environment | Operating temperature | -10℃～60℃ |
| Storage temperature | -20℃～70℃ |
| Relative humidity | 5%-95% relative humidity, no condensation |
| Working vibration | 0.5g rms/5-500HZ/random/operating |
