Mini PC/NUC

N3919SZ

FEATURES

Integrated Intel®J1900/2.00GHz quad core processor

1*SO DDRIII slot, support 1600/1333MHz DDR3L/ 1.35V RAM, max up to 8GB

1*HD OUTPUT , 1*VGA

1* RTL8111FGigabit Ethernet,support WOL / PXE

6*USB port

DC 12V power input

Fanless cooling, full aluminum case

Product description



Model number

N3919SZ

Case

Material/Structure

Full aluminum case, fanless cooling structure
ColorIron gray
Dimension(L*W*H)

128*128*41MM

InstallDesktop/Wall-Mounted
MotherboardCPUIntegrated Intel®J1900/2.00GHz quad core processor,TDP 10W
ChipsetIntel® Bay trail SOC
DisplayIntel® HD Graphics
RAM1*SO DDRIII slot, support 1600/1333MHz DDR3L/1.35V RAM,max up to 8GB

Front I/O Port

POWER

1*Power switch

LED1*power LED, 1* HDD LED
USB3* USB2.0 port, 1*USB3.0 port

Rear I/O Port

LAN

1* RTL8111F Gigabit Ethernet, support WOL / PXE function

Display Port1* VGA port ,1* HD OUTPUT port
USB2* USB2.0 port
Audio1* Line out port,1* MIC port
Power supply1* DC power port, support DC 12V power input
StorageSATA1* 7pin SATA2.0 HDD port, transfer rate up to 3Gbps
SSD1* MSATA slot, support SSD/WIFI(default: SSD),transfer rate up to 3Gbps
ExpansionMini PCIE1* Mini-PCIE slot, support WIFI/4G module
M.2N/A

OS Support

Microsoft WindowsWindows 10, 64bit (not include OS code)
LinuxUbuntu
Watch DogSupport hardware reset function(L256, 0~255 seconds)

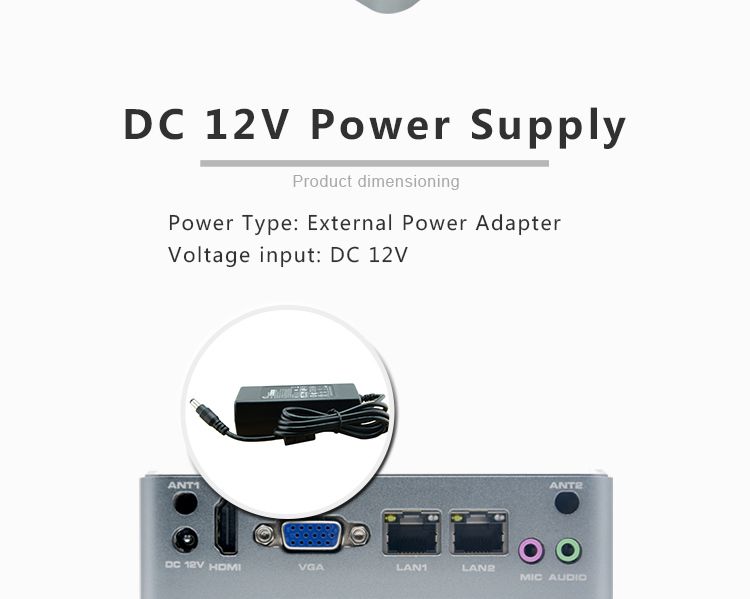

PowerPower supply typeExternal power adaptor
Voltage inputDC 12V
Power outputAC TO DC  60W
EnvironmentOperating temperature-10℃~60℃
Storage temperature-20℃~70℃
Relative humidity5%-95% relative humidity, no condensation
Working vibration0.5g rms/5-500HZ/random/operating

Order Information

No.ModelProcessorMotherboardMemoryHDDLANCOM

HD

OUTPUT

VGA
GPIOUSB2.0USB3.0SIMPower-input
1N3919SZJ1900/2.00GHzN39N/AN/A1N/A11N/A51N/ADC 12V
2N3919SZN2808/1.58GHzN39_05N/AN/A1111N/A51N/ADC 12V
3N3919SZJ1900/2.00GHzN39_19N/AN/A2111N/A22N/ADC 12V
