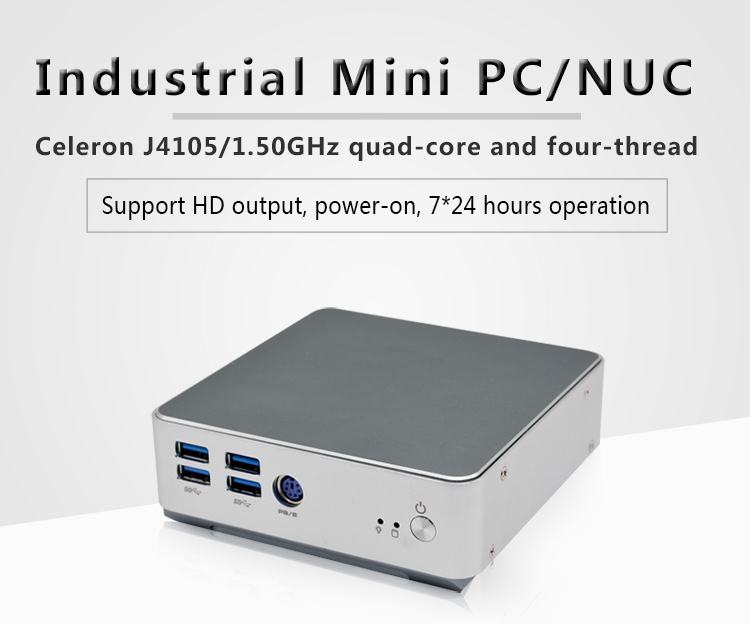

| Model number | N5241Z V1.0(J4105) | |

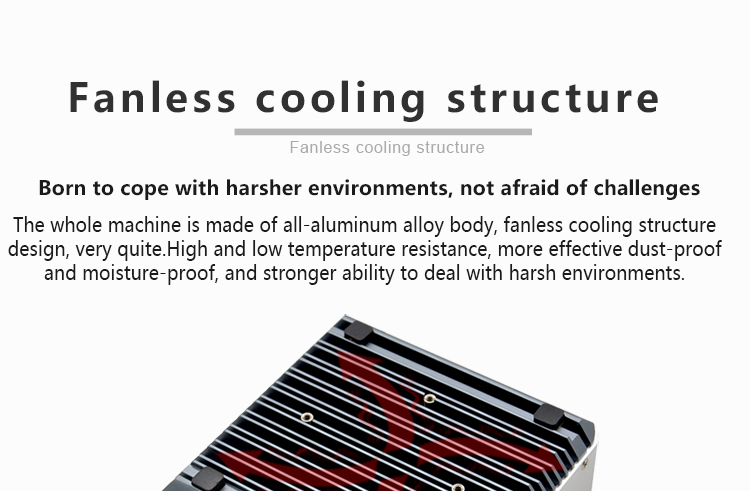

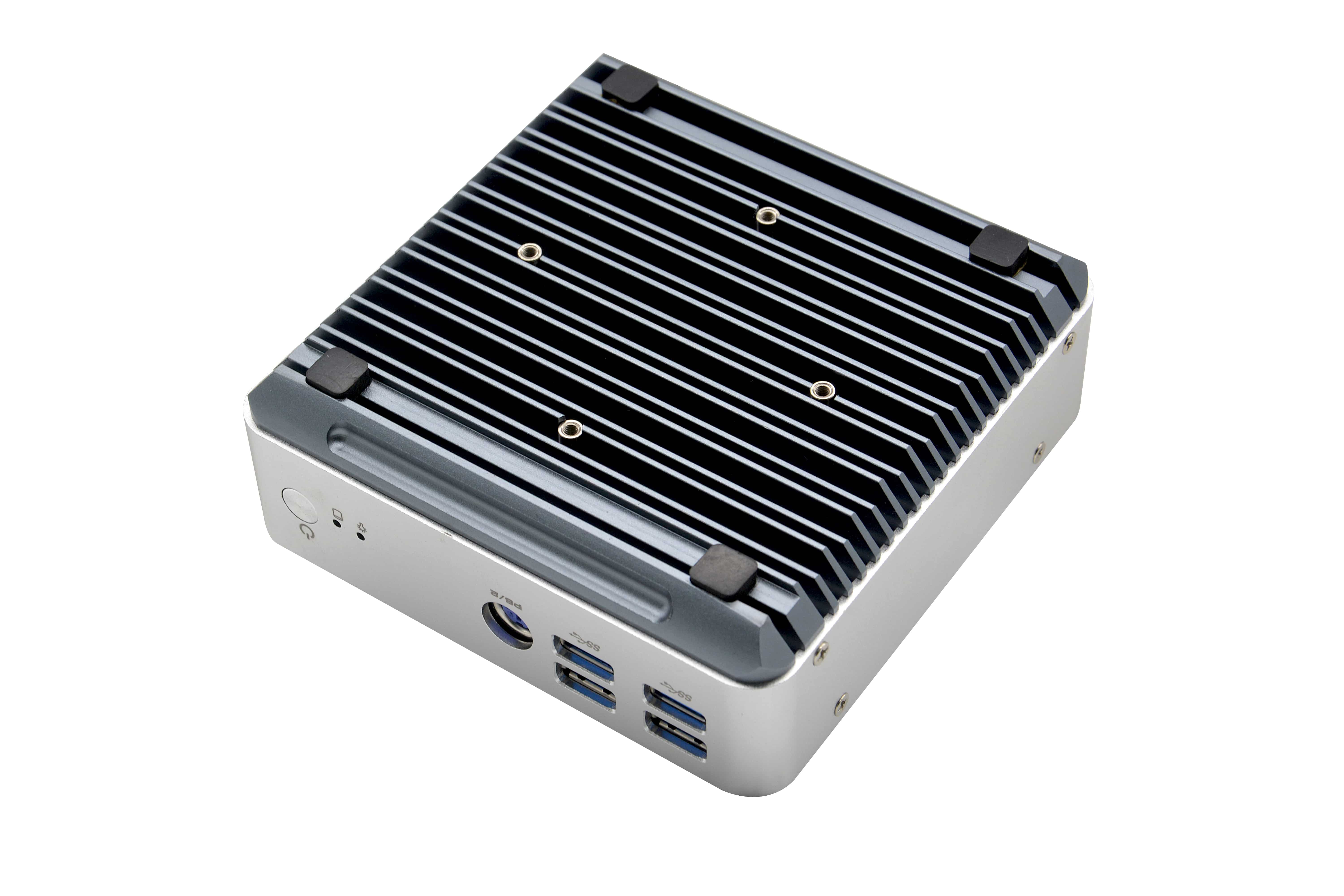

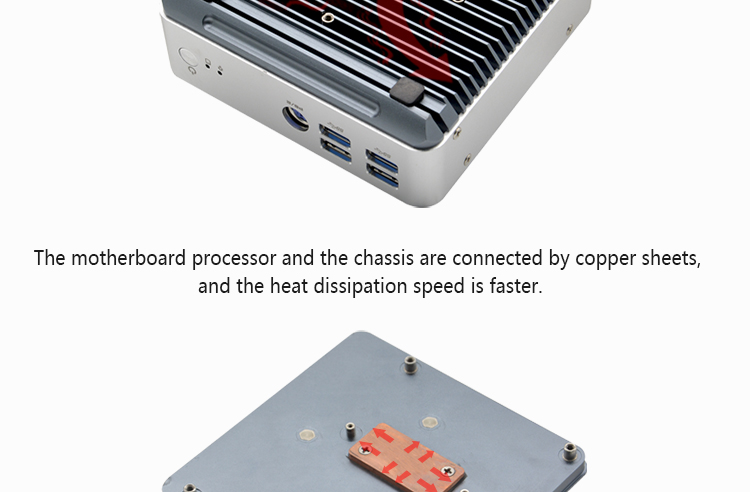

| Case | Material/Structure | Full aluminum case, fanless cooing design |
| Color | Iron gray | |

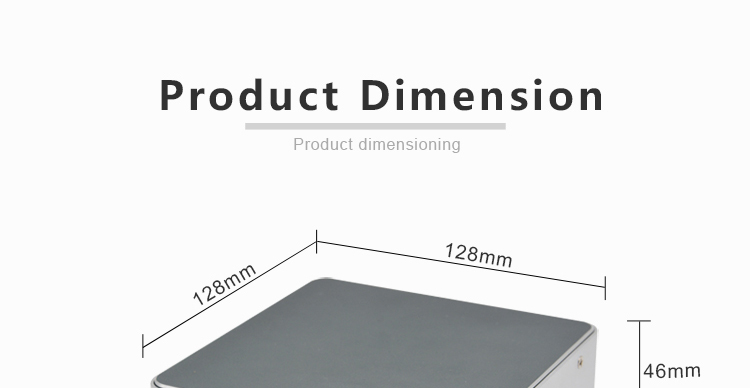

| Dimension(L*W*H) | 128*128*46MM | |
| Install | Desktop/VESA Mount | |

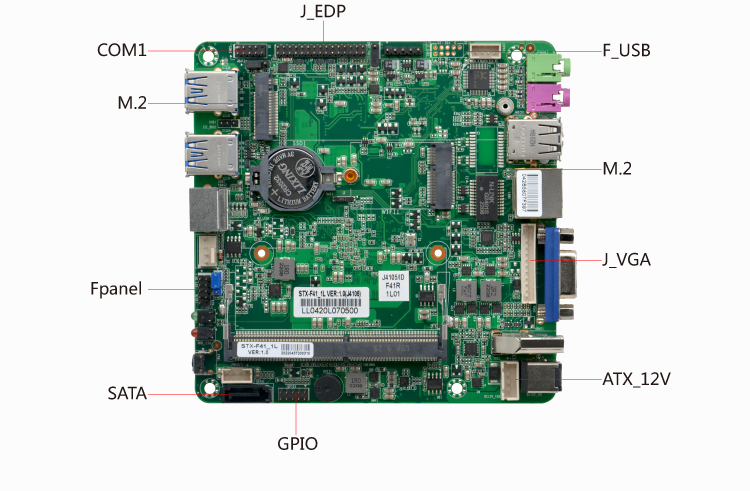

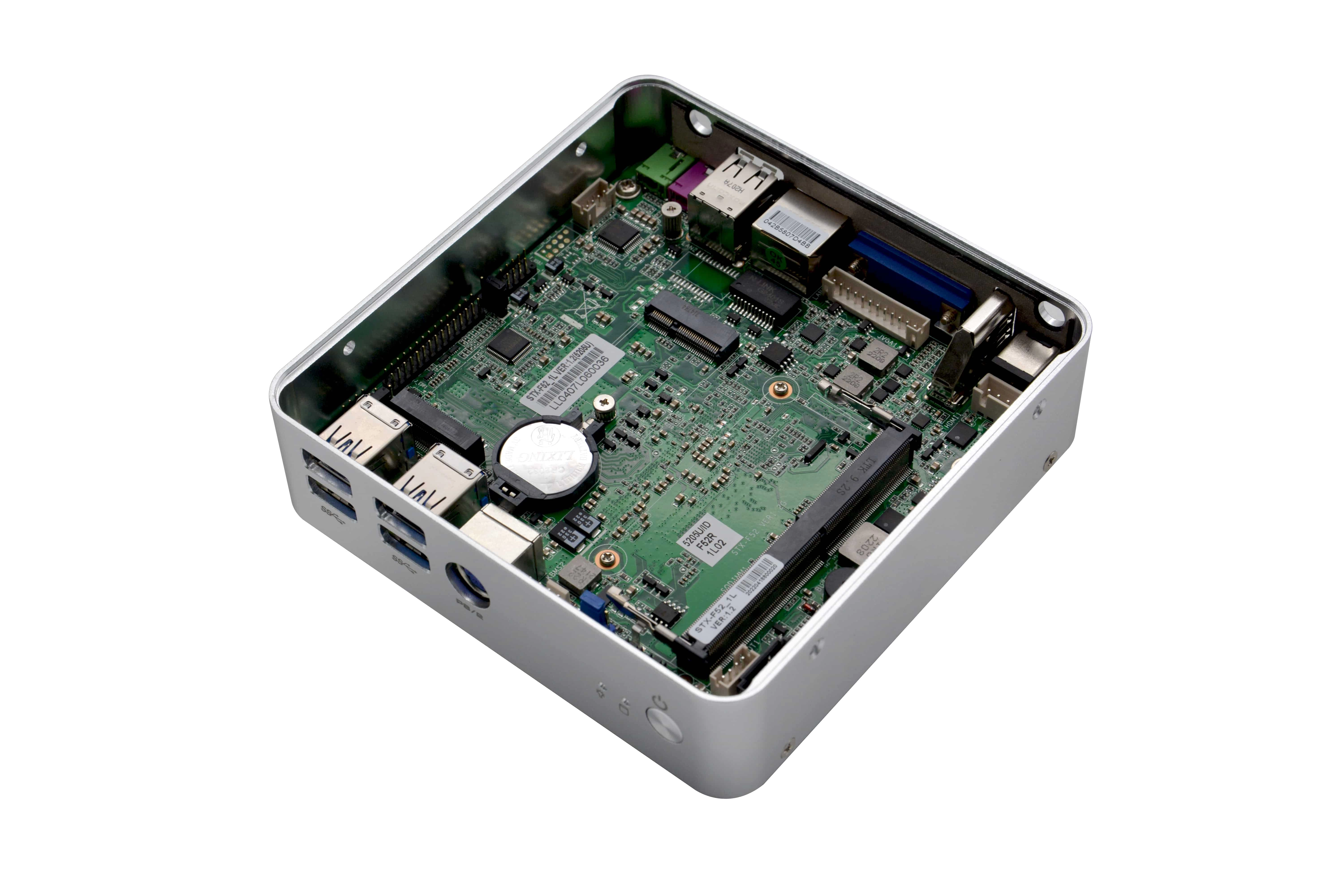

| Motherboard | CPU | Onboard Intel® Celeron® J Series J4105 1.50 GHz , 4 Cores 4-thread processor, TDP 10W |
| Chipset | SOC | |
| Display | Integrated Intel® UHD Graphics 600 | |

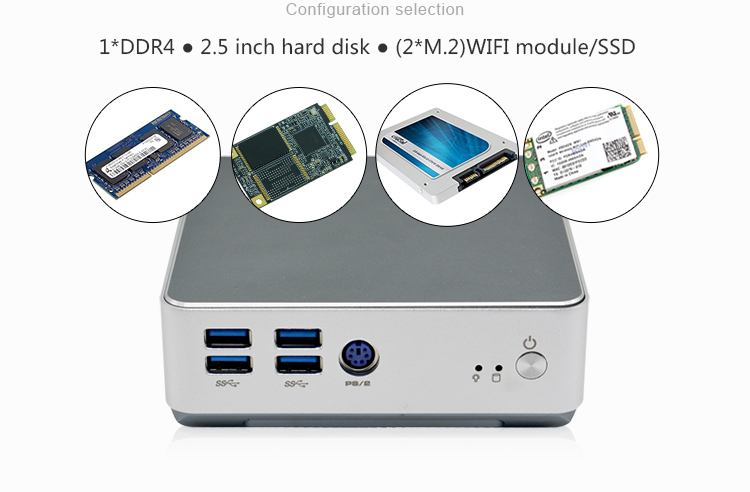

| RAM | 1* SODIMM RAM slot, support DDR4 2400MHz memory, up to 8GB | |

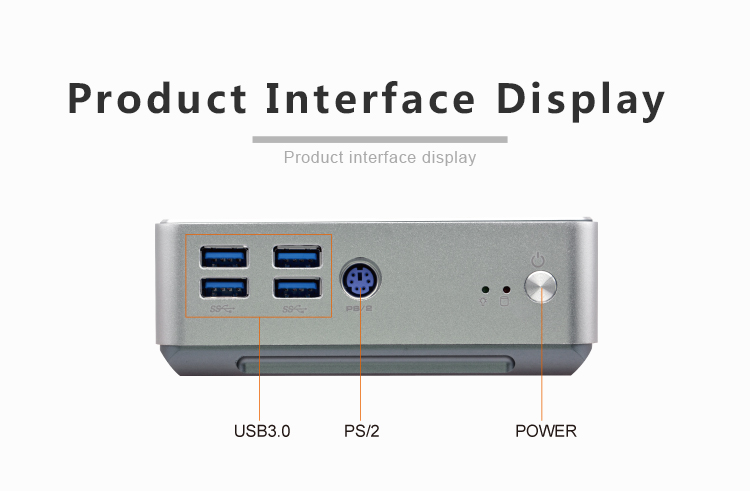

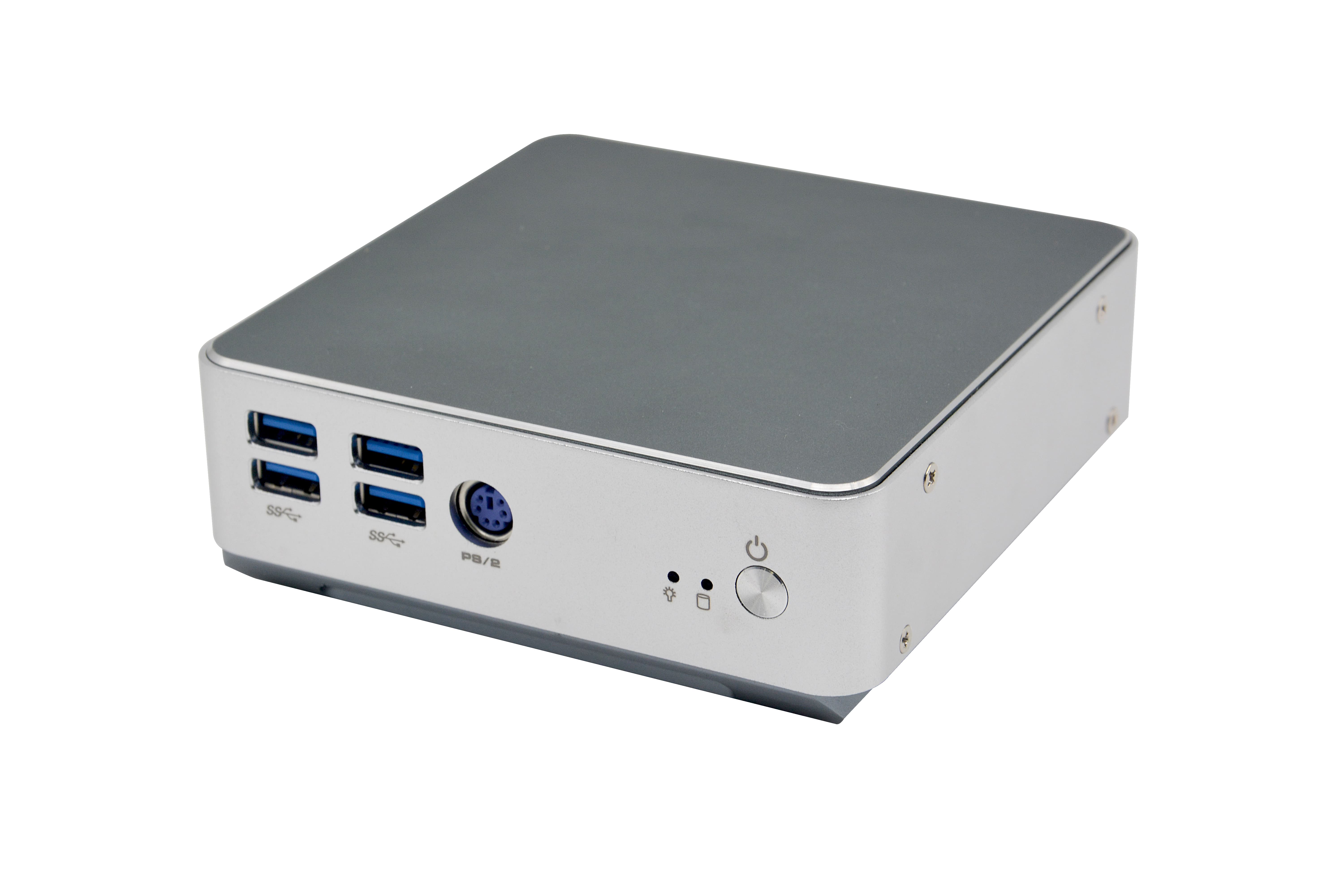

Front I/O Port | POWER | 1*Power switch |
| USB | 4* USB3.0 port | |
| LED | 1*Power LED, 1* HDD LED | |
| PS2 | 1*PS/2 port，KB/MS two in one | |

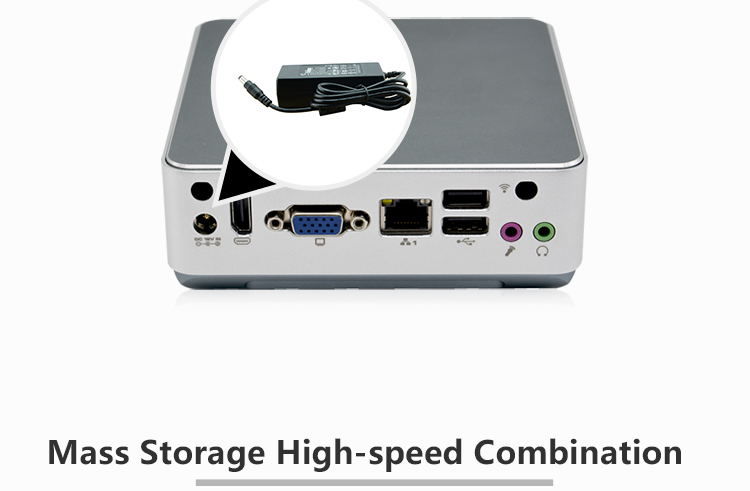

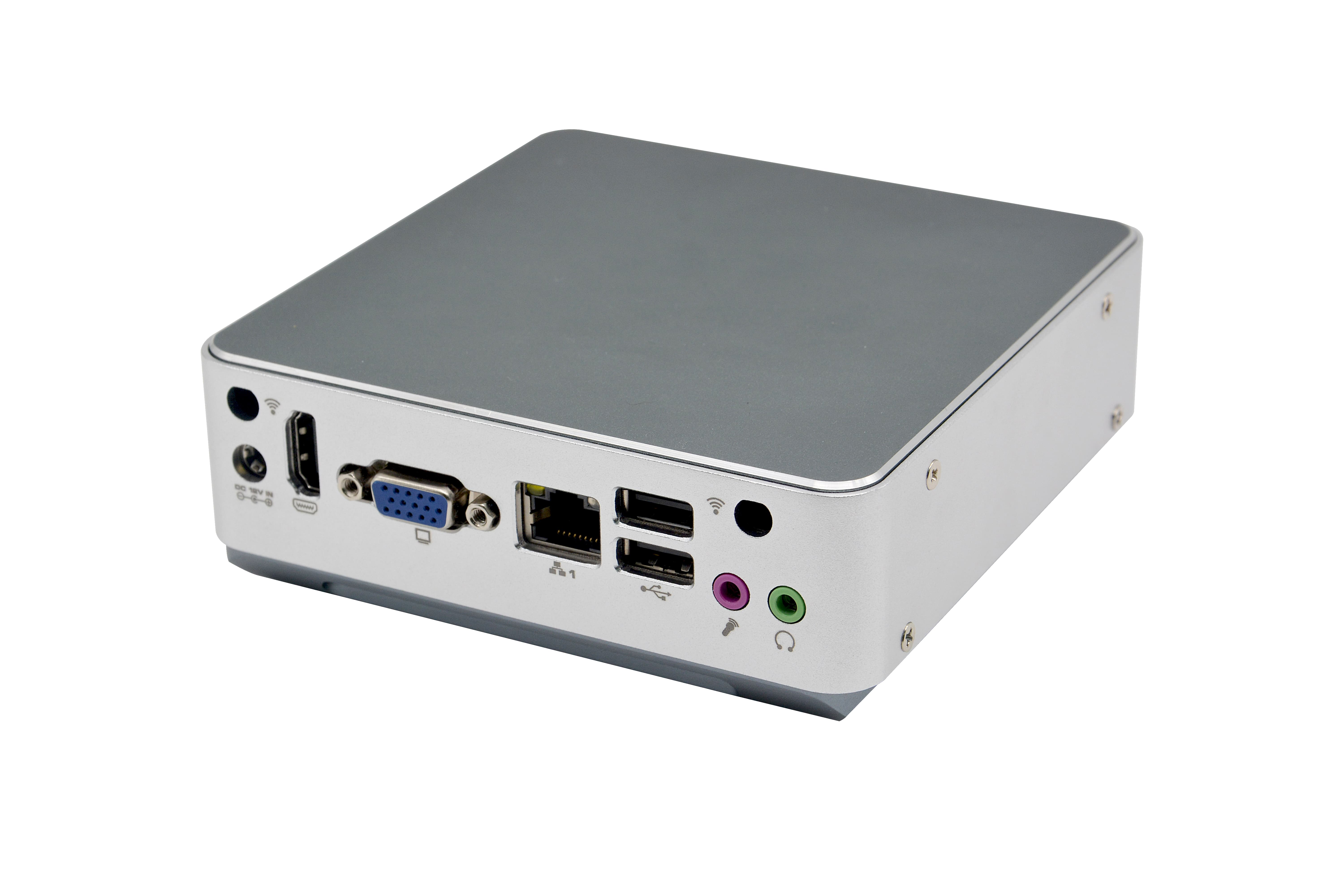

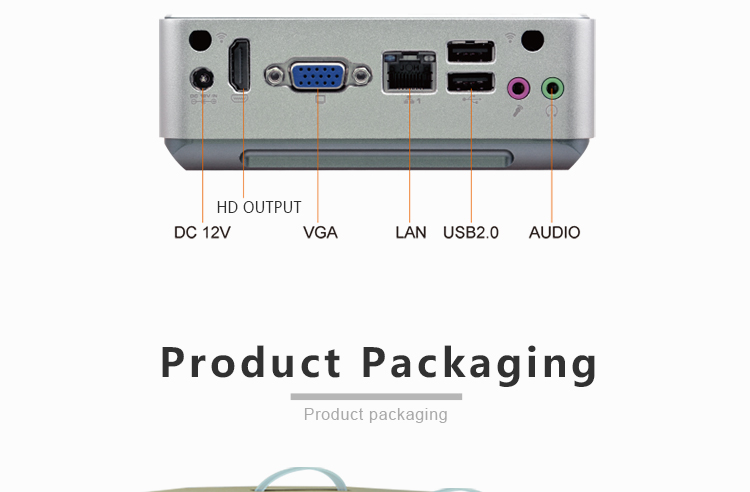

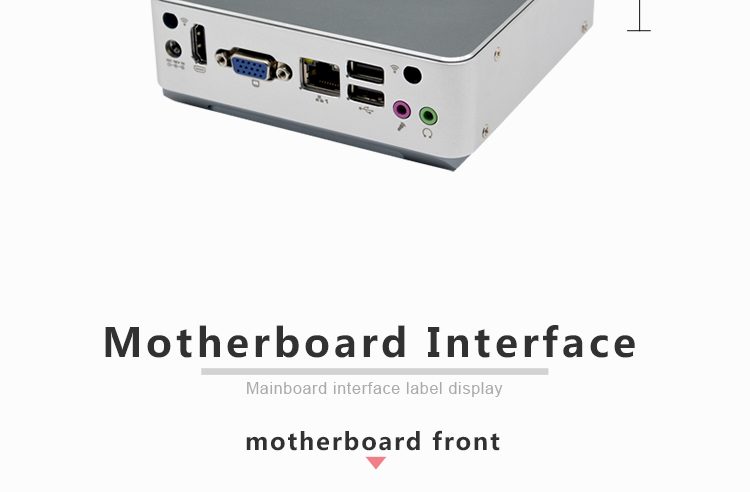

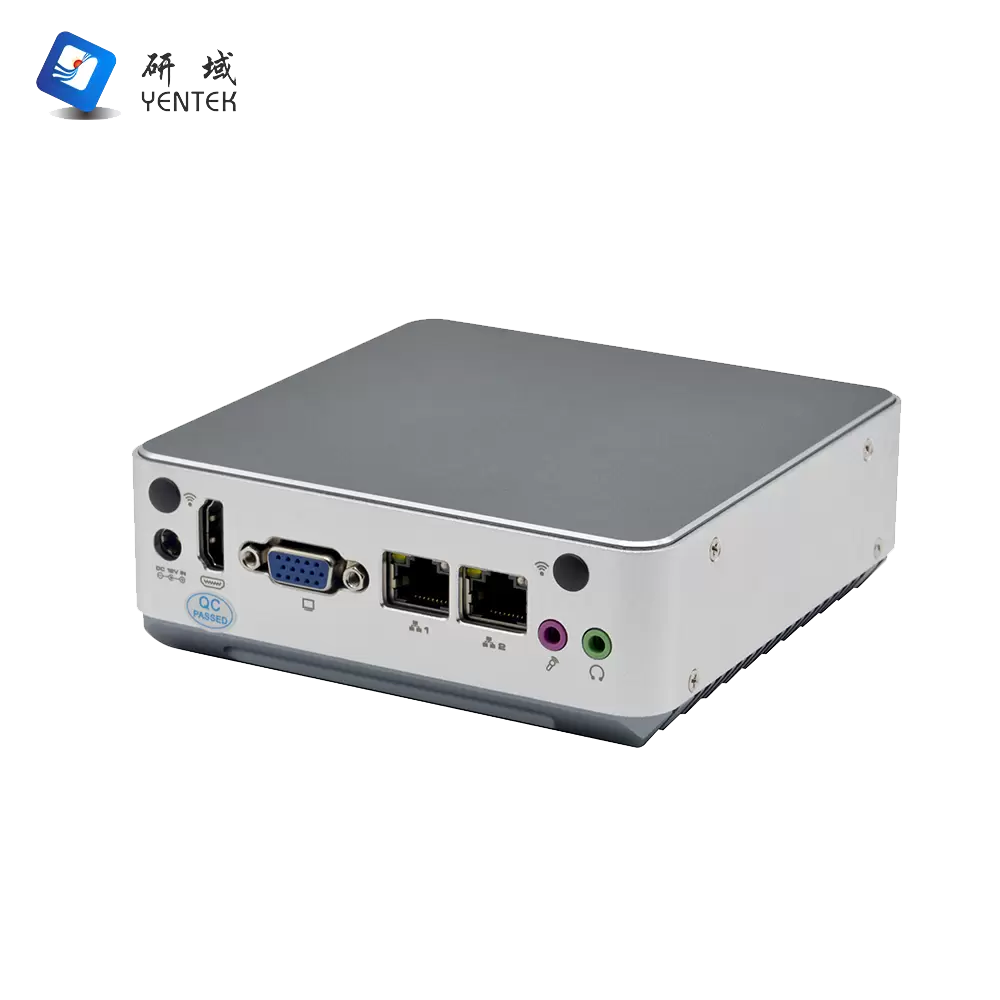

Rear I/O Port | LAN | 1*RJ45 LAN port， Realtek8111H Gigabit Ethernet, support Wake On LAN、PXE function |
| Display Port | 1*VGA port，1*HD OUTPUT port | |
| USB | 2* USB2.0 port | |
| Audio | 1* Line out port、1*MIC port | |
| Power | 1* DC power connector, support DC 12V power input | |
| Storage | SATA | 1* SATA 3.0 hard disk port, transfer rate up to 6Gbps |
| M.2 | 1* M.2 2280 SATA SSD slot | |
| Expansion | Mini PCIE | N/A |
| M.2 | 1* M.2 2230 slot, support WiFi module | |
OS Support | Microsoft Windows | Windows 10, 64bit (not include OS code) |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function(L256, 0~255 seconds) | |

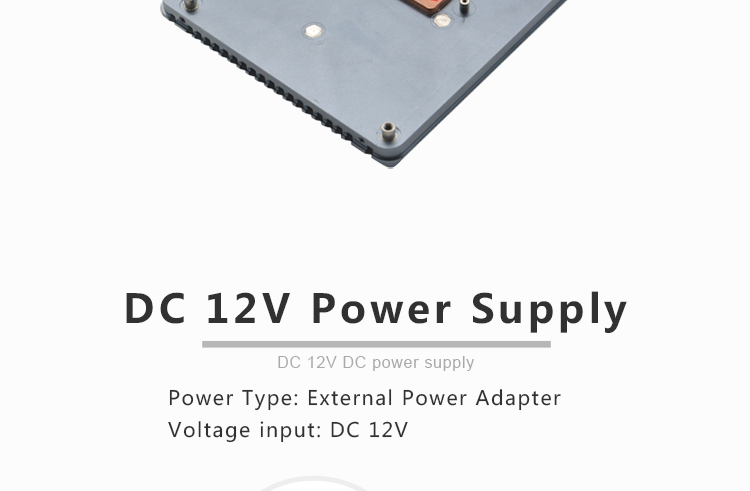

| Power | Power supply type | External power adaptor |
| Voltage input | DC 12V | |
| Power output | AC TO DC 60W | |
| Environment | Operating temperature | -10℃～60℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Motherboard | Memory | M.2 | LAN | HD OUTPUT | VGA | USB2.0 | USB3.0 | Audio | Power-input |
| 1 | N5241Z V1.0（J4105） | J4105/1.60G | F41 | 1*DDR4 | 1 | 1 | 1 | 1 | 2 | 4 | 1* Line out 1*Mic | DC 12V |
| 2 | N5242Z V1.0（J4125） | J4125/2.00G | F41 | 1*DDR4 | 1 | 1 | 1 | 1 | 2 | 4 | 1* Line out 1*Mic | DC 12V |
| 3 | N5250Z V1.0（5250U） | 5205U/1.9GHz | F42 | 1*DDR4 | 1 | 1 | 1 | 1 | 2 | 4 | 1* Line out 1*Mic | DC 12V |
