C2120Z-L4

Chassis

Material/structure

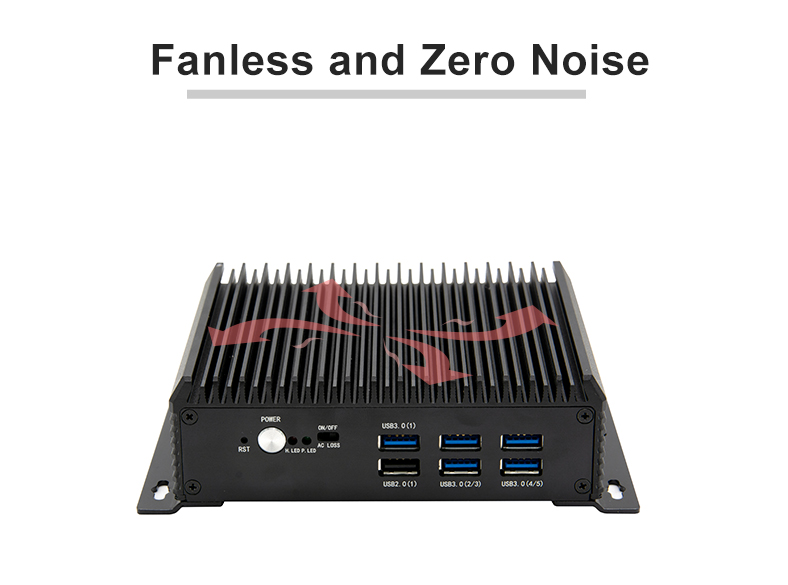

All aluminium alloy, fanless   cooling structure

Colour

Black colour

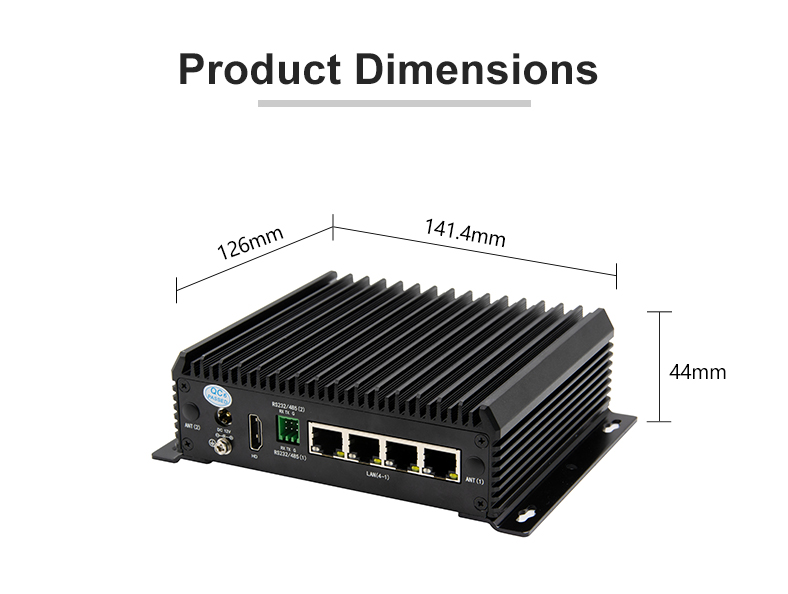

Size (LWH)

l141.4*w126*h44mm

Weight (bare net)

0.7KG

Installation

Desktop/Wall Mount

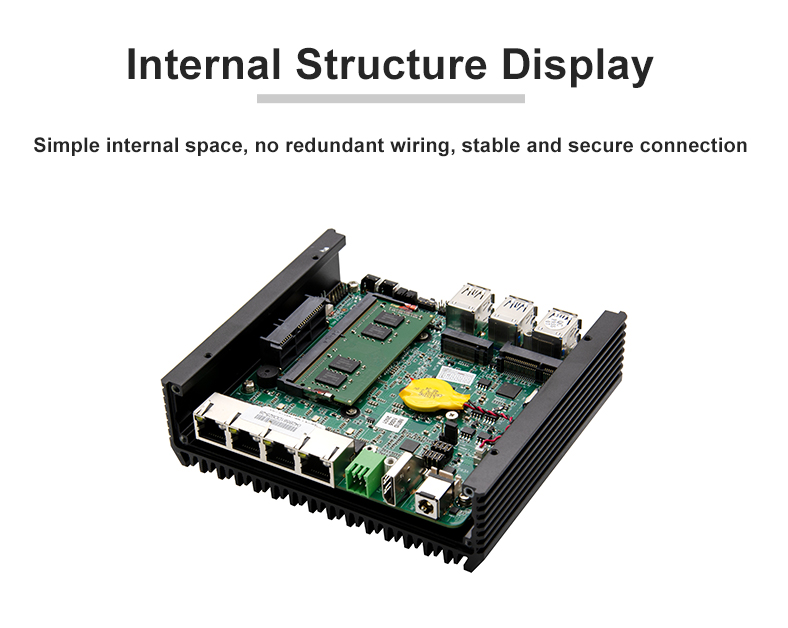

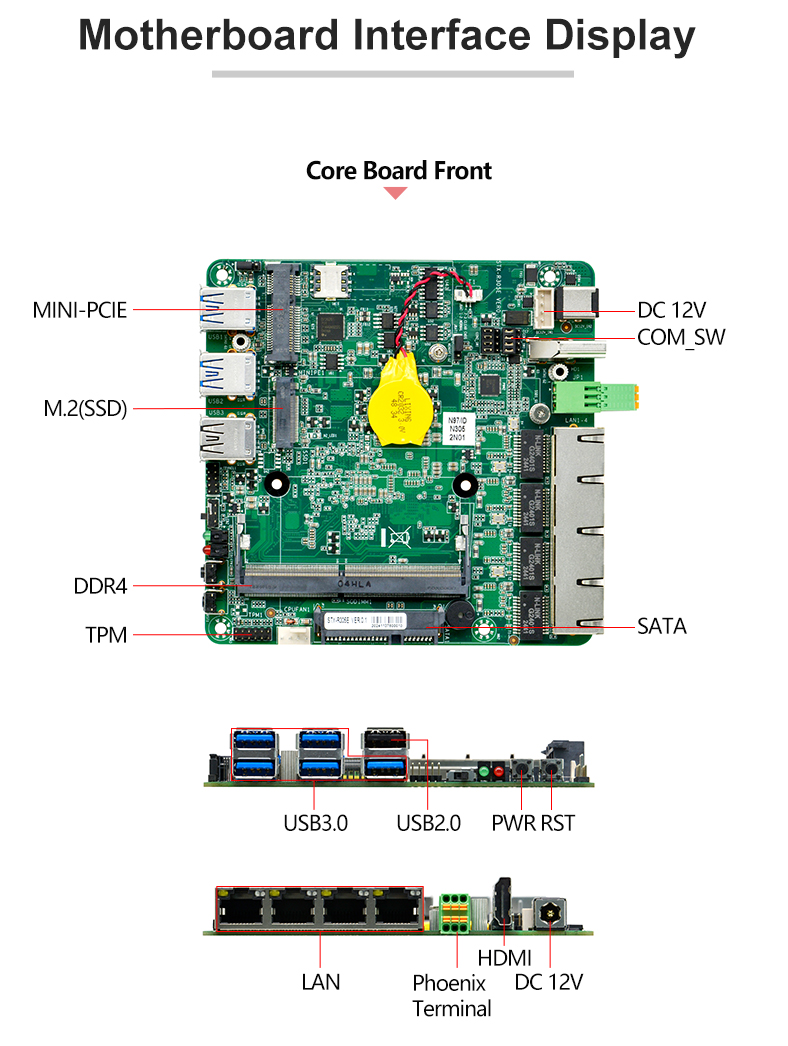

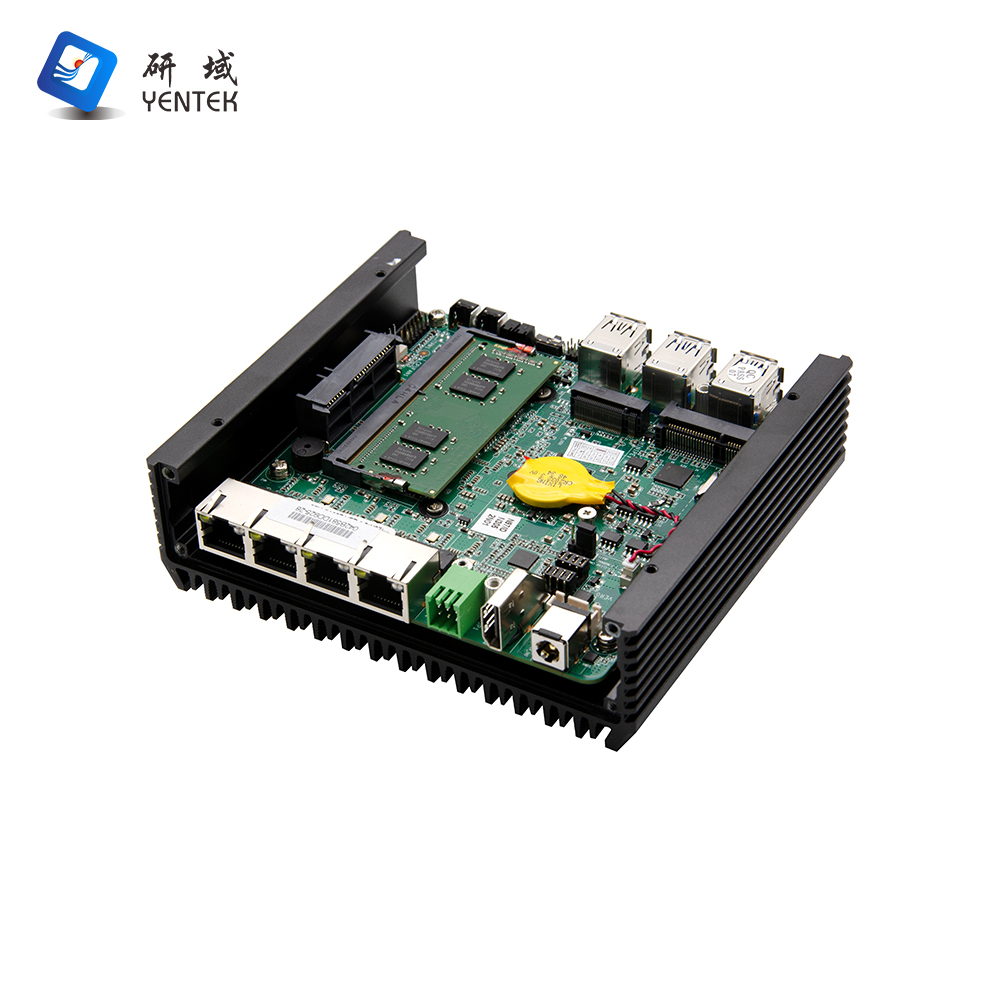

Motherboard

CPU

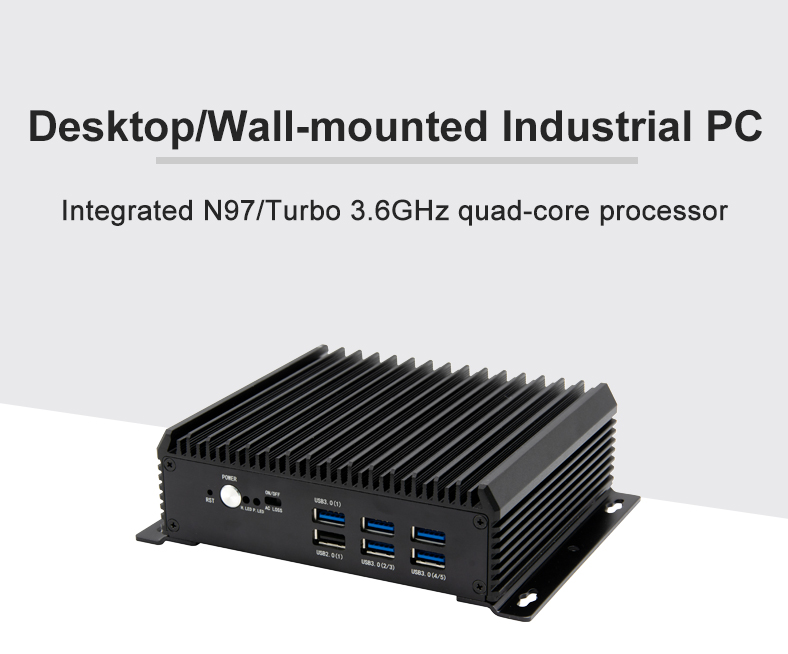

Integrated Intel® Alder Lake-N   N97/Turbo 3.6GHz quad-core processor, TDP 12W

RAM

1*SODDR4 3200MHz, supports up to   16GB

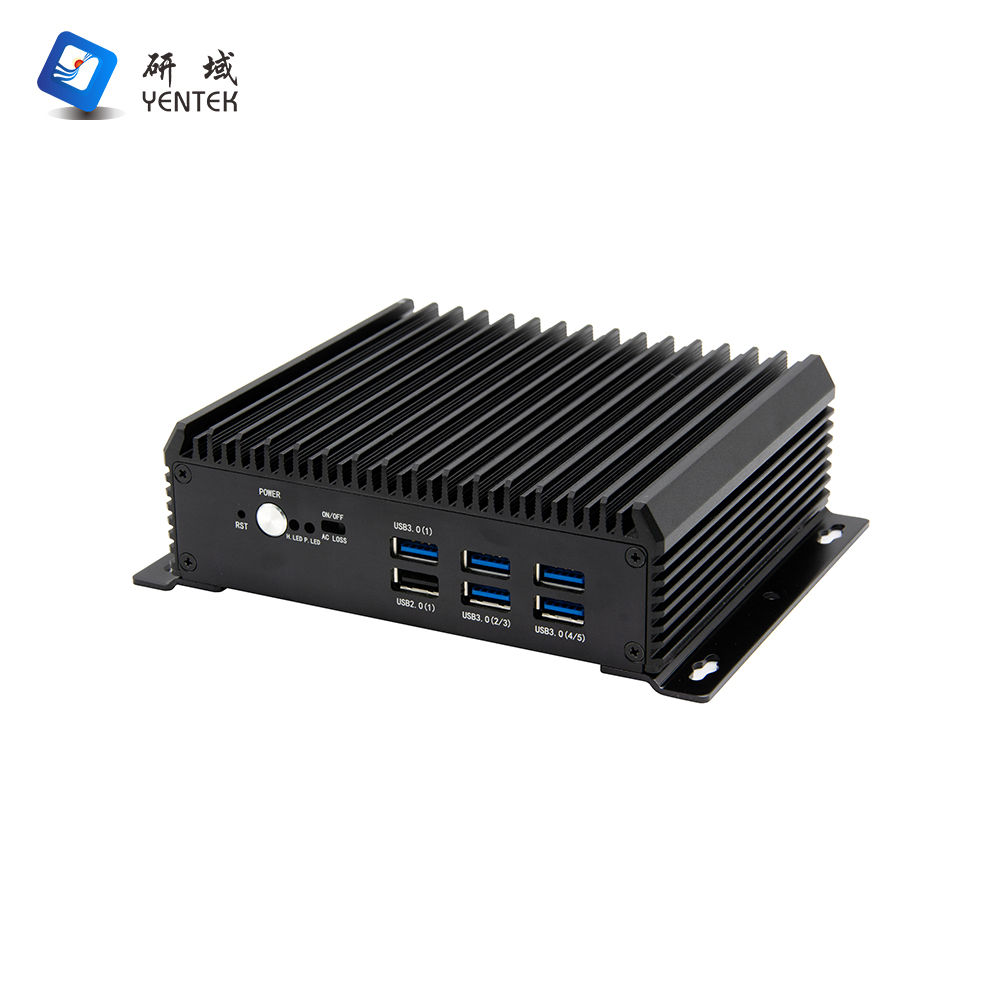

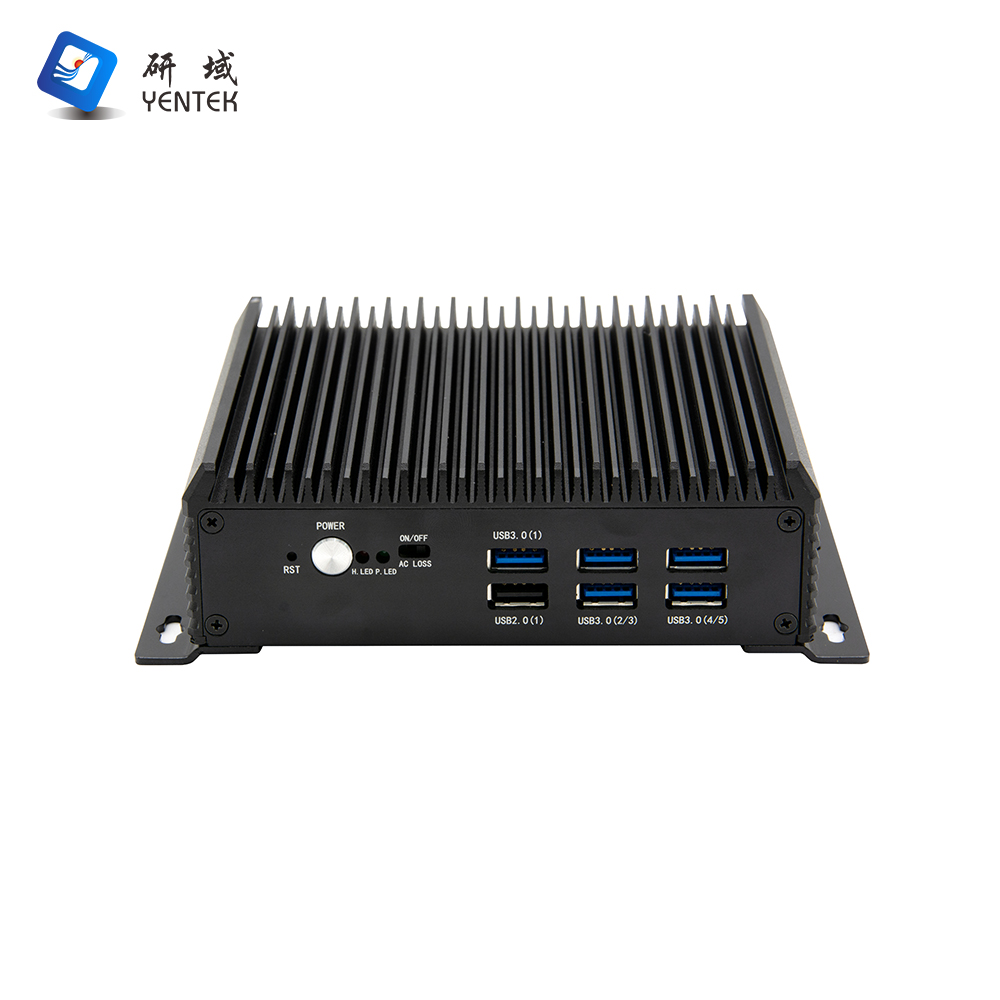

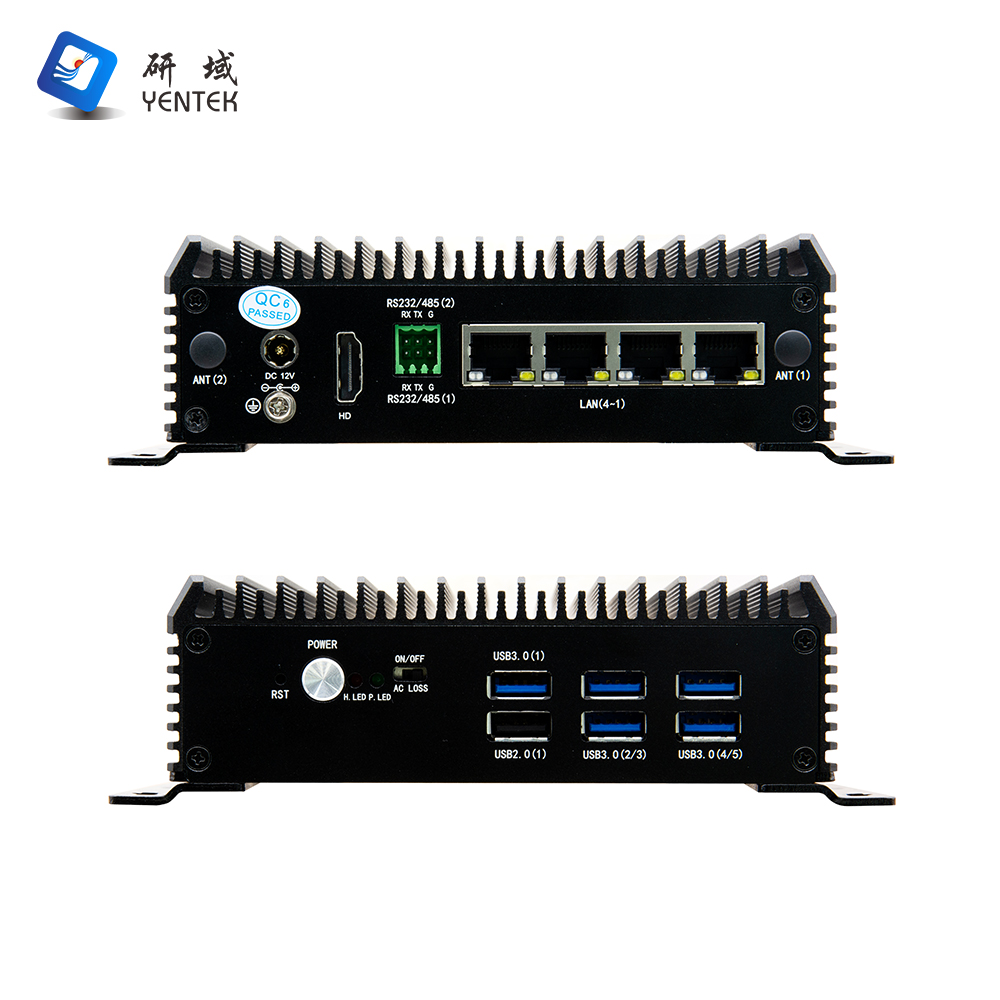

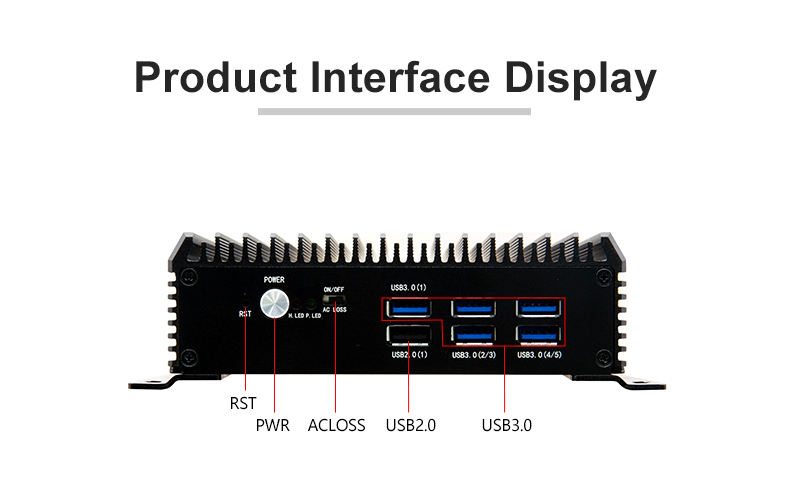

Front Panel Connectors

POWER

1*Power Switch, 1*One-Key   Restore, 1*ACLOSS (Power On DIP Switch)

LED

1*Power Indicator, 1*Hard Drive   Indicator

USB

5*USB3.0, 1*USB2.0

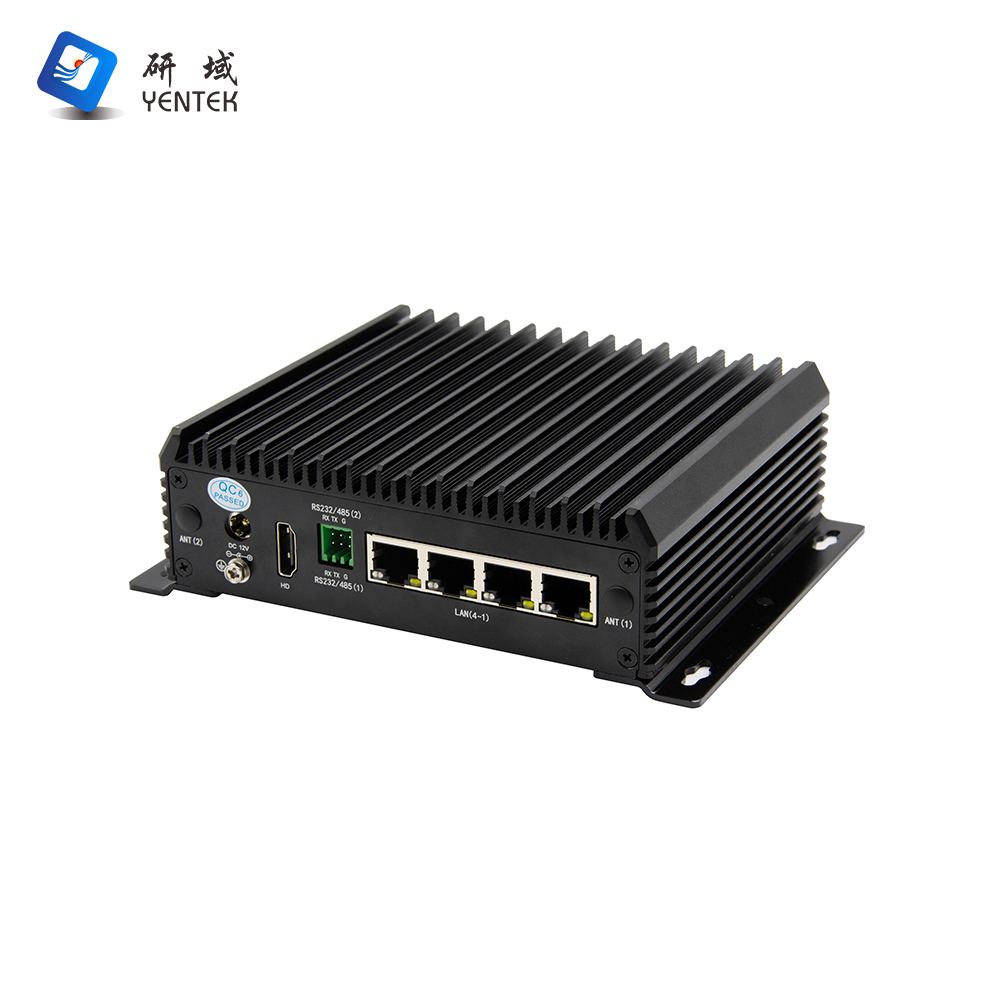

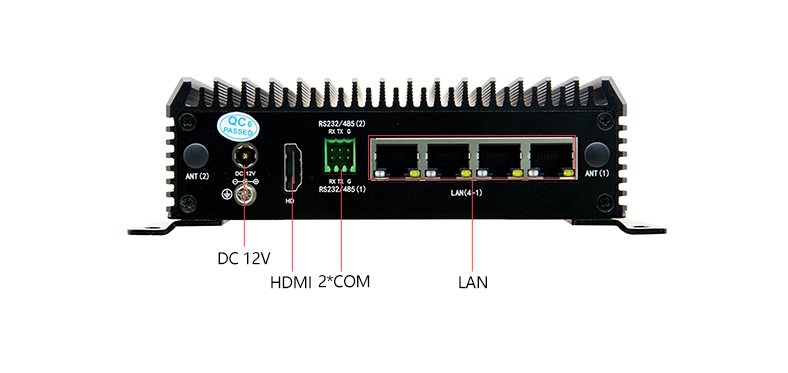

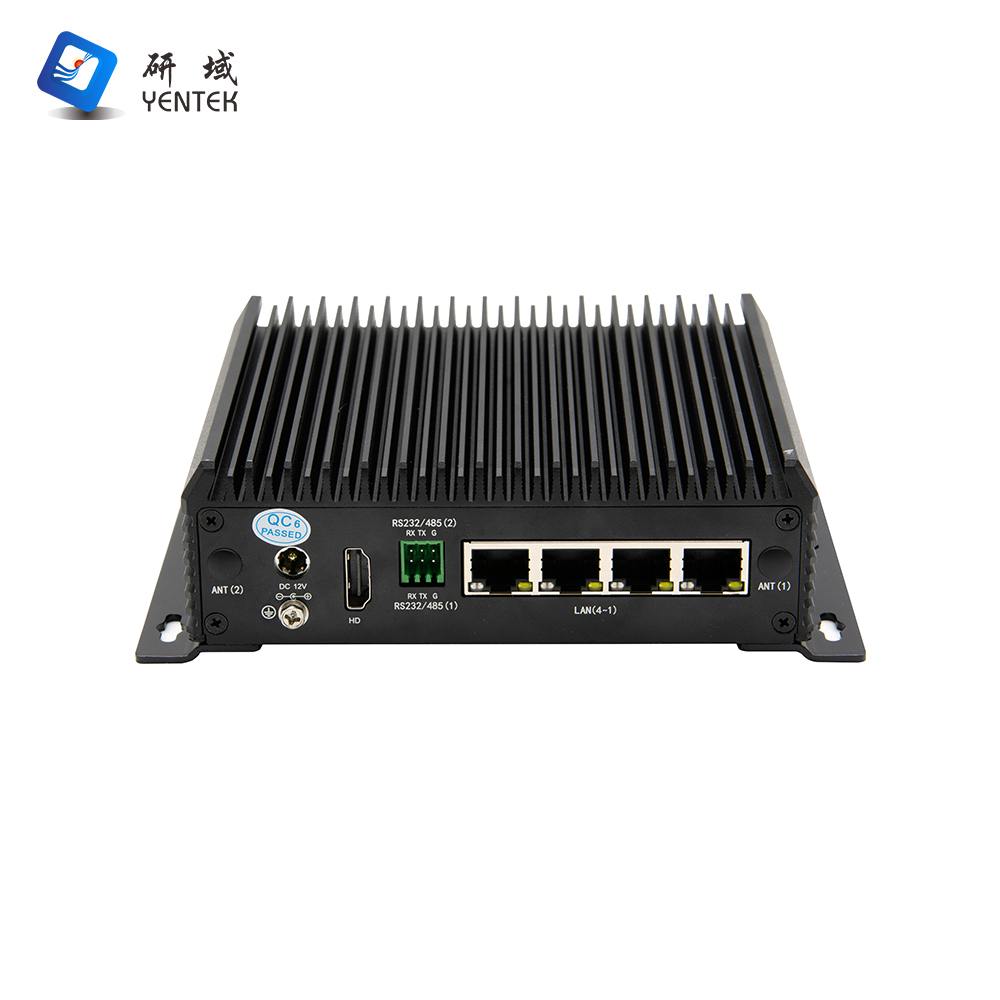

Rear Panel Interface

Display Interface

1*HDMI1.4(4096x2160@60Hz)

LAN

4*Intel I210 Gigabit power port,   support Wake on LAN, PXE function

COM

2*RS232/485 (located in   2*3PP=2.54 Phoenix terminal)

Power supply

1*DC 12V (5.5*2.5)

Storage

M.2

1*M.2, support Key-M, 2280, NVME   PCIE x1/SATA Adaptive SSD

SATA

1*2.5 inch HDD bay (7mm   thickness)

Expansion

WiFi/4G

1*MINIPCIE, support WIFI or 4G   module

System Support

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support hardware reset function   (256 levels, 0~255 seconds)

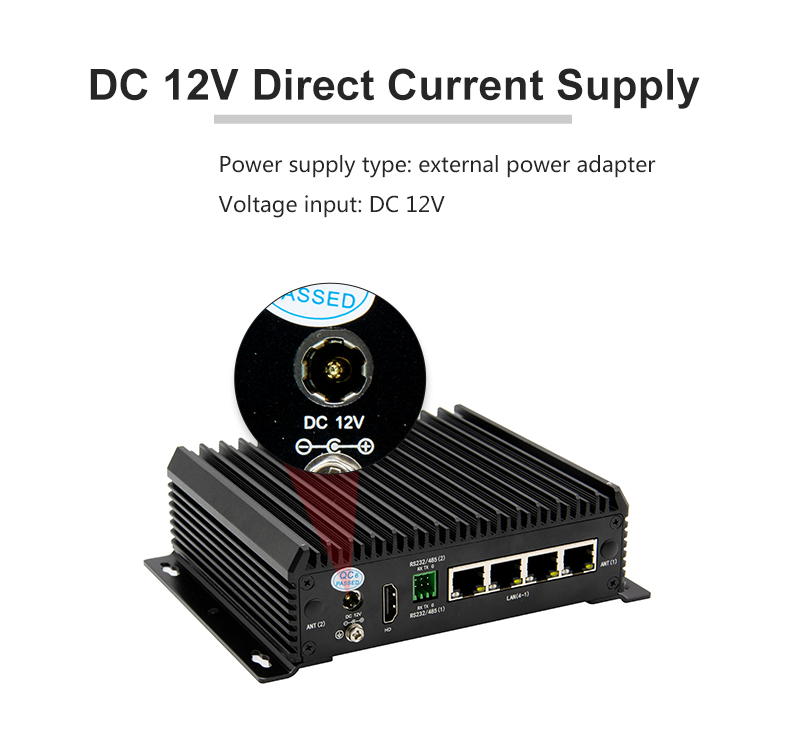

Power Requirements

Power supply type

External Power Adapter

Voltage Input

DC 12V

Power Output

AC TO DC 36W

Environments

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5%-95% relative humidity,   non-condensing

Operating Vibration

0.5g   rms/5-500HZ/random/operating

1

C2120Z-L4 V2.0(N97)

N97/Turbo 3.6G

1*SODDR4

STX-R305E

M.2+2.5

4*I210

2

1

5

1

DC 12V
