Model | C2120E-C2 V2.0(8265U) |
Chassis | Material/structure | All aluminium alloy, fanless cooling structure |
Colour | Black colour |
Size (LWH) | l141.4*w126*h44mm |
Weight (bare net) | 0.8KG |

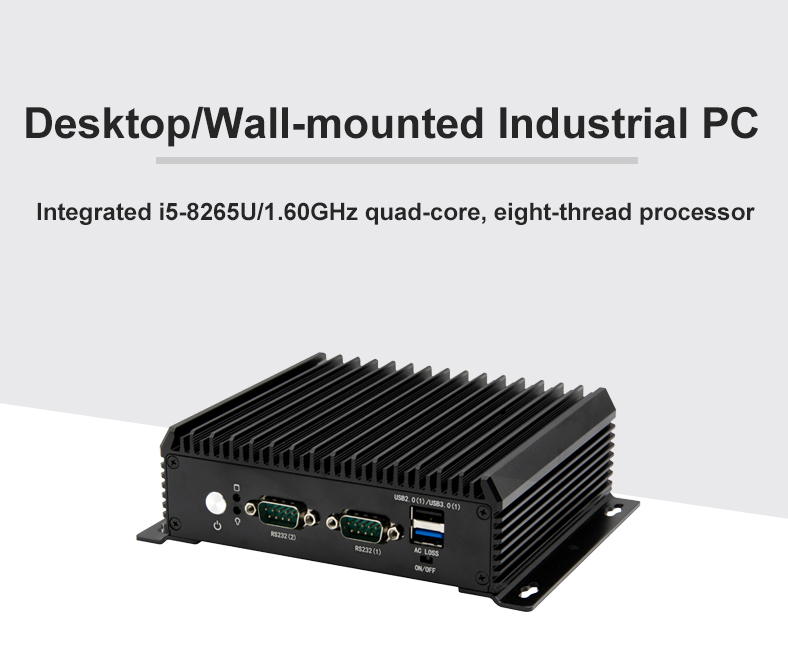

Installation | Desktop/Wall-mounted |
CPU | Integrated Intel® i5-8265U/1.60GHz Quad-Core 8-Thread Processor, TDP 15W (Optional 4305U/5405U/1135G7) |
Memory | Integrated 8G LPDDR4x 4266MHz memory (1135G7) |
Integrated 8G LPDDR3 2133MHz memory (8265U) |
Integrated 4G LPDDR3 1866MHz Memory (4305U/5405U) |
eMMC5.1 | Integrated 64G (4305U & 5405U only) |
WiFi | Intel®WiFi6 AX201 + Bluetooth 5.1 (1135G7) |
Intel®WiFi5 AC9560 + Bluetooth 5.0 (8265U/4305U/5405U) |
Front Panel Connectors | POWER | 1*Power switch, 1*ACLOSS (power-on toggle switch) |
LED | 1*Power Indicator, 1*Hard Drive Indicator |
USB | 1*USB3.0, 1*USB2.0 |
COM | 2*RS232 DB9 serial port |

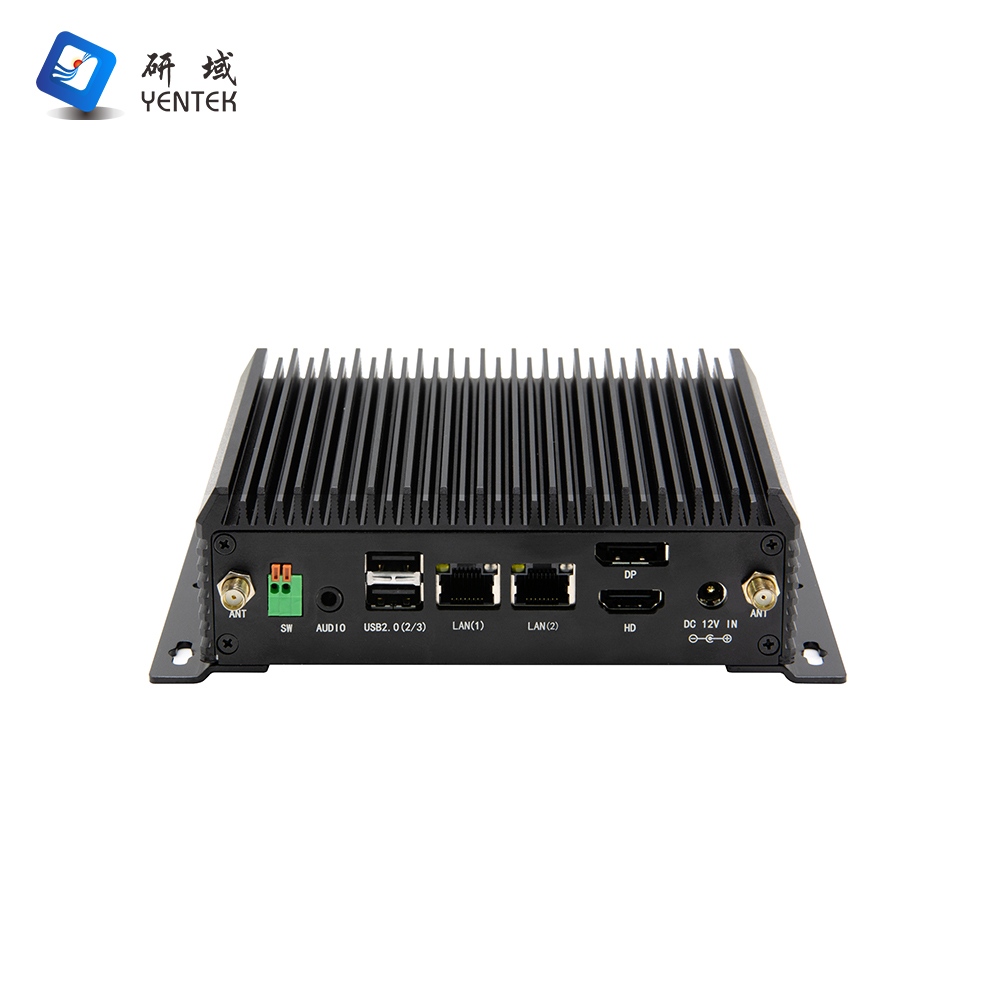

Rear Panel Connectors | Display Interface | 1*HDMI(4096x2304@60Hz), 1*DP(4096x2304@60Hz), support dual display |
LAN | 2*RTL8111H Gigabit power port, support Wake-on-LAN, PXE function |
USB | 2*USB2.0 |
Phoenix Terminal | 1*2P (power-on signal, can be a remote switch) |
AUDIO | 1*Audio, Line out and MIC 2-in-1 |
Power Supply | 1*DC 12V (5.5*2.5) |
Storage | SSD | 1*M.2, support Key-M, 2280, NVME PCIEx4 SSDs |
System Support | Windows | Windows 10 |
Linux | Ubuntu |
Watch Dog | Support hardware reset function (256 levels, 0~255 seconds) |
Power Requirements | Power Supply Type | External Power Adapter |
Voltage Input | DC 12V |
Power Output | AC TO DC, 60W |
Environment | Operating Temperature | -10℃～50℃ |
Storage Temperature | -20℃～70℃ |
Relative Humidity | 5%-95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
