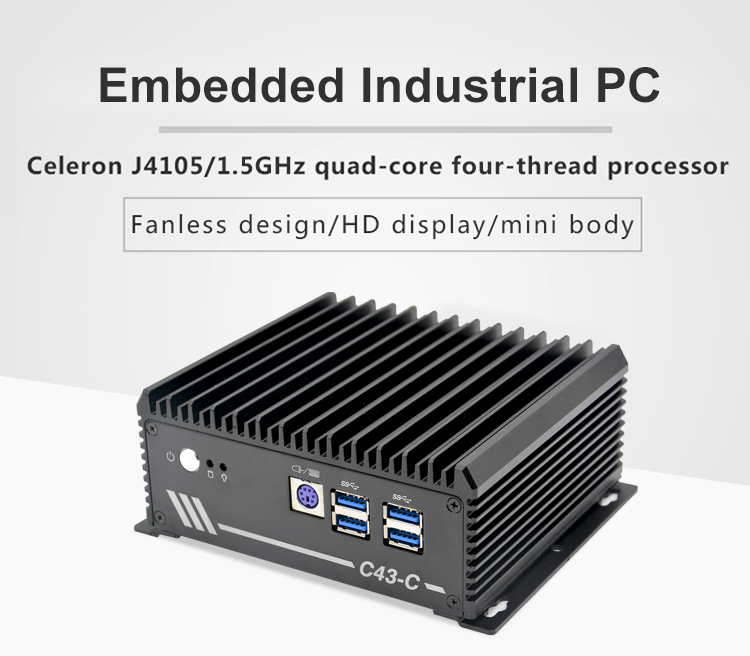

| Model number | C4350Z-C1 V1.0(J4125) | |

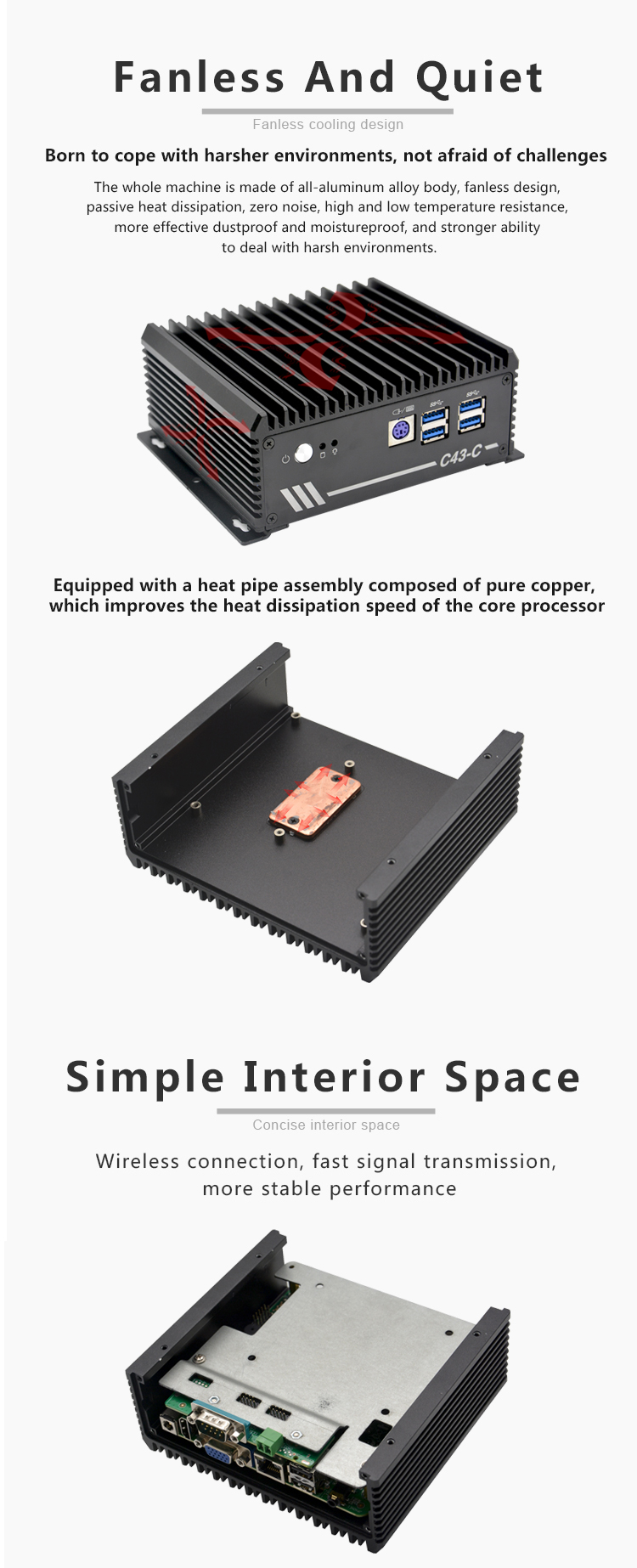

| Chassis | Material/Structure | All aluminium alloy, fanless cooling structure |
| Colour | Black colour | |

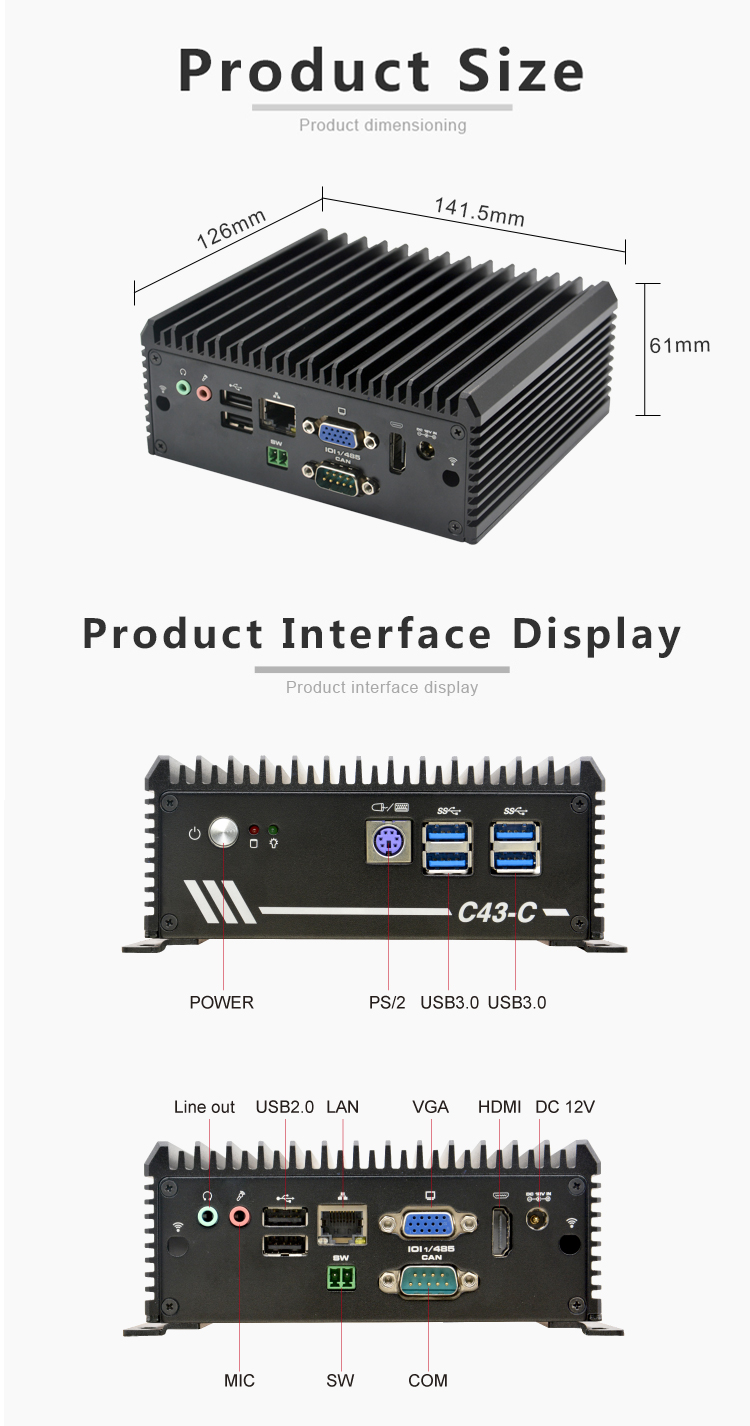

Dimension(L*W*H) | 141.5*126*61MM | |

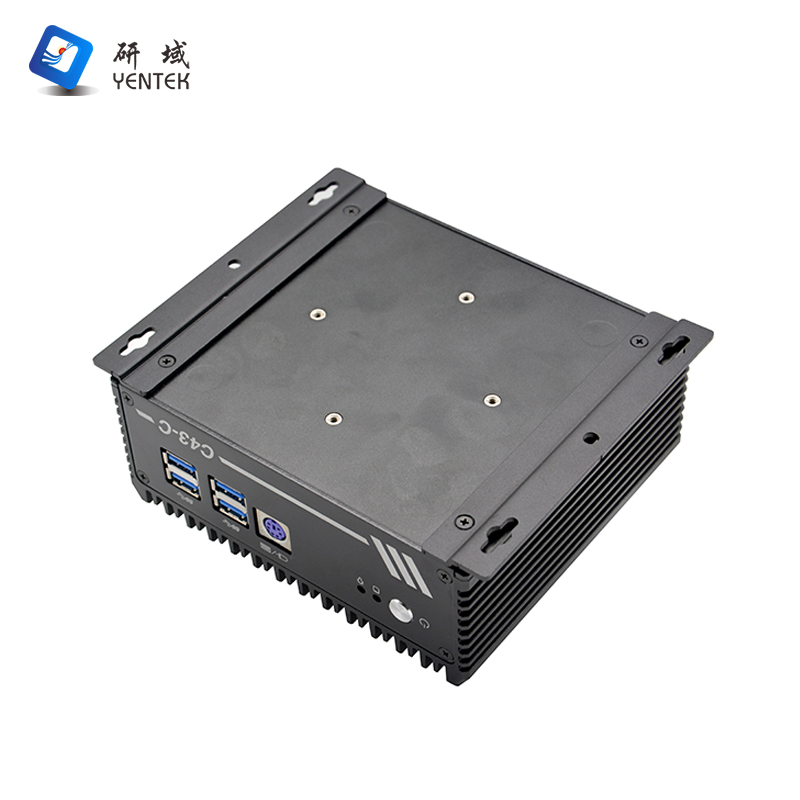

| Installation | Desktop/Wall Mount | |

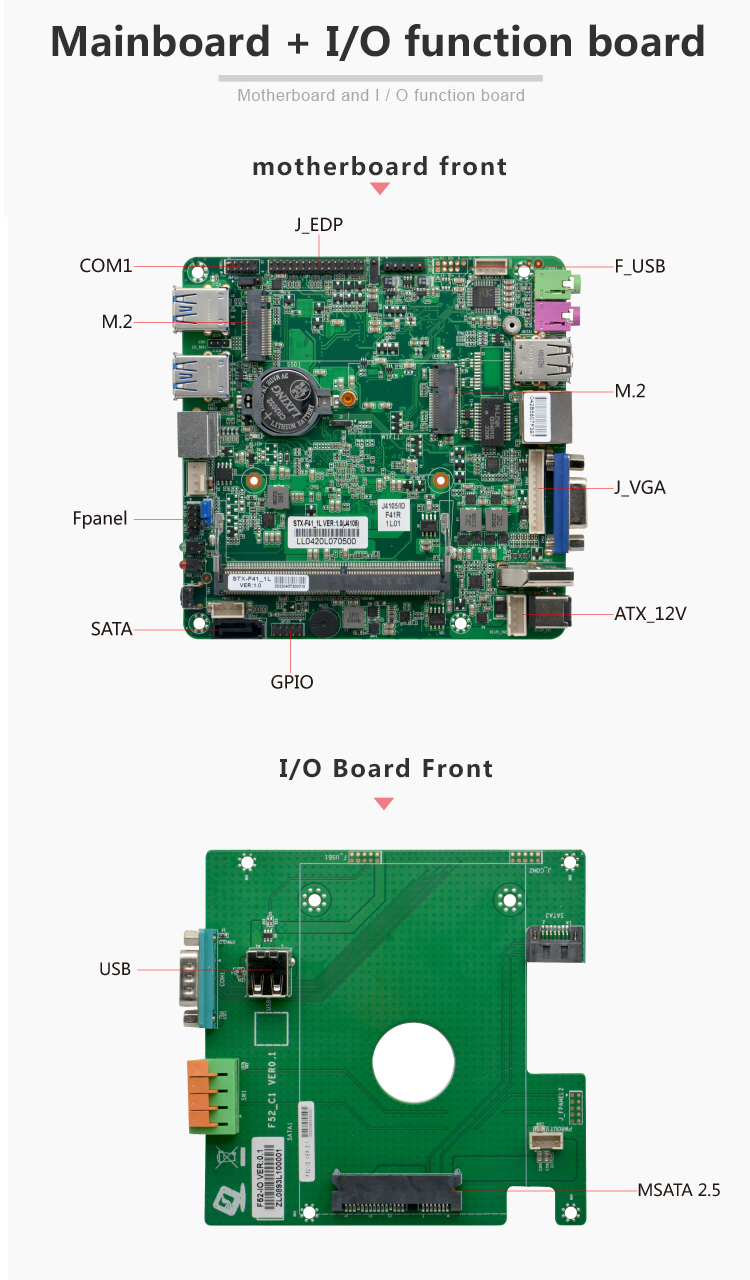

| Motherboard | CPU | Integrated Intel® Celeron J4125 2.0GHz Quad-Core Quad-Thread Processor, TDP 10W |
| System Chip | SOC | |
| Display | Integrated Intel® UHD Graphics 600 core graphics card | |
| Memory | 1* SODIMM memory slot, support DDR4 2400MHz memory, maximum support 8GB | |

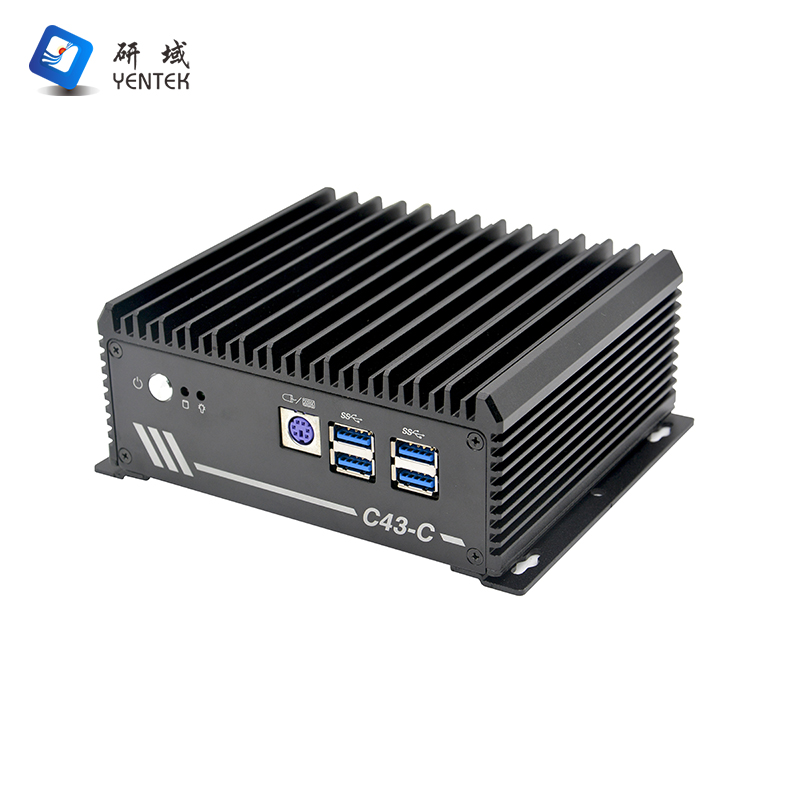

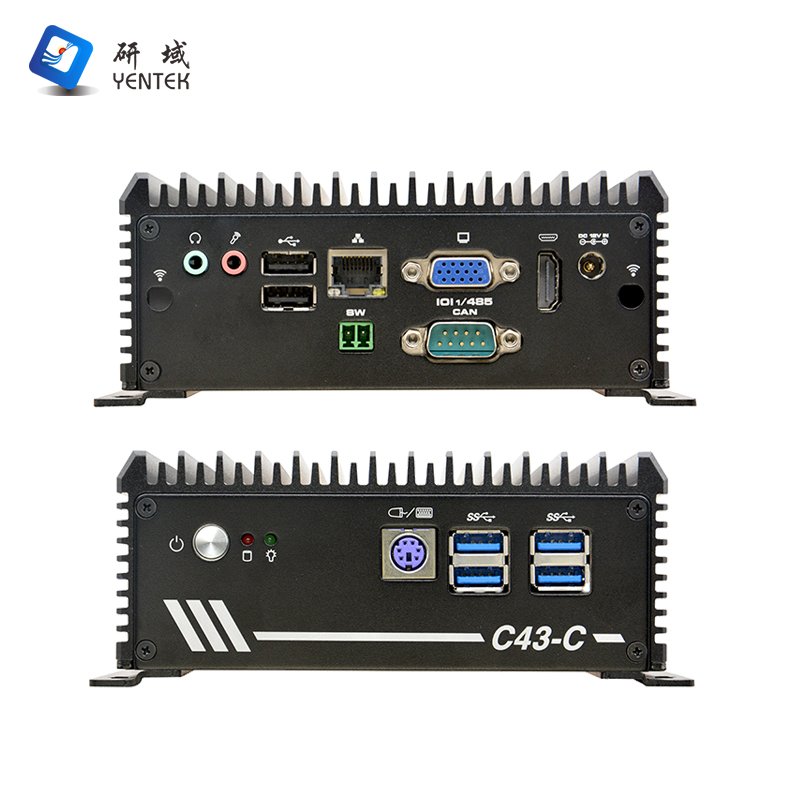

| Front Panel Connectors | POWER | 1* Power Switch |
| LED | 1*P.LED, 1*H.LED | |
POWER LED | 4* USB3.0 ports | |
| PS / 2 | 1 * PS / 2 interface | |

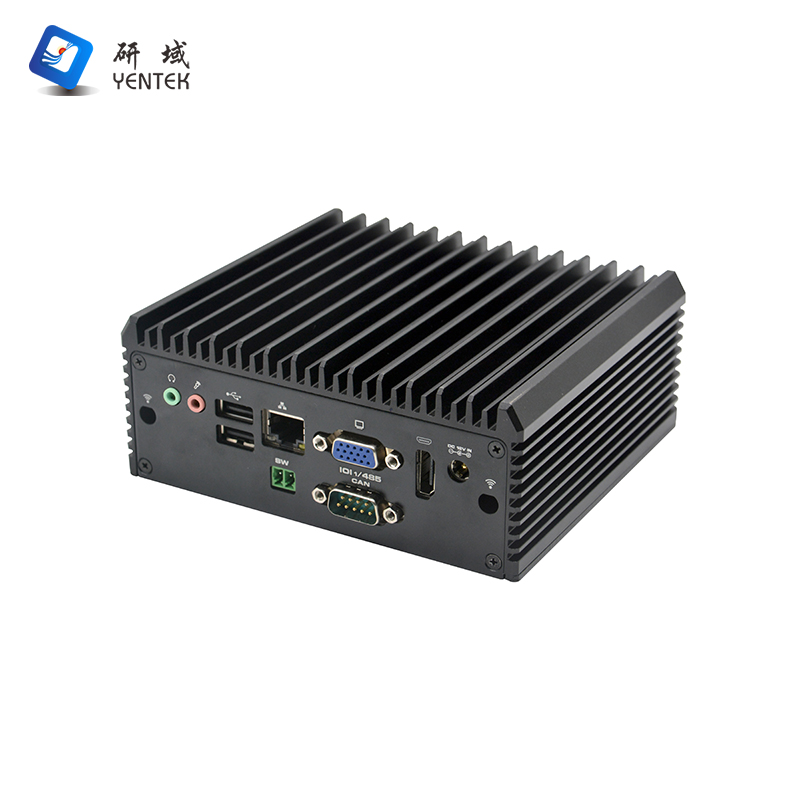

| Rear Panel Interface | Power | 1*2PIN Remote Switch |
| Display Port | 1* VGA port, 1* HDMI port (4096x2304@24Hz) | |
| LAN | 1* Realtek8111H Gigabit LAN card, support Wake on LAN, PXE function | |
| USB | 2* USB2.0 interface | |
| COM | 1*RS232 DB9 interface | |
| AUDIO | 1* Line out interface, 1* MIC interface | |
| Power supply | 1* DC power interface, support DC 12V power input | |
| Storage | SATA | 1* SATA 3.0 hard drive interface, SATA interface transfer speed up to 6Gbps |
| MSATA | N/A | |
| M.2 | 1* M.2 slot 2280， support SATA | |
| Expansion | Mini PCIE | N/A |
| M.2 | 1* M.2 slot, 2230, supports WiFi | |
| OS support | Microsoft Windows | Windows 10, 64bit(without key) |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function (L256，0~255 seconds) | |

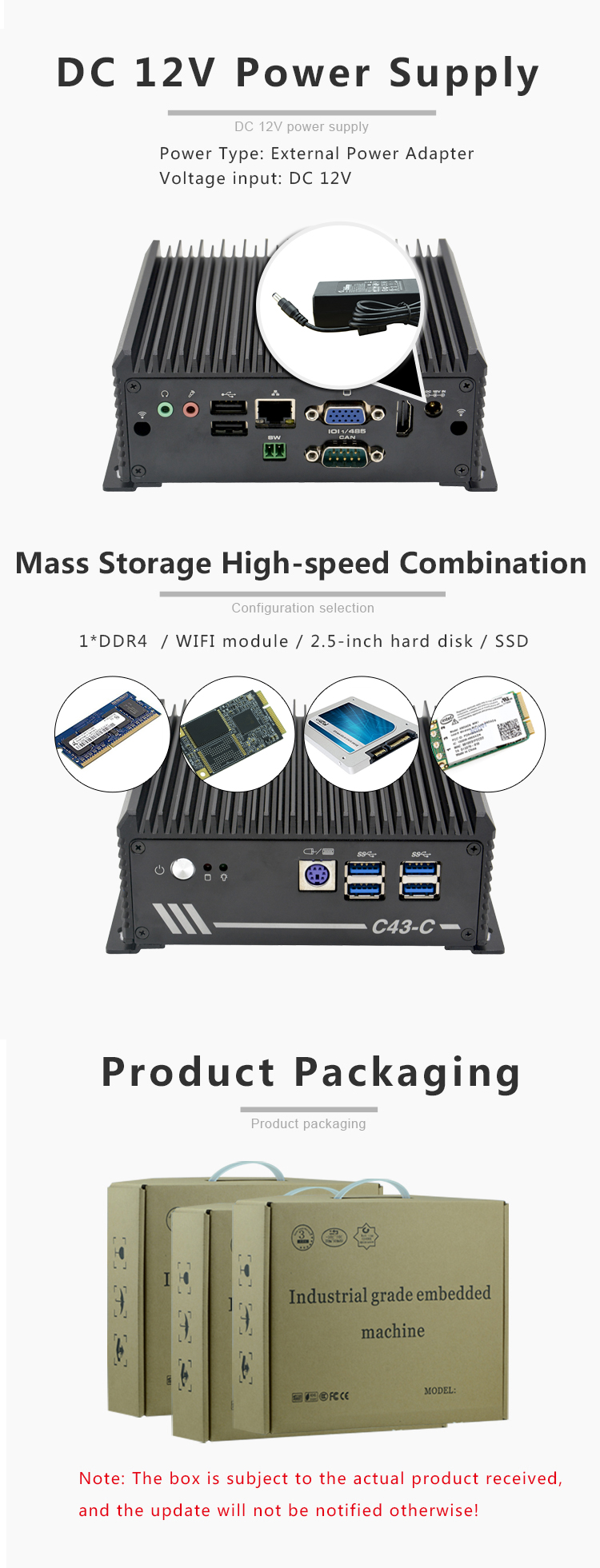

| Power Supply | Power Type | External power adaptor |
| Voltage Input | DC 12V | |
| Power output | AC TO DC, 36W/60W | |
| Environment | Operating temperature | -10℃～60℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Motherboard | Memory | M.2 | LAN | COM | HDMI | VGA | USB 2.0 | USB 3.0 | AUDIO | Power |
| 1 | C4350Z-C1 V1.0(J4125) | J4125/2.0GHz | F41_1L F52-C1 | 1*DDR4 | 1 | 1*RTL8111H | 1 | 1 | 1 | 2 | 4 | 1* Line out 1* MIC | DC 12V |
