ITX-B430_I526L
Options: 12 sizes
$
69.00
Add to cart
+852 9458 7694
Product description
| Product model | ITX-Y86_D11L VER:1.1 |
| Processor | Support Intel® PGA 946 Intel® haswell 4th generation Celeron/Pentium/Corei3/i5/i7 series processors |
| Chipset | Adopt Intel®HM86 express chipset |
| Memory | 1*SODIMM RAM slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB |
| Interface | 1*VGA,2*HDMI，1* LVDS, support dual channel 24BIT |
Supports VGA/HDMI/LVDS synchronous/asynchronous display | |
| Graphics | Intel®HD Graphics |
| LAN | 1* RTL8111H Gigabit Ethernet, support WOL / PXE function |
| Storage | 1* SATA HDD port, transfer rate up to 6Gbps |
| 1* MSATA slot, support Intel protocol SSDs, transfer rate up to 6Gbps | |
| Audio | Onboard ALC662 6 channel high fidelity audio controller, support MIC/Line-out, amplifier Amplifiers support 2Ω/5W dual channel |
| Expansion | 1* Mini-PCIE slot，support WIFI module |
| Rear Panel I/O port | 2* USB3.0,2* USB2.0 |
| 2* HDMI | |
| 1* DB15 VGA, optional with DB9 serial port, default VGA | |
| 1* RJ45 Gigabit LAN port | |
| 1* Line-out(green),1*MIC (red) | |
| 1* DC12V power input port, support 2V power input/output | |
| Interior I/O port | 1* JVGA port, 1*12pin, same signal as DB15 |
| 1* LVDS port，2*15pin，support dual channel 24BIT | |
| 1* Screen backlight power connector, 1*6pin | |
| 1* Screen brightness adjustment connector, 1*4pin | |
1* RS232 COM port, 2*5pin, optional with external serial port, default row of pins | |
| 4* USB2.0, 2*5pin | |
1* Front audio port, 2*5pin | |
| 1* Amplifier port, 1*4pin | |
| 1* Hard drive supply voltage interface ,1*4pin | |
| 1* Front panel function button and LED indicator ,2*5pin | |
| 1*4pin ATX power port, support 12V power input/output | |
| Fan interface | 1*4pin CPU smart fan connector, 1*4pin system smart fan connector |
| GPIO | Support 4-in 4-out GPIO function |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 7/10/8.1 |
| Power supply type | Support DC12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

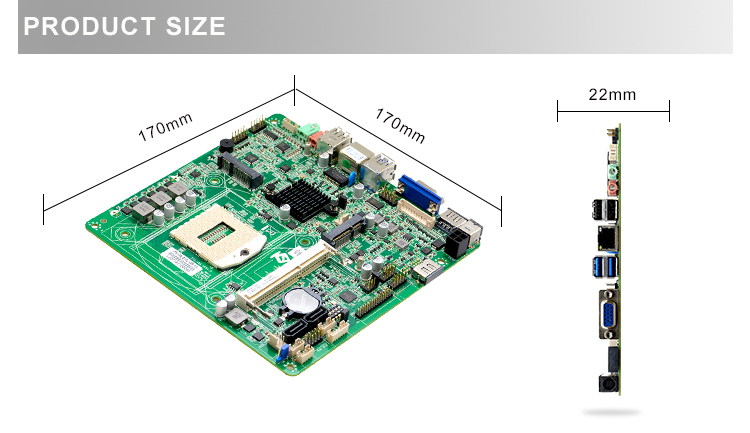

| Dimension | 170mm x 170mm |
Order Information
| NO. | Model | Processor | Frequency | Memory | VGA | HDMI | LVDS | EDP | LAN | USB | COM | RS485/422 | Power |
| 1 | ITX-Y86_D11L VER:1.1 | FPGA 946 | / | 1*SODDR3L | 1 | 2 | 2ch*24bit | / | 1*8111H | 8 | 1 | / | DV12V |
