ITX-B430_I526L
Options: 11 sizes
$
68.00
Add to cart
+852 9458 7694
Product description

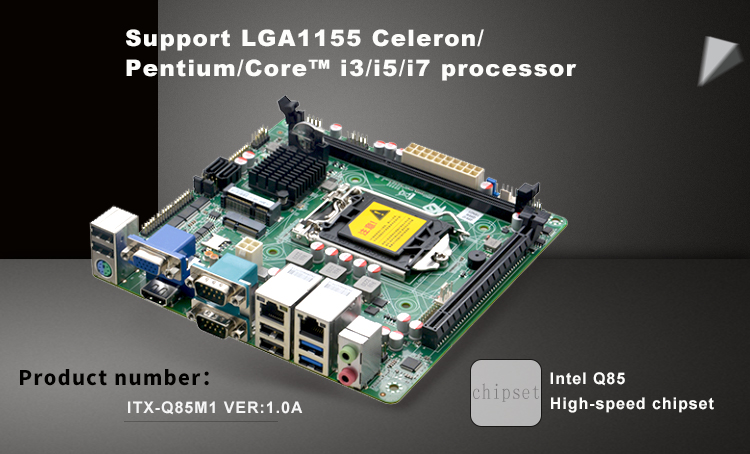

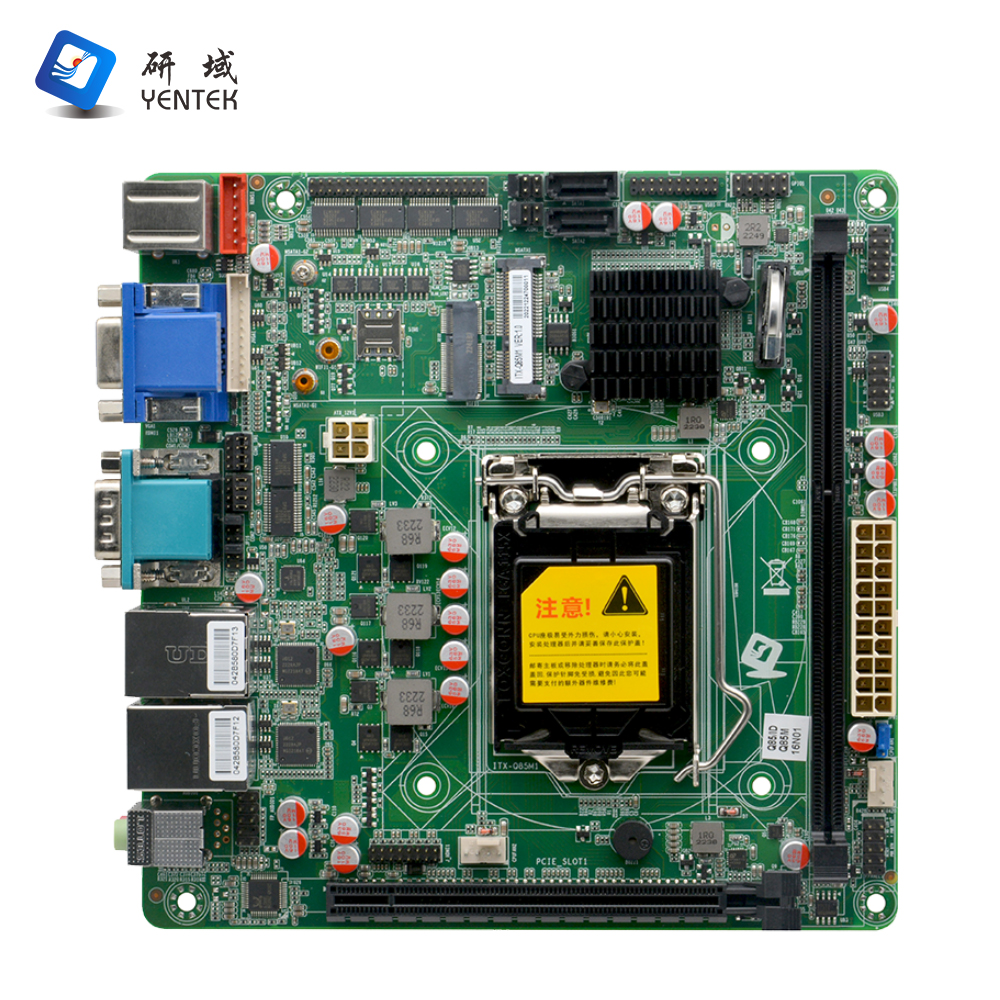

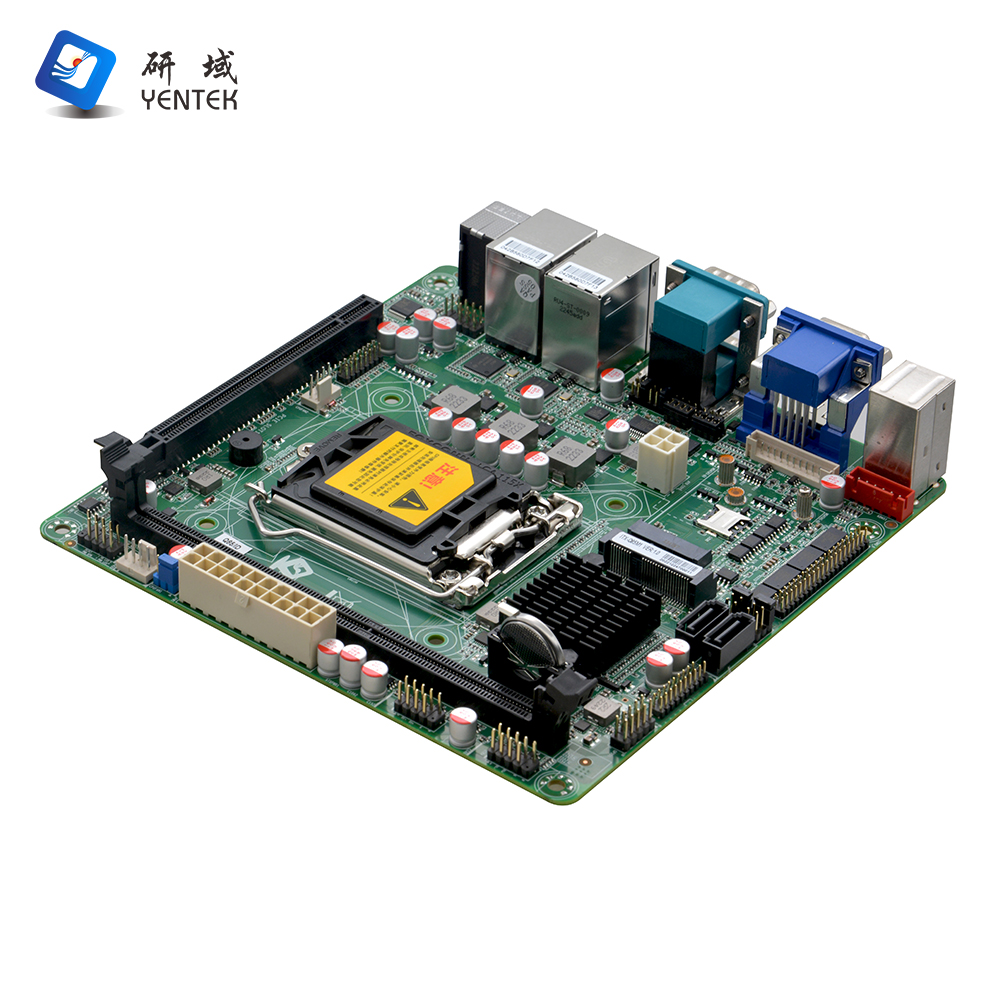

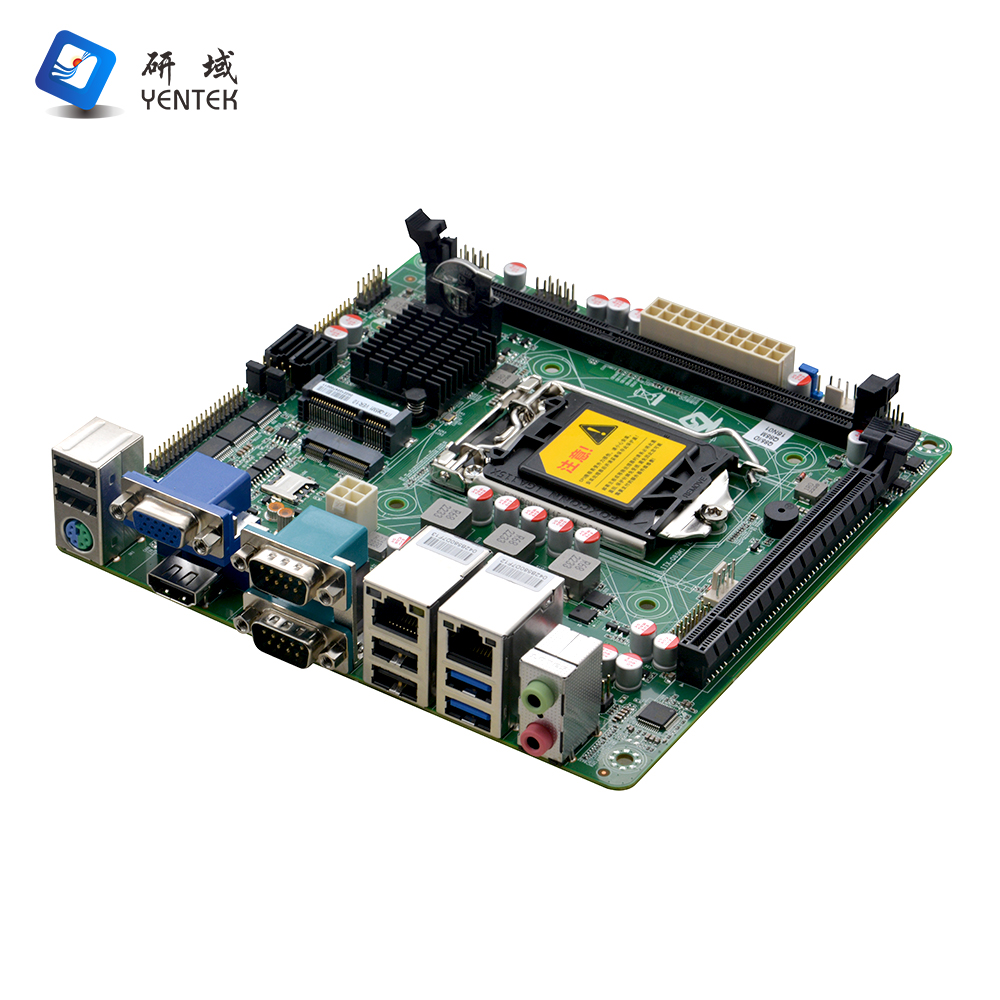

| Product model | ITX-Q85M1 VER:1.0A |
| Processor | Supports LGA1150 Intel® Celeron/Pentium/Core™ i3/i5/i7 processors |
| Chipset | Intel® Q85 high-speed chipset |
| Internal memory | 1* DDRIII DIMM memory slot, supporting a single channel of 1600/1333MHz memory, up to 8GB |
| Display | Integrated Intel® HD graphics controller, supporting DirectX11.2,OpenGL4.3 |
1*VGA,2*HD OUTPUT display output, support VGA/HD OUTPUT synchronous/asynchronous display | |
| Network | 2* WGI210AT Gigabit network adapter chip, support network wake up /PXE function |
| Deposit | 2* SATA hard disk interface (where SATA1 supports SATA3.0, transmission speed up to 6Gbps) |
| 1* MSATA slot, support SSD, support 4G module or Intel protocol SSD, transmission speed up to 6Gbps | |
| Note:MSATA supports TPM-4COM to expand four serial ports, requiring material changes and BIOS changes | |
| Tone frequency | Onboard ALC888S 7.1+ 2-channel hi-Fi audio controller with MIC/Line-out support |
| Expansion | 1 x PCIE X16 slot |
| 1* M.2 slot, supporting the M.2 Key E 2230 WIFI module | |

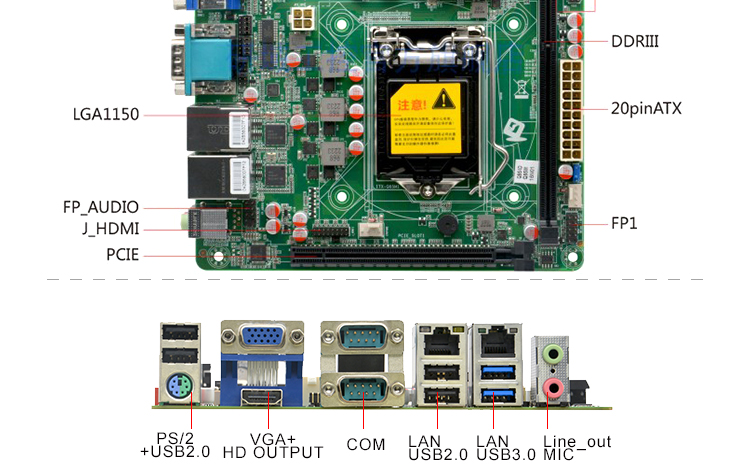

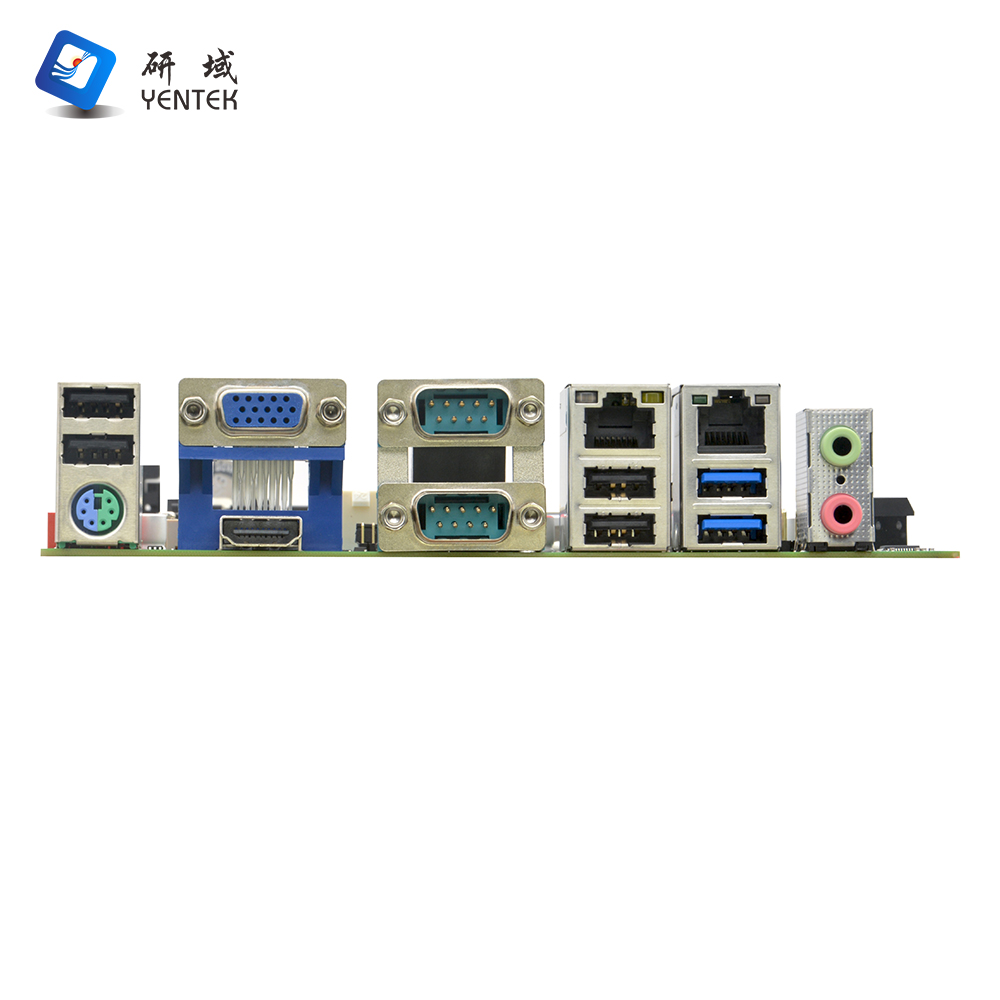

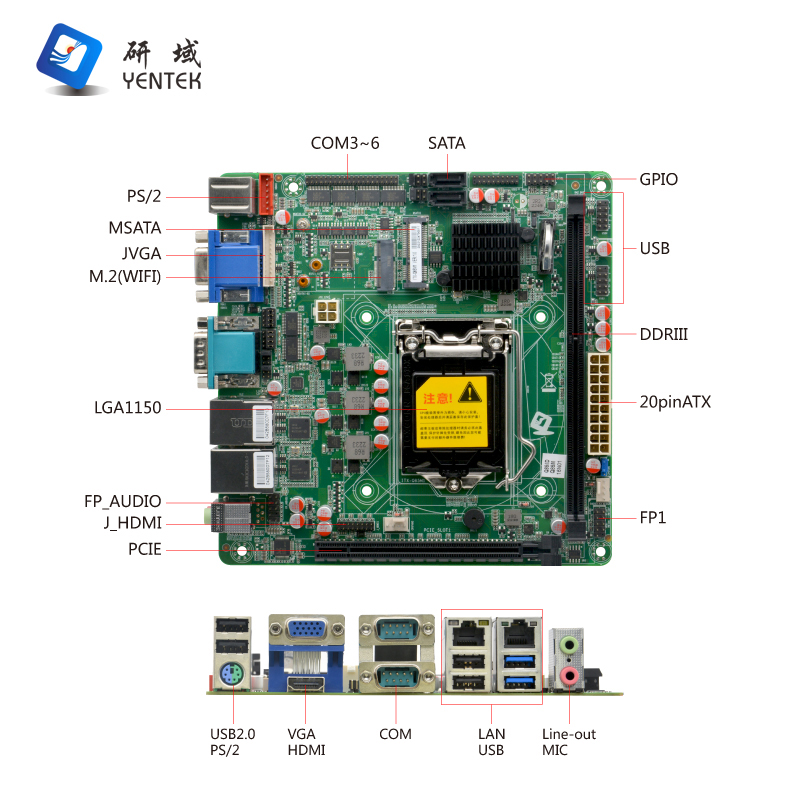

I/O ports on the backplane | 1* PS/2 interface (expandable keyboard and mouse) |
| 1 x VGA display port | |
| 1* HD OUTPUT display interface | |
| 2* DB9 COM serial port, support 9pin live function, support RS485/422 | |
| 4* USB 2.0 port | |
| 2* USB 3.0 interface | |
| 2* RJ-45 Gigabit network interface | |
| 1* Dual-layer audio interface (sound output and MIC input) | |

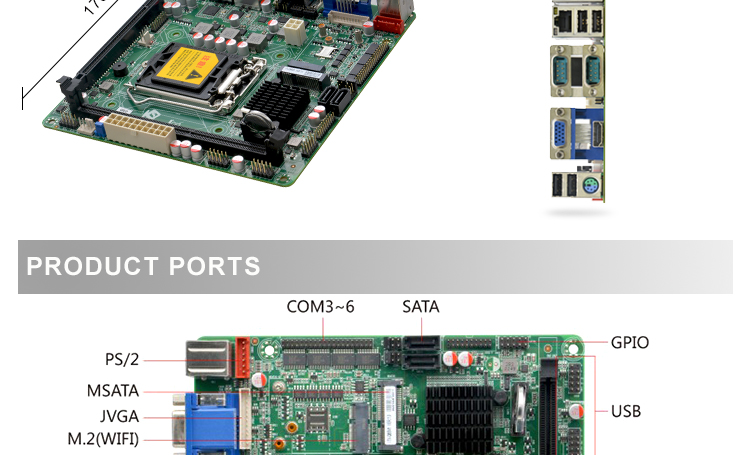

| Built-in I/O interface | 1* 20pinATX power outlet, |
| 1*4pin ATX power interface | |
| 1* PS/2 keyboard and mouse interface 1*6Pin | |
| 4 x RS232 serial port 2 x 20pin | |
1* front audio interface 2*5pin | |
| 1* HD OUTPUT port 2*8Pin | |
1*JVGA port 1*12pin, same signal as DB15 | |
| 4* USB 2.0 interface 2*5Pin | |
| 2* USB3.0 interface 2*10pin | |
| 1* SIM card slot | |
| 1* Front panel function button and indicator port 2*5pin | |
| Fan interface | 1* 4pinCPU fan interface; 1* 4pin system fan port |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 7/Windows 10/Linux |
| Power supply type | Powered by ATX 24Pin and 4pin power supplies |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

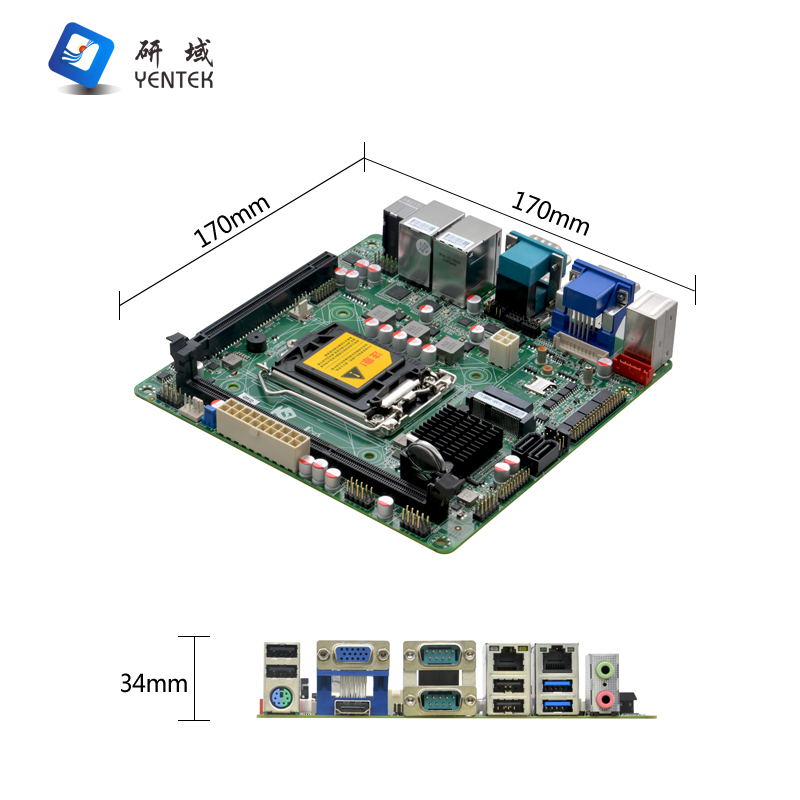

| Dimension | 170mm x 170mm |
Order Information
| NO. | Model | Processor | Frequency | Memory | VGA | HD OUTPUT | LAN | USB | COM | RS485/422 | Power |
| 1 | ITX-H81R1 VER:1.0A | LGA1150 | Chipset | 1*DDR3 | 1 | 1 | 2*8111H | 10 | 6 | 2 | ATX |
| 2 | ITX-P85M1 VER:1.0 | LGA1150 | Q85 | 1*DDR3 | 1 | 1 | 2*210AT | 12 | 6 | 2 | ATX |
| 3 | ITX-Q85M1 VER:1.0A | LGA1150 | Q85 | 1*DDR3 | 1 | 1 | 2*I210AT | 12 | 6 | 2 | ATX |
