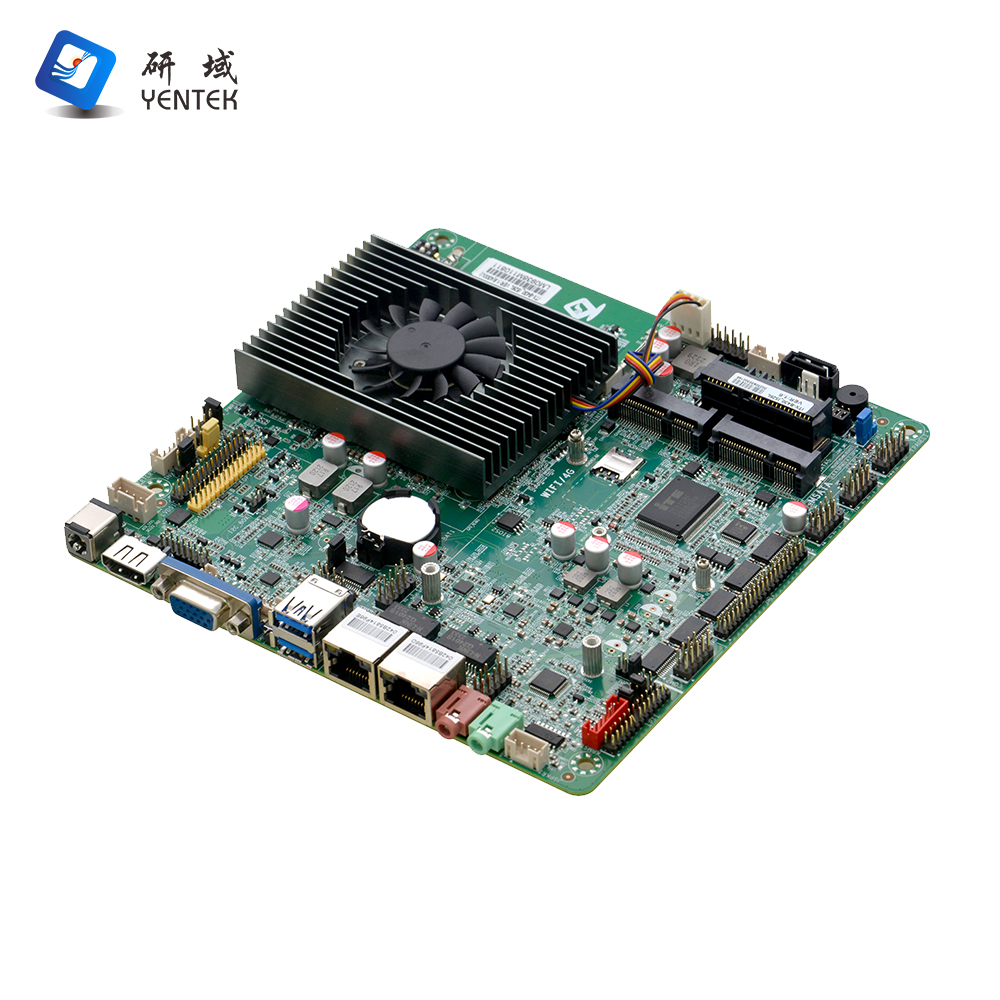

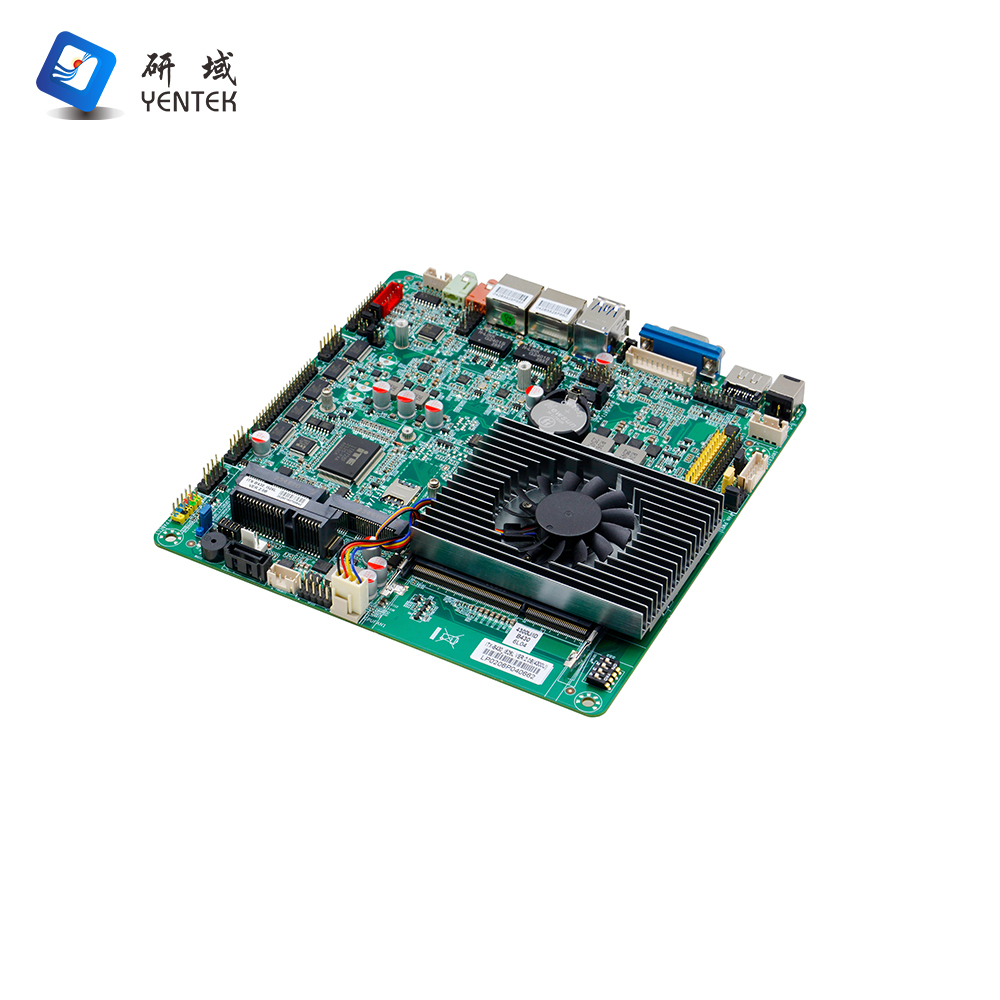

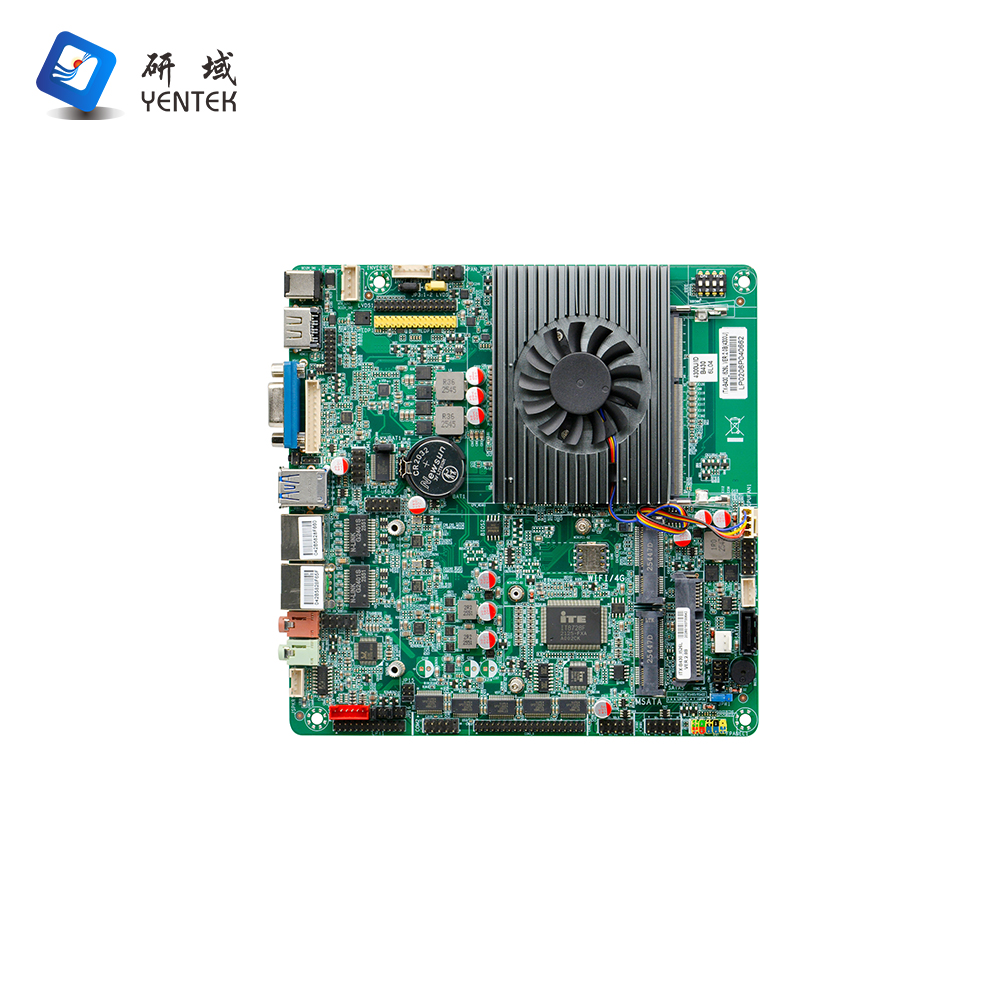

| Product model | ITX-B430_I526L VER:1.6(4300U) |
| Processor | Intel®Haswell-U I5-4300U/1.9GHz dual core quad thread processor,TDP 15W |
| Compatible with Intel Celeoron,Pentium,Core®I3/I5/I7 Haswell/Broadwell-U processor |
| Chipset | Intel®Haswell-U/Broadwell-U SOC |
| Memory | 1* SODIMM slot, support 1600/1333MHz DDR3L/1.35V memory, max up to 8GB |
| Display | Intel® HD Graphics 4400 |
1* VGA,1*HDMI,1*LVDS (support dual channel 24BIT) or 1*EDP port,
1*EDP and LVDS choose one from two via jumper, default LVDS |
| Supports separate display, dual display mode, extended mode |
| LAN | 2* RTL8111H Gigabit Ethernet, support WOL / PXE function |
| Storage | 1* SATA3.0 2.5-inch Notebook Hard Drive Bay |
| 1* 7pin SATA3.0 HDD port, transfer rate up to 6Gbps |
| Tone frequency | Onboard ALC262 6-channel high fidelity audio controller, support MIC/Line-out , Amplifier |
| Recommended amplifier is 2Ω 5W speaker |
| Expansion | 1* Mini-PCIE slot, support WIFI/4G module |
| 1* MSATA slot, support Intel protocol SSDs, transfer rate up to 6Gbps |
Note: If MINIPE1 needs to support 4G modules, the relevant hardware settings need to be adjusted, and it will cause F_USB2 to support only one USB |

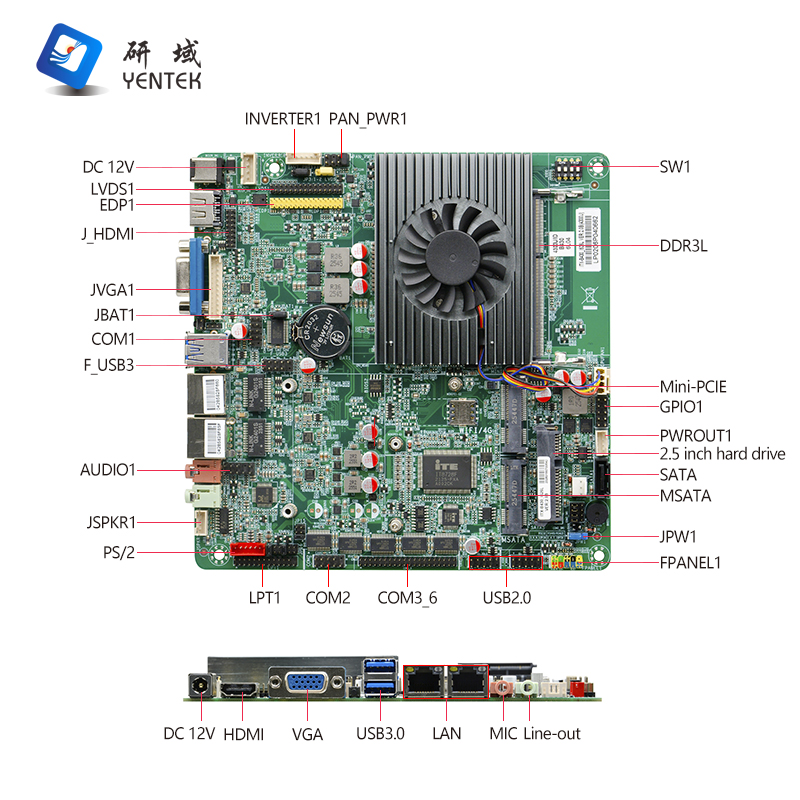

Rear Panel
I/O port | 1* 12V DC JACK power input/output |
| 1* HDMI |
| 1* VGA |
| 2* USB 3.0 |
| 2* RJ-45 Gigabit LAN port |
| 1* Line out (green) |
| 1* MIC (red) |
| Interior I/O port | 1* JVGA1,1*12Pin( same signal as DB15） |
| 1* J_HDMI, 2*8pin( same signal as backplane IO interface HDMI ) |
| 1*Support dual channel 24bit (dual 8) LVDS port, 2*15pin |
| 1* LVDS Backlight power connector, 1*6pin |
1* EDP port, 2*15pin(yellow),
EDP and LVDS choose one from two via jumper, default LVDS |
| 1* Screen brightness adjustment connector, 1*4pin |
1* Front audio port, 2*5pin |
| 1* Front amplifier port,1*4Pin |
| 6* USB 2.0 port, 2*5Pin |
6* RS232 COM port,2*5pin,
COM1/COM2 support the 9th pin charged function,COM2 support RS485 |
| 1* LPT, 2*13pin |
| 1* PS/2 KB/MS port, 1*6Pin |
| 1* HDD power supply port, 1*4pin |
| 1* SIM card slot |
| 1* Front panel function button and LED indicator port, 2*5pin |
| 1* DC 12V power port, 1*4pin |
| Fan interface | 1* 4pin CPU smart fan connector, 1* 3pin system fan connector |
| GPIO | Supports four input/output GPIO |
| BIOS | AMI 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 7/Windows 10/Linux |
| Power supply type | DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

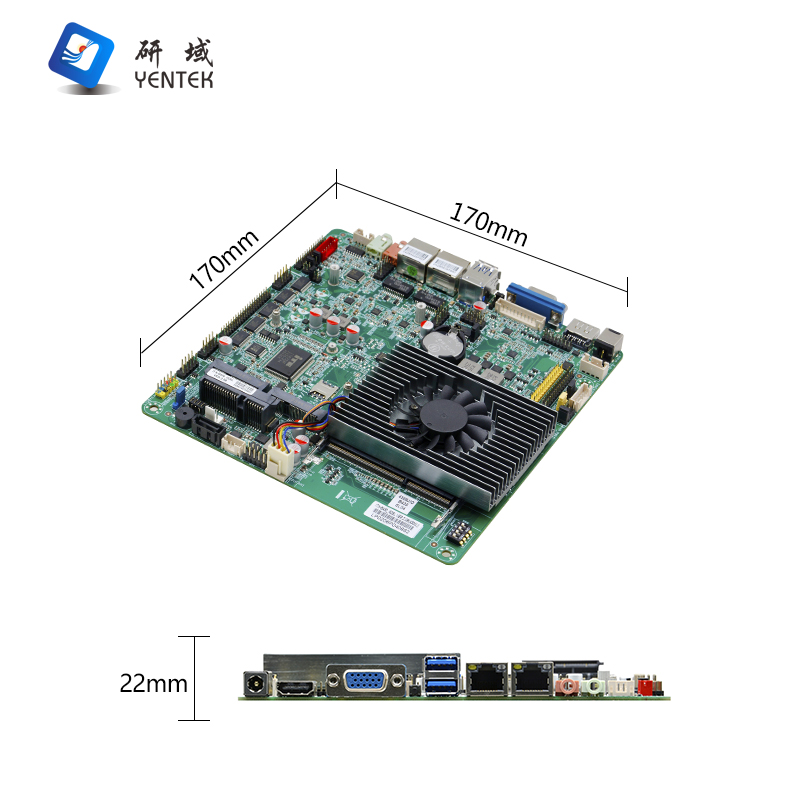

| Dimension | 170mm x 170mm |
