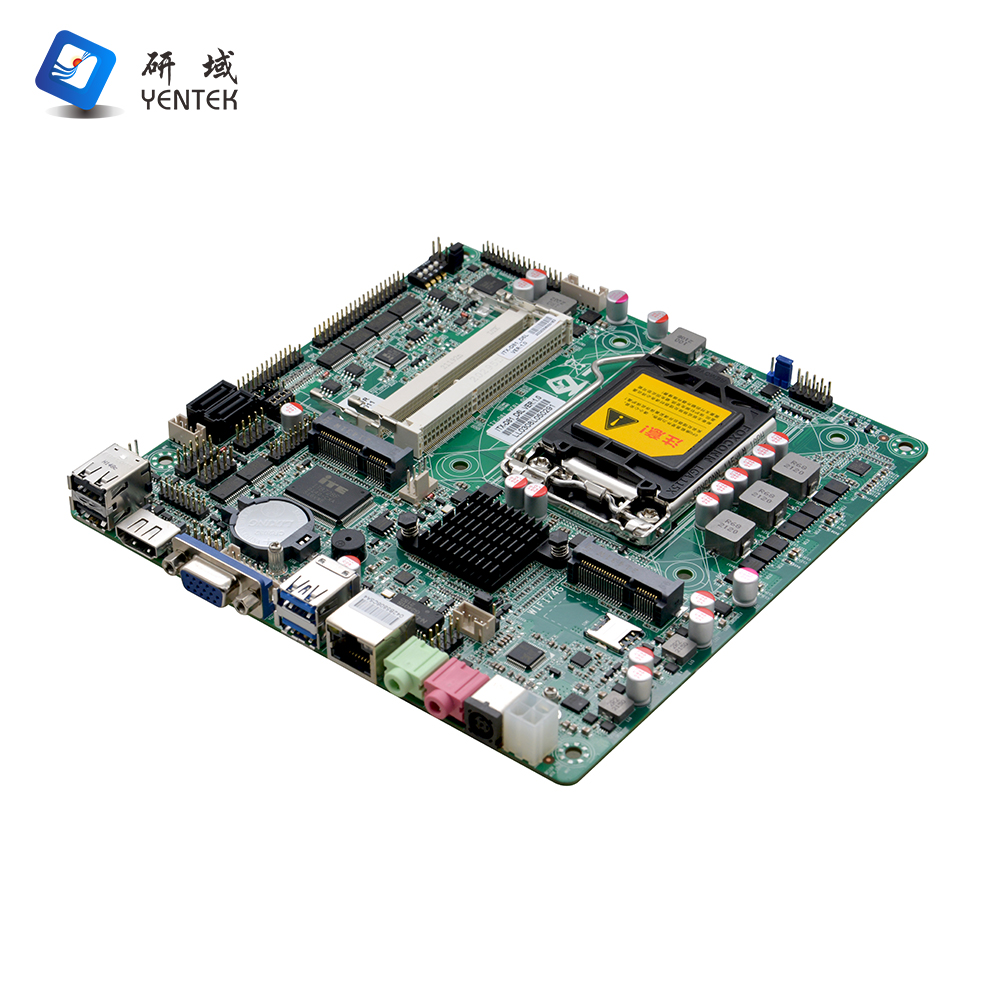

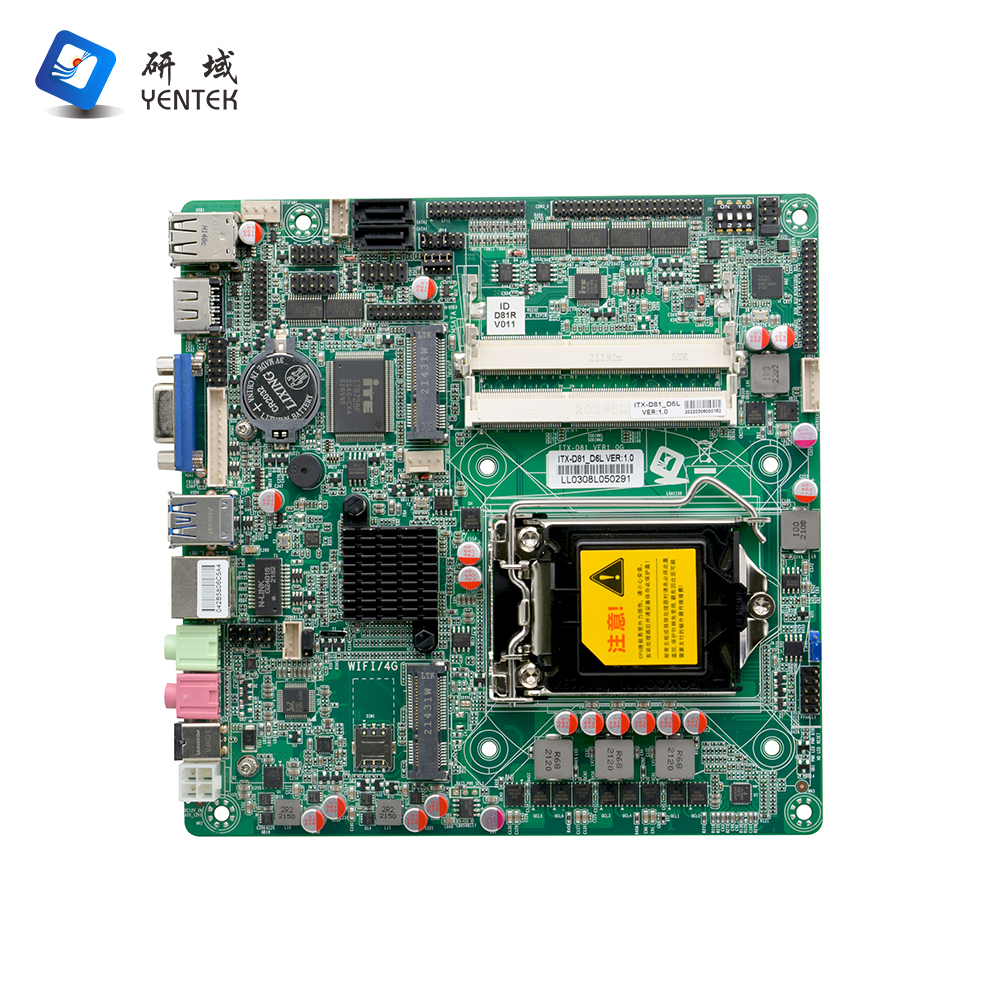

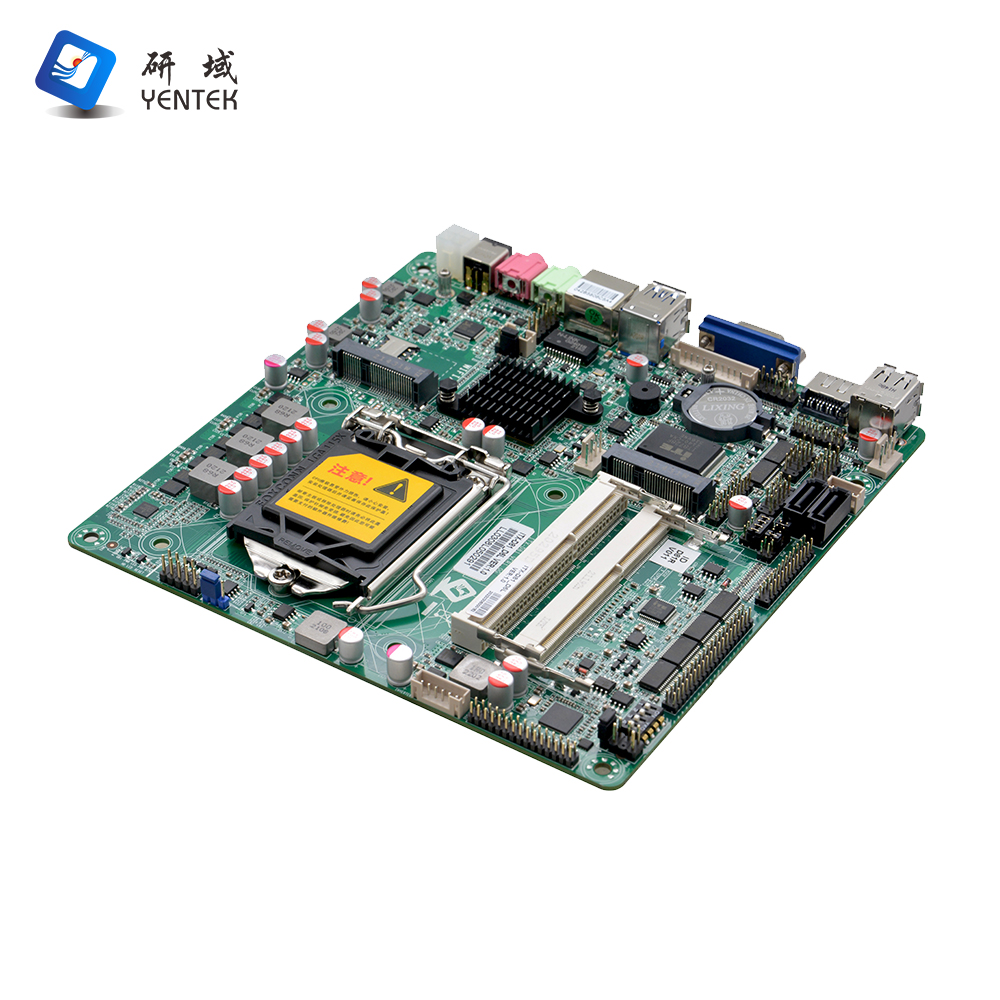

| Product model | ITX-D81_D6L VER:1.6 |
| Processor | Support LGA1150 Intel® Celeron/Pentium/Core™ i3/i5/i7 32nm/22nm processor |
| Chipset | Adopt Intel® H81 high speed chipset |
| Memory | 2* DDR3 SODIMM,support dual channel1333/1600MHz memory,up to 16GB |
| Display | Integrated Intel® HD |
1*VGA、2* HDMI、1* support dual channel 24bitLVDS |
Support single display, double display, double extension.. |
| Network | 1* RTL8111F Gigabit Ethernet ,support wake on LAN/PXE. |
| Storage | 1* SATA3.0 HDD interface and 1* SATA2.0 HDD interface |
| Audio | Onboard ALC662 6-channel high fidelity audio controller, support MIC /Line-out,amplifier |
| Amplifier proposed using3Ω2W speakers |
| Expansion | 1* Mini-PCIE slot,support WIFI、4G module, |
| 1* MSATA slot, support SSD,the transfer rate up to 6Gbps. |

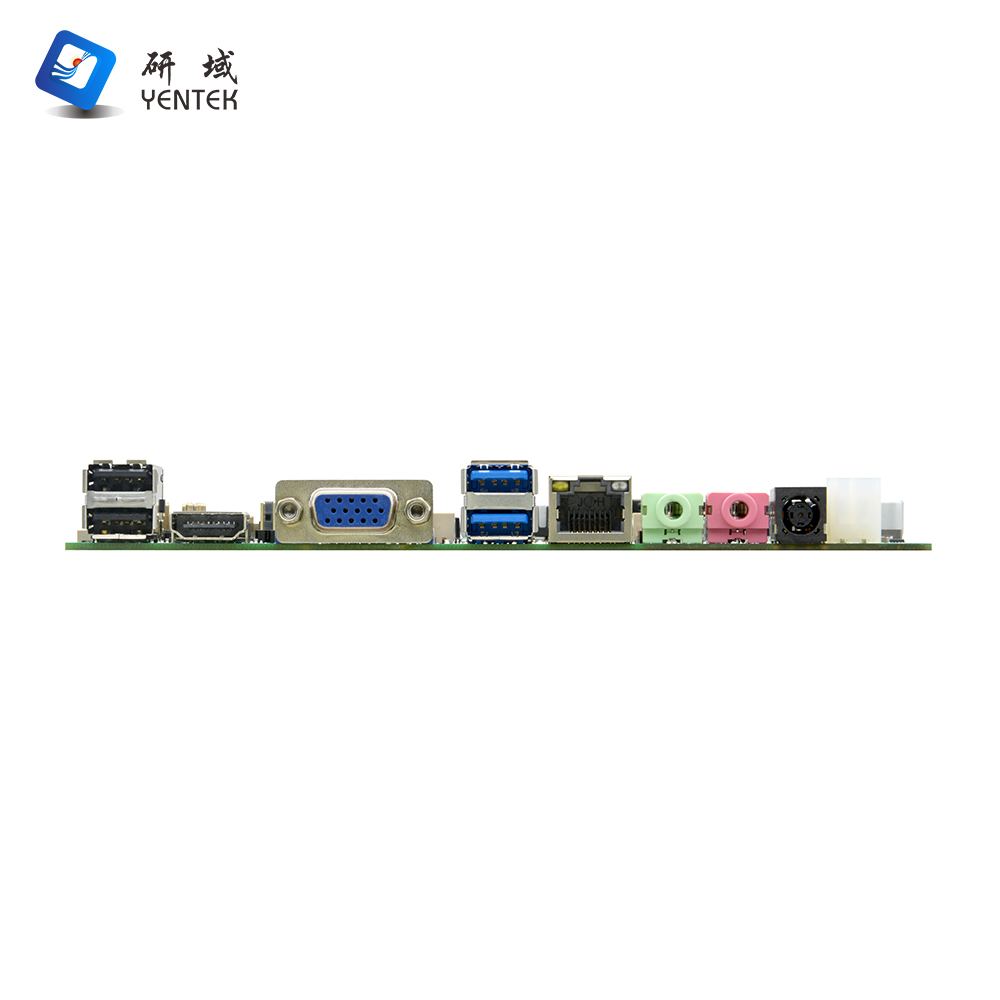

| Rear I/O | 2* USB 2.0 |
| 1* HDMI |
| 1* VGA DB15 |
| 2* USB 3.0 |
| 1* RJ-45 Gigabit Ethernet connector |
| 1* Line out (green) |
| 1* MIC (red) |
| 1* 12～19V DC power input |
| Interior I/O | 1* LVDS 2*15pin |
| 1* JVGA 1*12pin (same signal with VGA) |
| 1* JHDMI 2*8pin, support dual HDMI display |
| 6* RS232 serial ports, COM3 support RS422/RS485 mode |
1* LPT print port 2*13pin |
| 2* USB 2.0 2*5pin |
2* USB 3.0 2*10pin(B85/H87/Q87/Q85/Z87 chipset can support) |
| 1* front audio port 2*5pin |
| 1* power amplifier 1* 4pin |
| 1* front panel function buttons and indicator connector 2*5pin |
1*ATX 4pin power interface,support 12V～19V power input/output (According to the output voltage of the power supply) |
| 1* LVDS Backlight power supply connector 1*6pin |
| 1* HDD power supply port 1*4pin |
| Fan interface | 1* 4pin CPU smart fan connector, 1* 3pin system fan connector |
| GPIO | Supports four way input/output GPIO |
| BIOS | 32Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| OS | Adopt DC 12V～19V power input |
| Dimension | Support hardware reset function (L256, 0~255 seconds) |
| Power supply type | DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |
| Dimension | 170mm x 170mm |
