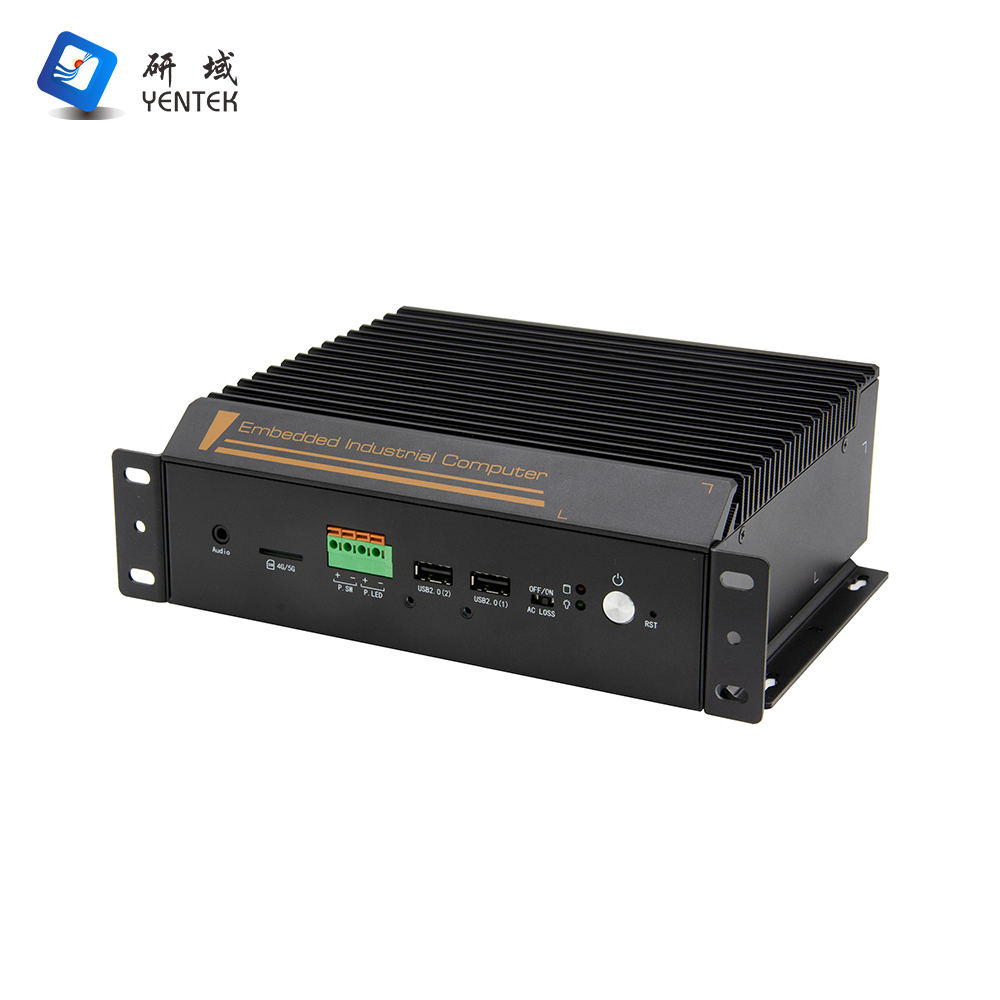

P6760S-G16

Chassis

Material/structure

Aluminium   alloy + sheet metal, fanless cooling

Colour

Black

Size   (LWH)

188*164.7*66MM

Weight   (bare net)

1.6KG

Installation

Desktop/Wall   Mount/DIN Rail(35mm)

Motherboard

CPU

Intel®   Alder Lake-N i3-N305/Turbo 3.8GHz, Eight-Core, Eight-Thread Processor, TDP   15W

Display

Intel®UHD   Graphics

Memory

1*SODDR4   3200MHz , supports up to 32GB

Front   Panel Connectors

Switch

1*Boot   Button, 1*One-Key Restore, 1*ACLOSS (Power-On DIP Switch)

LED

1*Power   Indicator, 1*Hard Drive Indicator

USB

2*USB2.0

Audio

1*Audio,   Line out&Mic 2-in-1

Phoenix   Terminal

1*4P   (1*power on signal/1*power indicator signal)

SIM

1*SIM   standard card slot

Rear   Panel Interface

Switch

1*Boot   button, 1*CMOS restore button

LED

1*Hard   Drive Indicator Light, 1*Hard Drive Indicator Light

Display   Interface

1*HDMI2.0(4096*2160@60Hz),   1*DP1.4(4096*2160@60Hz), 1*VGA, support triple displays

COM

2*RS232/485   DB9 serial port

LAN

6*Intel   I210AT Gigabit power port, 4 of which support POE (single port support 15W)

DIO

8 in 8   out with isolation

USB

2*USB3.0,   2*USB2.0

DIP   Switch

6 sets of   6-position dip switches, RS232/485 switching use (dip switches are located at   the bottom of the chassis)

Power   Connector

1*DC   interface or 1*2P (P=5.08mm) Phoenix terminal, support DC 9~36V wide voltage   power input

Storage

SATA

1*2.5   inch hard drive bay

MSATA

1*MSATA   (no signal on this connector)

SSD

1*M.2, support   Key-M, 2280, NVME PCIE x4 SSD

Expansion

5G

1*M.2,   support Key-B, 3042/3052, 5G module

System   Support

Microsoft

Windows   10

Linux

Linux

Power   Supply Type

Power Supply   Type

External   Power Adapter

Input

Voltage   Input

DC 9-36V   wide voltage

Power   Output

AC TO DC   60W or more (depending on specific equipment)

Environment

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95%   relative humidity, non-condensing

Operating   Vibration

0.5g rms/5-500HZ/random/operating

1

P6760S-G16 V2.0(N97)

N97/Turbo   3.6G

Q305HD1

1*SODDR4

P68-L6/P68-G16

2.5+M.2(NVME)

6*I210

2

8in8out

4

2

 9-36V

2

P6760S-G16 V2.0(N305)

I3-N305/Tubor   3.8.0G

Q305HD1

1*SODDR4

P68-L6/P68-G16

2.5+M.2(NVME)

6*I210

2

8in8out

4

2

 9-36V
