Product description

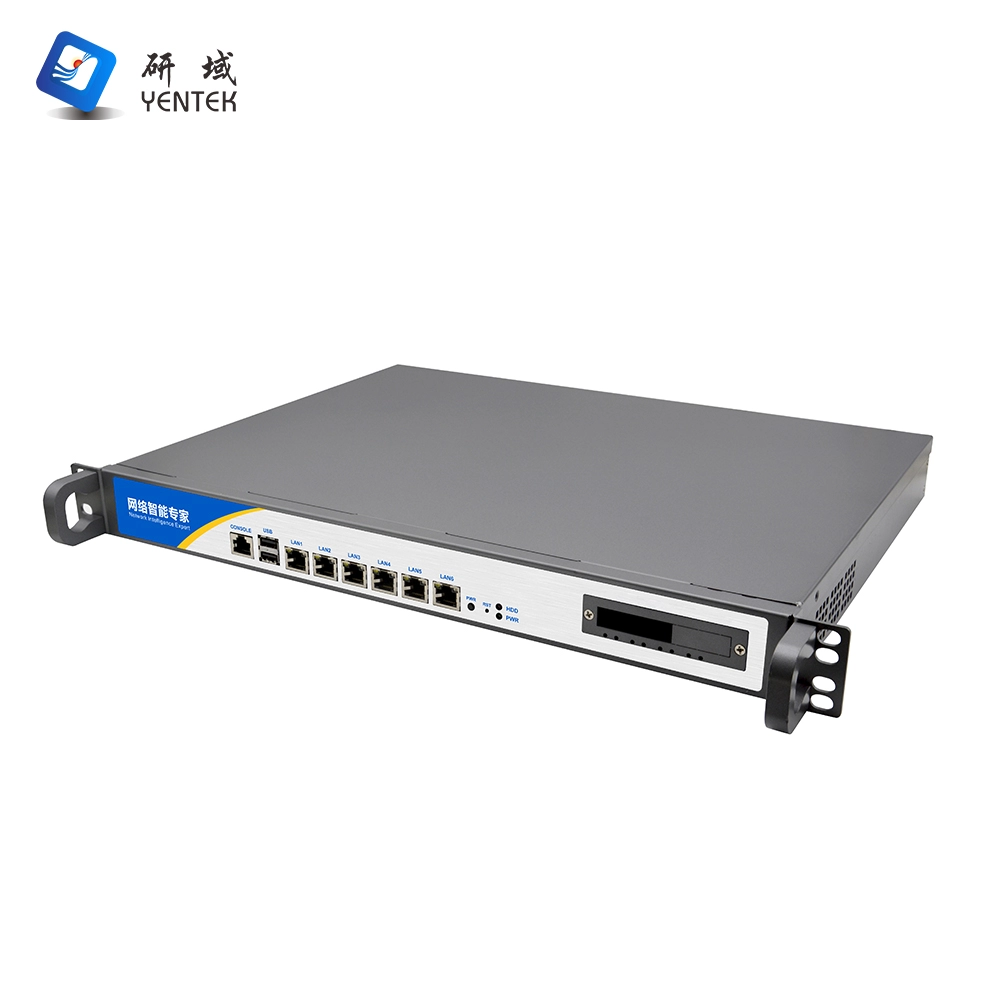

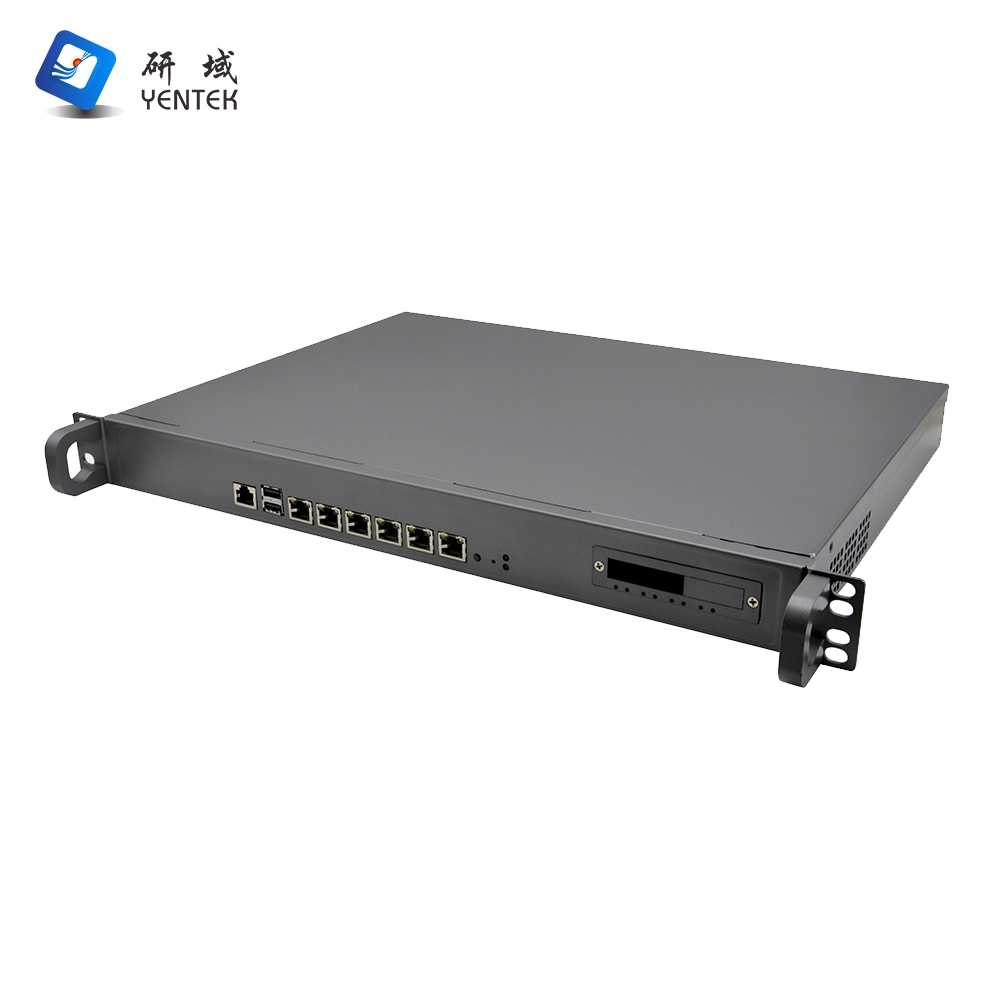

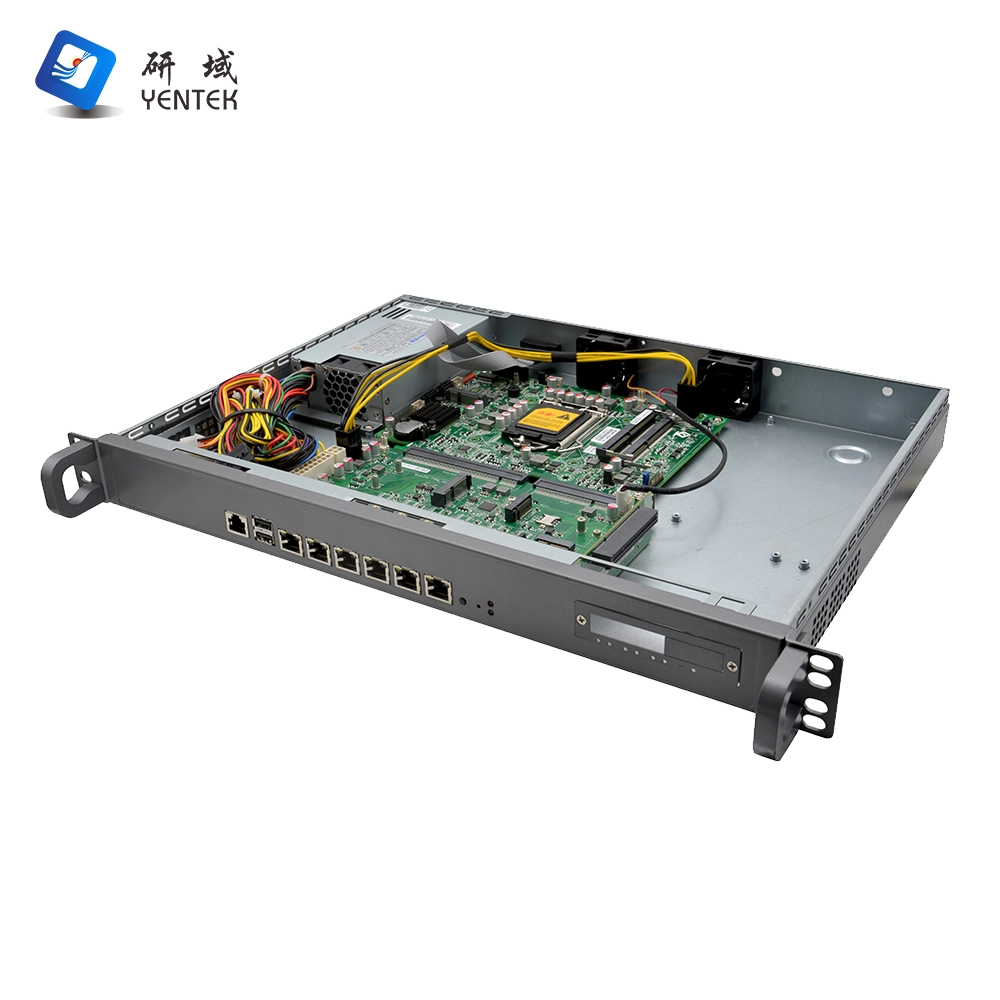

| Model number | R320E-SF V1.0(7300HQ) | |
| Chassis | Material/Structure | 1U standard chassis, high quality galvanized steel |
| Colour | Iron Gray | |

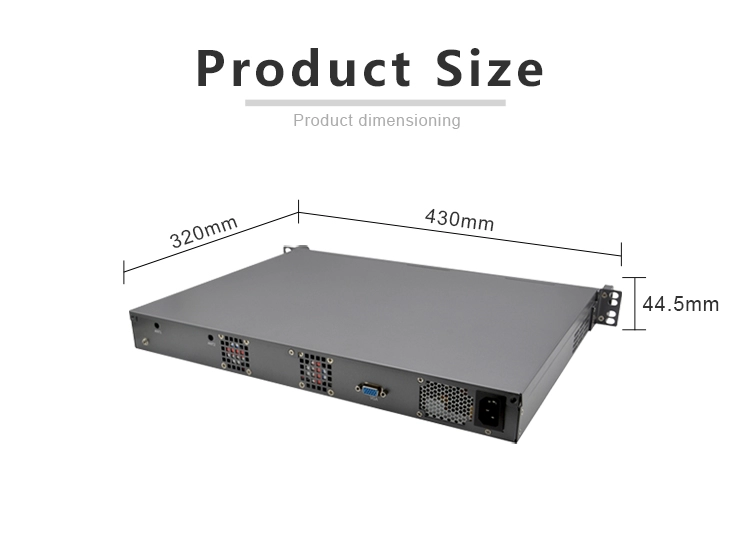

| Dimensions | 430 MM * 320 MM * 44.5 MM | |
| Weight (bare weight) | 4.15 KG | |
| Install | 1U standard rack | |

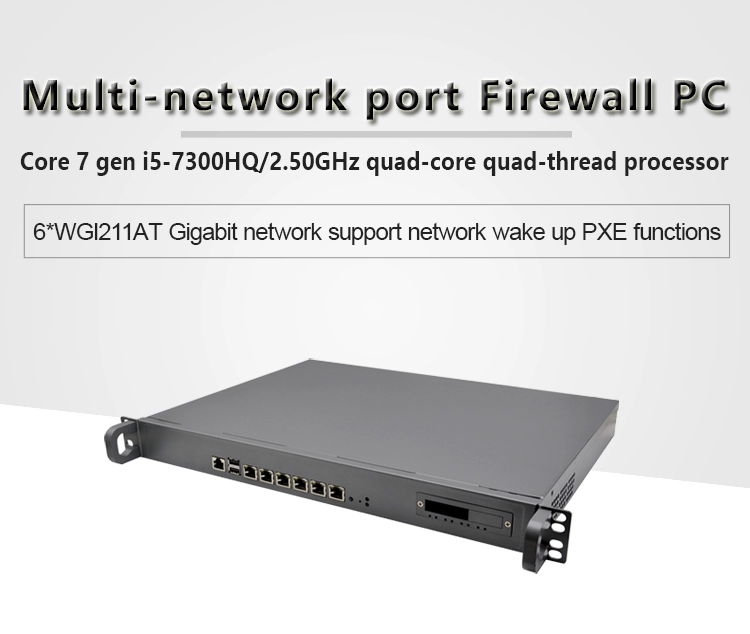

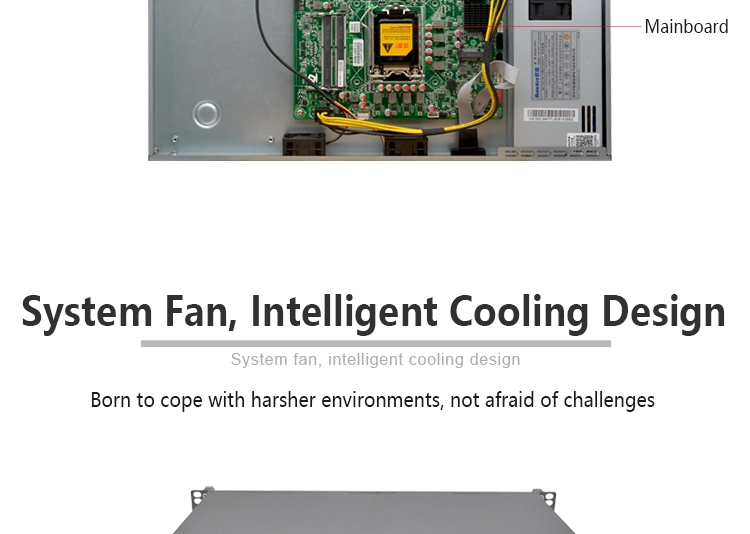

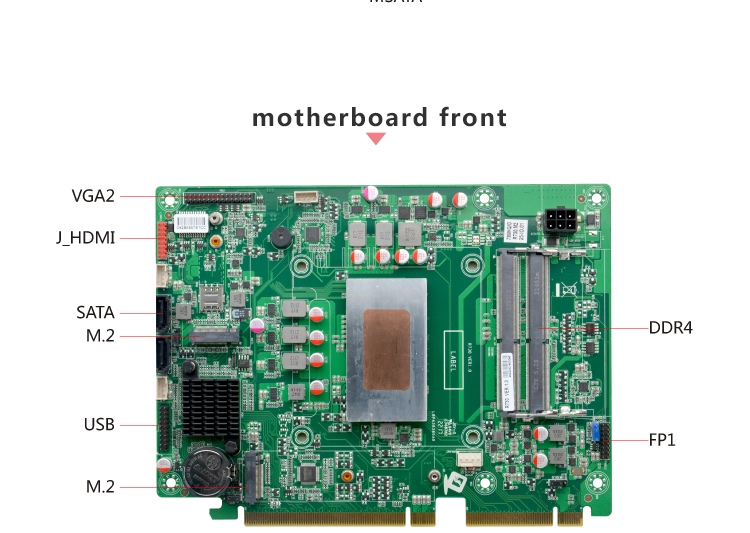

| Motherboard | CPU | Integrated 7gen Intel®i5-7300HQ/2.50GHz quad-core quad-thread processor, TDP 45W |
| System chip | Intel B250 high-speed chipset | |
| Reveal | Integrated Intel®HD Graphics S630 | |

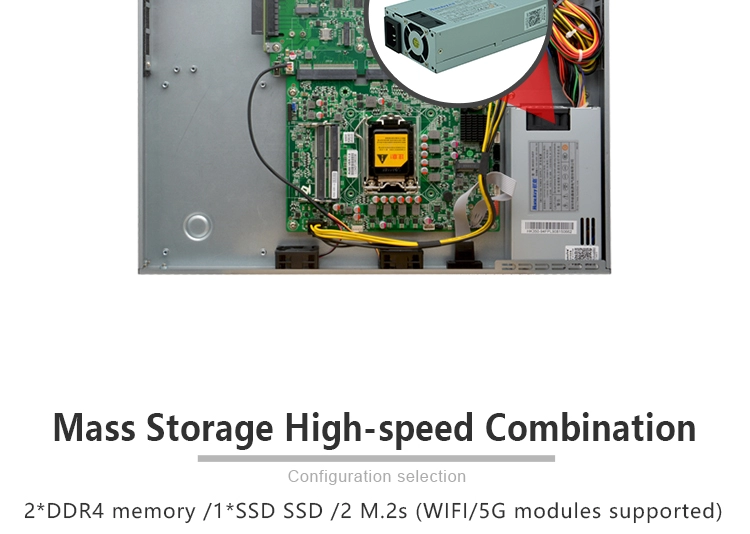

| Internal memory | 2 x DDR4 SODIMM slots, supporting 2400 MHZ memory and a maximum of 64GB memory | |

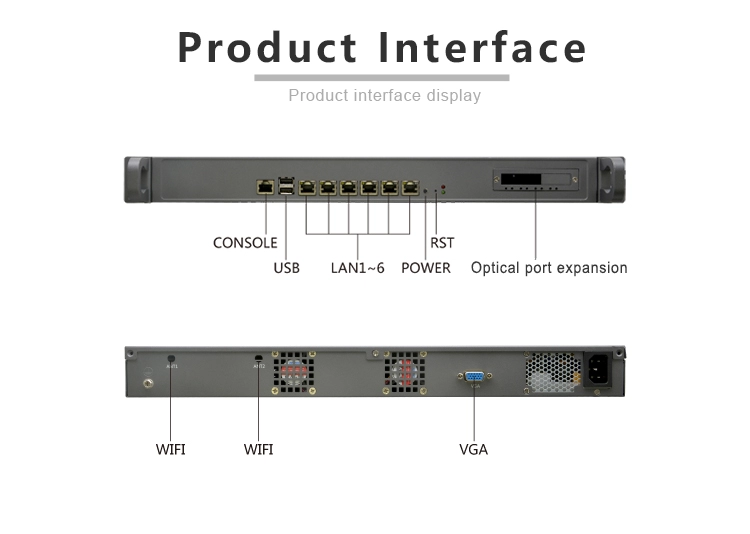

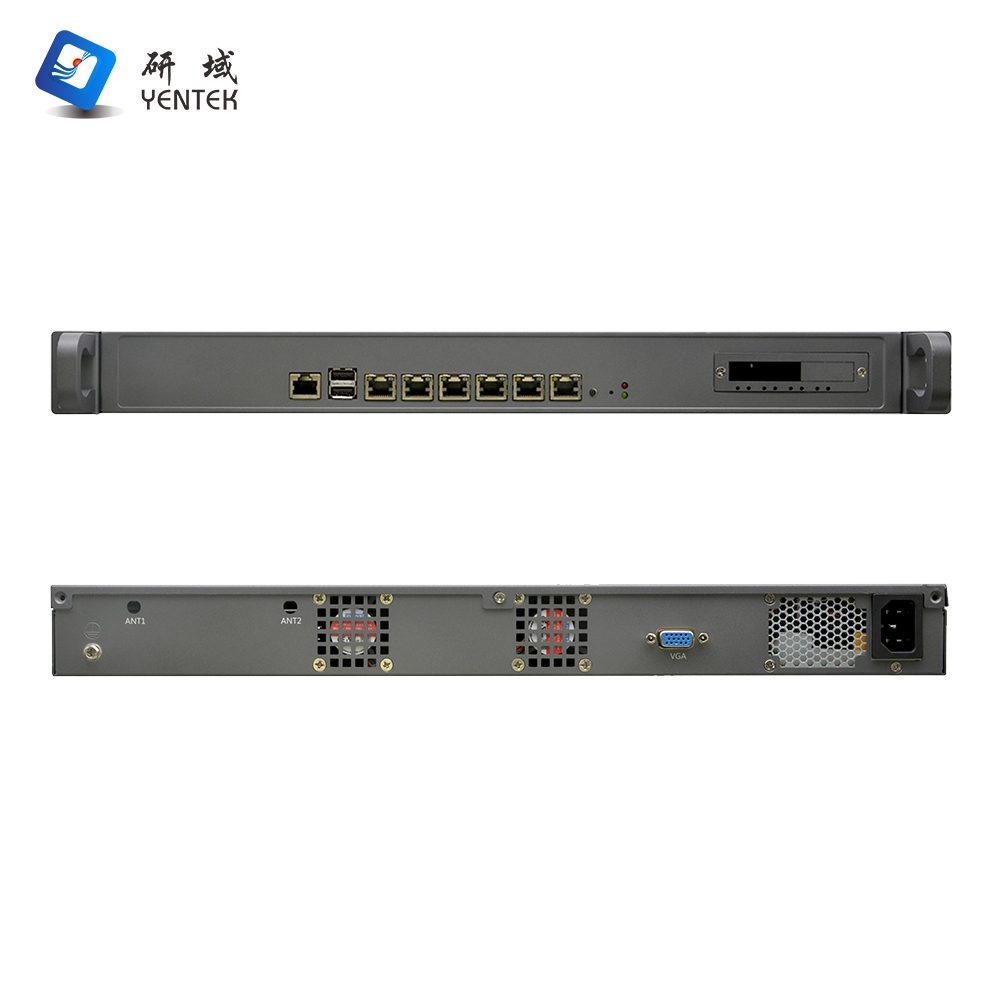

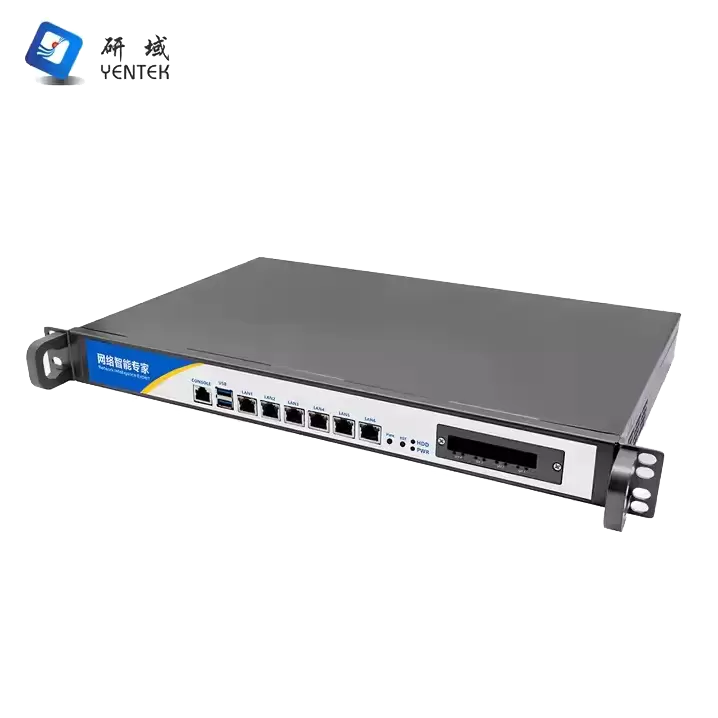

| Front panel interface | LED | 1* hard disk indicator, 1* power indicator |
| POWER | 1* Power switch, 1* restart switch | |
| USB | 2* USB2.0 | |
| COM | 1*RJ45 serial port | |

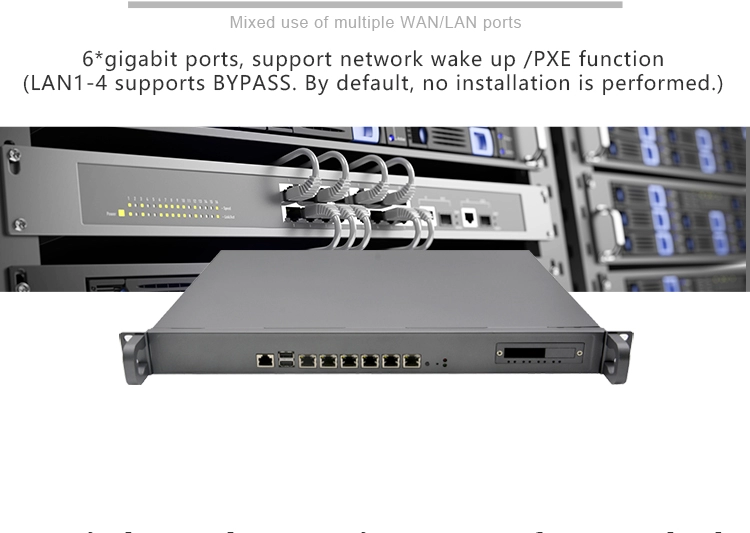

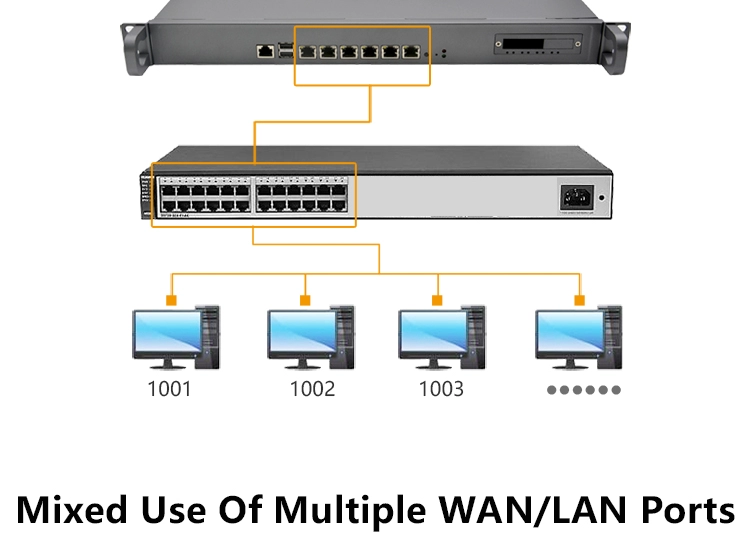

| LAN | 6*Intel I211AT Gigabit electrical port, supporting network wake up /PXE functions (LAN1-4 supports BYPASS, default default) | |
| Optical fiber | 4 optical ports or 2 optical ports (extended) | |

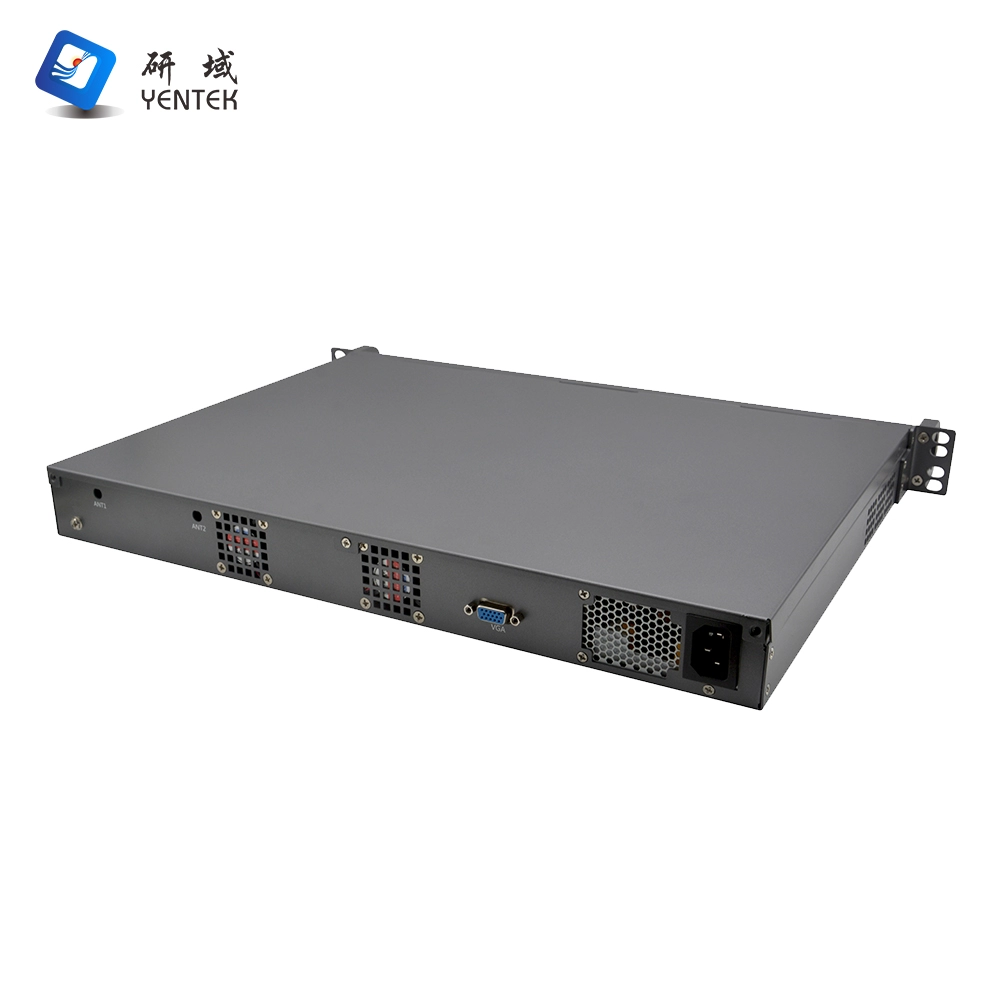

| Rear panel interface | Display Port | 1*VGA port |
| Power Port | 1*AC power port | |

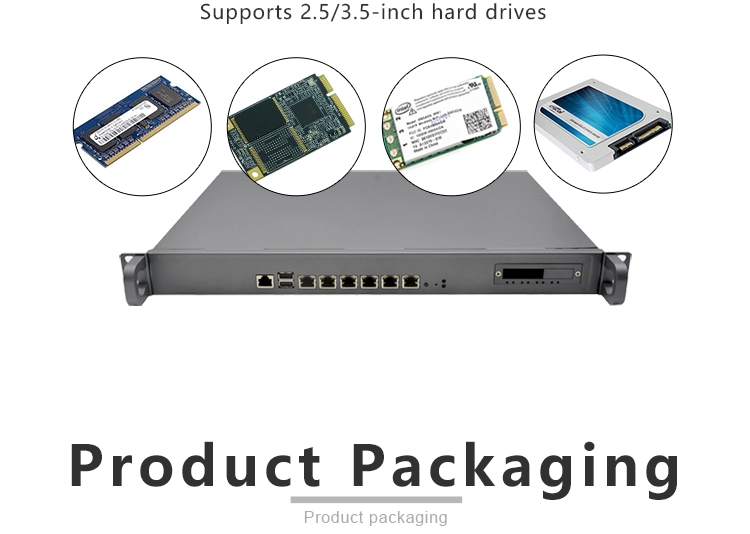

| Storage | SATA | 2* 2.5”SATA port |
| MSATA | 1*MSATA, transmission speed up to 6Gbps | |

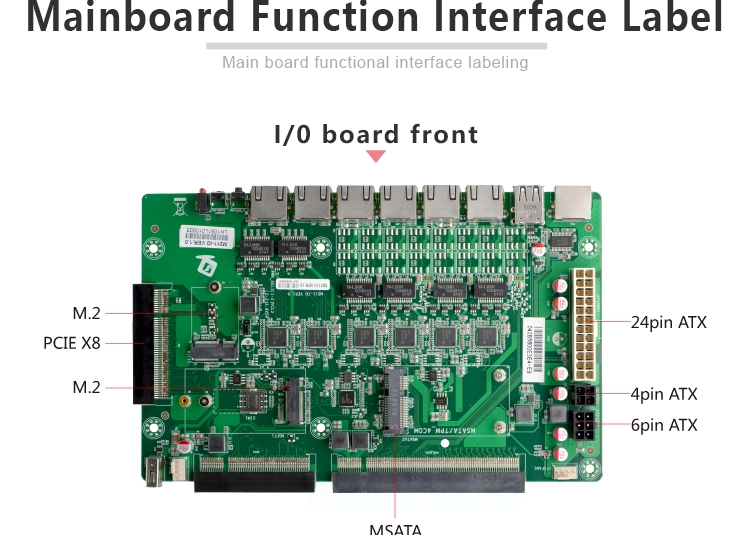

| Extend | PCIE X8 | 1 x PCIE X8 slot for Gigabit / 10-Gigabit optical fiber card expansion |
| M.2 | 1*M.2 Key-E slot, supporting the WiFi module | |
| 1*M.2/5G, Key-B, 2242/2252, supporting 5G (with built-in USB2.0) | ||
| MINIPCIE | 1*MINIPCIE slot, support MSATA(optional TPM-4COM, support 4 strings, need to brush the BIOS that supports TPM-4COM) | |
| USB | 1*USB2.0 with dongle connection (with M.2 5G) | |
| OS Support | Microsoft Windows | Window 7 |
| Linux | Ubuntu | |

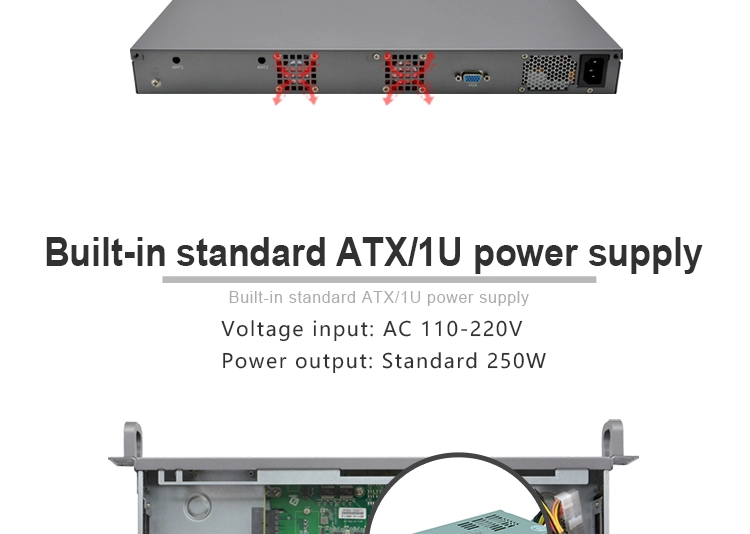

| Power demand | Power supply type | Built-in ATX/1U power supply |
| Voltage input | AC 110-220V | |
| Power output | 250W as standard | |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Motherboard | Memory | BYPASS | LAN | COM | IO Board | VGA | USB2.0 | Optical Fiber | Power-input |
| 1 | R320E-SF V1.0(B75) | LGA1155 | R67 | 2*SODDR3 | 2(apolegamy) | 6 | 1 | M211-IO | 1 | 2 | 4/2(apolegamy) | AC 220V |
| 2 | R320E-SF V1.0(R270) | LGA1151 | R270 | 2*SODDR4 | 2(apolegamy) | 6 | 1 | M211-IO | 1 | 2 | 4/2(apolegamy) | AC 220V |
| 3 | R320E-SF V1.0(7300HQ) | i5-7300HQ/2.5GHz | R730 | 2*SODDR4 | 2(apolegamy) | 6 | 1 | M211-IO | 1 | 2 | 4/2(apolegamy) | AC 220V |
| 4 | R320E-SF V1.0(6920HQ) | i7-6920HQ/2.9GHz | R730 | 2*SODDR4 | 2(apolegamy) | 6 | 1 | M211-IO | 1 | 2 | 4/2(apolegamy) | AC 220V |
