R570H
Options: 4 sizes
$
233.00
Add to cart
+852 9458 7694
Product description
| Model number | R320E V1.0(B250) | |
| Chassis | Material/Structure | 1U rack mount case, high quality galvanized steel case |
| Colour | Iron Gray | |
| Dimensions | L430MM*W320MM*H44.5MM | |
| Install | 1U rack mount | |

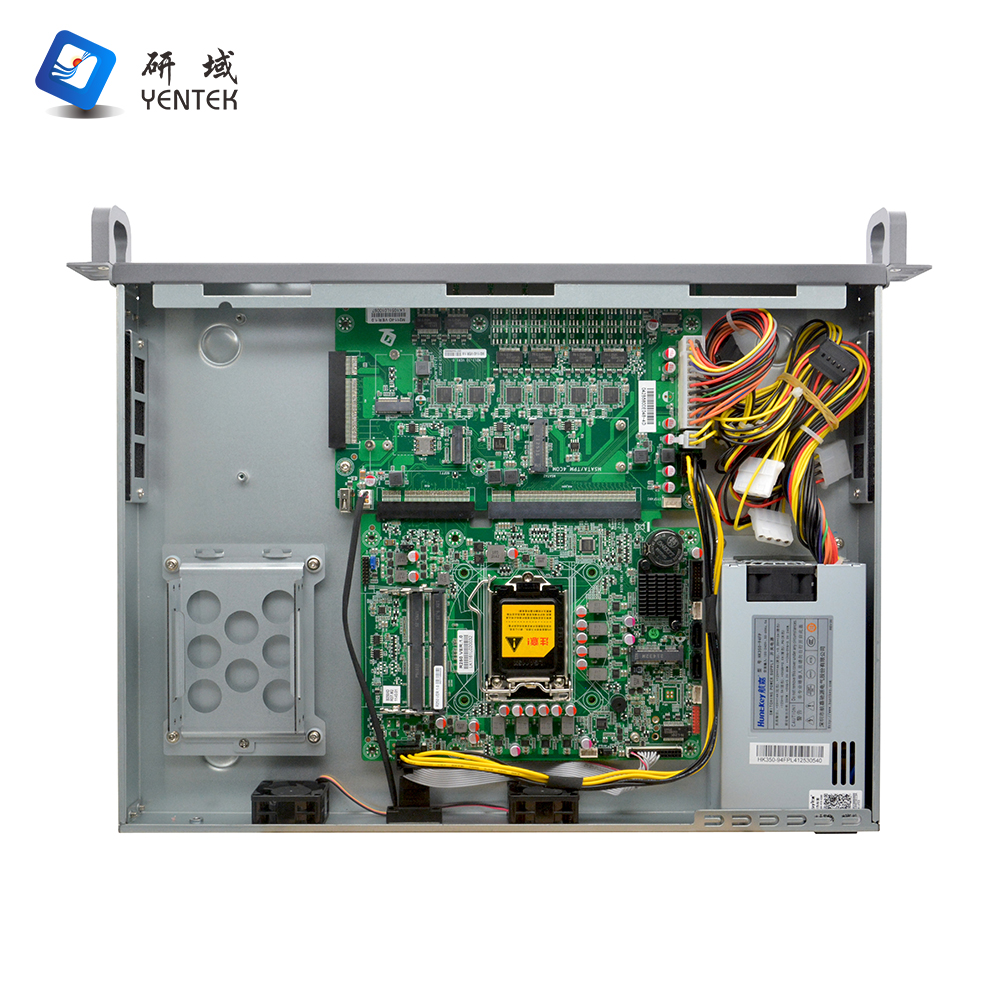

| Motherboard | CPU | Support LGA1151 6th/7th/8th/9th Celeron/Pentium/Corei3/i5/i7/i9 series processor |
| Chipset | Intel B250 Express chipset | |
| Display | Integrated Intel®HD Graphics | |
| Memory | 2* DDR4 DIMM RAM slot, 2133/2400/2666MHz, up to 64GB | |
| Front Panel I/O | LED | 1* HDD LED, 1*Power LED，4*SFP LED，2*data transfer LED |
| POWER | 1*Power switch，1*Reset switch | |
| USB | 2* USB2.0 | |
| COM | 1* RS232 COM port | |
| LAN | 6*Intel WGI211AT Gigabit Ethernet, support Wake On LAN、PXE function | |
| SFP Port | Support 2* Gigabit SFP or 2* 10Gigabit fiber port (expansion） | |
| Rear Panel I/O | Display Port | 1*VGA port |
| Power Port | 1*AC power port | |
| Storage | SATA | 2* 2.5”SATA port |
| Extend | Mini PCIE | 1* PCIE X8 slot, for 1G, 10GB SFP card expansion |
| OS Support | Microsoft Windows | Windows 7(not include OS code) |
| Linux | Ubuntu | |
| Power Type | AC 220V 1U ATX 250W | |
| Environment | Operating temperature | -10℃～60℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Motherboard | Memory | BYPASS | LAN | COM | HD OUTPUT | VGA | USB2.0 | USB3.0 | Support Optical Fiber | Power-input |
| 1 | R320E V1.0(B75) | LGA1155 | R67 | 2*SODDR3 | N/A | 6*I211AT | 1 | N/A | 1 | 2 | N/A | 2 | AC 220V |
| 2 | R320E V1.0(B250) | LGA1151 | R250 | 2*SODDR4 | N/A | 6*I211AT | 1 | N/A | 1 | 2 | N/A | 2 | AC 220V |
| 3 | R320E V1.0(7300HQ) | i5-7300HQ/2.5GHz | R730 | 2*SODDR4 | N/A | 6*I211AT | 1 | N/A | 1 | 2 | N/A | 2 | AC 220V |
| 4 | R320E V1.0(6920HQ) | i7-6920HQ/2.9GHz | R730 | 2*SODDR4 | N/A | 6*I211AT | 1 | N/A | 1 | 2 | N/A | 2 | AC 220V |
| 5 | R320V V1.0(B75) | LGA1155 | R67 | 2*SODDR3 | N/A | 6*I225V | 1 | N/A | 1 | 2 | N/A | 2 | AC 220V |
| 6 | R320V V1.0(B250) | LGA1151 | R250 | 2*SODDR4 | N/A | 6*I225V | 1 | N/A | 1 | 2 | N/A | 2 | AC 220V |
| 7 | R320V V1.0(7300HQ) | i5-7300HQ/2.5GHz | R730 | 2*SODDR4 | N/A | 6*I225V | 1 | N/A | 1 | 2 | N/A | 2 | AC 220V |
| 8 | R320V V1.0(6920HQ) | i7-6920HQ/2.9GHz | R730 | 2*SODDR4 | N/A | 6*I225V | 1 | N/A | 1 | 2 | N/A | 2 | AC 220V |
