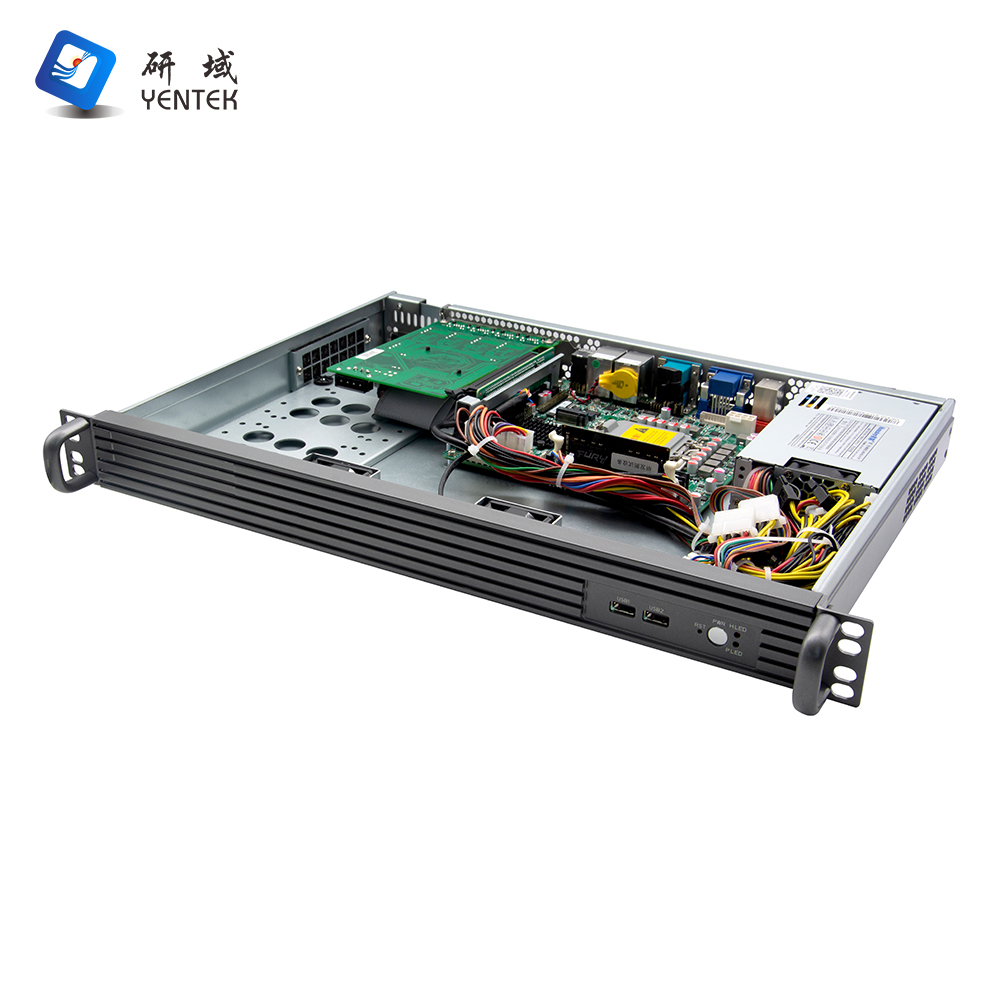

| Model number | R570H-E1 V1.0 | |
| Chassis | Material/Structure | 1U standard chassis, aluminum alloy panel, high quality galvanized steel plate |
| Colour | Argentous black | |
| Dimensions | L430MM*W320MM*H44.5MM | |
| Weight (bare weight) | 4.5 KG | |
| Install | 1U standard rack | |
| Front panel interface | LED | 1* hard disk indicator, 1* power indicator |
| POWER | 1* Power switch, 1* reset switch | |
| USB | 2 * USB2.0 | |
| Rear panel interface | COM | 2*RS232/485/422 DB9 serial port, can be expanded 4*RS232 DB9 serial port (optional) |
| LAN | 2*RJ45 | |
| USB | 6*USB(USB3.0/2.0 quantity based on motherboard) | |
| Display interface | 1*VGA, 1*HDMI | |
| PS/2 | 1*PS/2 | |
| Storage | SATA | Supports 1 x 3.5-inch hard disks or 1 x 2.5-inch hard disks |
| Extend | PCIE | 1*PCIE X16 |
| Power source | Power supply type | Built-in small 1U FLEX power supply |
| Voltage input | AC 110-220V | |
| Environment | Operating temperature | -10℃～60℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Motherboard | Memory | BYPASS | LAN | COM | PCIE | VGA | USB2.0 | USB3.0 | HDMI | Power-input |
| 1 | R570H-E1 V1.0(B75M1) | LGA1155 | B75M1 | 1*DDR3 | H610M1-E1/IPC505-SW | 2*I210 | 6 | X16 | 1 | 4 | 4 | 6 | AC 220V |
| 2 | R570H-E1 V1.0(B75R1) | LGA1155 | B75R1 | 1*DDR3 | H610M1-E1/IPC505-SW | 2*8111H | 6 | X16 | 1 | 4 | 4 | 6 | AC 220V |
| 3 | R570H-E1 V1.0(Q85M1) | LGA1150 | Q85R1 | 1*DDR3 | H610M1-E1/IPC505-SW | 2*I210 | 6 | X16 | 1 | 6 | 2 | 6 | AC 220V |
| 4 | R570H-E1 V1.0(H81R1) | LGA1150 | H81R1 | 1*DDR3 | H610M1-E1/IPC505-SW | 2*8111H | 6 | X16 | 1 | 6 | 2 | 6 | AC 220V |
| 5 | R570H-E1 V1.0(Q250M1) | LGA1151 | Q250M1 | 2*DDR4 | H610M1-E1/IPC505-SW | 2*I210 | 6 | X16 | 1 | 4 | 4 | 6 | AC 220V |
| 6 | R570H-E1 V1.0(H510M1) | LGA1200 | H510M1 | 2*SODDR4 | H610M1-E1/IPC505-SW | 2*I226 | 6 | X16 | 1 | 4 | 4 | 6 | AC 220V |
| 7 | R570H-E1 V1.0(H510R1) | LGA1200 | H510R1 | 2*SODDR4 | H610M1-E1/IPC505-SW | 2*8111H | 6 | X16 | 1 | 4 | 4 | 6 | AC 220V |
| 8 | R570H-E1 V1.0(H610M1) | LGA1700 | H610M1 | 2*SODDR4 | H610M1-E1/IPC505-SW | 2*I226 | 6 | X16 | 1 | 4 | 4 | 6 | AC 220V |
