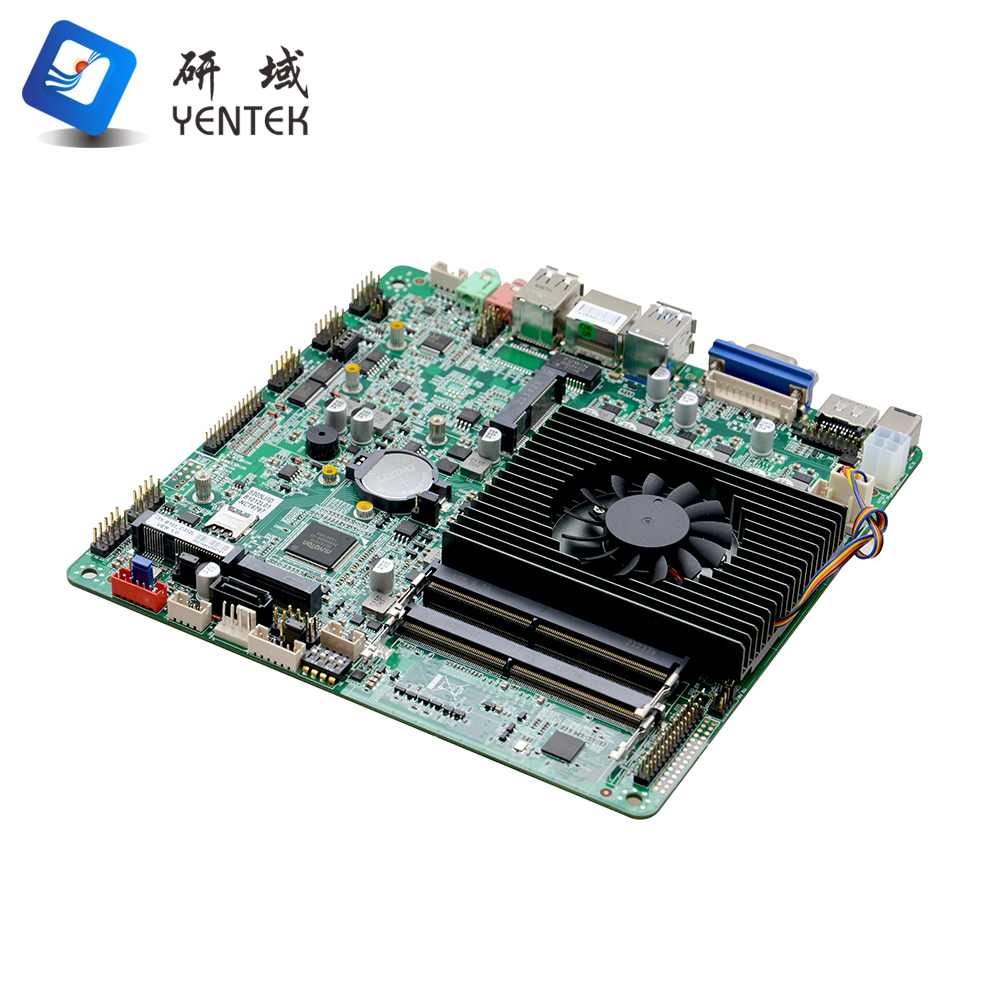

| Product model | ITX-B101_C312L VER:1.0(5205U) |
| Processor | Integrated 10th generation Intel® Celeron 5205U 1.9GHz dual-core two-thread processor, TDP 15W |
| Compatible with Intel®Whiskey Lake-U/Comet Lake-U 8th/10th Celeron/Pentium/I3/I5/I7 low power processors |
| Chipset | SOC |
| RAM | 2*DDR4 SODIMM memory slots, support 2666MHz memory, up to 64GB |
Show
| Integrated Intel® UHD Graphics, support DirectX 12 OpenGL 4.5, support 4K |
| 1*VGA interface, the highest resolution supported is: 1920X1200@60Hz |
| 1*HDMI1.4 interface, the highest resolution supported is: 4096x2304@24Hz |
1*Support dual-channel 24bit LVDS interface, choose one from EDP, default LVDS |
| The internet | 1* Intel I225 Gigabit LAN, support Wake-on-LAN, PXE function |
Storage
| 1* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps |
| 1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps |
| 1* M.2 slot, support M.2 2260/2280 NVME PCIE x4 standard SSD |
| Note: Choose either MSATA or TPM-4COM, you can use TPM-4COM to expand 4 serial ports, when using TPM-4COM small board, you can use M.2 SSD |
| Audio | Integrated ALC892 7.1+2 channel high fidelity audio controller, support MIC, Line_out, power amplifier |
| Support power amplifier 2Ω5W speaker |
| Expansion | 1* Mini-PCIE slot, support WIFI/4G module |

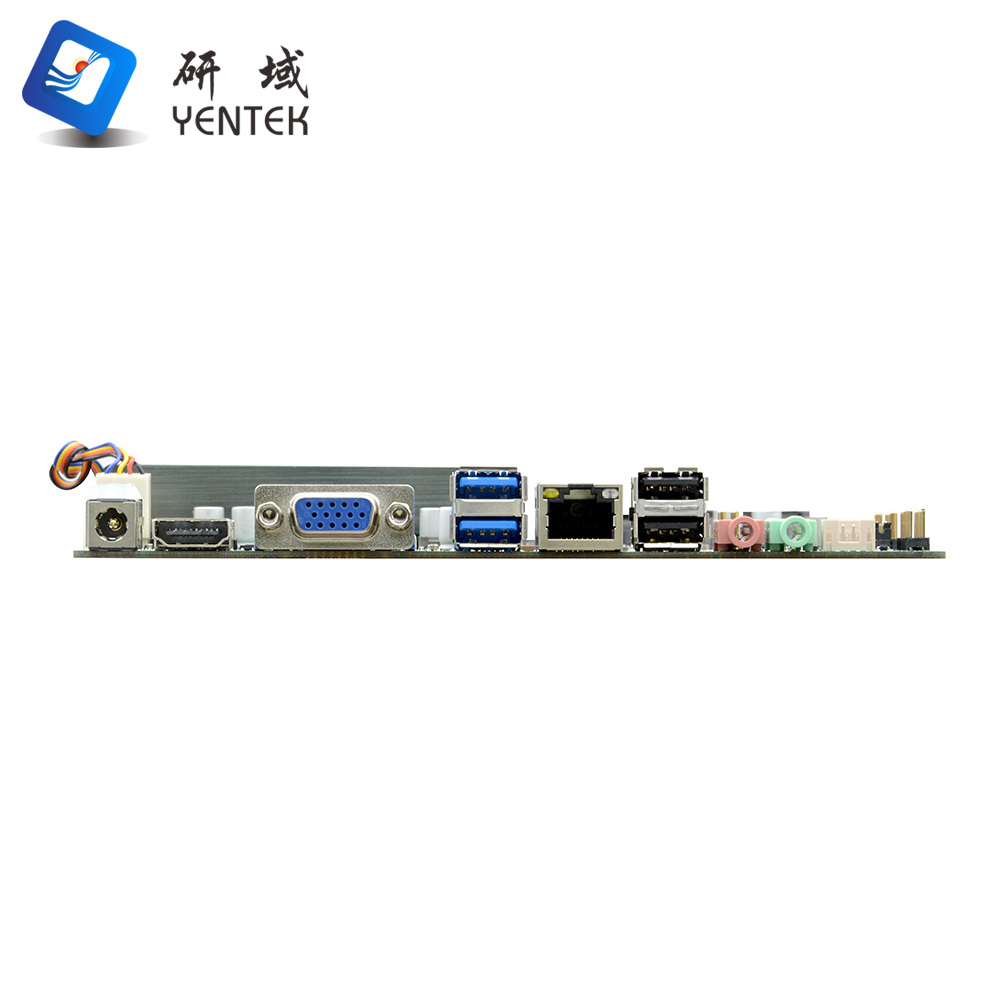

Backplane I/O Interface
| 2* USB3.0 interface, 2*USB2.0 interface |
| 1* HDMI port |
| 1* DB15 VGA port |
| 1* RJ45 Gigabit network interface |
| 1*Line-out(green），1*MIC(red） |
| 1*DC12V power supply, support 12V power input/output |
| Built-in I/O interface | 1* JVGA1 interface 1*12pin (same signal as DB15) |
| 1* JHDMI interface 2*10pin, same signal as HDMI interface |
| 1* LVDS interface 2*15pin, support dual channel 24bit |
| 1* LVDS backlight power supply interface 1*6pin |
1* Screen brightness adjustment interface 1*4pin |
| 2* RS232 serial interface, COM1 supports the 9th pin live function, COM2 supports RS485/422 function |
1* PS/2 keyboard and mouse interface (red) 1*6Pin |
| 4* USB2.0 interface 2*5pin |
| 1* Front audio interface 2*5pin |
| 1* LPT printing interface 2*13pin |
| 1* Front panel switch button and indicator port 2*5Pin |
| 1* HDD power supply interface 1*4pin |
| 1* Amplifier interface 1*4pin |
| 1* 4pin ATX power interface (can be used as 12V input power interface) |
| 1* SIM card holder |
| Fan interface | 1*4pin CPU smart fan connector, 1* 4pin system fan connector |
| GPIO | Supports four input/output GPIO |
| BIOS | 128Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10 , Linux |
| Power supply type | Adopt DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |
| Dimension | 170mm x 170mm |
