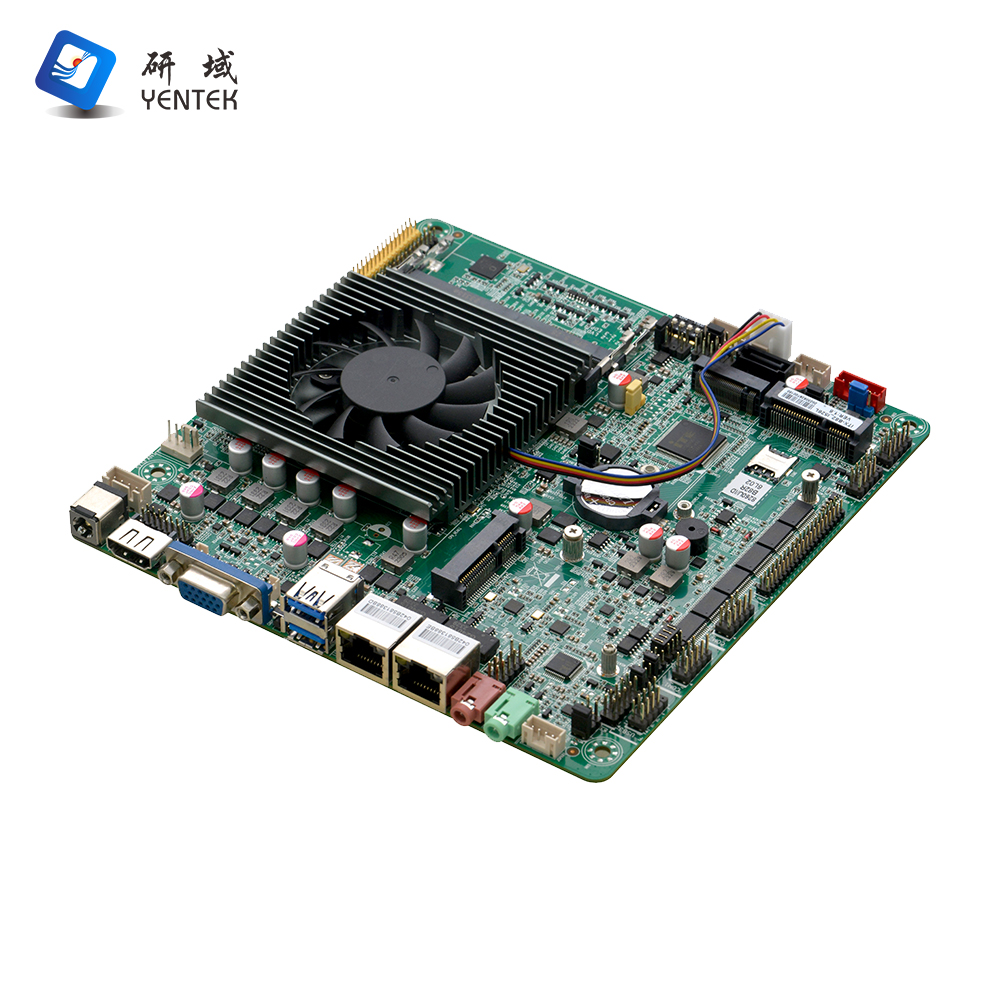

| Product model | ITX-B82_I526L VER:1.6(8260U) |
| Processor | Integrated 8 generation Intel®I5-8260U 1.6GHz quad-core eight-thread processor,TDP 15W |
| Compatible with Intel®Whiskey Lake-U/Comet Lake-U 8th/10th Celeron/Pentium/I3/I5/I7 low power processors | |
| Chipset | SOC |
| Internal memory | 2 x DDR4 SODIMM slots, supporting 2400 MHZ memory and a maximum of 64GB memory |
| Display | Integrated Intel® UHD Graphics 620, support DirectX 12 OpenGL 4.5, support 4K |
| The maximum resolution supported by the 1 x VGA port is 1920X1200@60Hz | |
| 1*HD OUTPUT1.4 port, the highest resolution supported is 4096x2304@24Hz | |
1* Supports dual channel 24bit LVDS interface,1* EDP, and LVDS by jumping one of two options, default LVDS | |
| Network | 2* RTL8111H Gigabit NIC, supports network wake up and PXE functions |
| Deposit | 1* SATA3.0 hard disk interface, transmission speed up to 6Gbps |
| 1* MSATA slot, support Intel protocol SSD, transmission speed up to 6Gbps | |
| 1* M.2 slot, support M.2 2260/2280 NVME PCIE x4/SATA adaptive standard SSD | |
| Tone frequency | Integrated ALC897 7.1+2 channel high fidelity audio controller, support MIC, Line_out, power amplifier |
| Support power amplifier 4Ω3W speaker | |
| Expansion | 1* Mini-PCIE slot, support WIFI/4G module |
| I/O ports on the backplane | 2* USB3.0 interface, |
| 1* HD OUTPUT port | |
| 1 x DB15 VGA port | |
| 2* RJ45 Gigabit network interface | |
| 1*Line-out(green），1*MIC(red） | |
| 1*DC12V power supply, support 12V power input/output | |
| Built-in I/O interface | 1* JVGA1 port, 1*12pin (same signal as DB15) |
| 1* JHD OUTPUT interface 2*10pin, the same signal as the HD OUTPUT interface | |
| 1* LVDS interface 2*15pin, support dual channel 24bit | |
| 1* EDP interface (yellow) 2*15pin, with LVDS by jumping one of two, default LVDS | |
1* LVDS backlight power supply interface 1*6pin | |
| 6* RS232 serial interface,COM1/2 support 9pin live function,COM2 support RS485/422 function, | |
1* PS/2 Keyboard and mouse interface (red) 1*6Pin | |
| 6* USB2.0 interface 2*5pin | |
| 1* front audio interface 2*5pin | |
| 1* Front panel switch button and indicator port 2*5Pin | |
| 1* hard drive power port 1*4pin | |
| 1* power amplifier interface 1*4pin | |
| 1* DC power port 1*4pin, support 12V power input and output | |
| 1* SIM card seat | |
| Fan interface | 1*4pin CPU intelligent fan interface, 1*4pin system fan interface |
| GPIO | Supports four input/output GPIO |
| BIOS | 128Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10 , Linux |
| Power supply type | Adopt DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

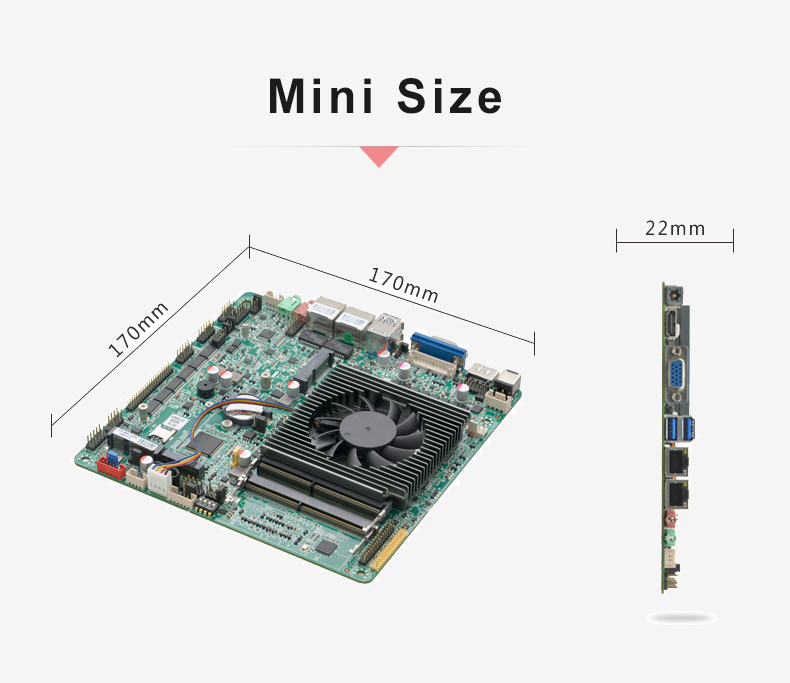

| Dimension | 170mm x 170mm |
| NO. | Model | Processor | Frequency | Memory | VGA | HD | LVDS | EDP | LAN | USB | COM | RS485/422 | Power |
| 1 | ITX-B82_I516L VER:1.6(8260U) | I5-8260U | 1.6G | 2*SODDR4 | 1 | 1 | 2ch/24bit | 1 | 1*8111H | 8 | 6 | COM2 | DV12V |
| 2 | ITX-B82_I526L VER:1.6(8560U) | I5-8260U | 1.6G | 2*SODDR4 | 1 | 1 | 2ch/24bit | 1 | 2*8111H | 8 | 6 | COM2 | DV12V |
