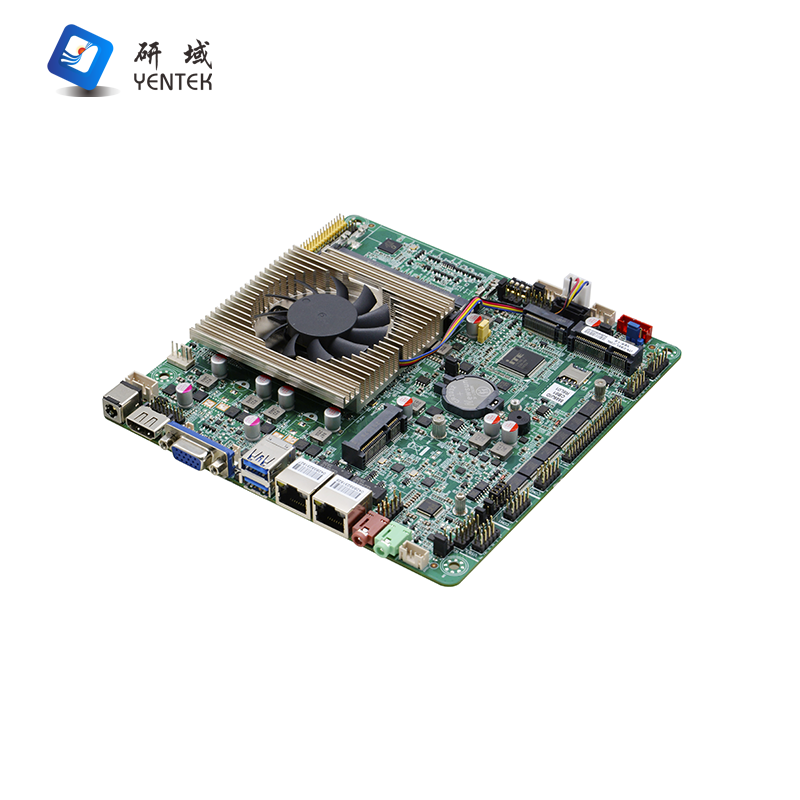

ITX-VL82

Processor

Integrated 8th   Generation Intel®I5 8257U 1.4GHz Quad-Core 8-Thread Processor, TDP 15W

Compatible with Intel®   Whiskey Lake-U/Comet Lake-U/Coffe Lake-U 8th/10th Celeron/Pentium/I3/I5/I7   Low Power Processors

Chipset

SOC

Memory

2* DDR4 SODIMM memory   slots, supports 2400MHz memory up to 64GB.

Display

Integrated Intel® UHD   Graphics, support DirectX 12 OpenGL 4.5, support 4K.

1*VGA interface,   support for the highest resolution: 1920X1200@60Hz

1*HDMI1.4 interface,   support for the highest resolution: 4096x2304@24Hz

1*Support dual-channel   24bit LVDS interface, 1*EDP interface, with LVDS interface, the highest   resolution: 4096x2304@24Hz.

1*EDP interface, and   LVDS through the jumper one of the two options

Network

4* Intel I210AT   Gigabit LAN card, support for Wake-on-LAN and PXE function.

Note: The network port   can support POE function, using VL68-PW small board to achieve

Storage

2* SATA3.0 hard drive   interface, transfer speed up to 6Gbps

1*   M.2 slot, support M.2 2280 NVME PCIE x4/SATA adaptive standard SSD

Audio

Integrated ALC897 7.1   + 2-channel hi-fi audio controller, support for MIC, Line_out, amplifier

Supports 4Ω 3W speaker   amplifier

Expansion Slots

1* M.2 slot, support   M.2 Key E 2230 WIFI module

1* M.2 slot, support   M.2 Key B 3042/3052 5G module

Backplane I/O Ports

4* USB3.0 interface.

1* HDMI1.4 interface

4* RJ45 Gigabit   network interface

1* Two and one audio   interface

1* DC12V power   interface, support 12V power input

Built-in I/O Ports

1* LVDS interface   2*15pin, support dual-channel 24bit.

1* LVDS backlight   power supply interface 1*6pin

1* EDP interface   2*15pin, and LVDS through the jumper one of the two choices

2* RS232 serial   interface, COM1/COM2 support RS485/422 function.

2*   2*3pin PH=2.54mm pin, connect to POE small board

1*   2*2pin PH=2.54mm pin, connect to POE small board

1* PS/2 keyboard and   mouse connector (red) 1*6Pin

4* USB2.0 connector 2*5pin   ,

1* SIM card slot

1* Front Audio   Interface 2*5pin

1* Front Panel Switch   Button and Indicator Light Interface 2*5Pin

2* HDD power supply   interface 1*4pin

1* Amplifier connector   1*4pin

1* DC power connector   1*4pin (can be 12V input power connector)

Fan Interface

1*4pin CPU smart fan   interface, 1*4pin system fan interface

GPIO

Support   4-way input/output GPIO function

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset   function (256 levels, 0~255 seconds)

Power Supply Type

DC 12V power supply

Operating System

Windows 10/11/Linux

Operating Temperature

-20℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative   humidity, non-condensing

Dimension

170mm x 170mm

1

ITX-VL82 VER:1.0(8257U)

I5-8257U

1.4G

2*SODDR4

1

1

1

1

4*I210AT

8

2

COM1/2

DC12V

2

ITX-BL82 VER:1.0(8665U)

I7-8665U

1.9G

2*SODDR4

1

1

1

1

4*I210AT

8

2

COM1/2

DC12V
