| Model number | IPC-705Z V1.0 | |
| Chassis | Material/Structure | Aluminum panel, galvanized steel sheet material |
| Colour | Black + Sand Grey | |
| Dimensions | L430mm*W424mm*H176mm | |
| Weight (bare weight) | 11.1 KG | |

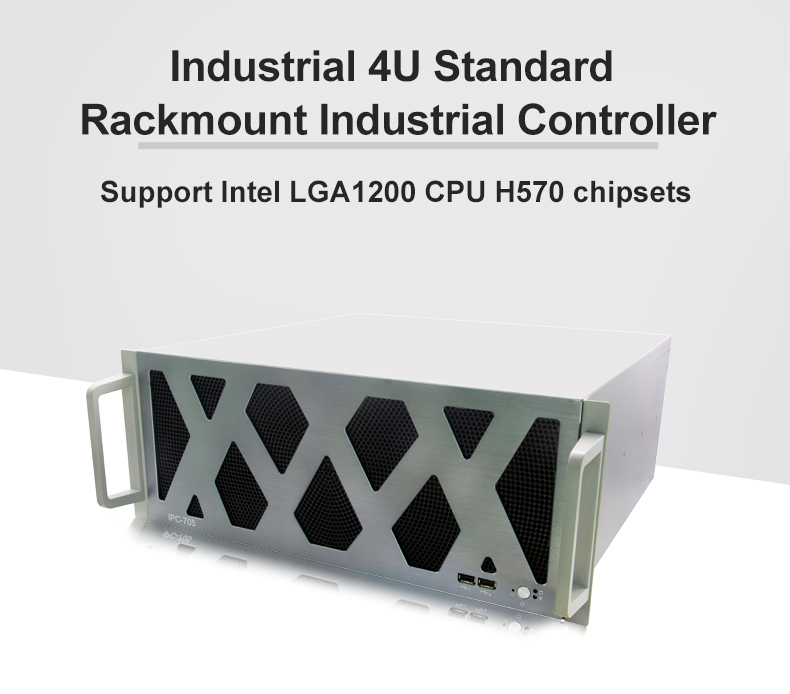

| Install | Desktop/4U Rackmount | |
| Front panel interface | POWER | 1*On key, 1*Reset key |
| LED | 1*Power Indicator, 1*Hard Drive Indicator | |
| USB | 2*USB2.0 | |

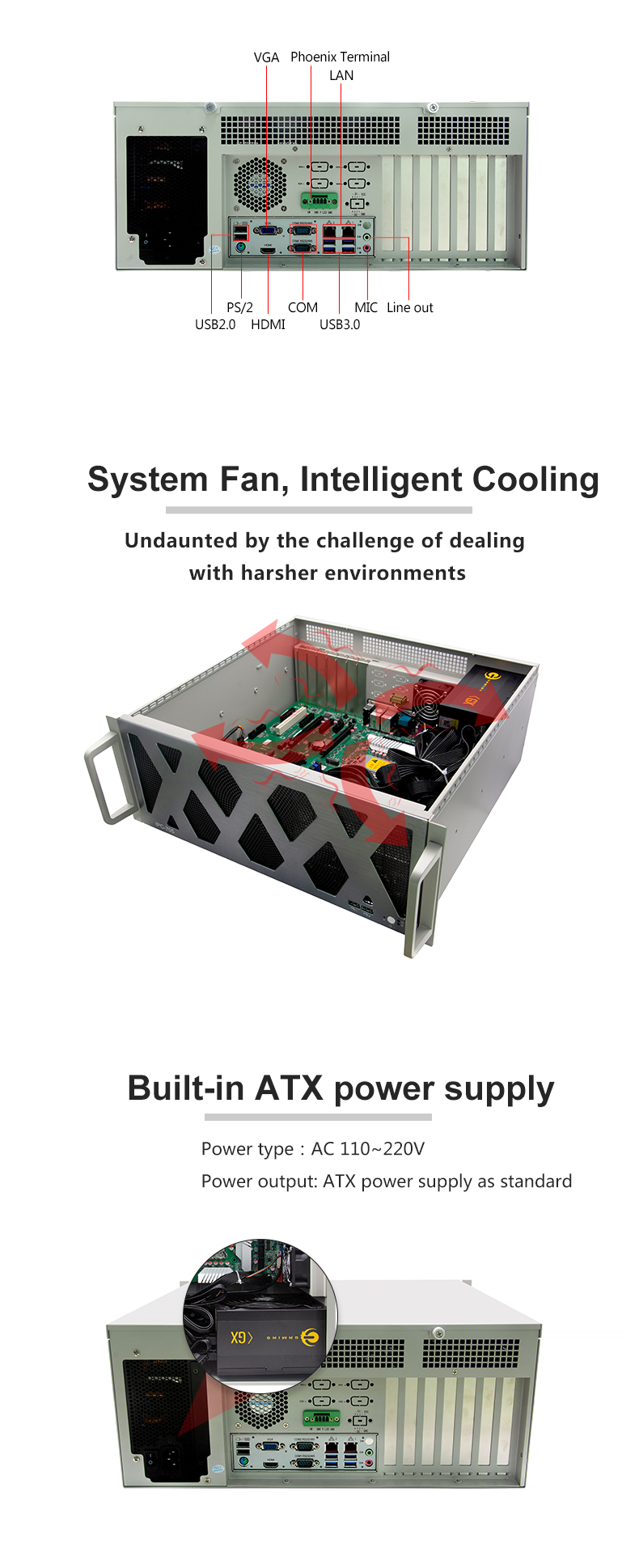

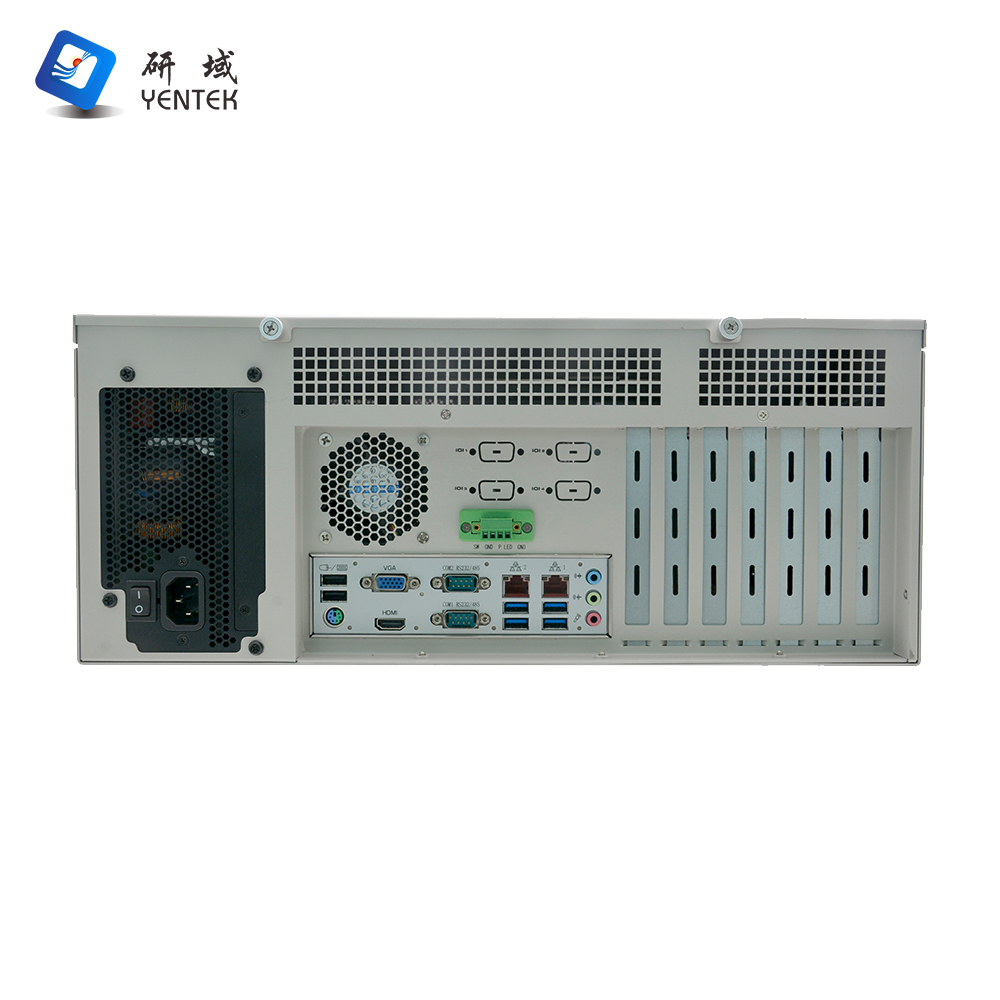

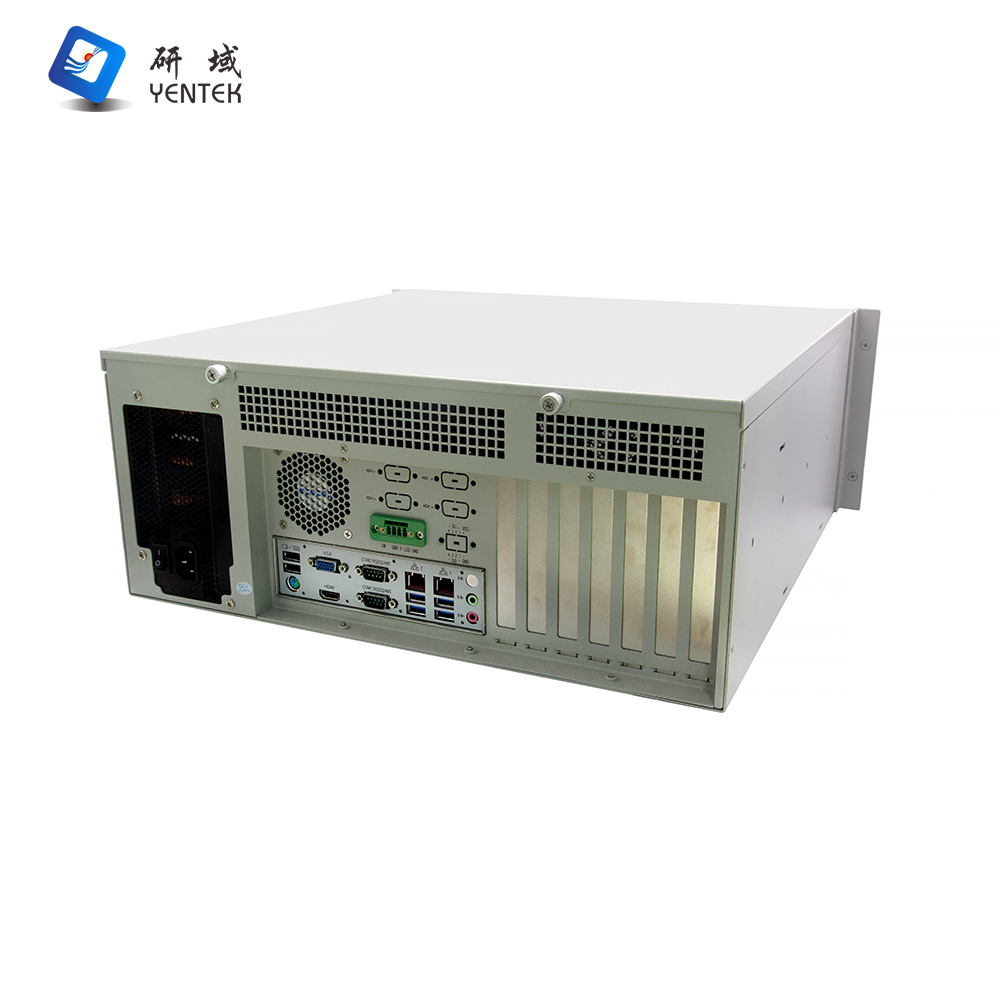

| Rear panel interface | Display interface | 1*VGA，1*HD OUTPUT |
| USB | 6*USB (USB2.0/3.0 quantity depends on motherboard) | |
| LAN | 2*RJ45 | |
| PS/2 | 1*PS/2 | |
| Audio frequency | 1*Line out, 1*MIC | |
| Phoenix Contact | 1*4P Phoenix Contact （ Includes 1* power indicator/1* power-on signal ） | |
2*5P Phoenix Contact (Support 8-bit DIO, 8-bit 2.5KV opto-isolated input/output (external power supply 12～24V)) (optional) | ||
| COM | 2*RS232/485/422 DB9 serial ports, expandable to 4*RS232 DB9 serial ports | |

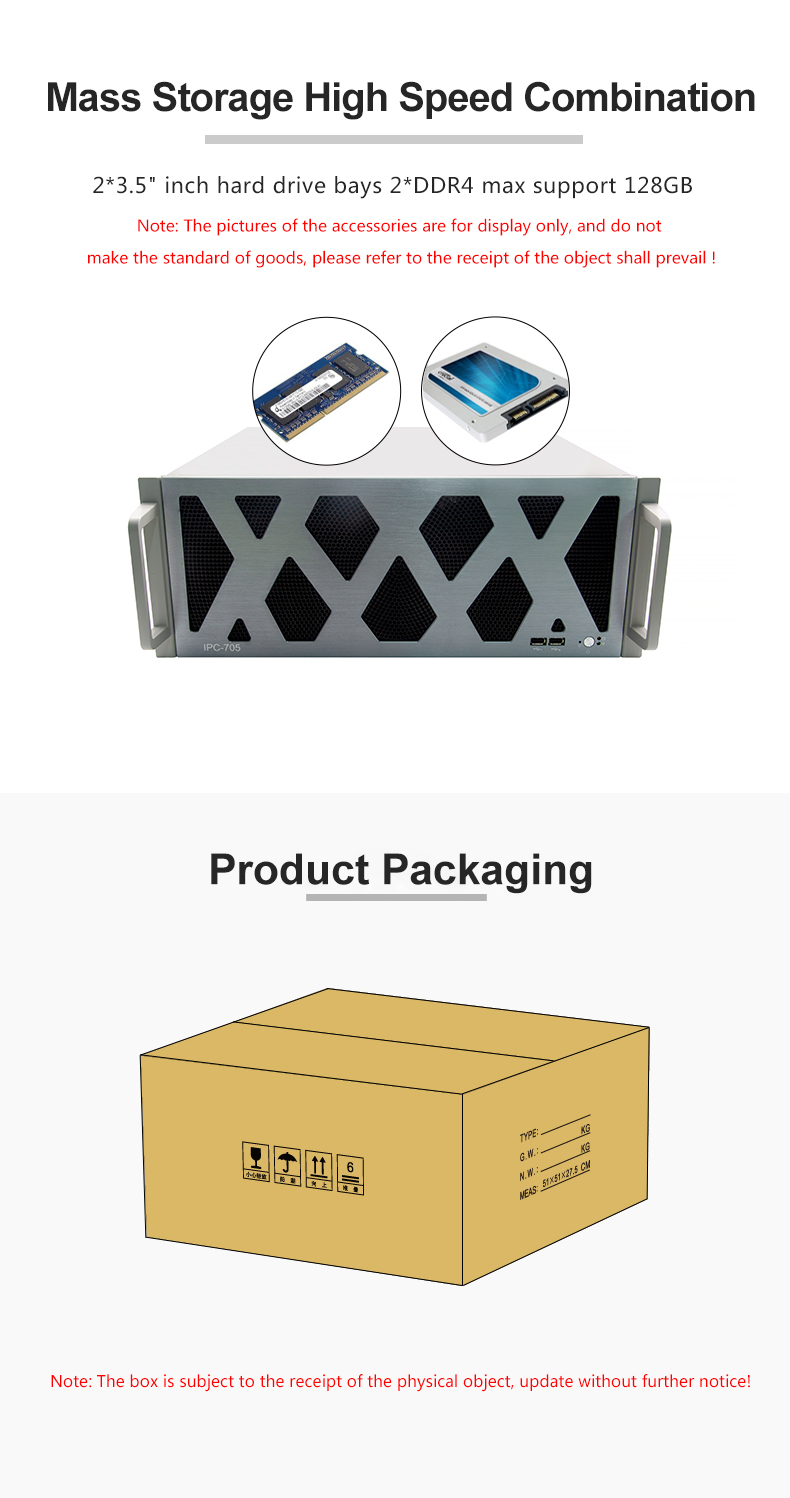

| Storage | SATA | 2*3.5" inch hard drive bays |
| Extend | PCIE/PCI | Support 7*PCIE/PCI standard expansion slots |
| Power | Power type | AC 110~220V |
| power output | Standard ATX power supply | |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |

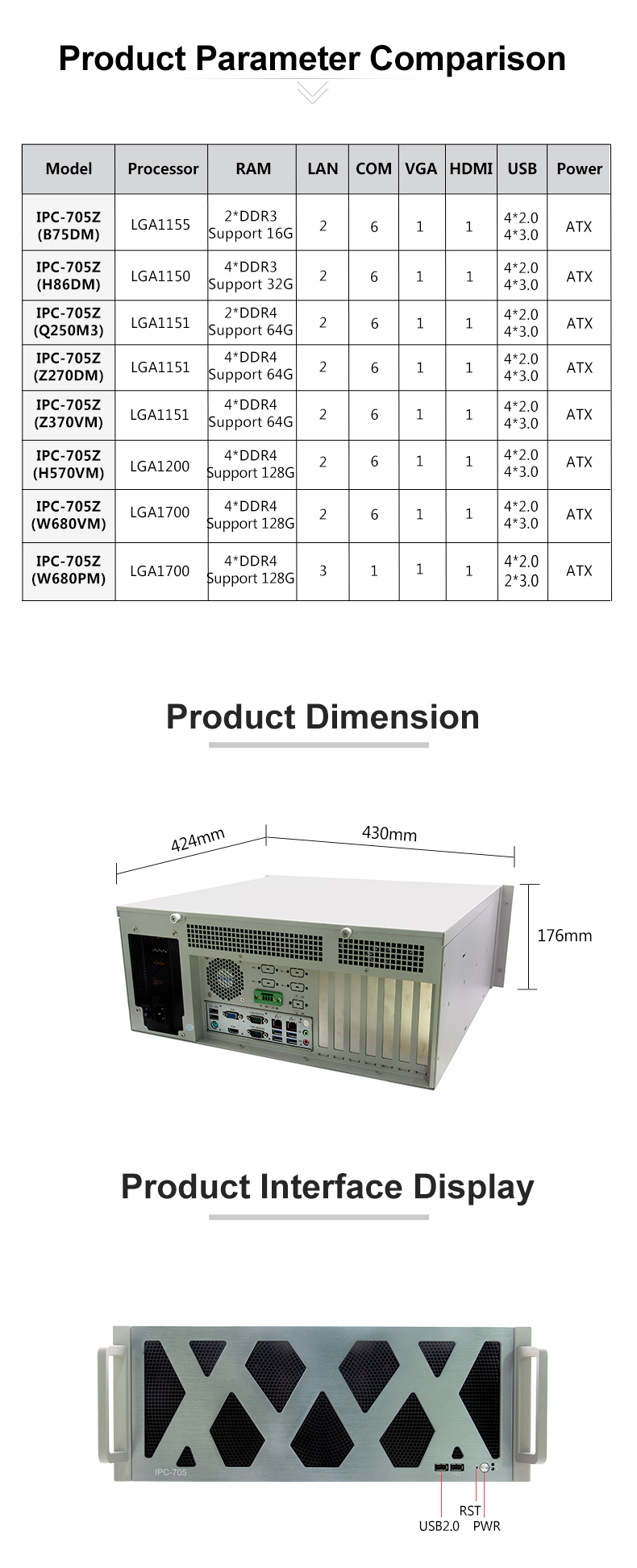

Order Information
| No. | Model | Processor | Motherboard | Memory | IO Board | LAN | GPIO | HD OUTPUT | COM | VGA | M.2 | USB2.0 | USB3.2 | Power |
| 1 | IPC-705Z V1.0(B75DM) | LGA1155 | B75DM | 2*DDR3 | IPC505-SW | 1*I211 1*I219 | 4in4out | 1 | 6 | 1 | 1 | 4 | 4 | ATX |
| 2 | IPC-705Z V1.0(H86DM) | LGA1151 | H86DM | 4*DDR3 | IPC505-SW | 2*I210 | 4in4out | 1 | 6 | 1 | 4 | 4 | ATX | |
| 3 | IPC-705Z V1.0(Z270DM) | LGA1151 | Z270DM | 4*DDR4 | IPC505-SW | 2*I210 | 4in4out | 1 | 6 | 1 | 1 | 4 | 4 | ATX |
| 4 | IPC-705Z V1.0(Z370VM) | LGA1151 | Z370VM | 4*DDR4 | IPC505-SW | 2*I225 | 4in4out | 1 | 6 | 1 | 1 | 4 | 4 | ATX |
| 5 | IPC-705Z V1.0(H570VM) | LGA1200 | H570VM | 4*DDR4 | IPC505-SW | 2*I226 | 4in4out | 1 | 6 | 1 | 1 | 4 | 4 | ATX |
| 6 | IPC-705Z V1.0(W680VM) | LGA1200 | W680VM | 4*DDR4 | IPC505-SW | 2*I226 | 4in4out | 1 | 6 | 1 | 1 | 4 | 4 | ATX |
| 7 | IPC-705Z V1.0(W680PM) | LGA1200 | W680PM | 4*DDR4 | IPC505-SW | 2*I210 1*I219 | 4in4out | 1 | 6 | 1 | 1 | 4 | 4 | ATX |
| 8 | IPC-705Z V1.0(Q250M3) | LGA1151 | Q250M3 | 2*DDR4 | IPC505-SW | 2*I210 | / | 1 | 1 | 1 | 1 | 4 | 2 | ATX |
NOTE: 1, 4 in 4 out GPIO for optional, some motherboards do not support.
OAccessories list
No. | Number | Descriptive | Quantity | Unit | Note |
| 1 | 03.02.N05-P505L-00 | Hangers，L176*W20*H15mm | 1 | Set | Standard |
| 2 | 03.02.N05-IPC55-10 | Stand，L126*W28.5*T4.5mm | 1 | Set | Standard |
| 3 | 03.03.J01-0H015-00 | National Standard Power Cord_L=1.5m Pin Tail | 1 | Pcs | Standard |
| 4 | 03.03.J01-0H015-00 | ATX 300W power | 1 | Pcs | Standard |
| 5 | 03.01.DC0-GW850-00 | ATX 850W power | 1 | Pcs | Optional |
| 6 | 03.01.DC0-1200F-12 | ATX 1200W power | 1 | Pcs | Optional |
| 7 | 01.01.CPM-PCGP-100 | IPC-GPIO8，4 in 4 out GPIO adapter boards | 1 | Pcs | Optional |
| 8 | 03.03.K18-25420-35 | 4 in 4 out adapter cable | 1 | Pcs | Optional |
